Cooling System Component Views

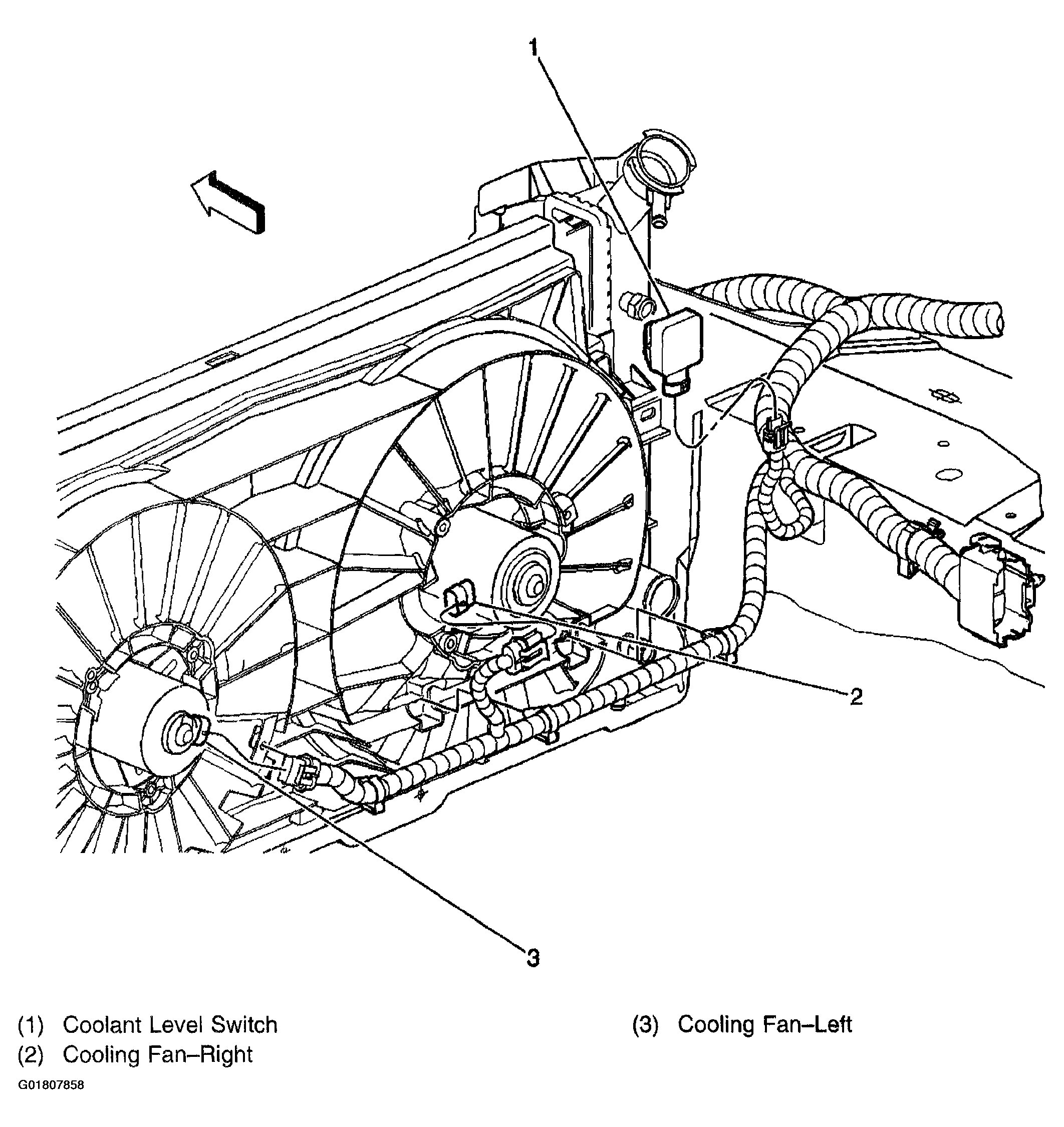

Fig 1: Locating Cooling Fans & Coolant Level Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
