Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Align the notch in the outside rearview mirror remote control bezel (1) with the tab in the hole at the front of the armrest.
  3. Press on the base of the outside rearview mirror remote control bezel to release the bezel from the door trim panel.

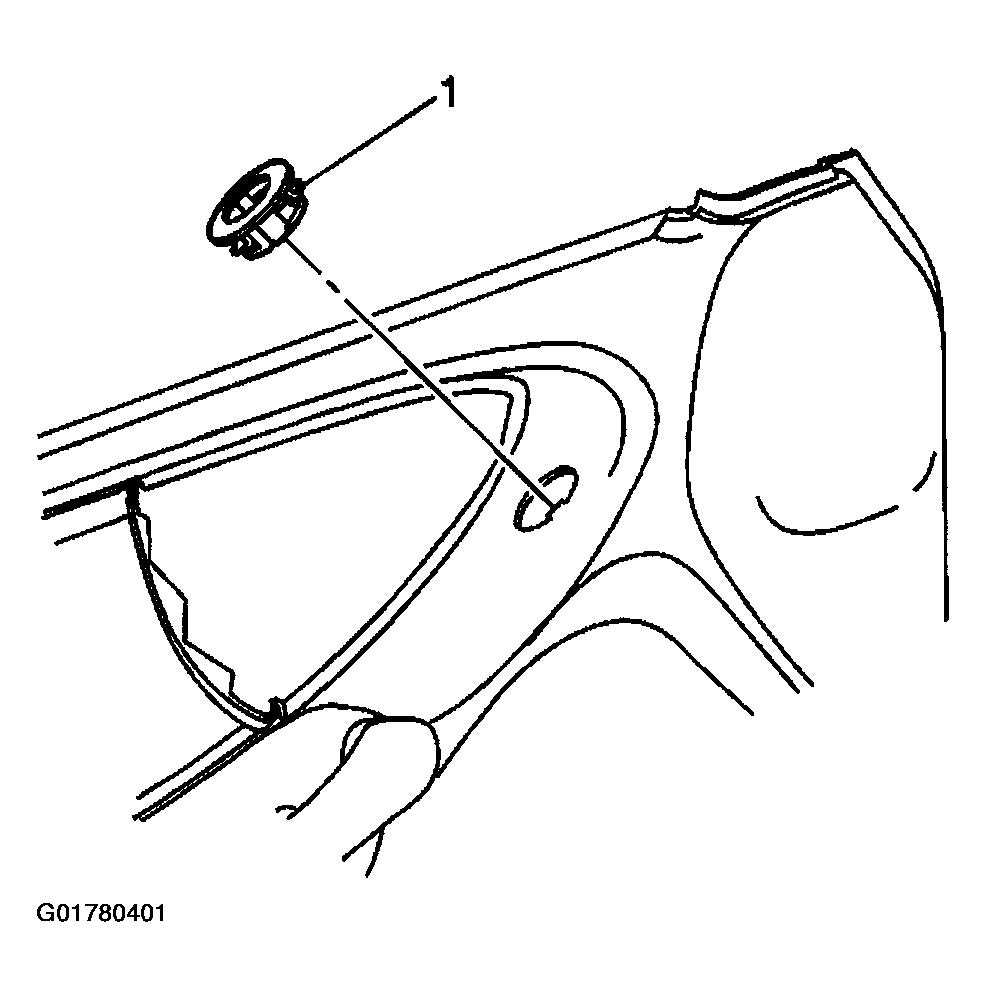

    Fig 1: Aligning Notch In Outside Rearview Mirror Remote Control Bezel
    G01780401Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door inner panel mirror insulators (3).
  5. Remove the outside rearview mirror nuts (2).
  6. Remove the outside rearview mirror (1) from the front door.

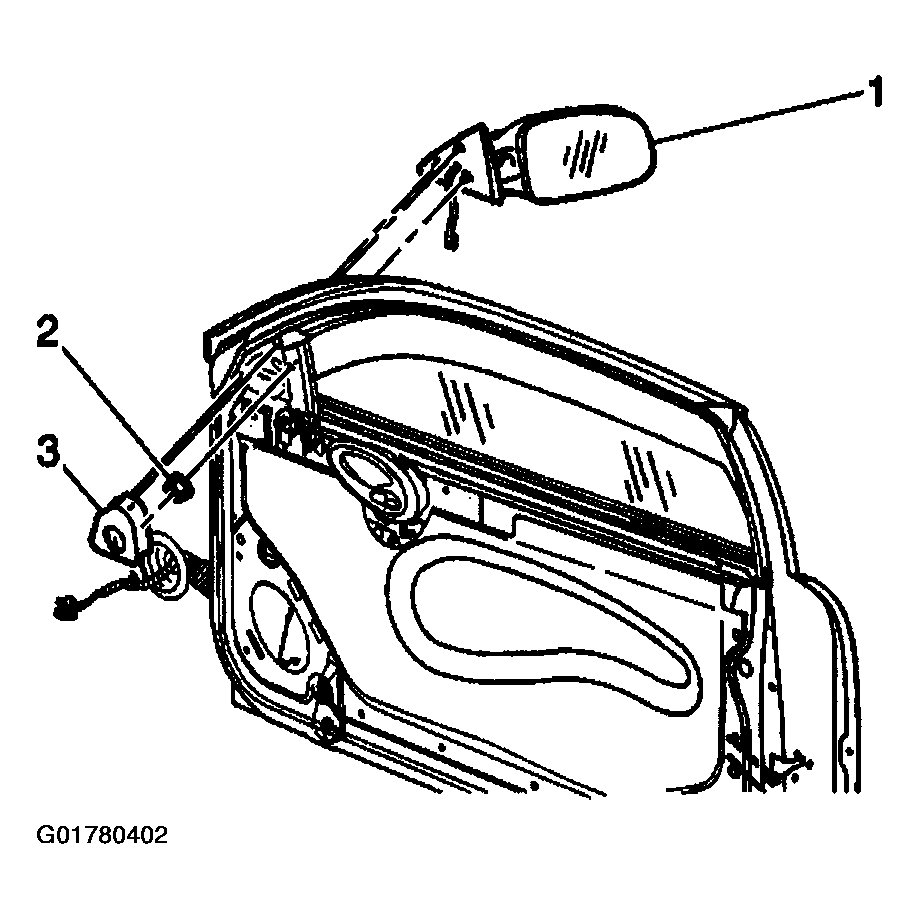

    Fig 2: Removing Outside Rearview Mirror
    G01780402Courtesy of GENERAL MOTORS CORP.
