Removal Procedure

  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Pull upward on the inner belt sealing strip (1) in order to disengage it from the door flange.
  3. Remove the rear door inner belt sealing strip from the door.

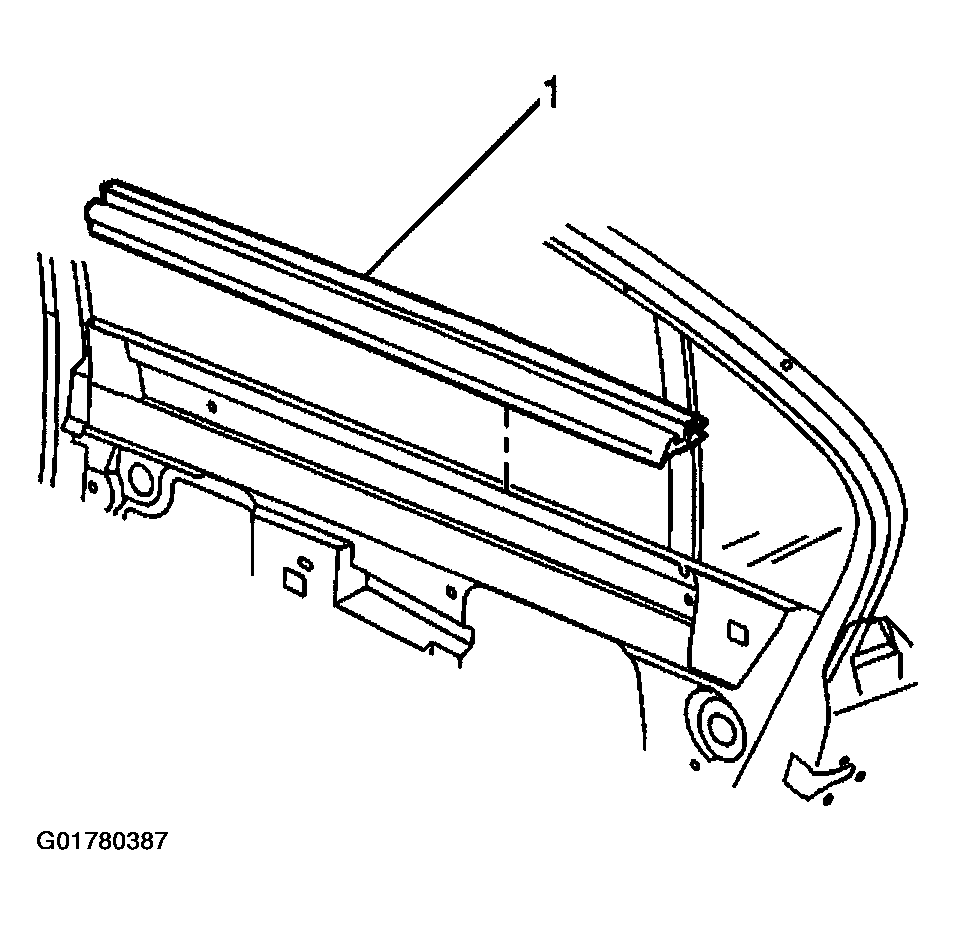

    Fig 1: Removing Rear Door Inner Belt Sealing Strip
    G01780387Courtesy of GENERAL MOTORS CORP.
