Removal Procedure

  1. Lower the front door window.
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement-Front Door Window Belt Outer .
  4. Remove the front door window sash nuts.
  5. Remove the front door window (1) from the front door.
  6. Drill out the front door window sash (3) rivets (4).
  7. Remove the front door window sash (3) from the front door window.
  8. Remove the front door window sash spacer (2) from the front door window.

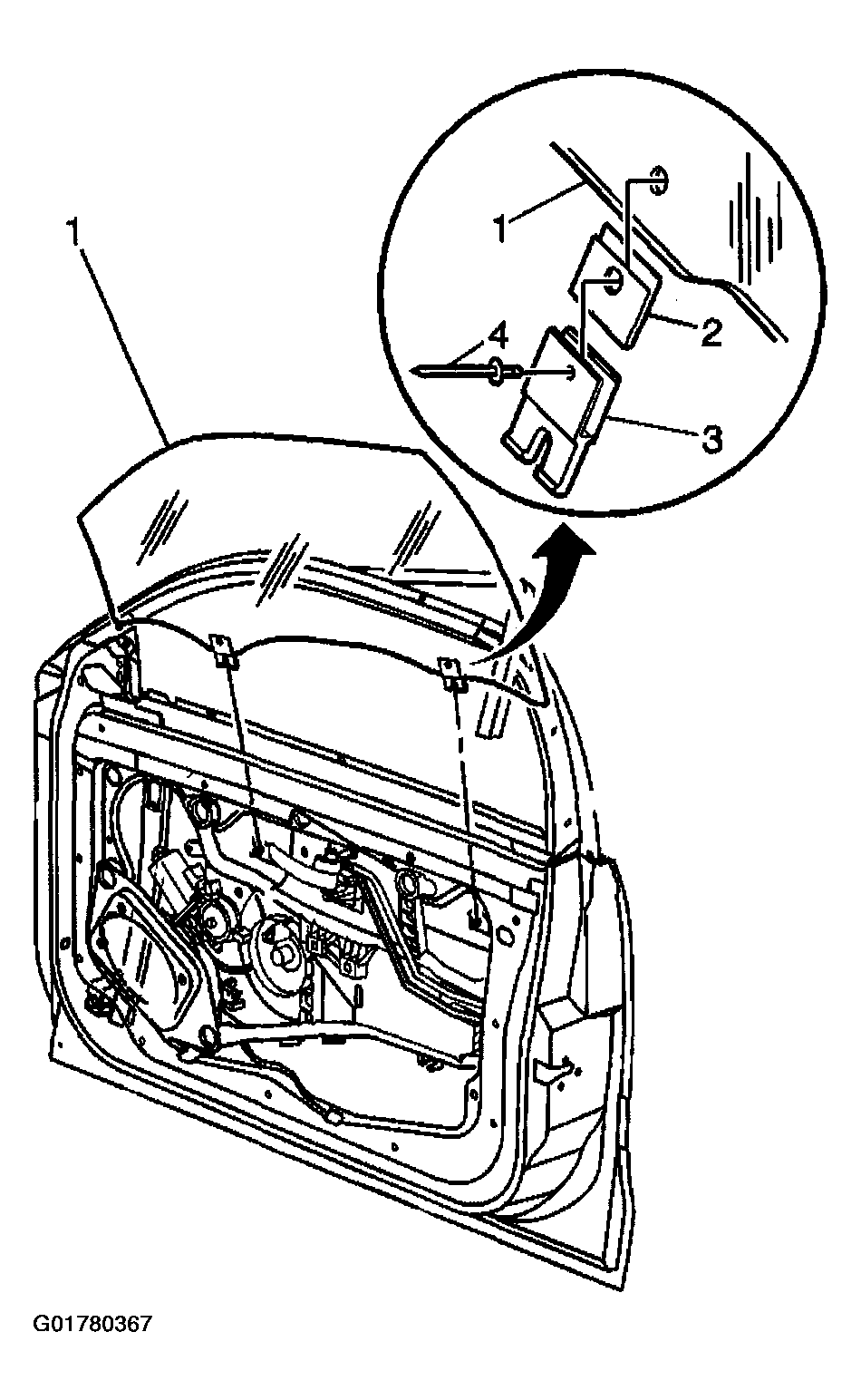

    Fig 1: Removing Front Door Window
    G01780367Courtesy of GENERAL MOTORS CORP.
