Data Link Communications Component Views

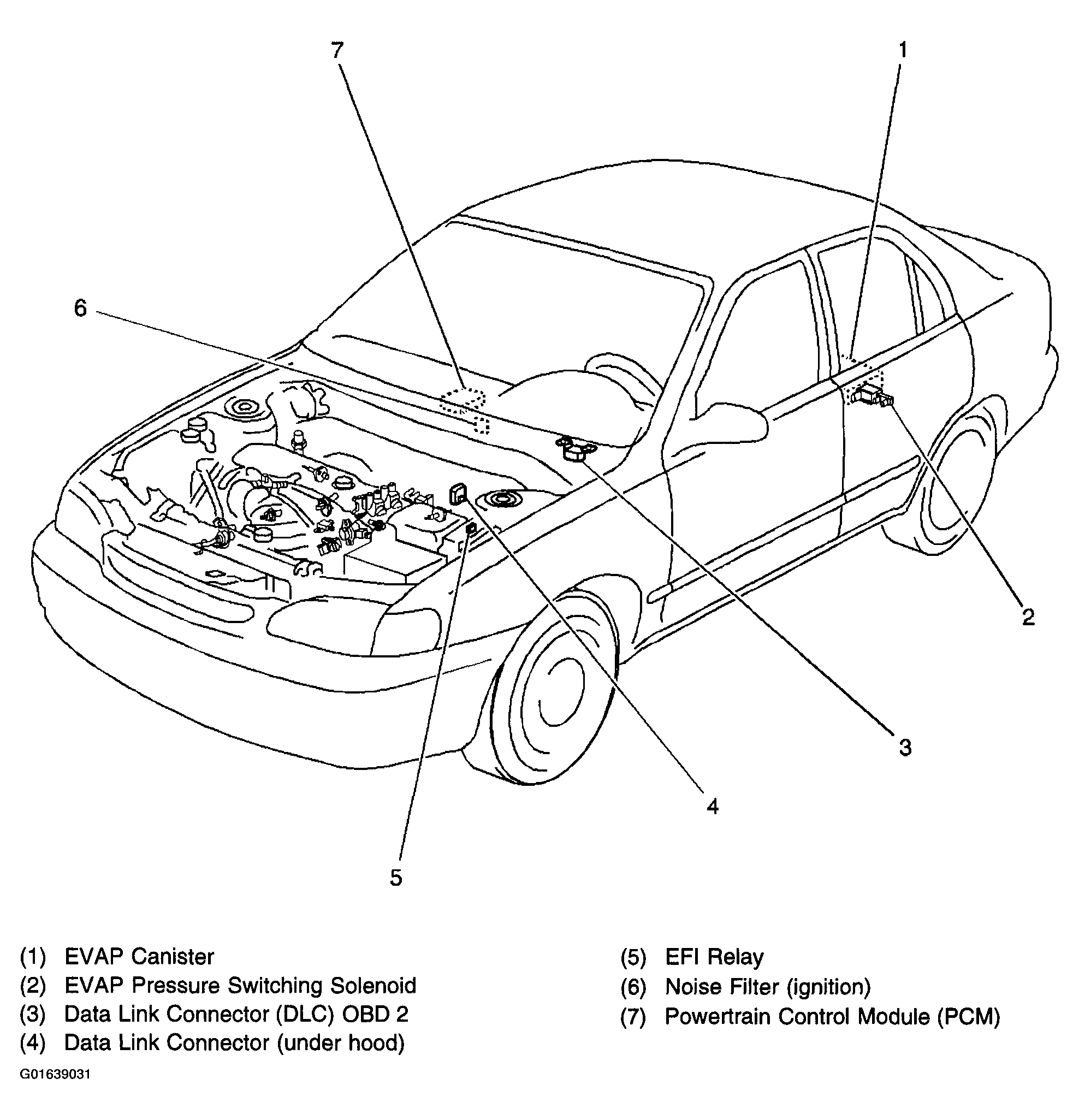

Fig 1: Data Link Communications Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
