Removal Procedure
- Remove the steering wheel inflatable restraint module. Refer to AIR BAG RESTRAINT SYSTEMS
in SIR.

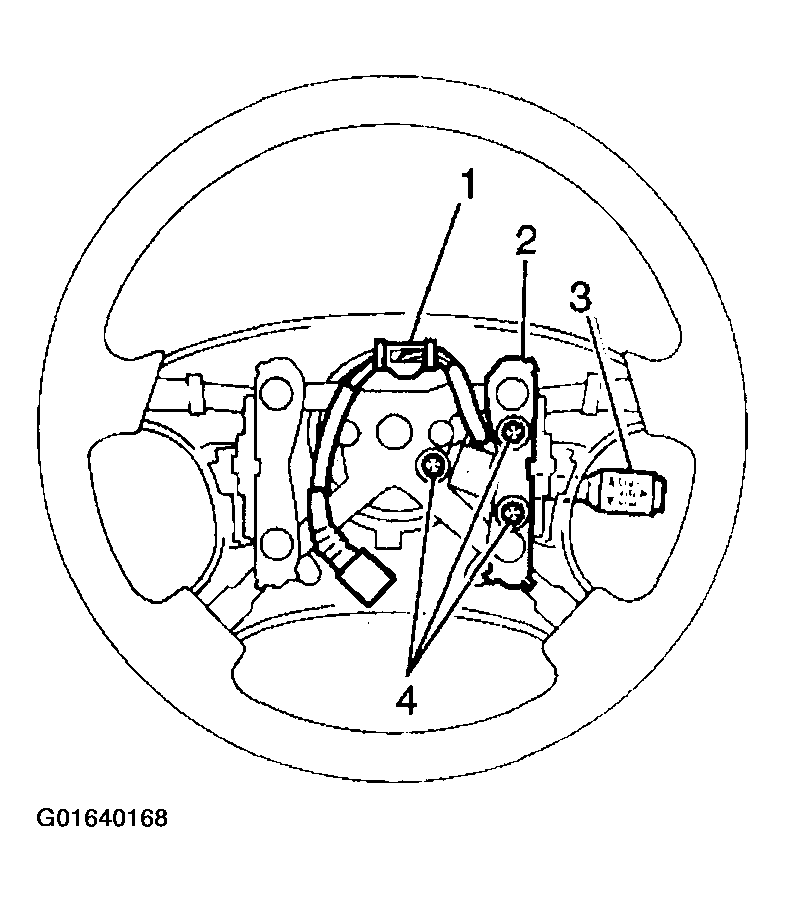

- Disconnect the cruise control switch electrical connector (1) from the steering wheel inflatable restraint module coil.
Courtesy of GENERAL MOTORS CORP.
- Open the Terminal Position Assurance (TPA) on the top of the cruise control switch electrical connector with a terminal remover from the J 38125-B.
- Remove the red/blue wire (2) from the cruise control switch electrical connector (1) with a terminal remover from the J 38125-B.
Courtesy of GENERAL MOTORS CORP.

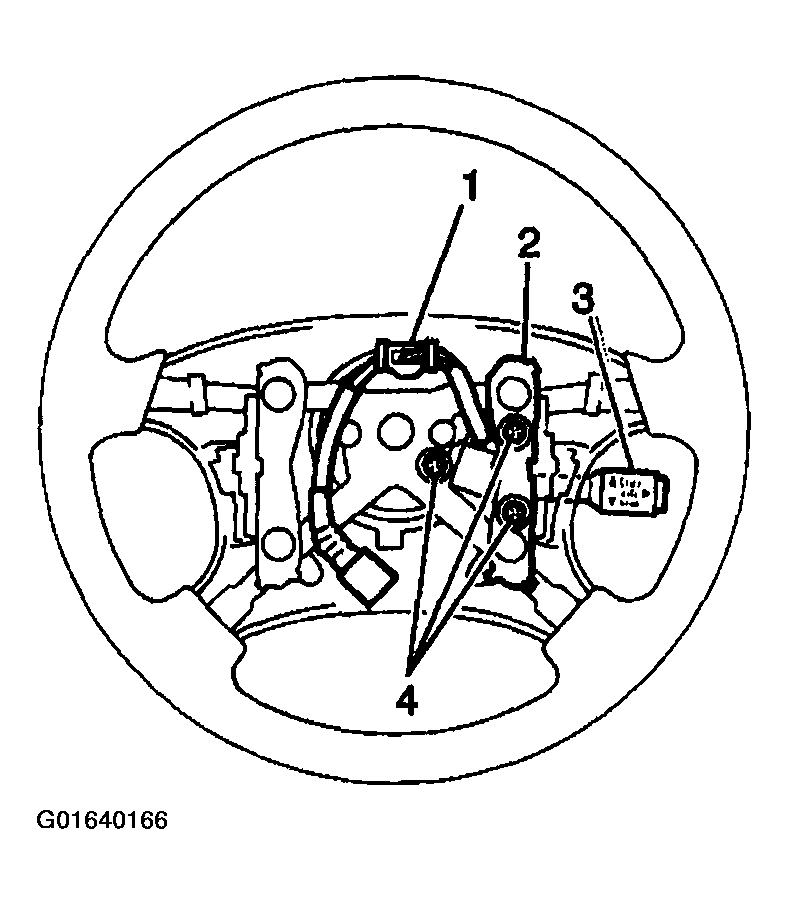

- Using a Allen head socket, remove the right horn contact bolts.
- Remove the right horn contact (2) from the steering wheel.
Courtesy of GENERAL MOTORS CORP.
- Remove the following components from the vehicle:
- The 3 cruise control switch screws (4)
- The cruise control switch (3)
