Power Door Systems Component Views

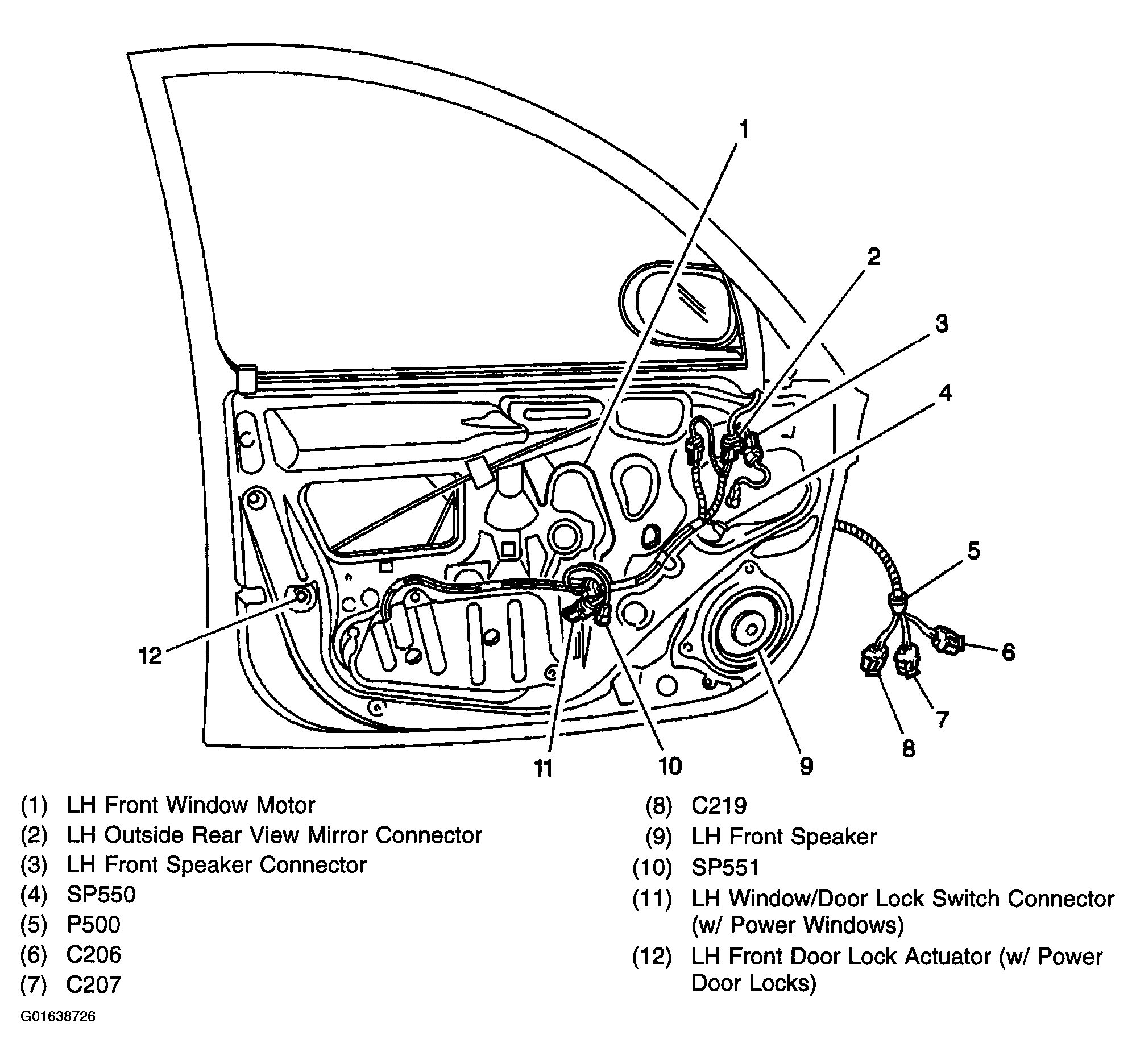

Fig 1: LH Front Door View
G01638726Courtesy of GENERAL MOTORS CORP.

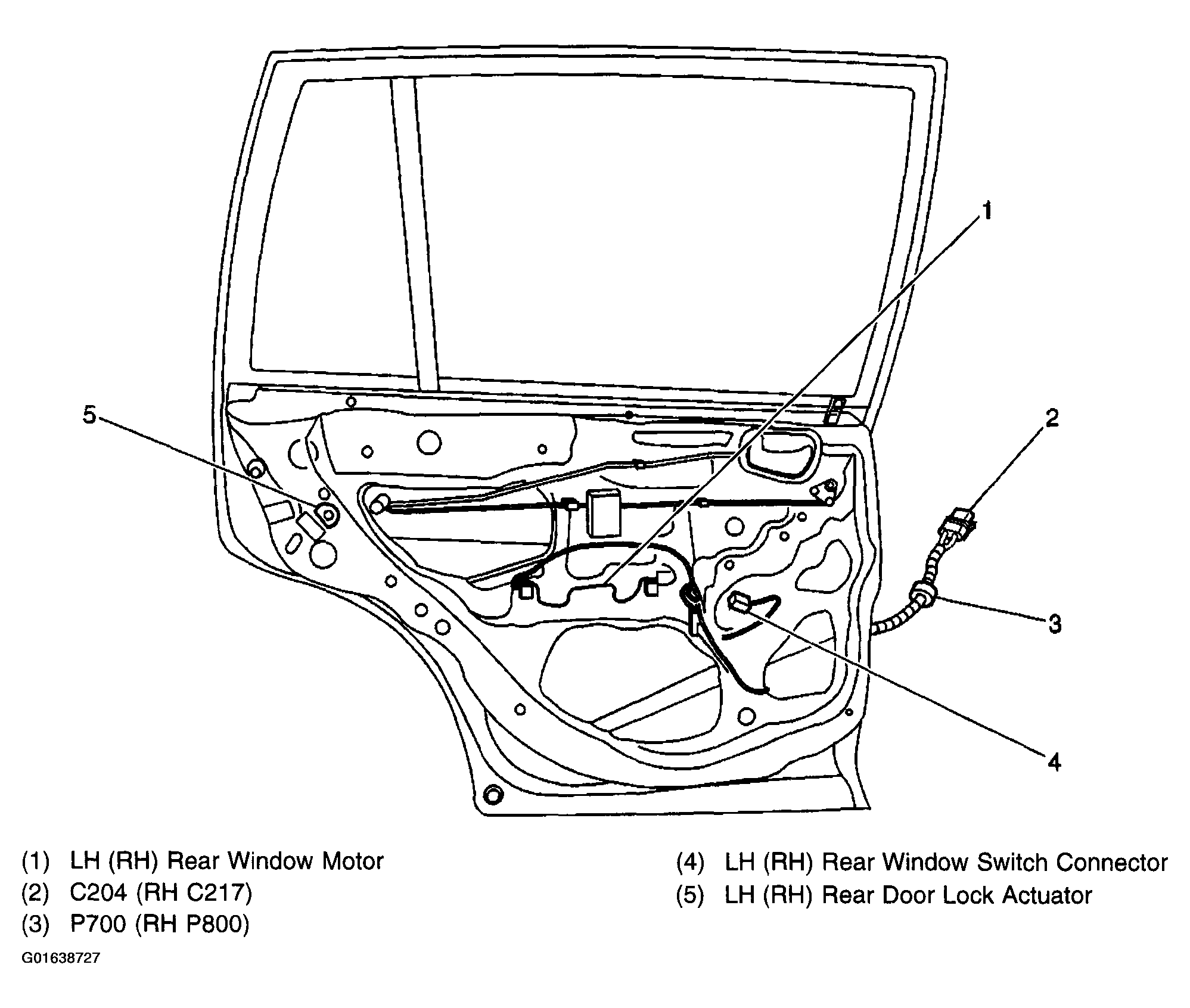

Fig 2: LH Rear Door View (RH Similar)
G01638727Courtesy of GENERAL MOTORS CORP.

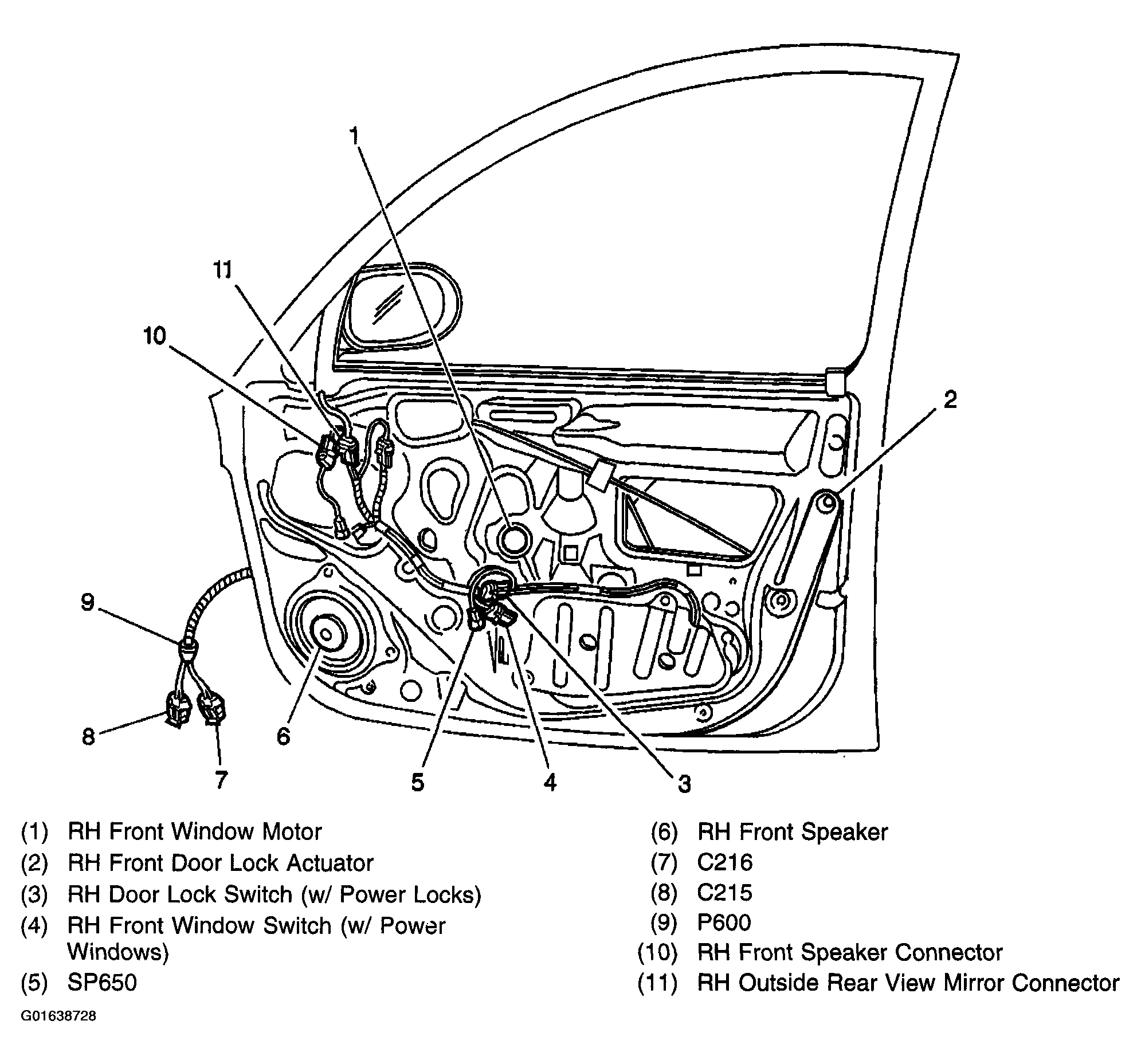

Fig 3: RH Front Door View
G01638728Courtesy of GENERAL MOTORS CORP.
