Power Door Systems Connector End Views

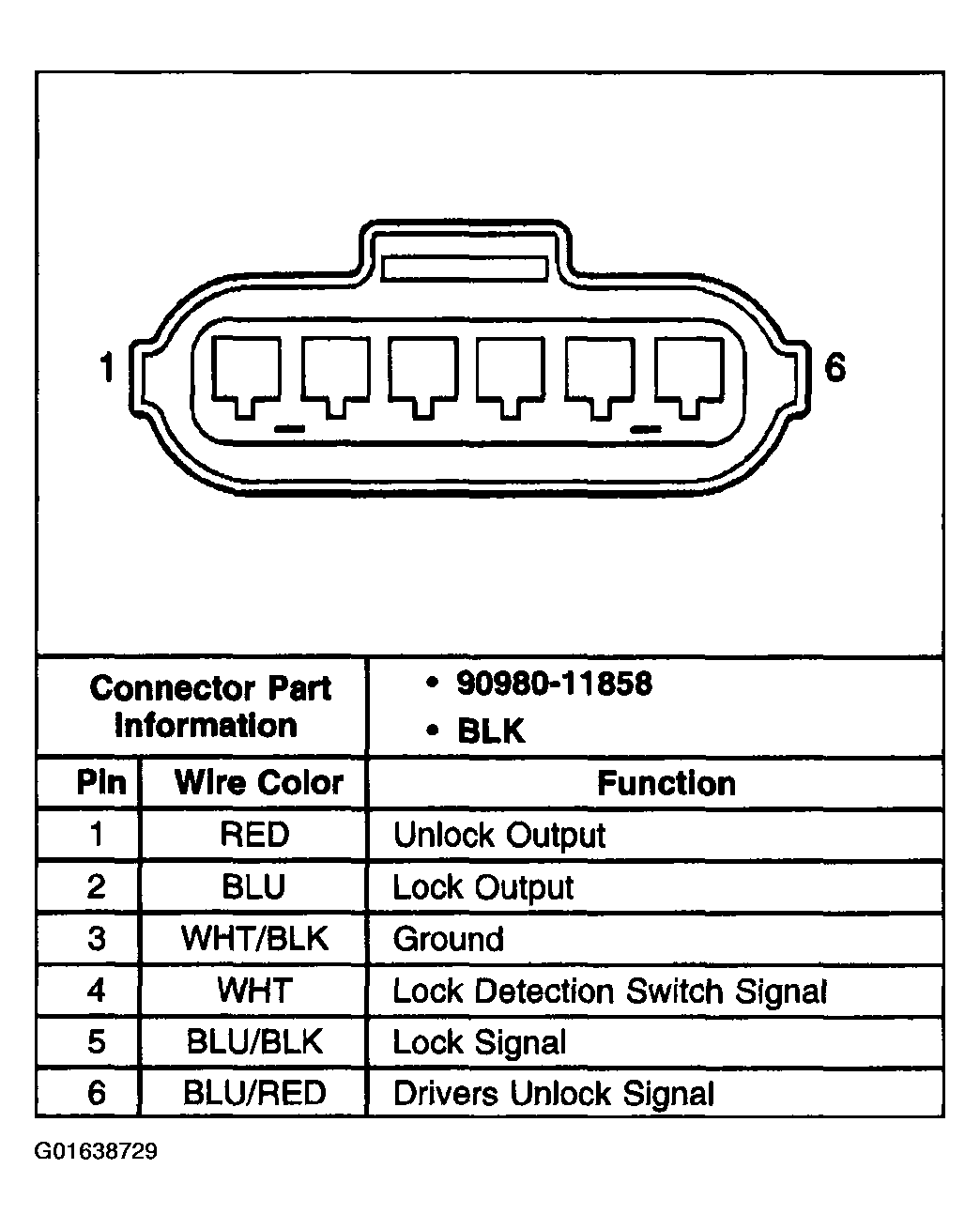

Fig 1: LH Front Door Lock Actuator

G01638729

Courtesy of GENERAL MOTORS CORP.

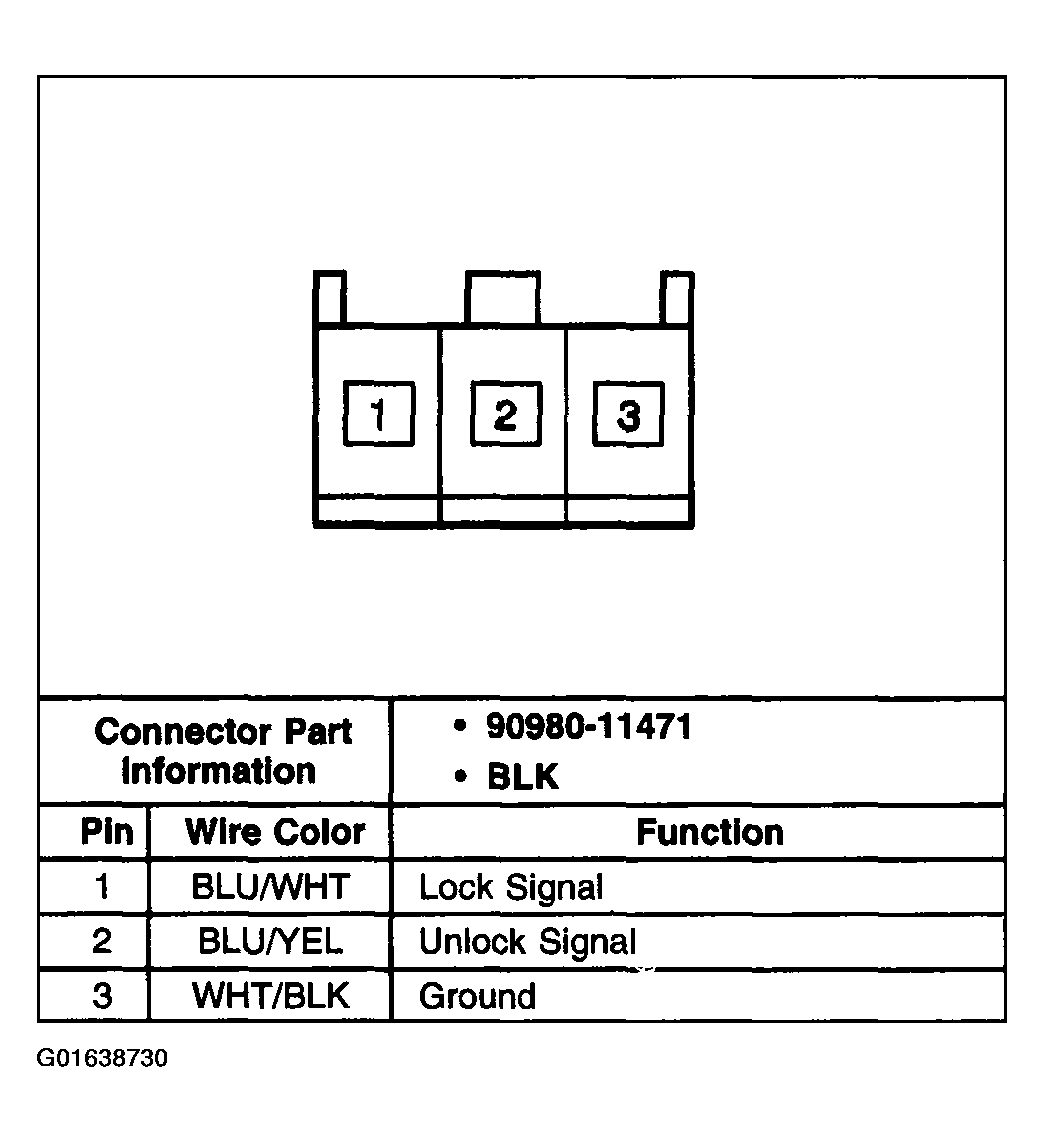

Fig 2: LH Door Lock Switch (w/out Power Windows)

G01638730

Courtesy of GENERAL MOTORS CORP.

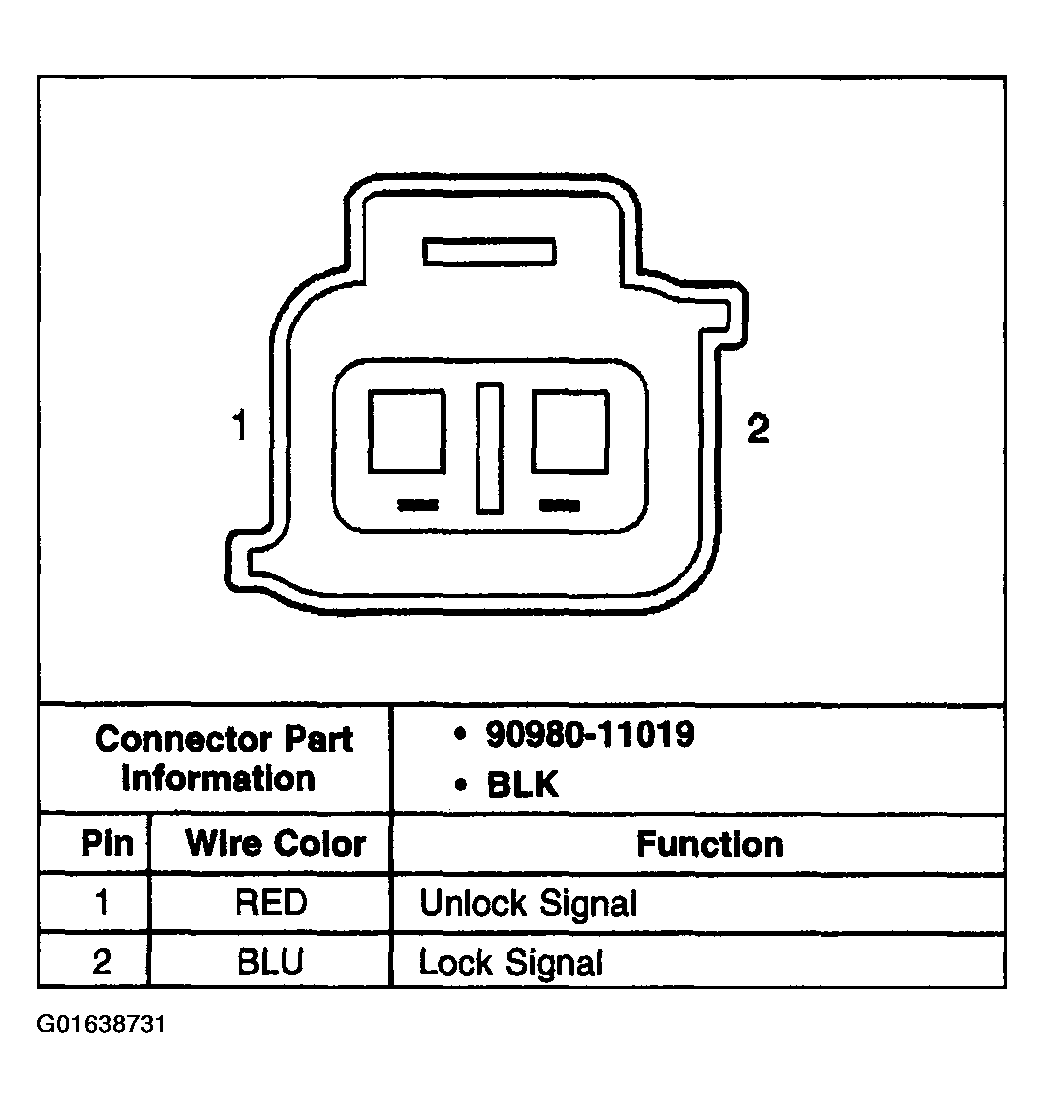

Fig 3: LH Rear Door Lock Actuator

G01638731

Courtesy of GENERAL MOTORS CORP.

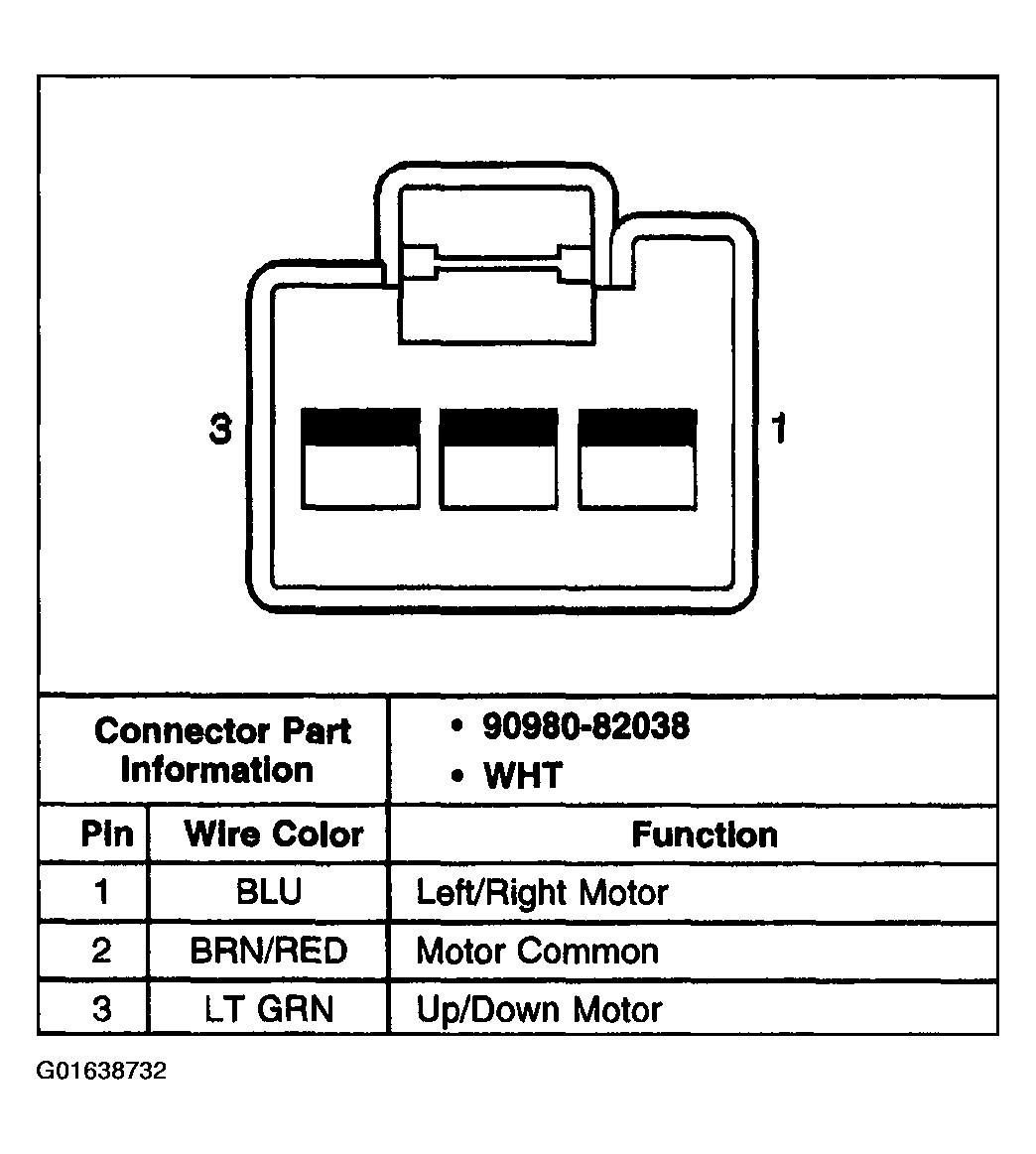

Fig 4: LH Outside Rear View Mirror Assembly

G01638732

Courtesy of GENERAL MOTORS CORP.

Fig 5: LH Front Window Motor

G01638733

Courtesy of GENERAL MOTORS CORP.

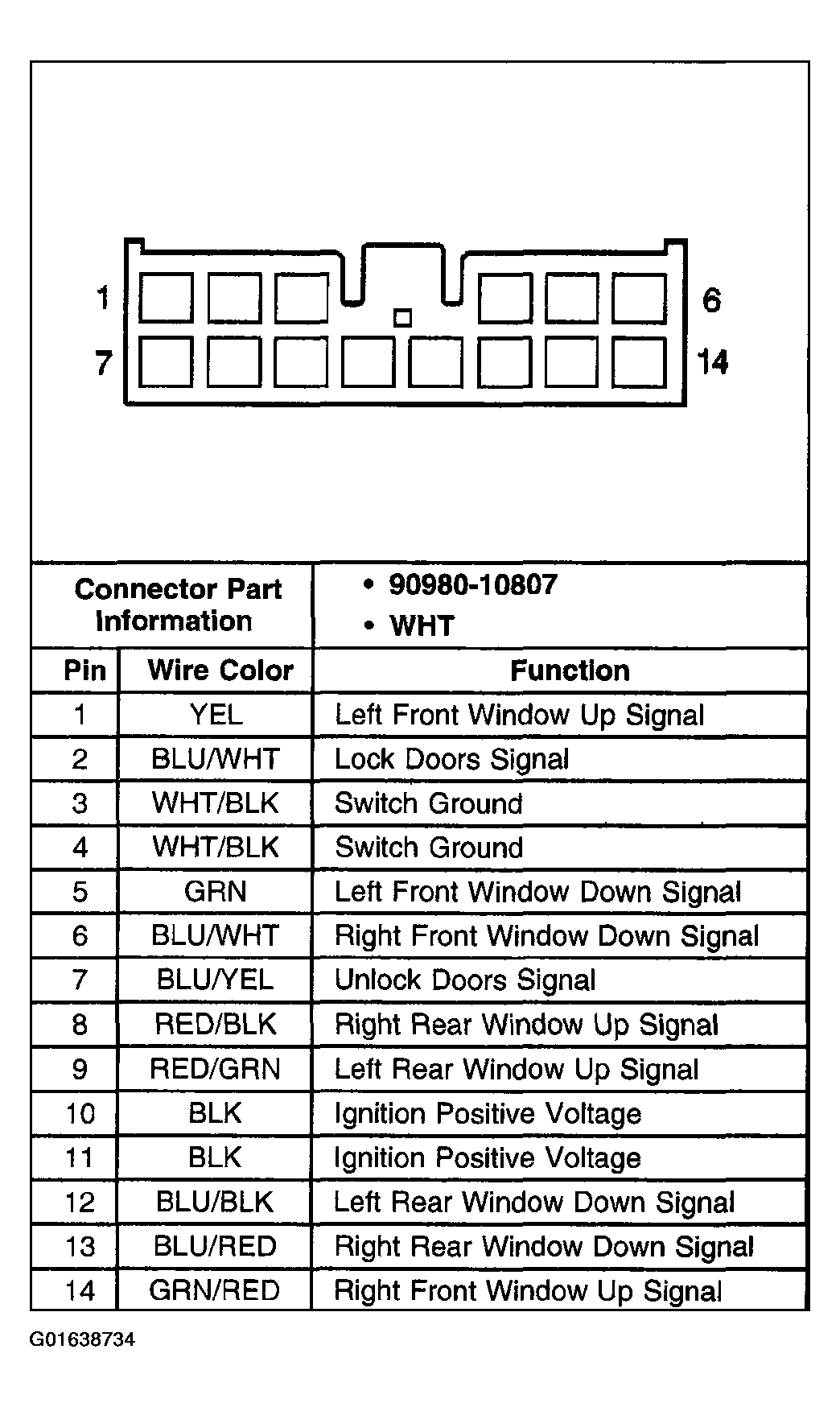

Fig 6: LH Window/Door Lock Switch

G01638734

Courtesy of GENERAL MOTORS CORP.

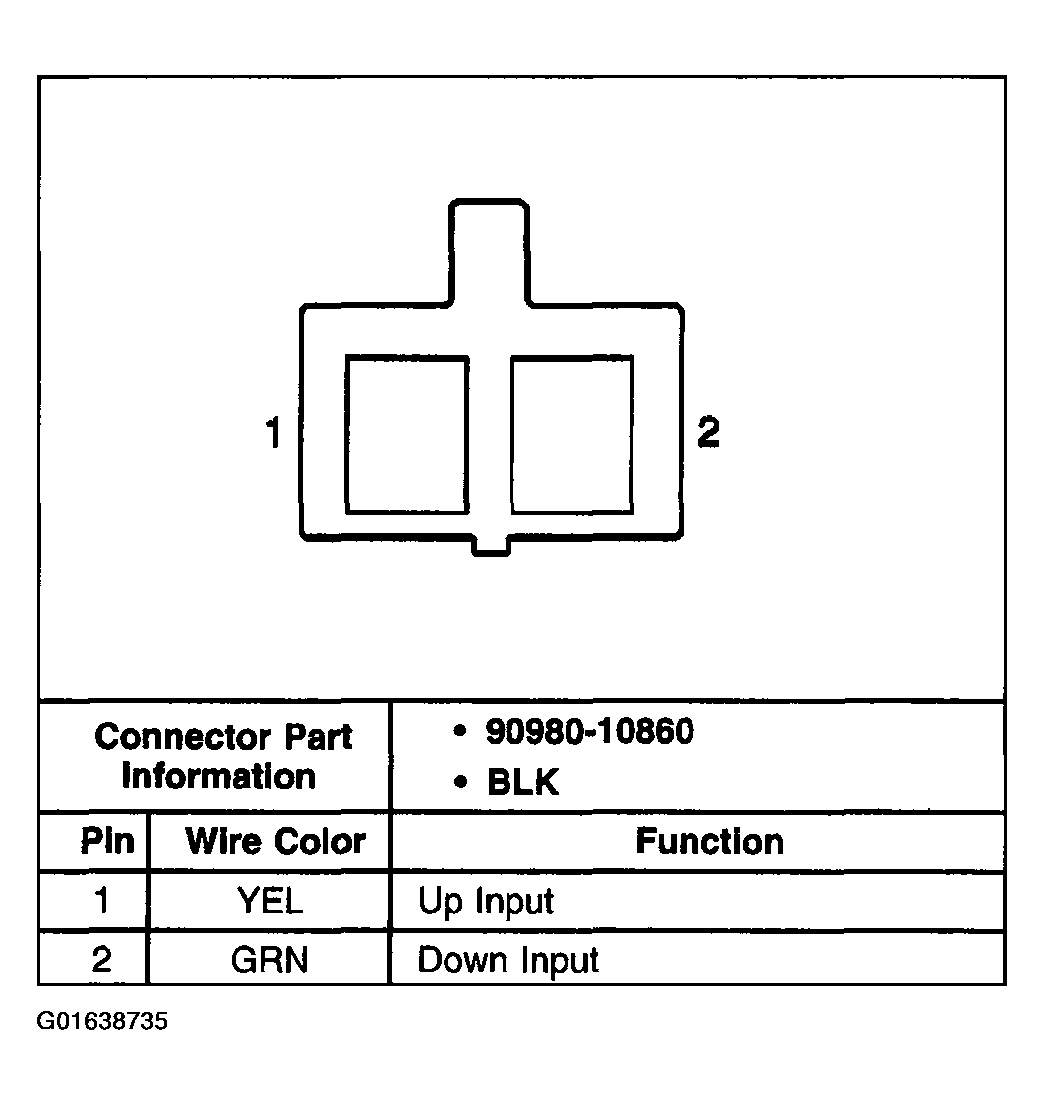

Fig 7: LH Rear Window Motor

G01638735

Courtesy of GENERAL MOTORS CORP.

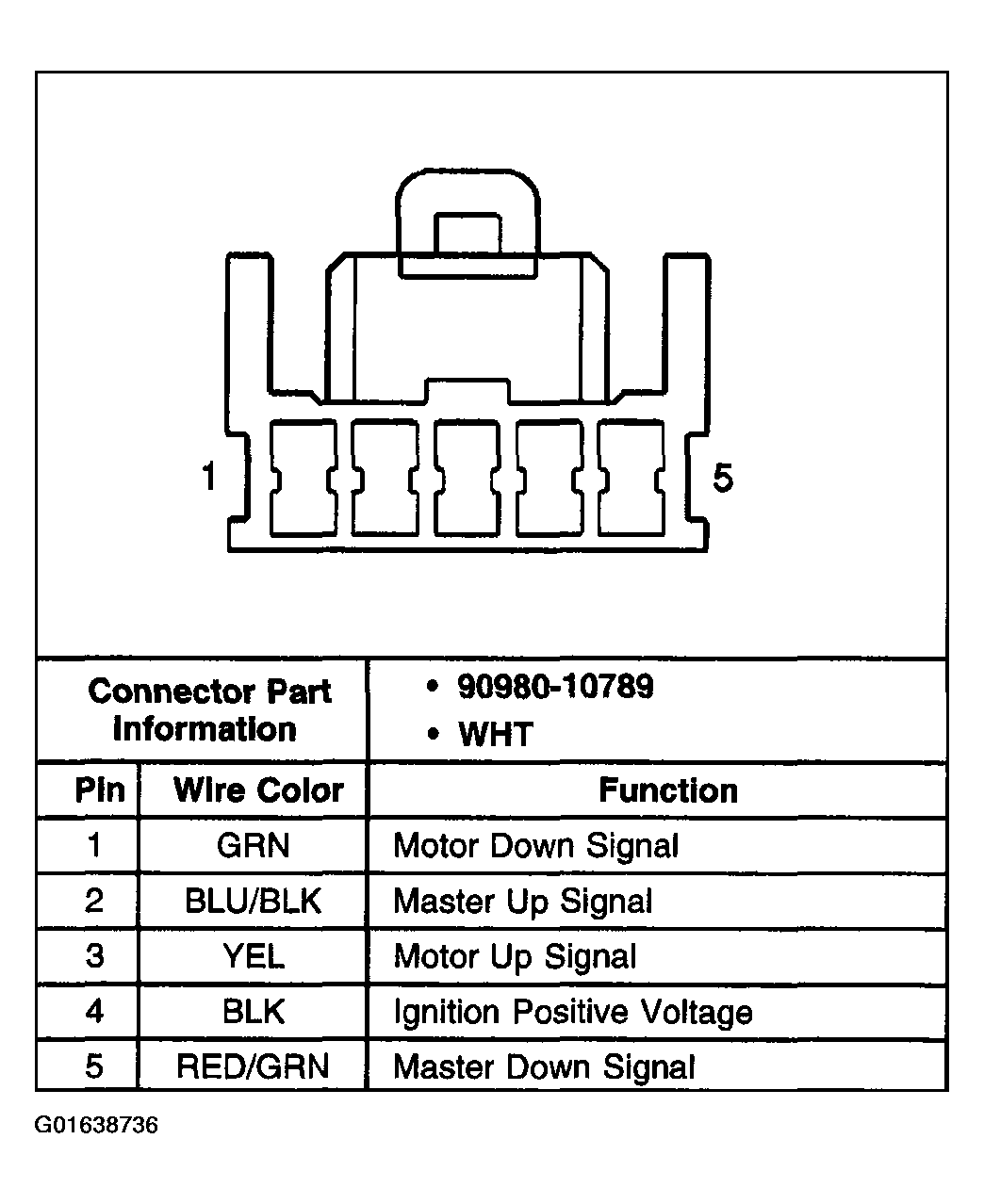

Fig 8: LH Rear Window Switch

G01638736

Courtesy of GENERAL MOTORS CORP.

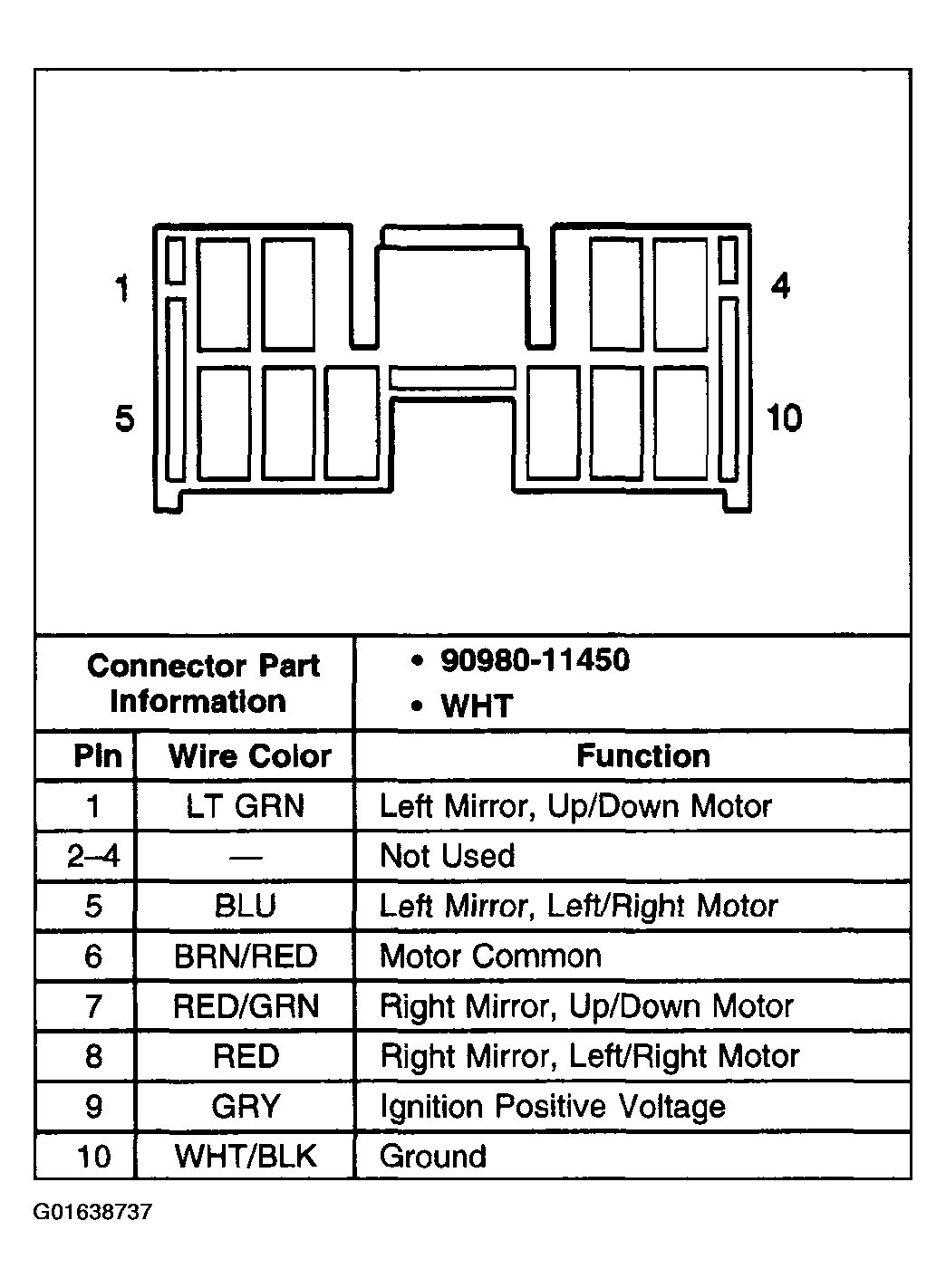

Fig 9: Outside Rear View Mirror Switch

G01638737

Courtesy of GENERAL MOTORS CORP.

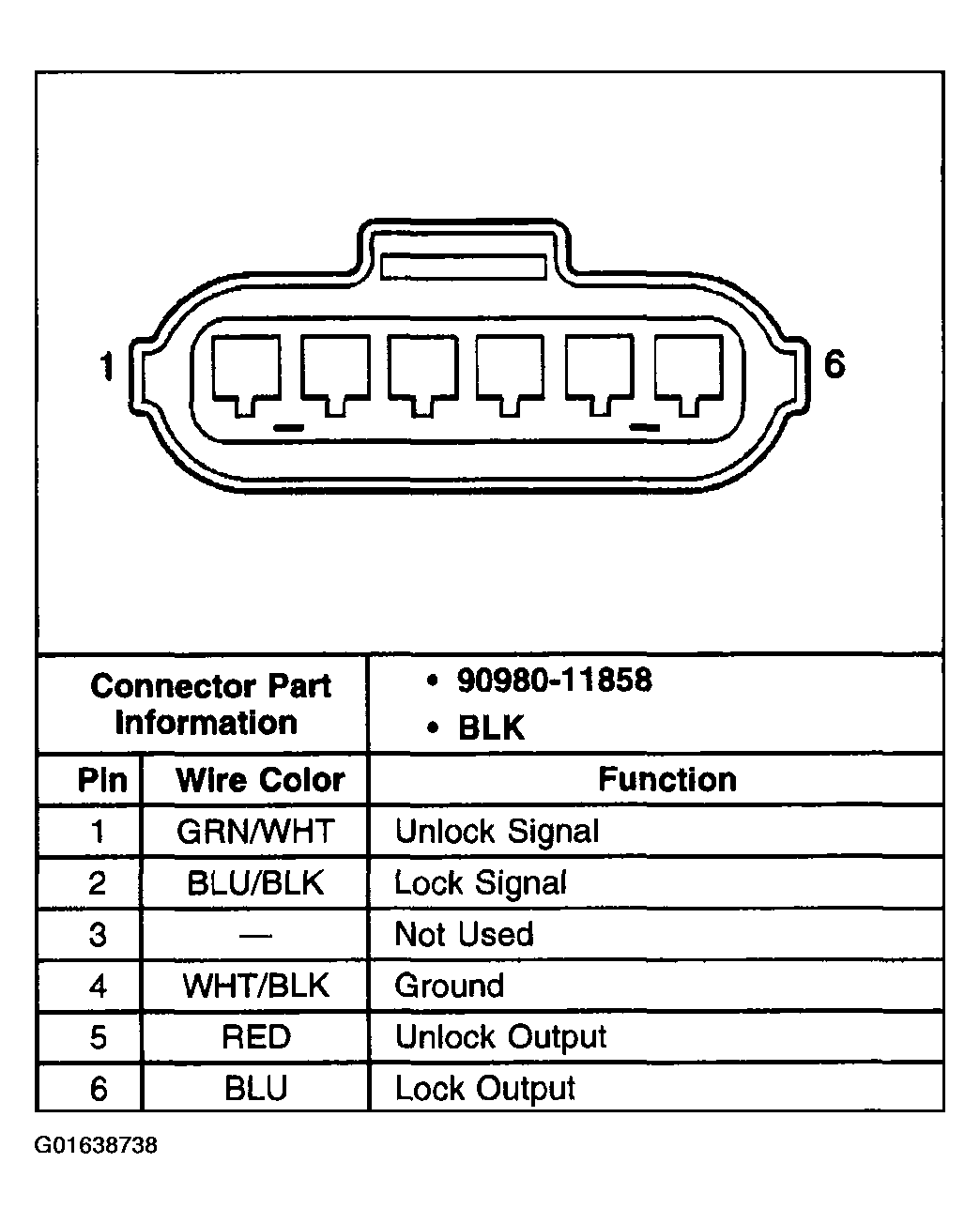

Fig 10: RH Front Door Lock Actuator

G01638738

Courtesy of GENERAL MOTORS CORP.

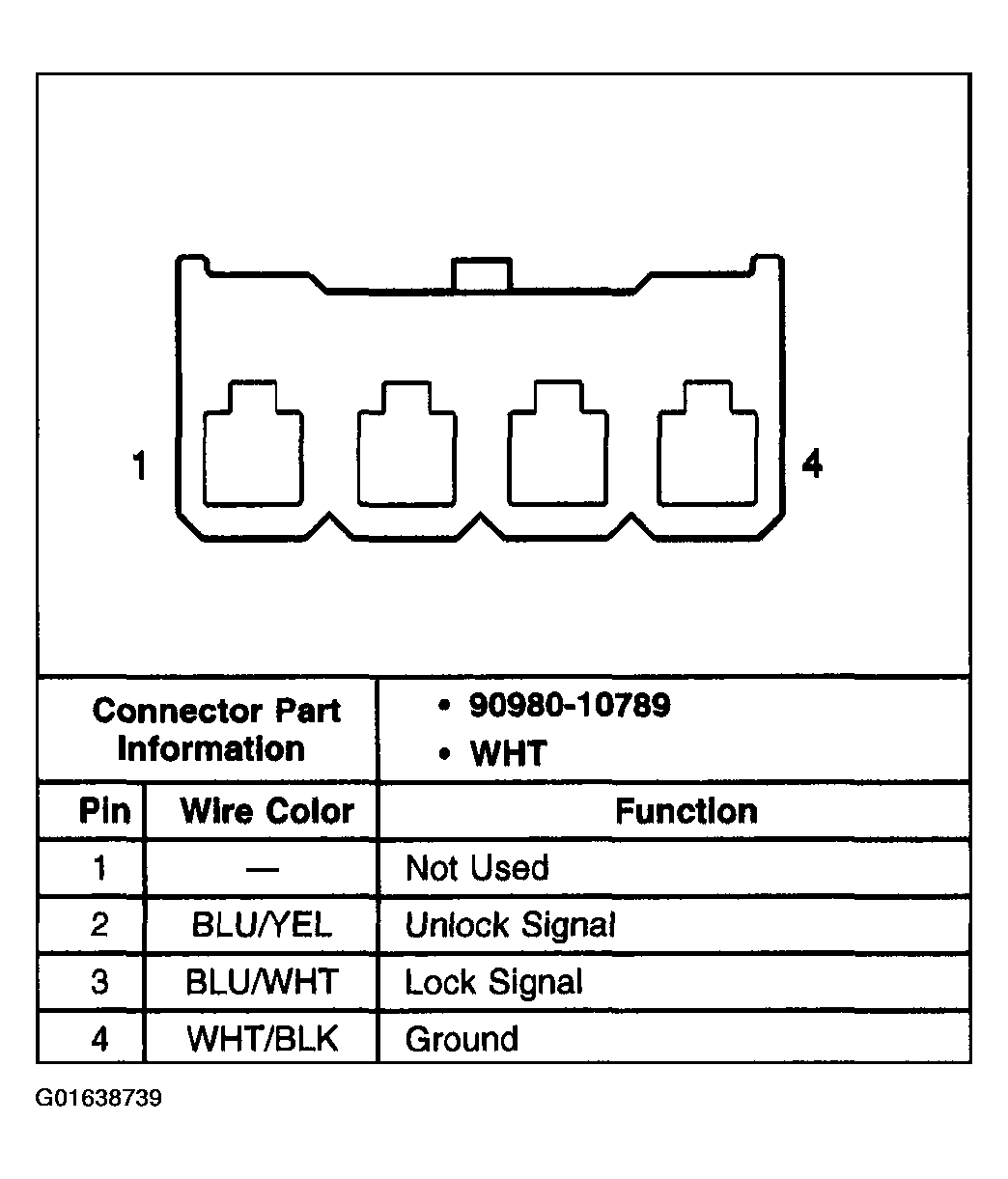

Fig 11: RH Door Lock Switch (With Power Windows)

G01638739

Courtesy of GENERAL MOTORS CORP.

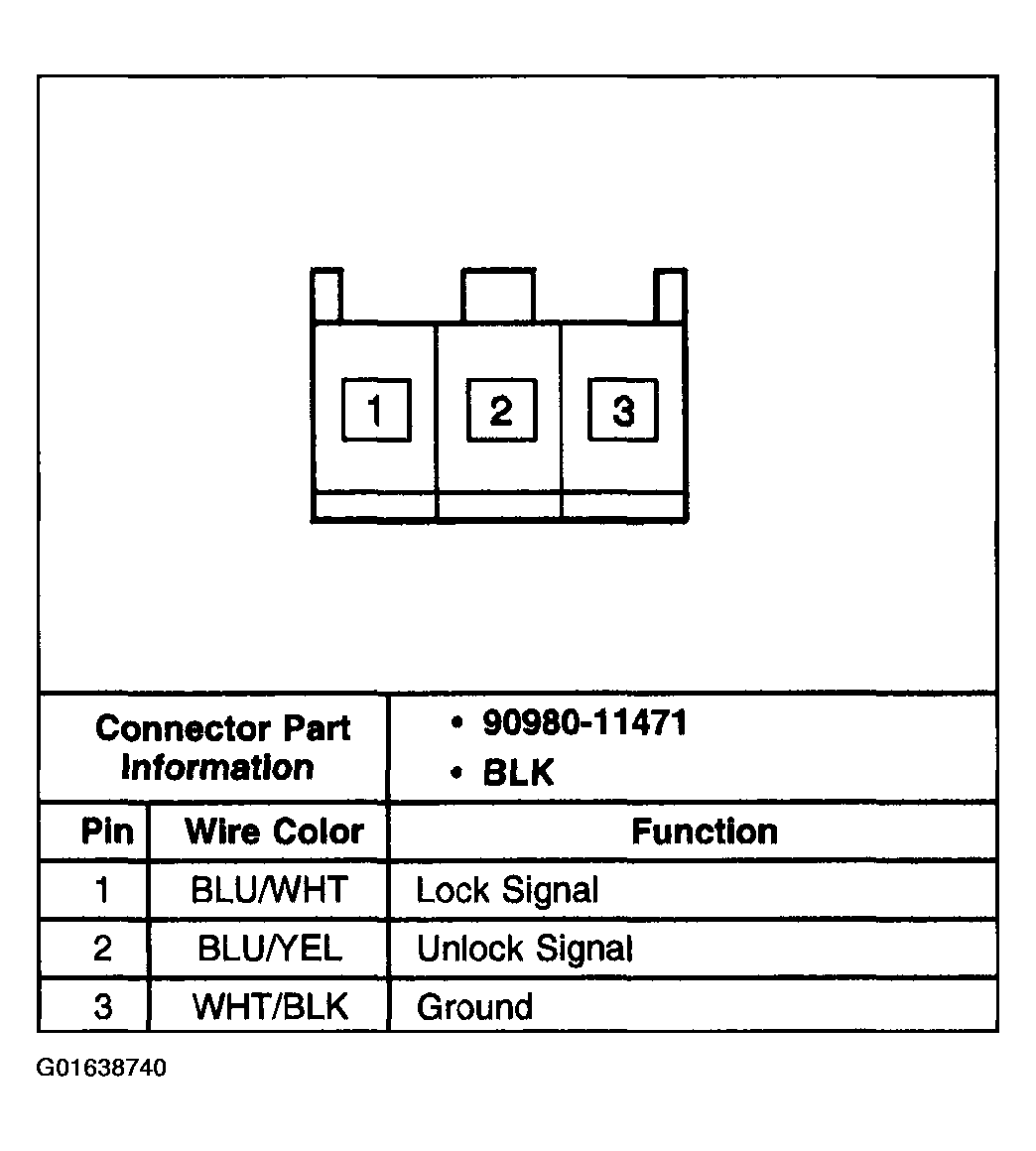

Fig 12: RH Door Lock Switch (Without Power Windows)

G01638740

Courtesy of GENERAL MOTORS CORP.

Fig 13: RH Front Window Motor

G01638741

Courtesy of GENERAL MOTORS CORP.

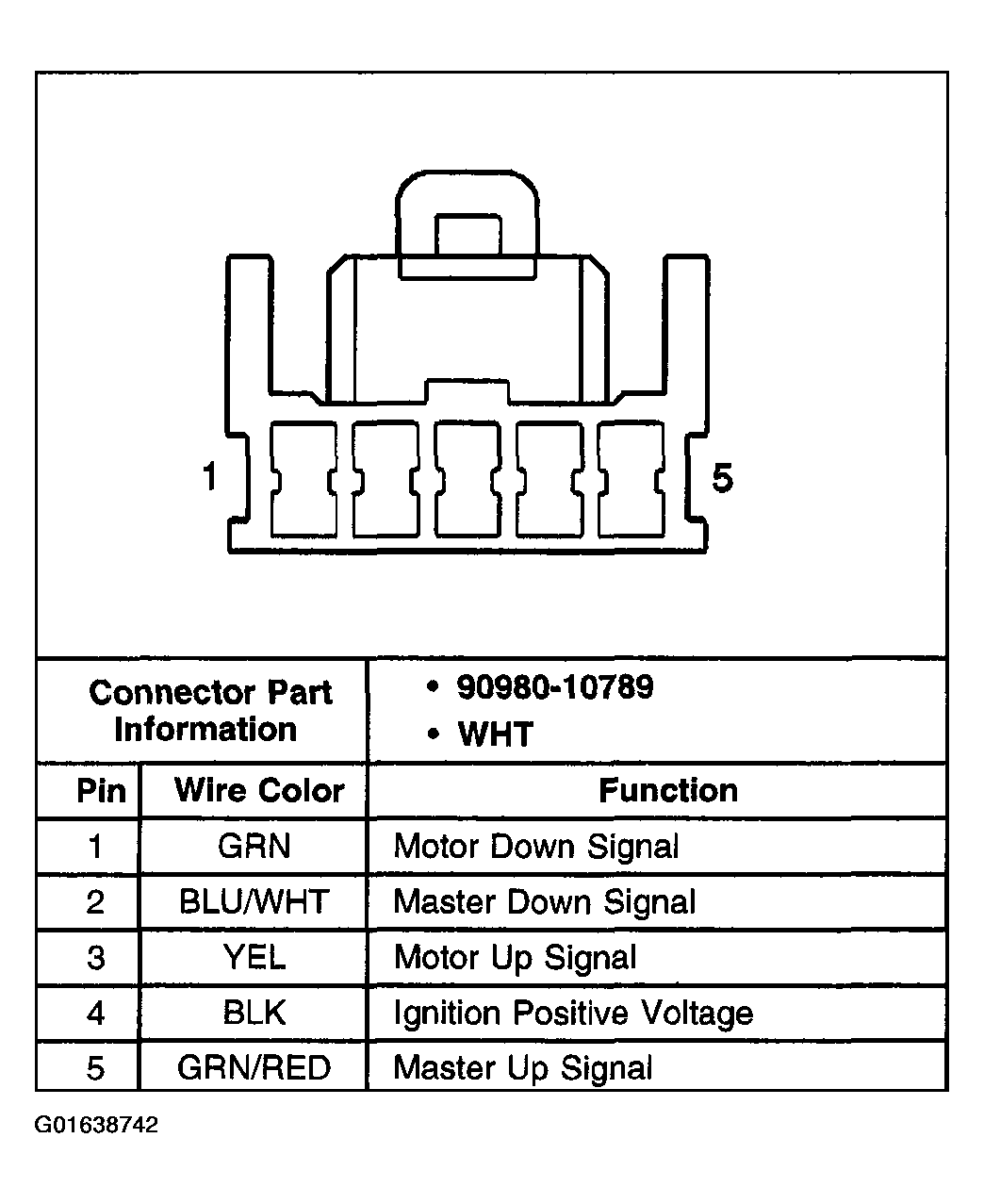

Fig 14: RH Front Window Switch

G01638742

Courtesy of GENERAL MOTORS CORP.

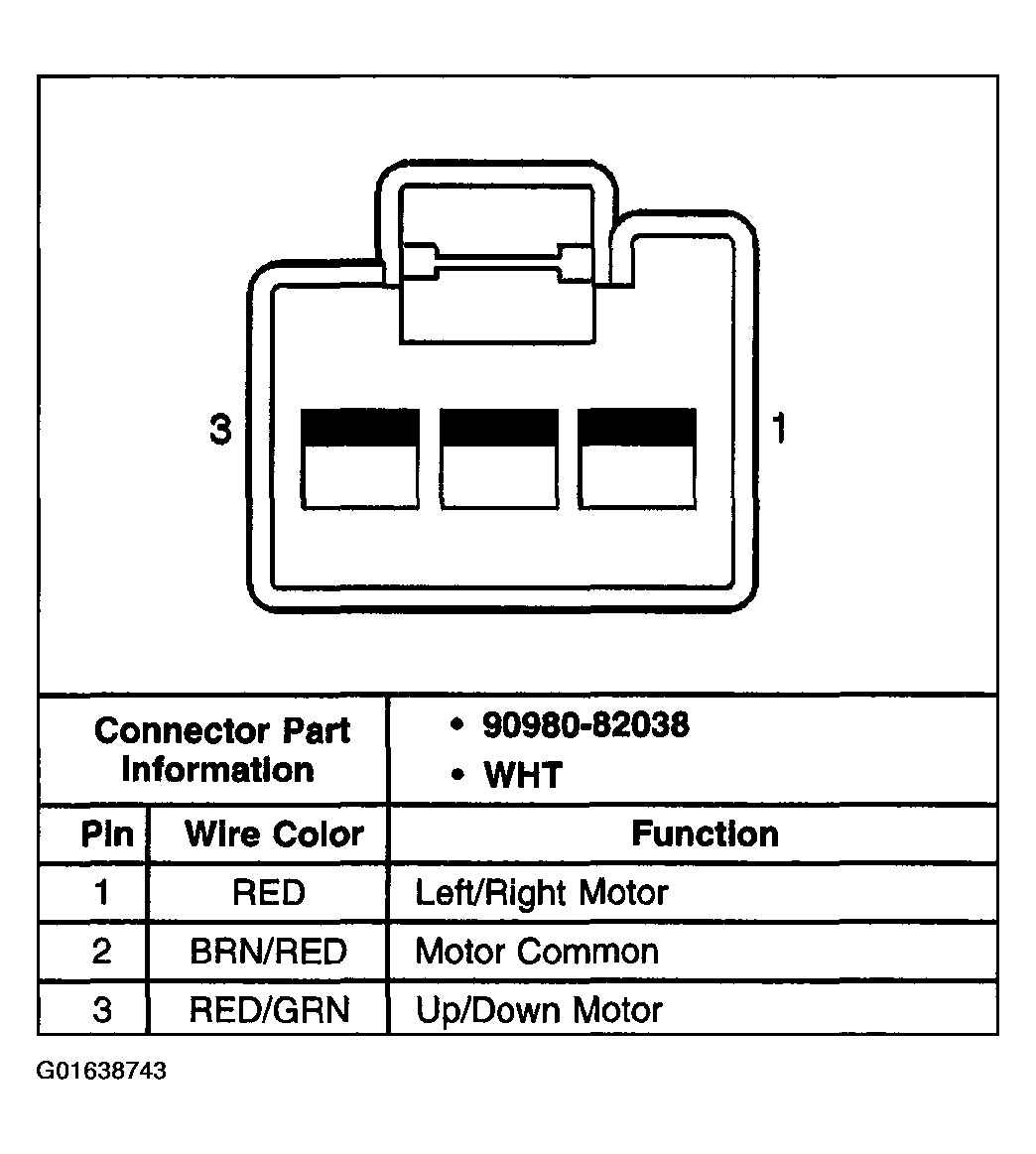

Fig 15: RH Outside Rear View Mirror Assembly

G01638743

Courtesy of GENERAL MOTORS CORP.

Fig 16: RH Rear Window Motor

G01638744

Courtesy of GENERAL MOTORS CORP.

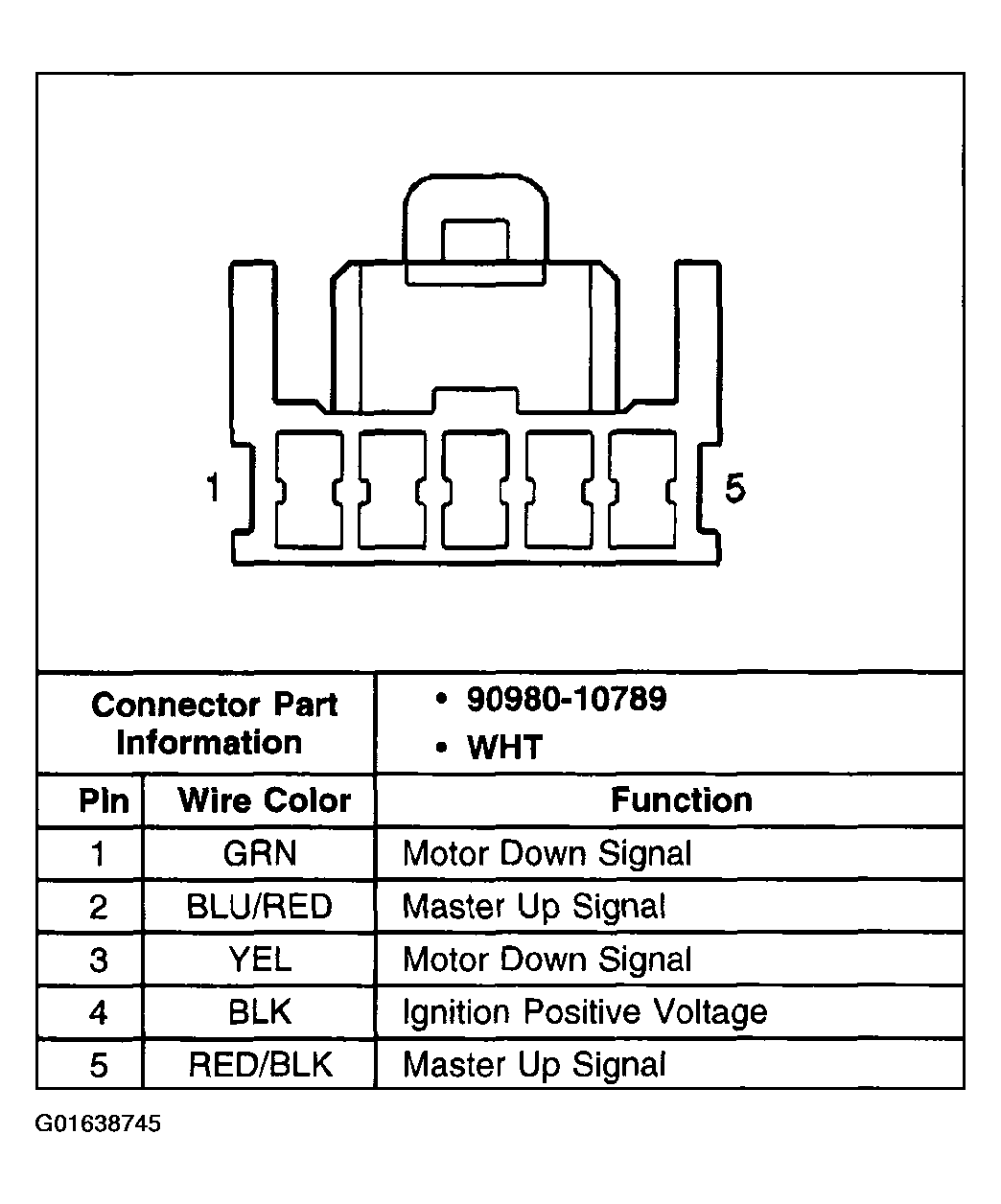

Fig 17: RH Rear Window Switch

G01638745

Courtesy of GENERAL MOTORS CORP.

Fig 18: RH Rear Door Lock Actuator

G01638746

Courtesy of GENERAL MOTORS CORP.
