Installation Procedure

  1. Install the defogger and air inlet switch to the HVAC control unit. Secure with the two screws.
  2. Connect the defogger and air inlet switch electrical connector.
  3. Install the HVAC control unit to the instrument panel. Secure with the two screws.
  4. Install the center console trim bezel. Refer to TRIM PANEL REPLACEMENT -- IP CENTER .

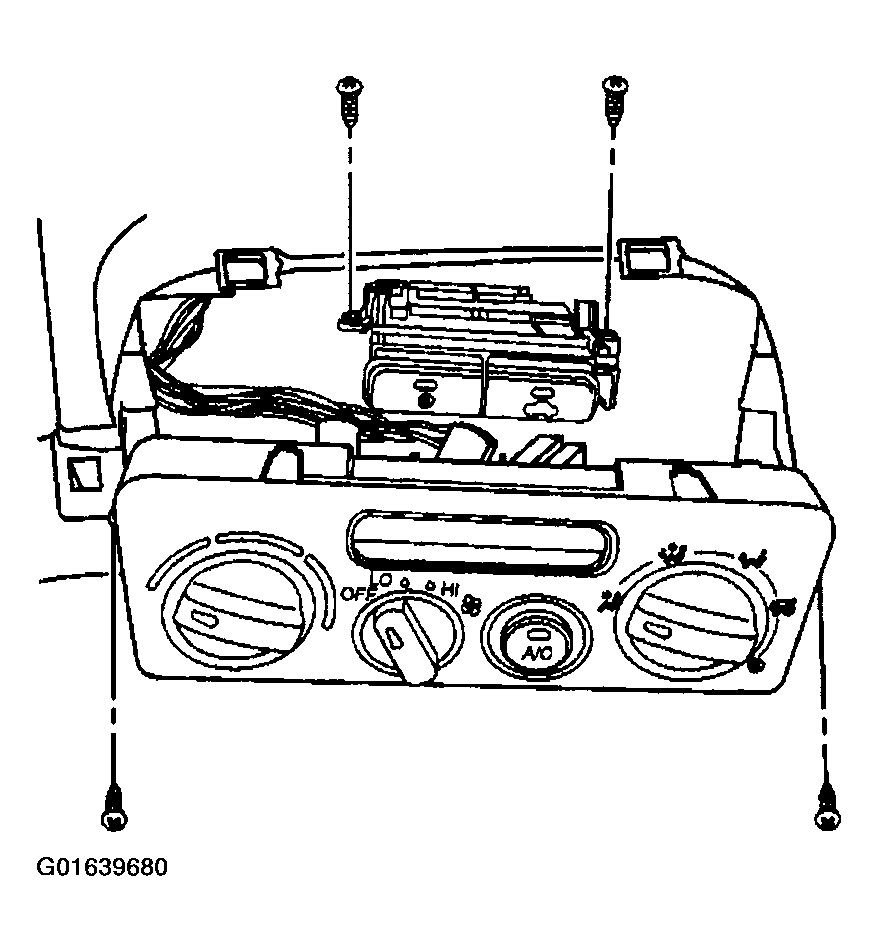

    Fig 1: Installing Defogger And Air Inlet Switch To HVAC Control Unit, Securing With Two Screws
    G01639680Courtesy of GENERAL MOTORS CORP.
