Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the wheel speed sensor (2) to the steering knuckle. Secure with 1 bolt.

    Tighten

    Tighten the front wheel speed sensor bolt to 8 N.m (69 in lbs).

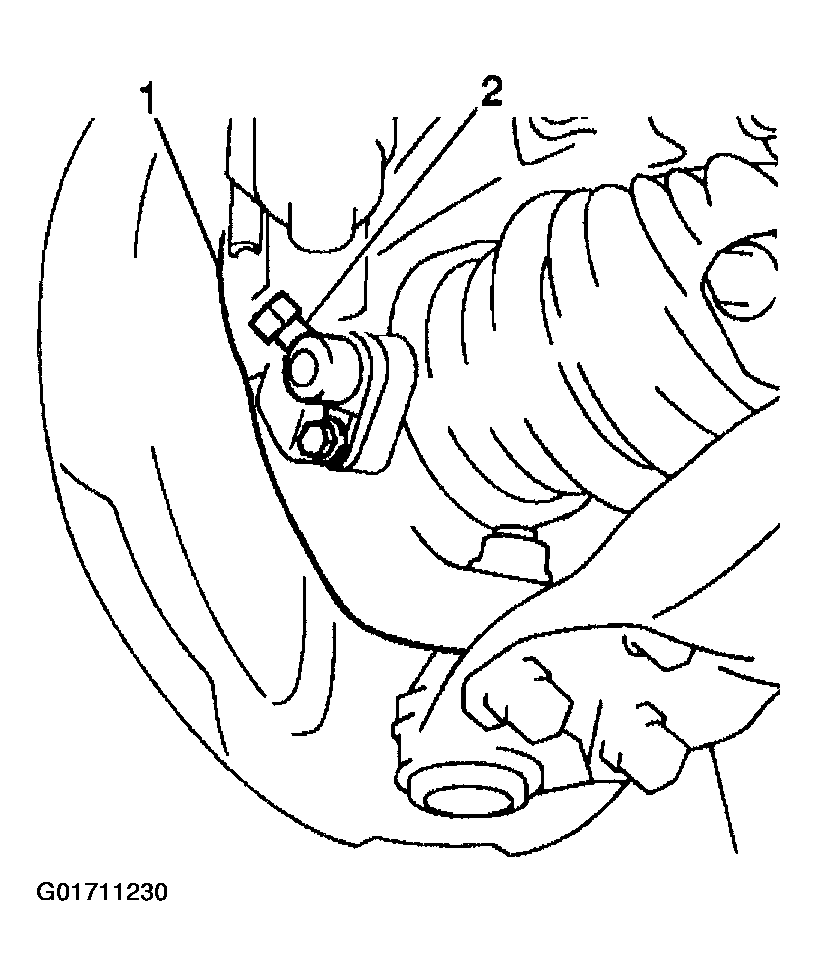

    Fig 1: Installing Wheel Speed Sensor
    G01711230Courtesy of GENERAL MOTORS CORP.
  2. Connect the wheel speed wiring harness (1) to the vehicle. Secure with nut and clips.

    Tighten

    Tighten the pigtail harness nut to 5 N.m (48 in lbs).

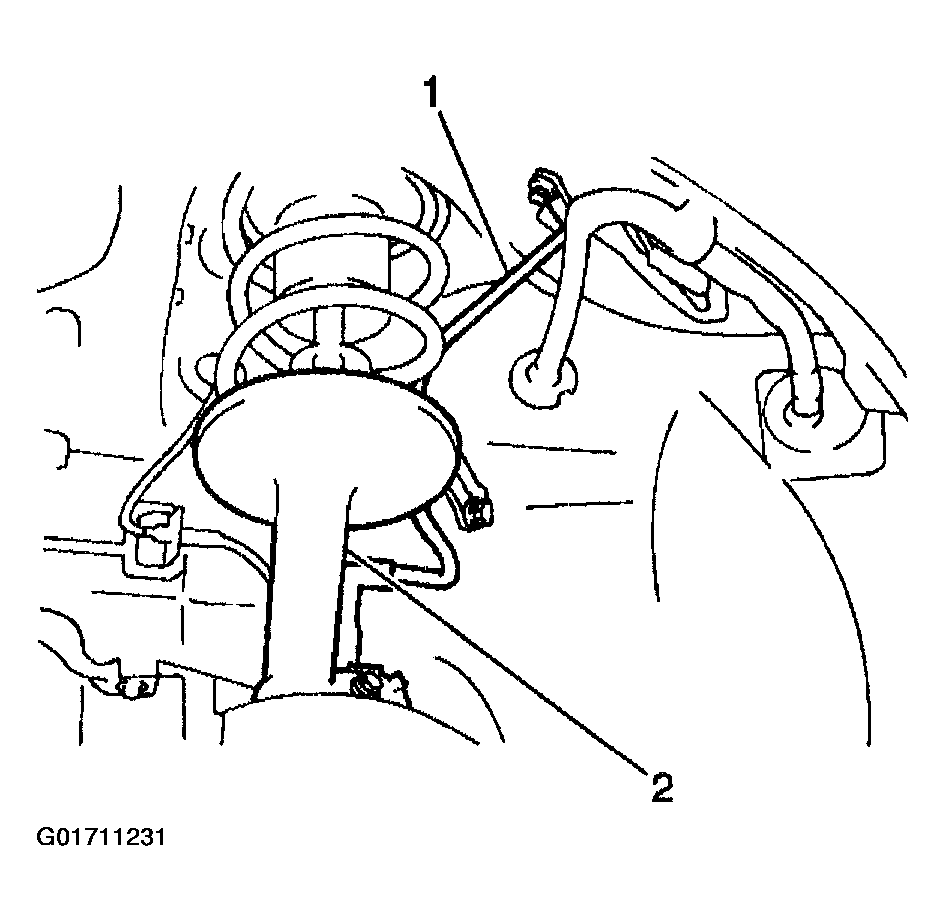

    Fig 2: Connecting Wheel Speed Wiring Harness
    G01711231Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector (1).
  4. Install the wheelhousing. Refer to WHEELHOUSE PANEL REPLACEMENT .
  5. Perform Diagnostic System Check - ABS (Figure).

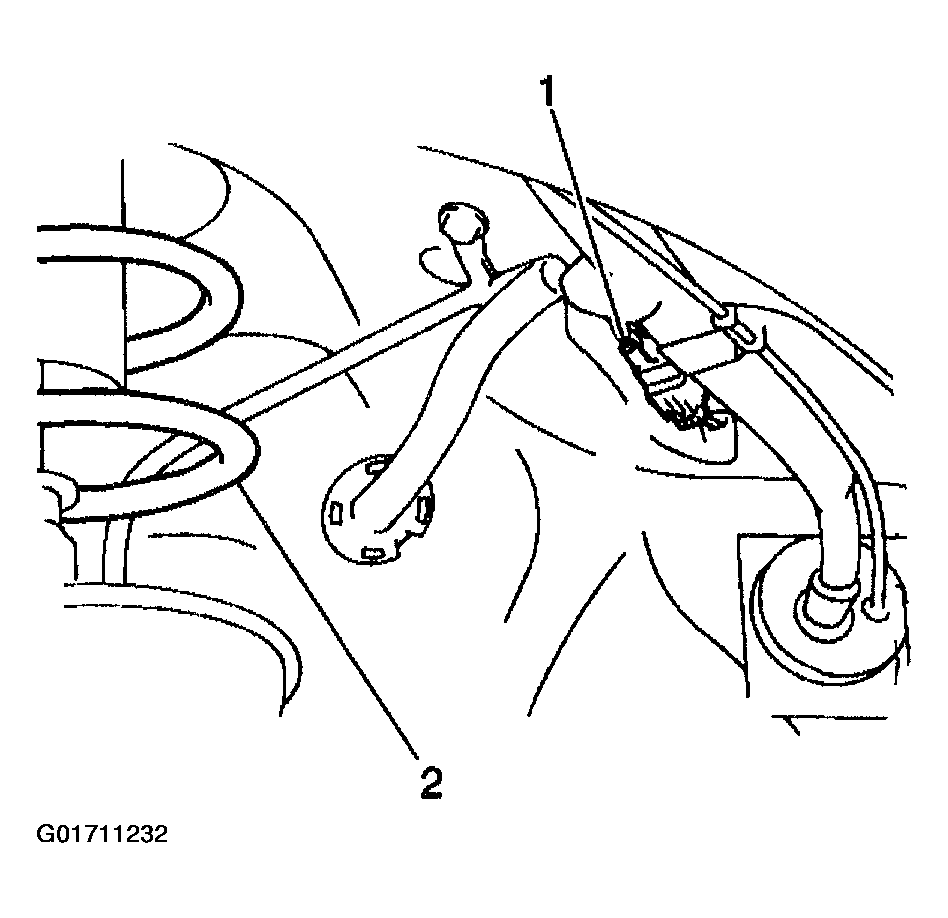

    Fig 3: Connecting Wheel Speed Sensor Electrical Connector
    G01711232Courtesy of GENERAL MOTORS CORP.
