Removal Procedure

  1. Remove the wheelhousing. Refer to WHEELHOUSE PANEL REPLACEMENT .

    Important:  The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.

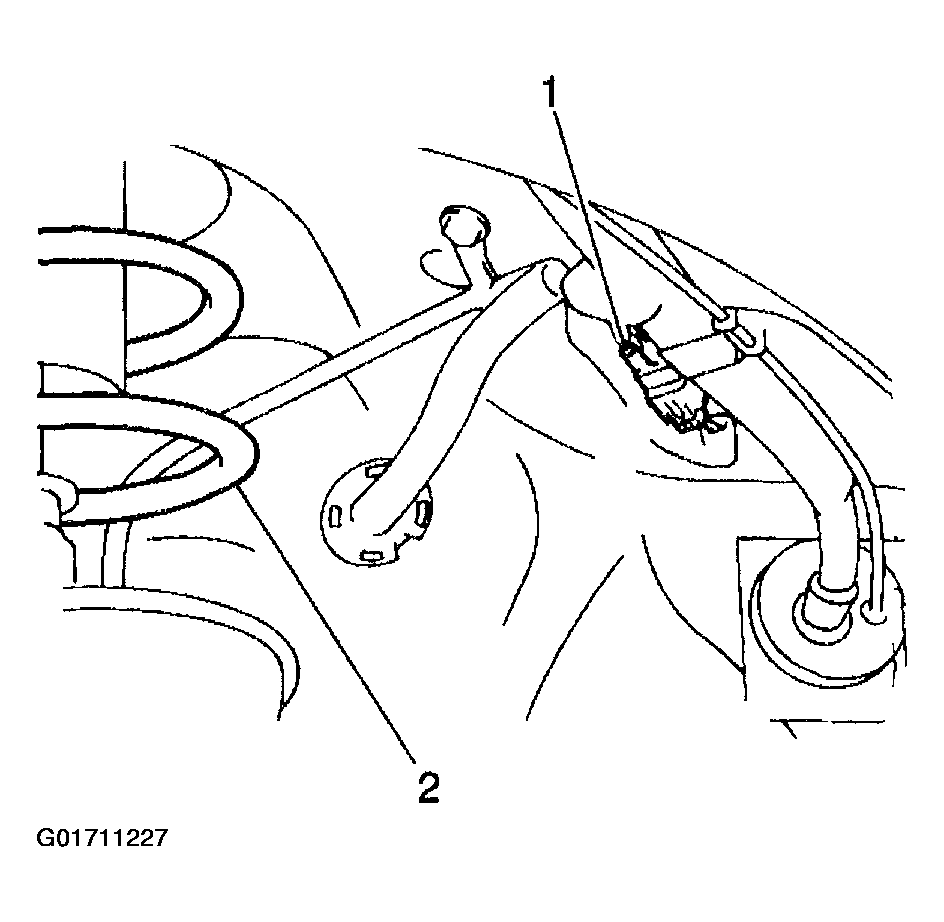

  2. Disconnect the wheel speed sensor electrical connector (1).
    Fig 1: Disconnecting Wheel Speed Sensor Electrical Connector
    G01711227Courtesy of GENERAL MOTORS CORP.

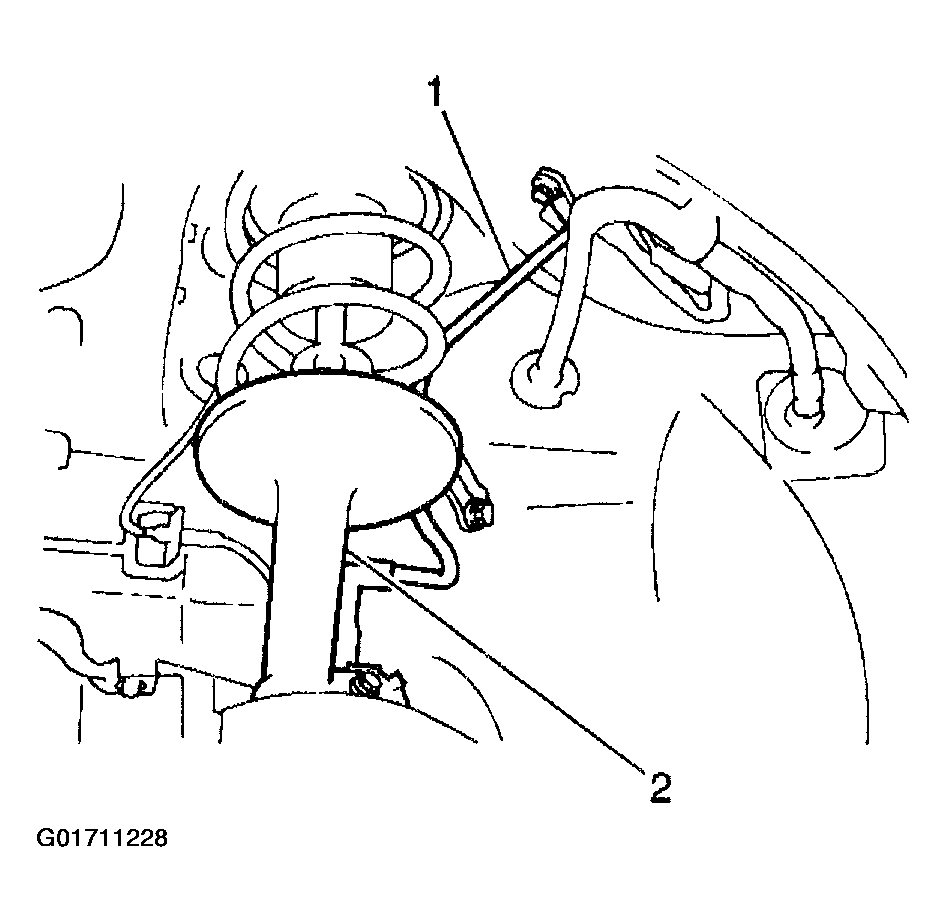

  3. Remove the nut and clips retaining the wheel speed sensor pigtail harness (1).
    Fig 2: Removing Nut And Clips Retaining Wheel Speed Sensor Pigtail Harness
    G01711228Courtesy of GENERAL MOTORS CORP.

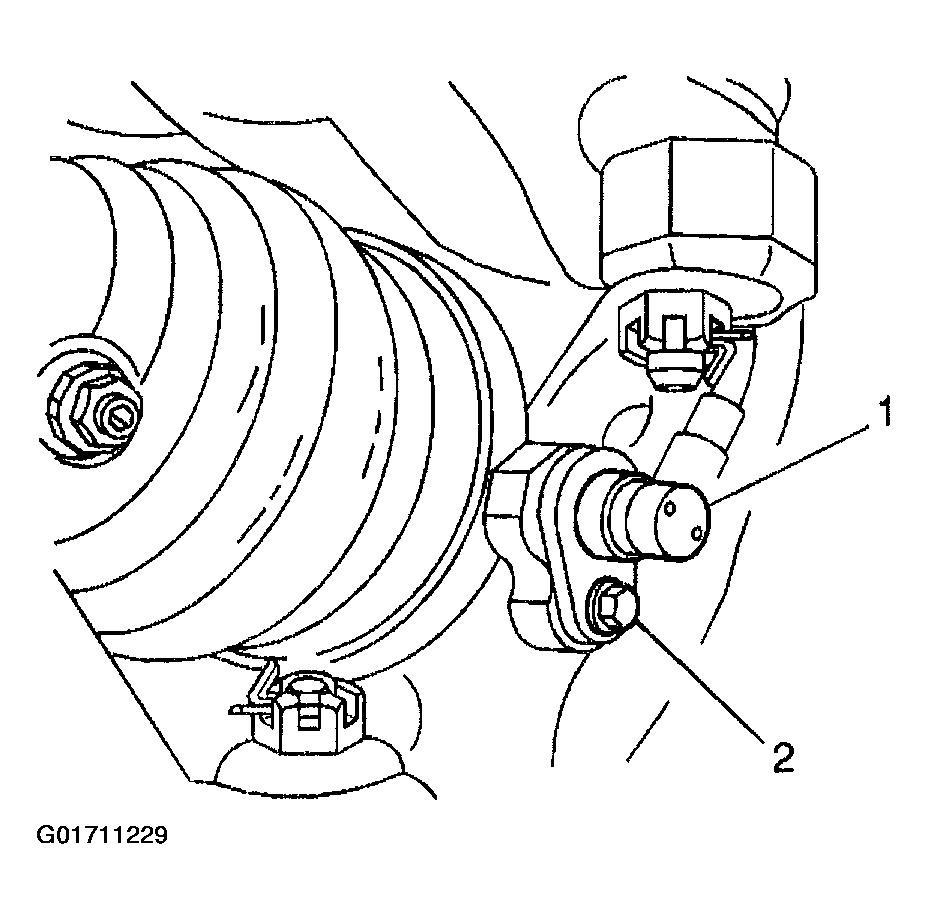

  4. Remove the wheel speed sensor retaining bolt (2) and remove the wheel speed sensor (1) from the steering knuckle.
    Fig 3: Removing Wheel Speed Sensor Retaining Bolt
    G01711229Courtesy of GENERAL MOTORS CORP.
