Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

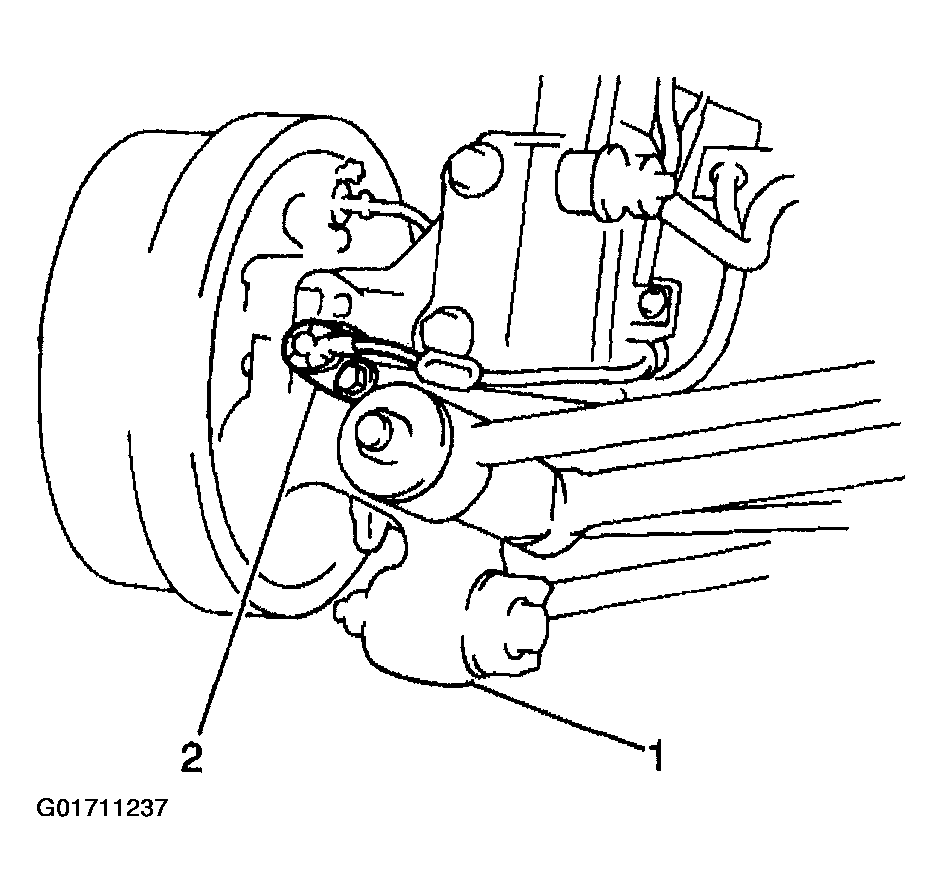

Install the wheel speed sensor (2) to steering knuckle (1).
Tighten

Tighten the rear wheel speed sensor bolt to 8 N.m (69 in lbs).

Fig 1: Installing Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

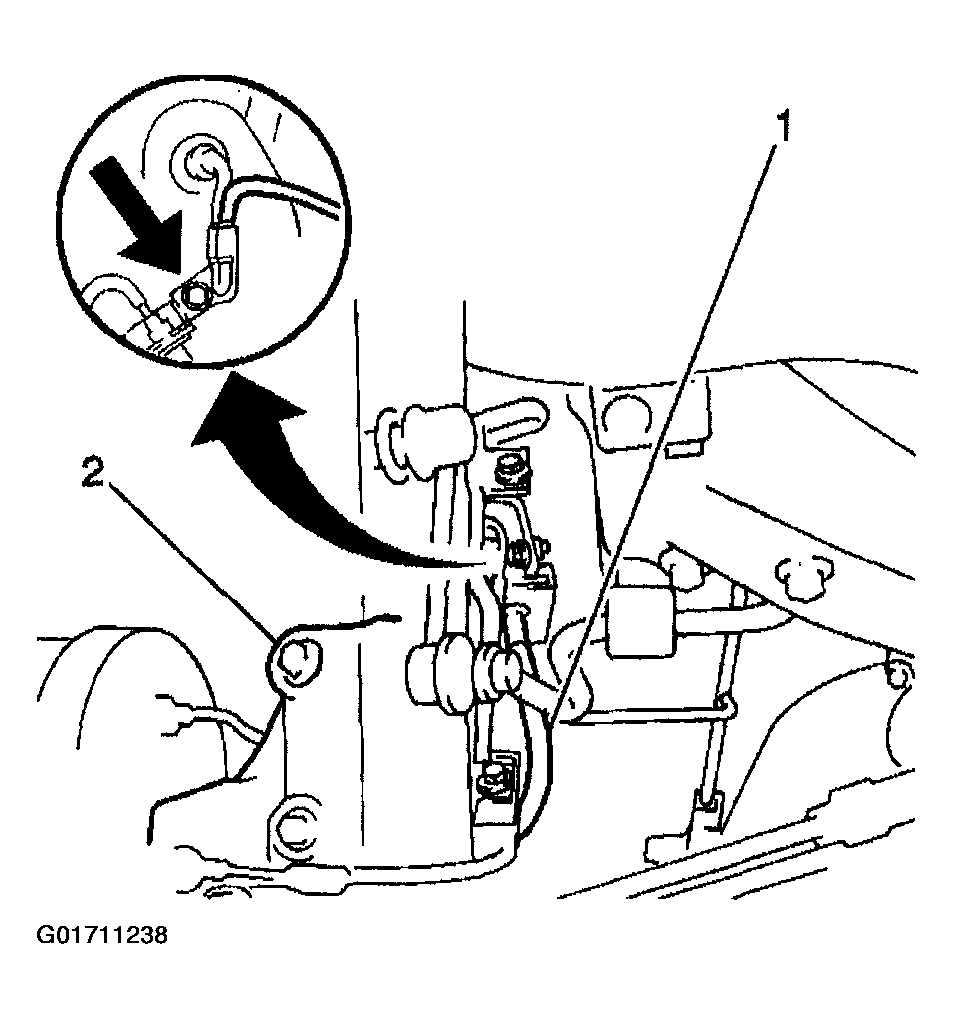

Install the-harness (1) for the rear wheel speed sensor to the vehicle. Secure with 2 nuts and 2 clips.
Tighten

Tighten the nuts to 5 N.m (48 in lbs).

Fig 2: Installing Harness
Courtesy of GENERAL MOTORS CORP.

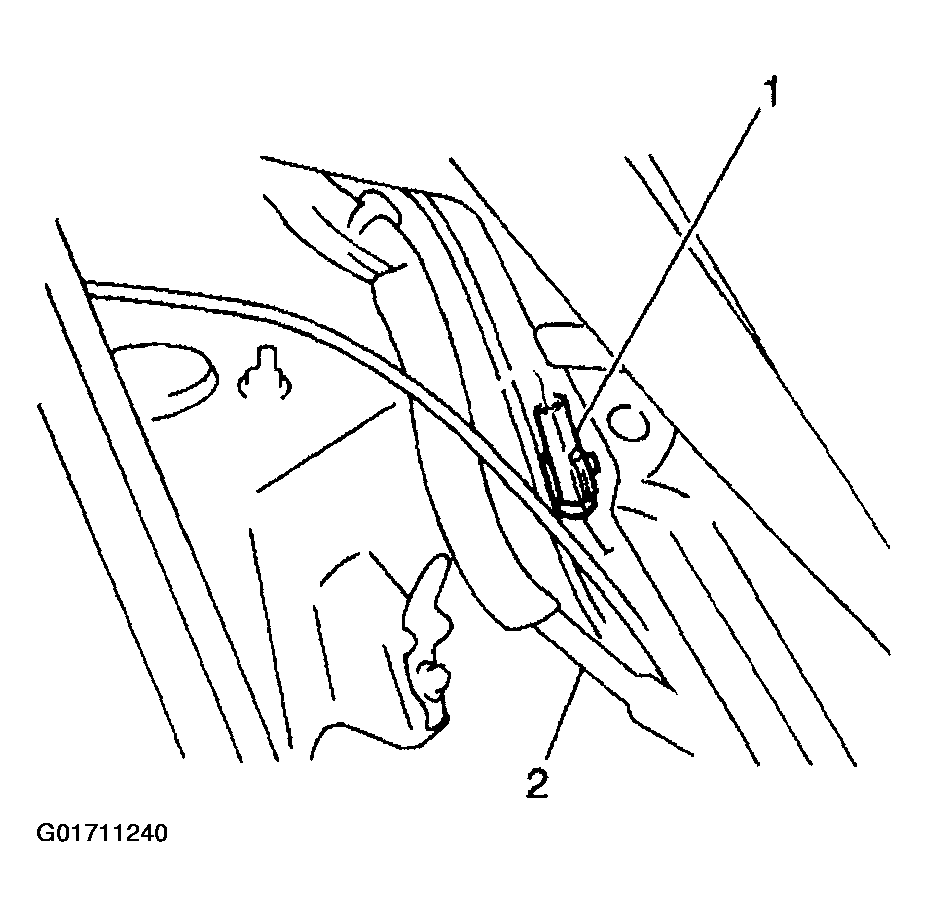

Reposition the wheel speed pigtail harness (1) through the body. Install the grommet (2).

Fig 3: Repositioning Wheel Speed Pigtail Harness
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.

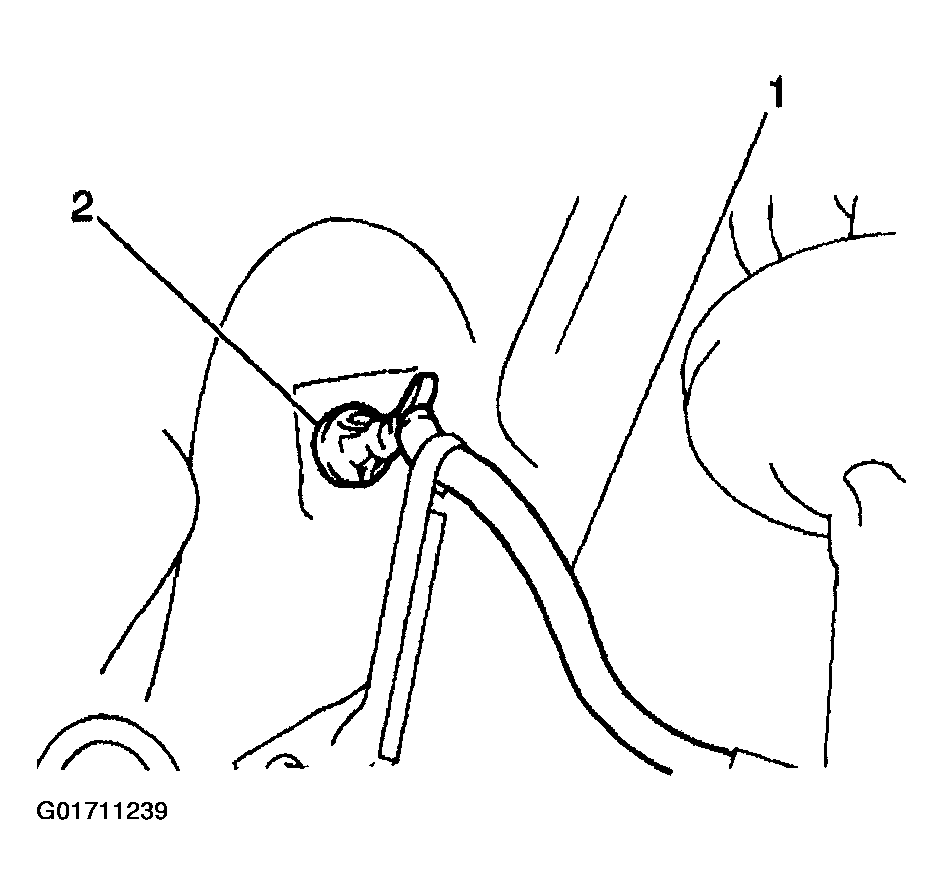

Connect the wheel speed sensor electrical connector (1).
Install the rear seat bottom and seat back. Refer to SEAT BACK REPLACEMENT -- REAR (FULL WIDTH) or SEAT BACK REPLACEMENT -- REAR (AN2) .
Perform Diagnostic System Check - ABS (Figure).

Fig 4: Connecting Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
