Lock System Does Not Lock

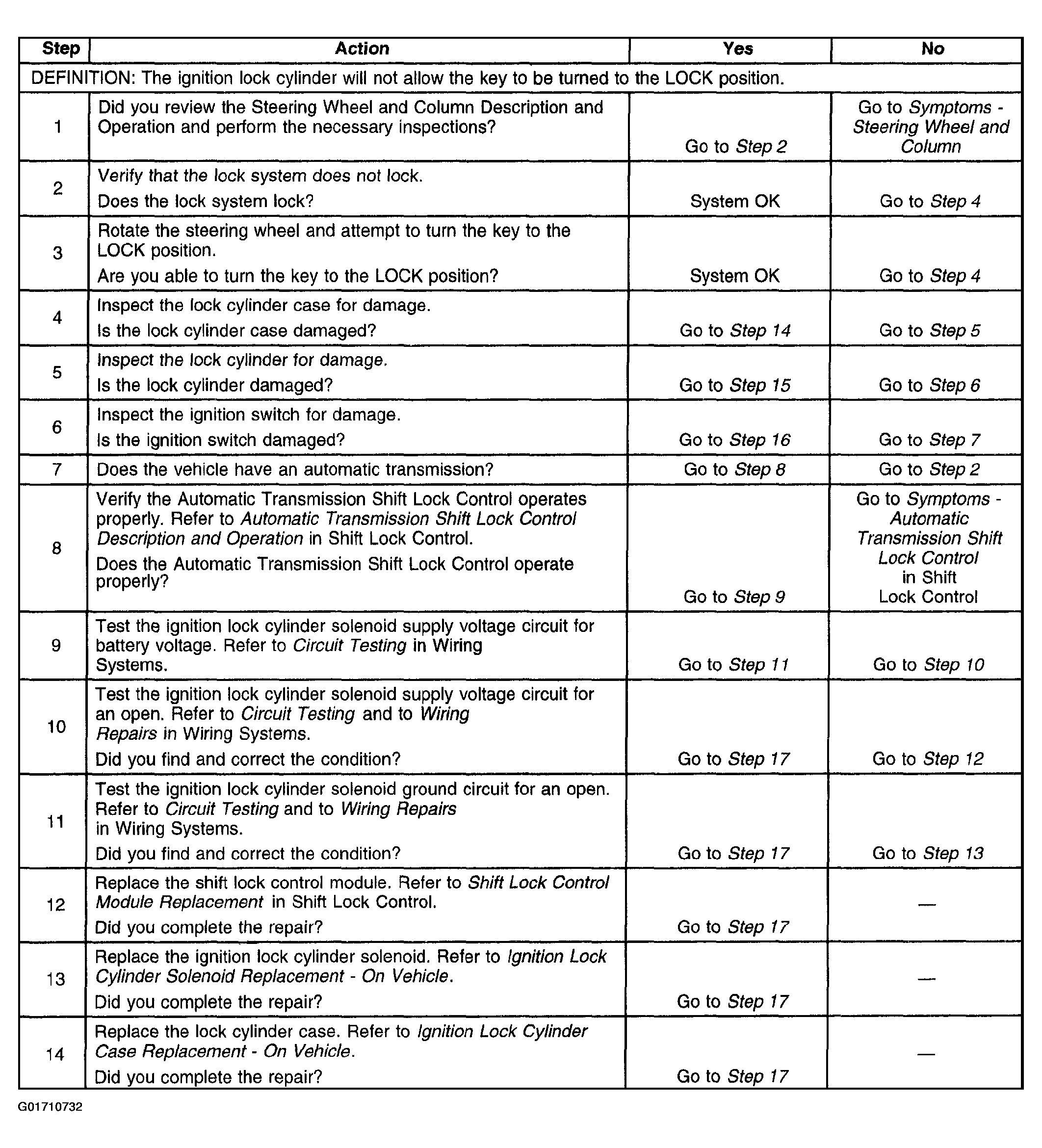

Fig 1: Lock System Does Not Lock (1 Of 2)
G01710732Courtesy of GENERAL MOTORS CORP.

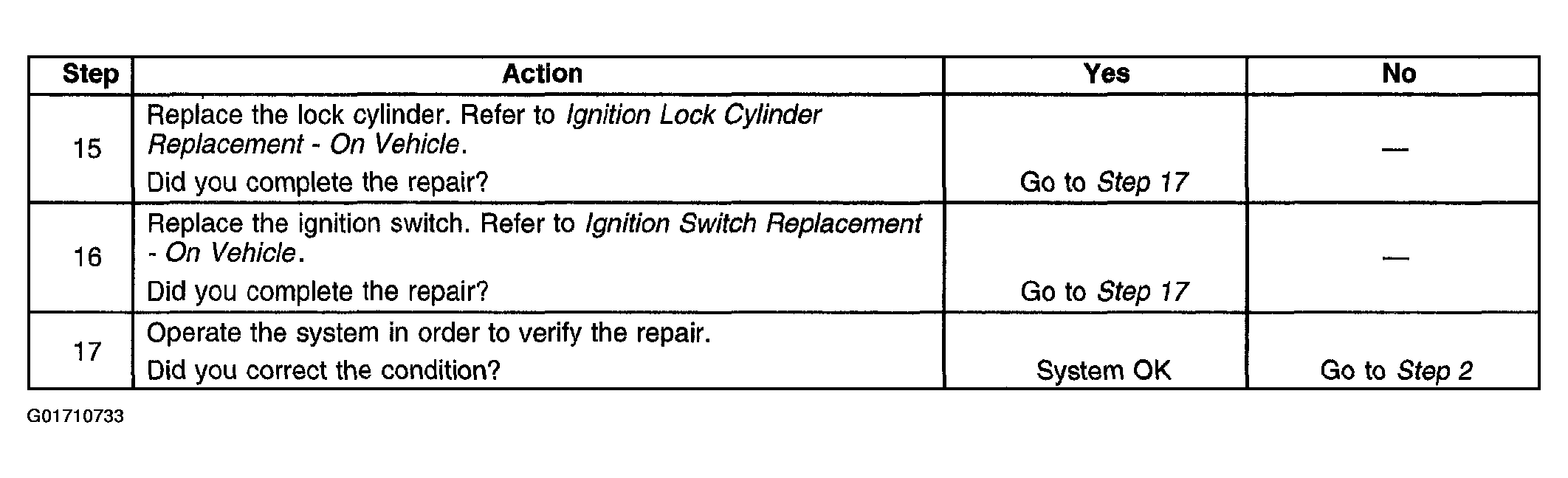

Fig 2: Lock System Does Not Lock (2 Of 2)
G01710733Courtesy of GENERAL MOTORS CORP.
