Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: DO NOT tighten the stop lamp switch nut before adjusting the stop lamp switch.
  1. Install the stop lamp switch (2) to the bracket. Secure with the nut (1).
  2. Connect the stop lamp switch connector.
  3. Adjust the stop lamp switch. Refer to STOP LAMP SWITCH ADJUSTMENT .

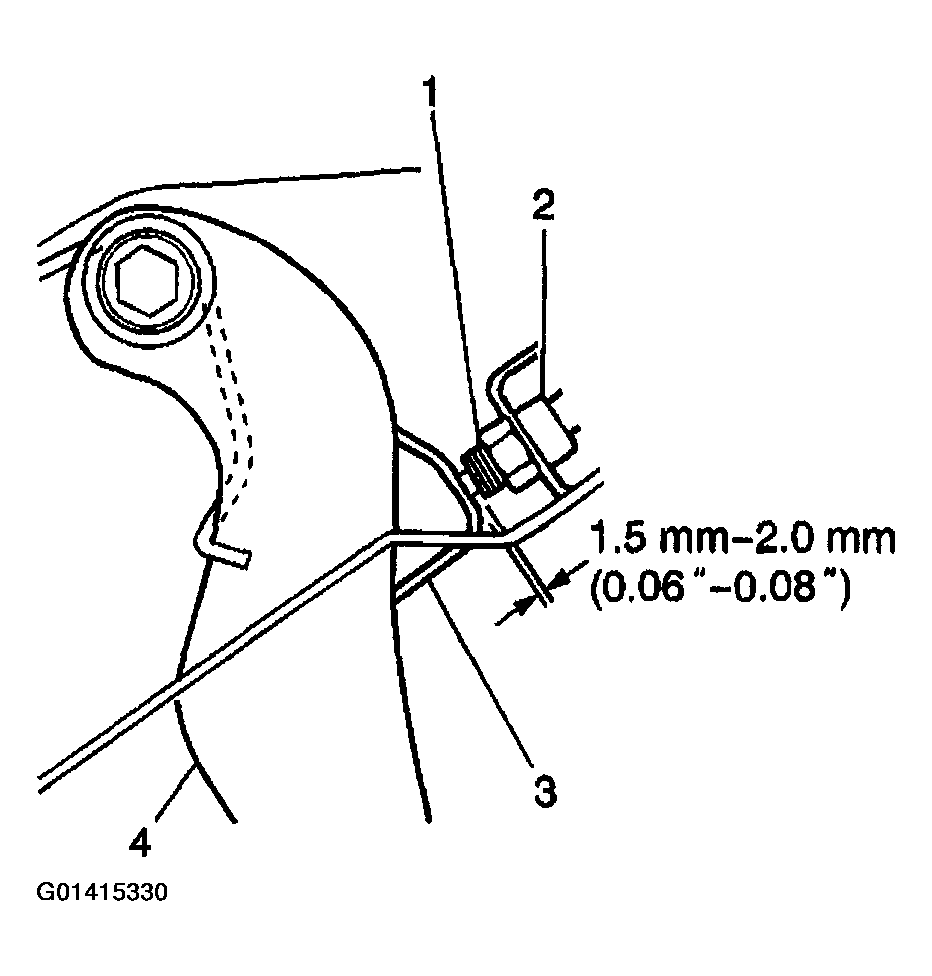

    Fig 1: Installing Stop Lamp Switch To Bracket
    G01415330Courtesy of GENERAL MOTORS CORP.
