Installation Procedure

  1. Install the LDM (1) to the printed circuit.

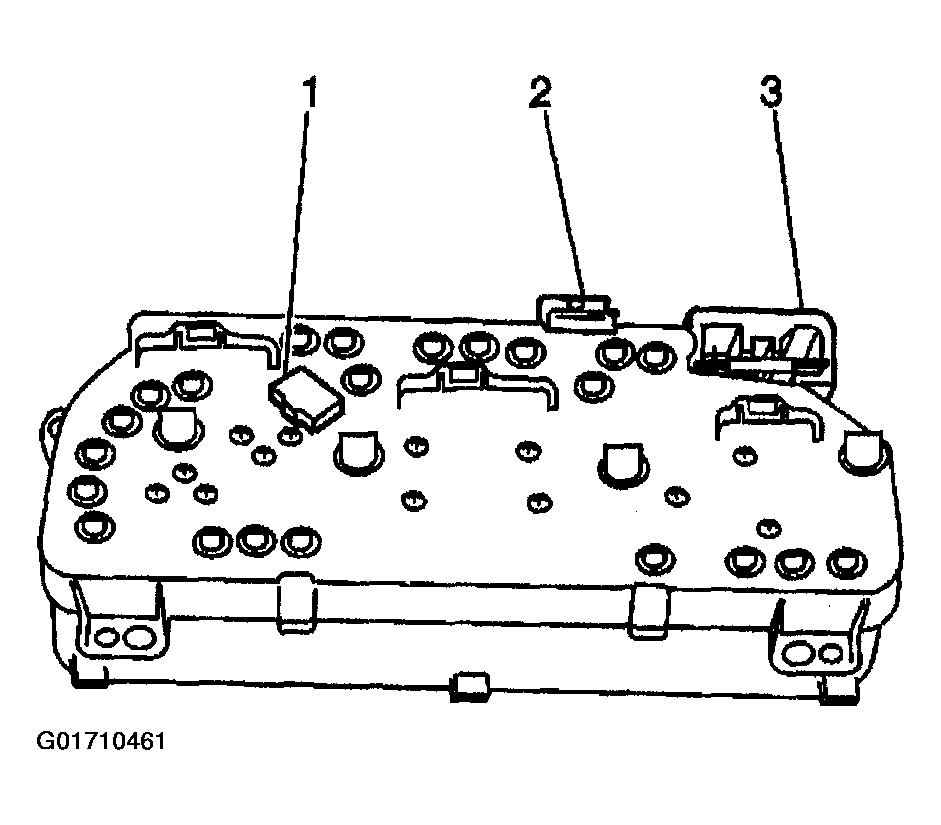

    2. Fig 1: Installing Lamp Driver Module To Printed Circuit Board
    G01710461Courtesy of GENERAL MOTORS CORP.
  2. Install the Instrument Cluster Assembly (2). Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages and Console.
  3. Perform Diagnostic System Check - ABS .
