Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the DLC to the bracket.
  2. Press the DLC into the bracket. Make sure the retainer is completely engaged.

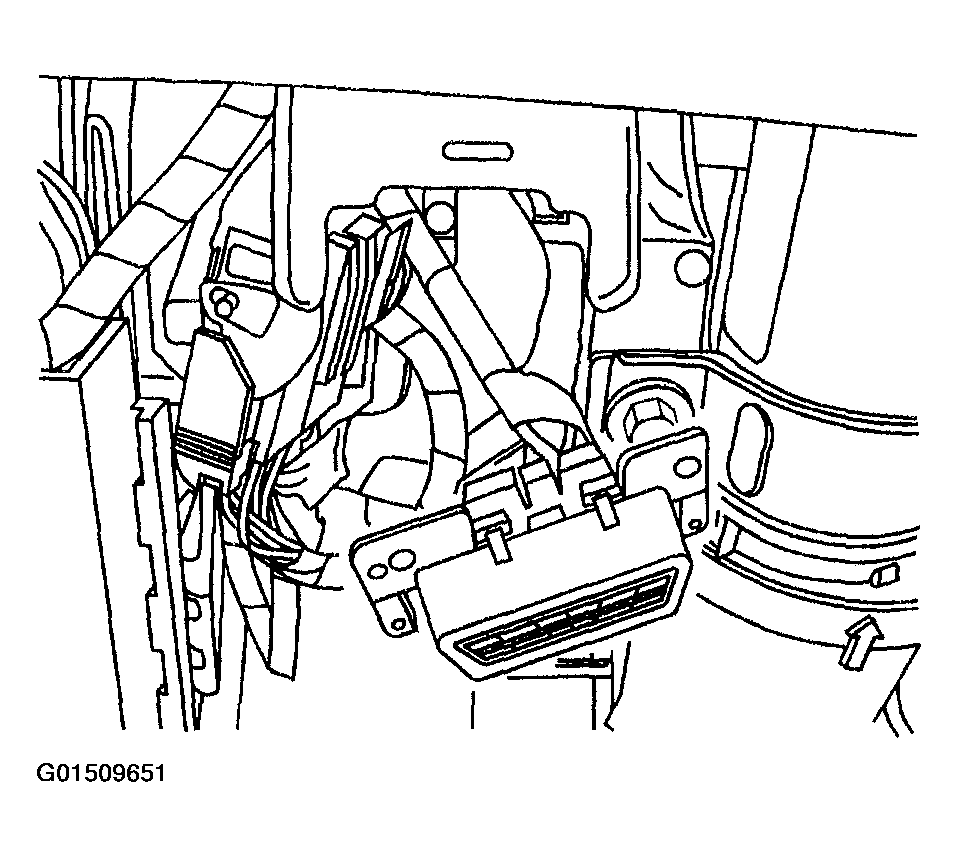

    Fig 1: Installing Data Link Connector
    G01509651Courtesy of GENERAL MOTORS CORP.
