DRL Control Module

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

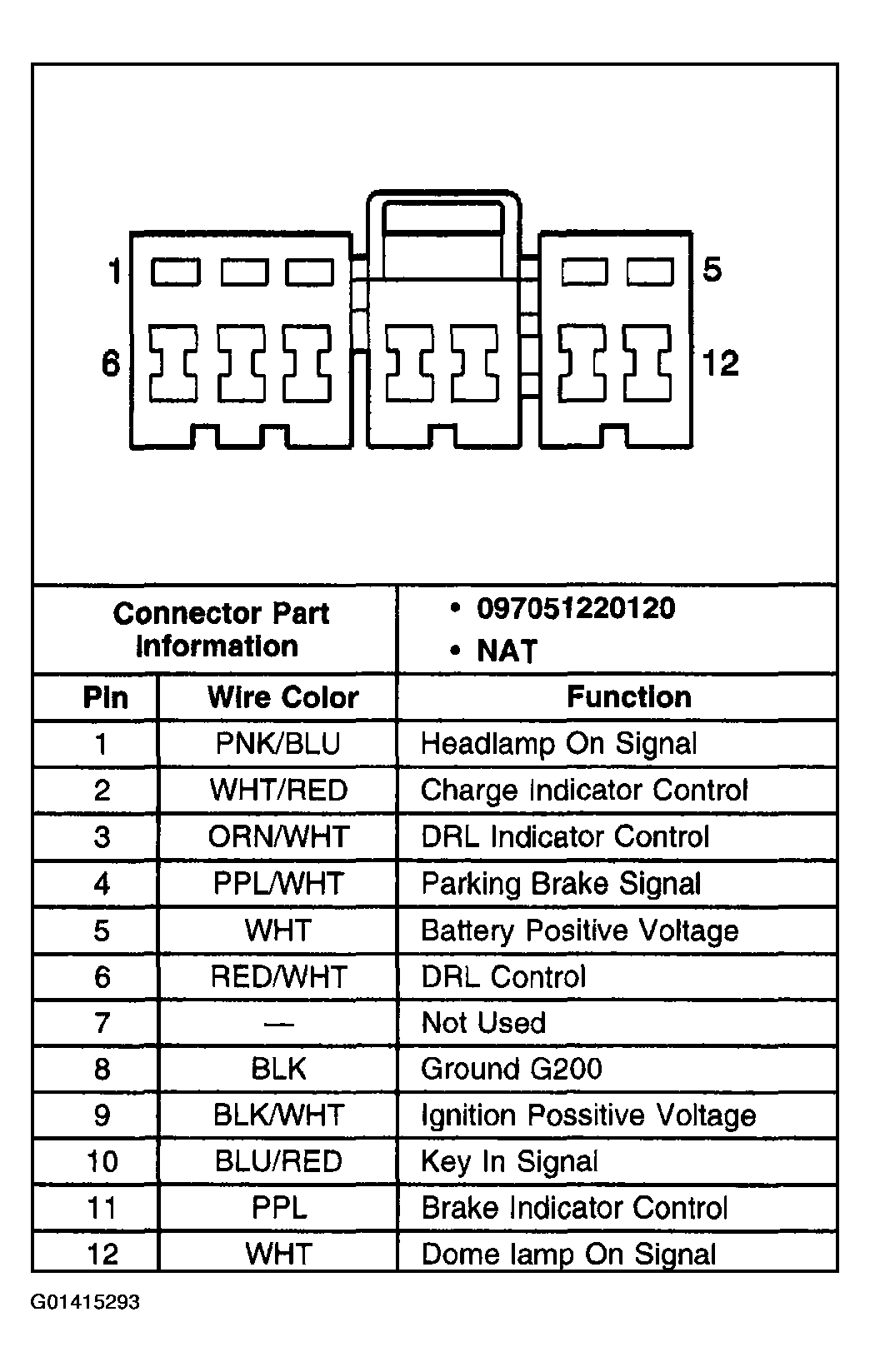

Fig 1: DRL Control Module
G01415293Courtesy of GENERAL MOTORS CORP.
