Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the DRL control module (1) to the vehicle. Secure the module with the mounting bolt.

    Tighten

    1. Tighten the DRL control module mounting bolt to 10 N.m (89 lb in).
  2. Connect the DRL control module electrical connector (2).
  3. Install the IP steering column opening trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT in Instrument Panel, Gauges and Console.

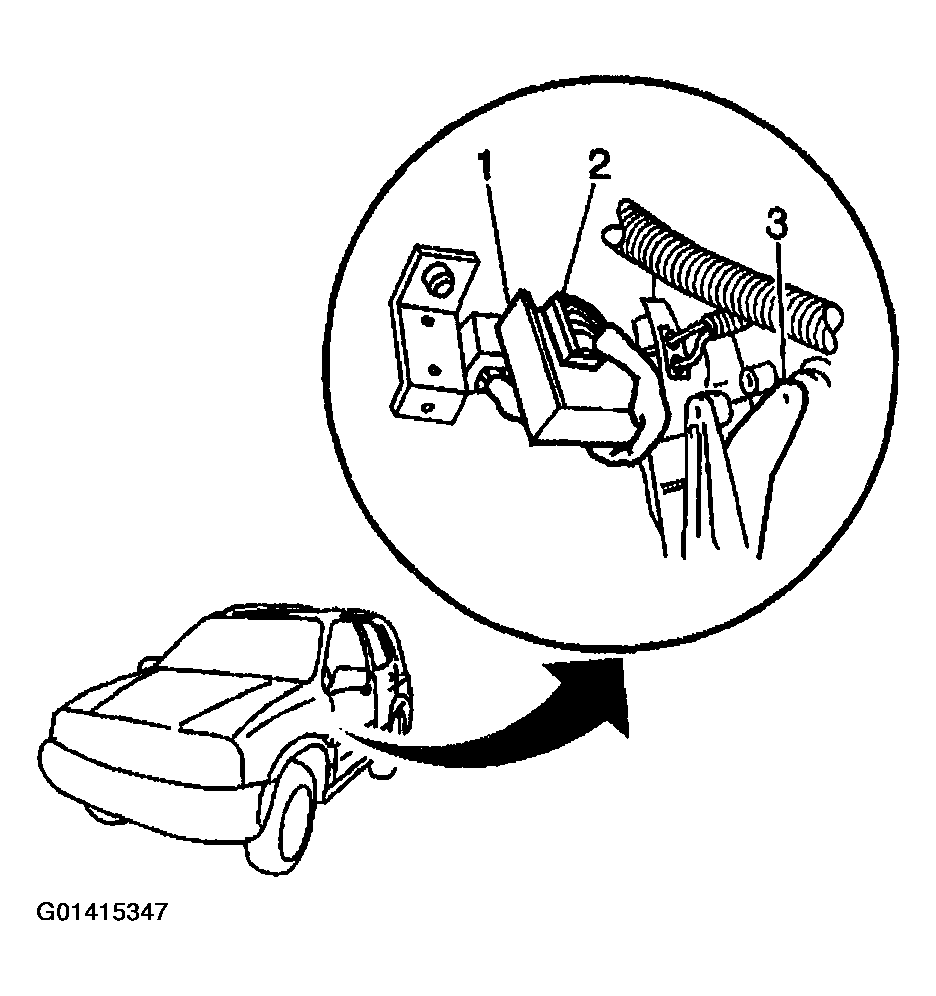

    Fig 1: Installing DRL Control Module To Vehicle
    G01415347Courtesy of GENERAL MOTORS CORP.
