Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control servo cable to the vehicle. Secure the cable with the retainer (2) and the grommet (4).
  2. Install the cruise control servo cable to the accelerator pedal (1).

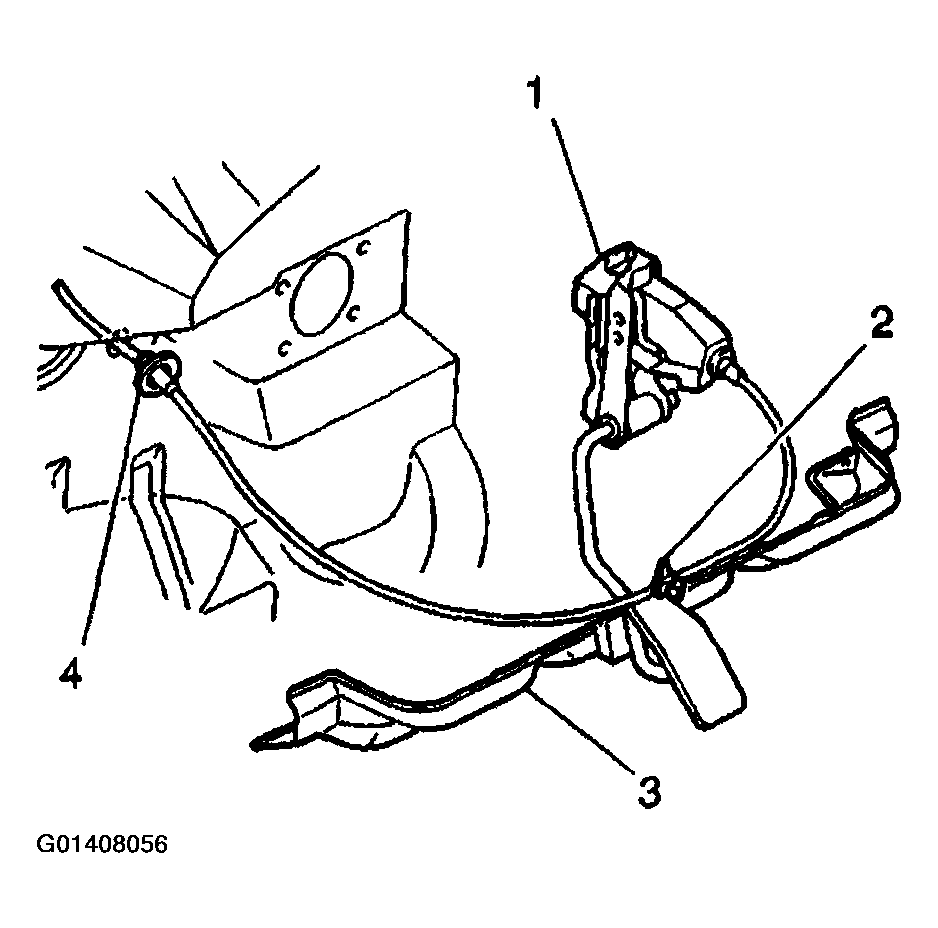

    Fig 1: Installing Cruise Control Servo Cable To Vehicle
    G01408056Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control servo cable (3) to the cruise control servo cable retainers (5).

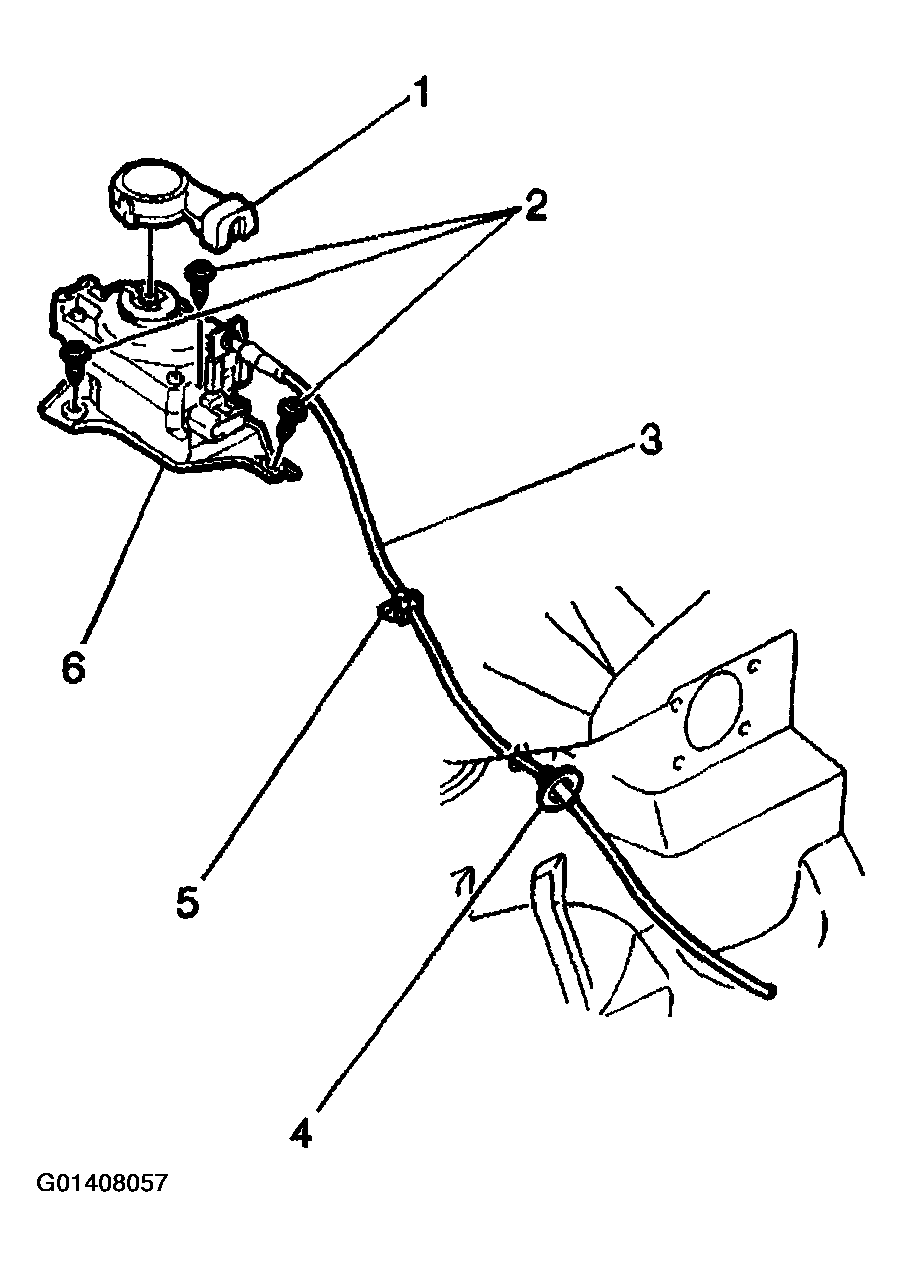

    Fig 2: Installing Cruise Control Servo Cable To Cruise Control Servo Cable Retainers
    G01408057Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control servo cable (3) to the cruise control servo assembly (1).
  5. Adjust the cruise control servo cable locknut (5) in order to adjust the cruise control cable play.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Adjust the cruise control servo cable play to 1-2 mm (0.04-0.08 in) at the servo closed throttle position.
    1. Tighten
    2. Tighten the cruise control servo cable locknut to 5 N.m (44 lb in).

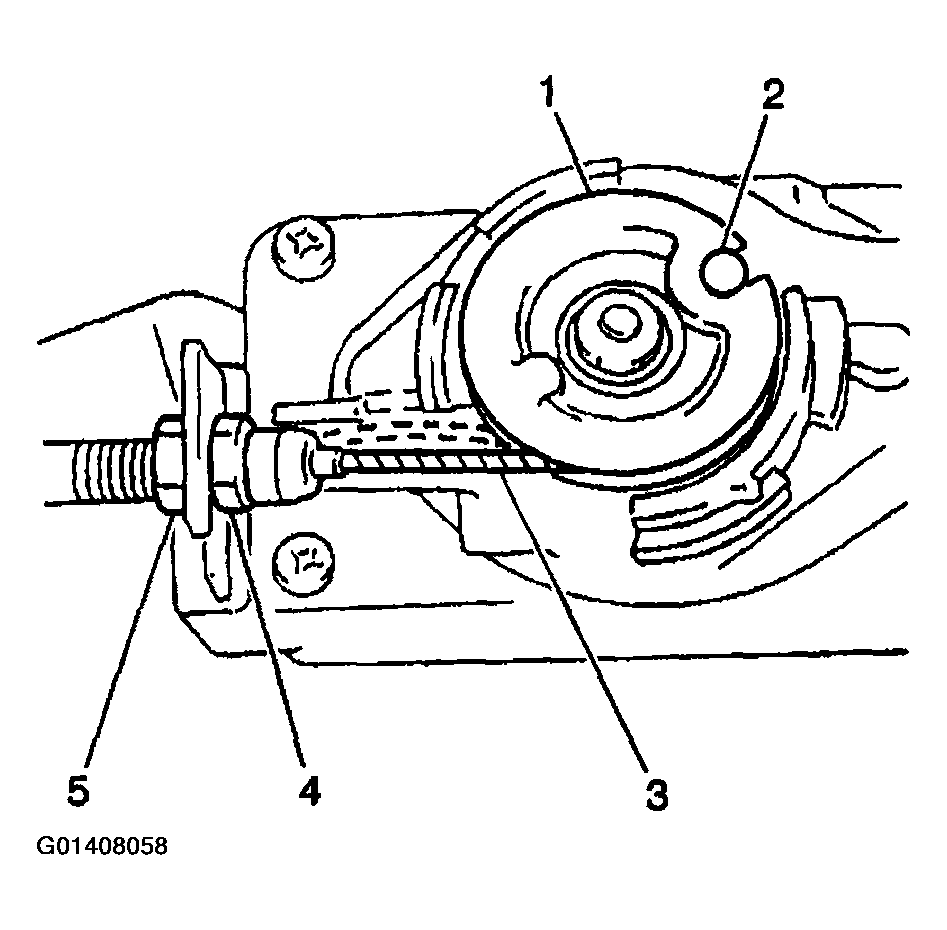

    Fig 3: Adjusting Cruise Control Servo Cable Play To Servo Closed Throttle Position
    G01408058Courtesy of GENERAL MOTORS CORP.
  7. Install the cruise control module cover (1).

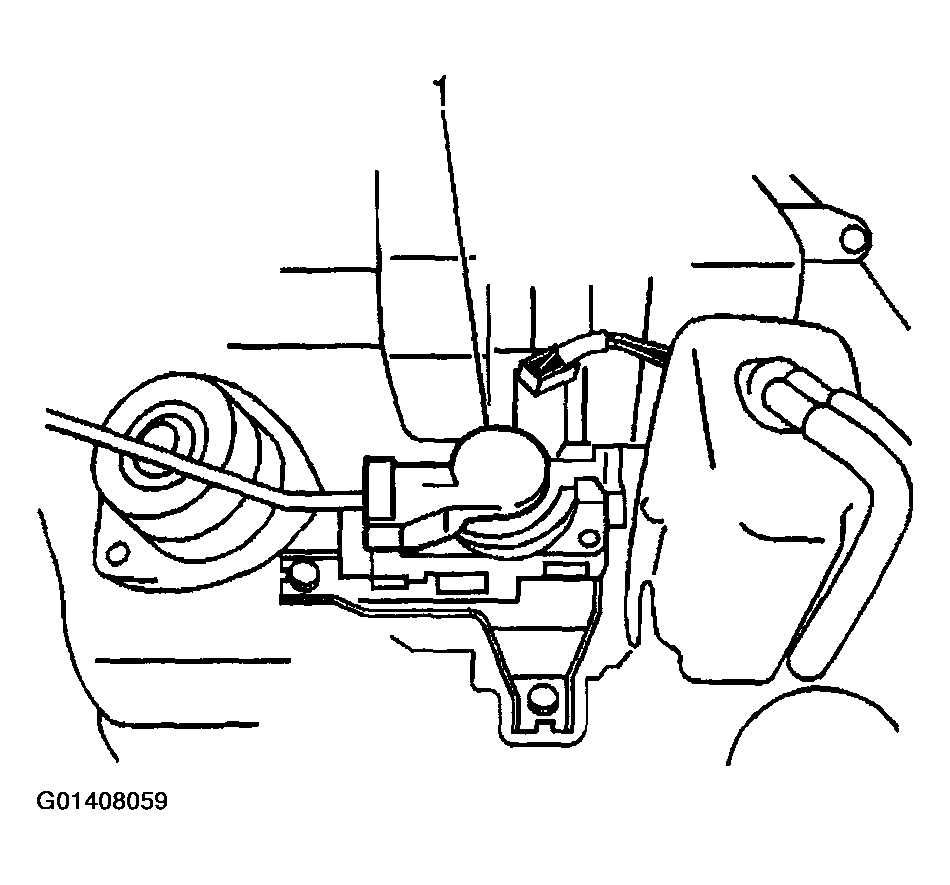

    Fig 4: Cruise Control Module Cover
    G01408059Courtesy of GENERAL MOTORS CORP.
