Control Module HVAC

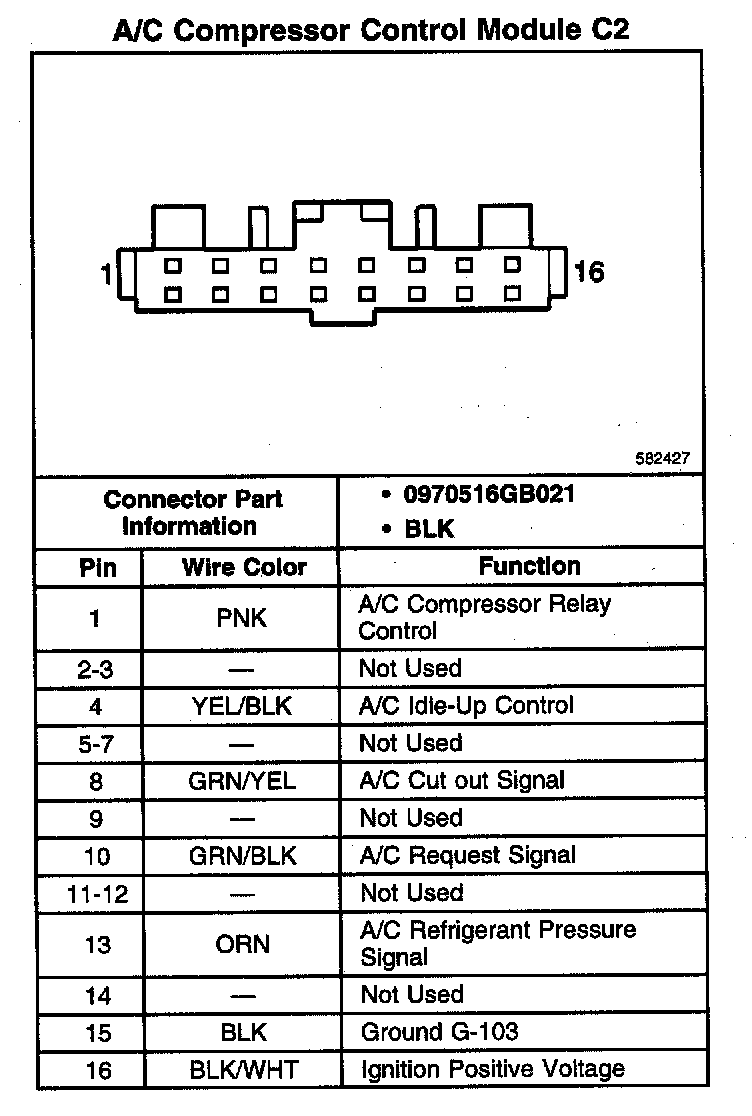

A/C Compressor Control Module C2 - HVAC Systems - Manual:

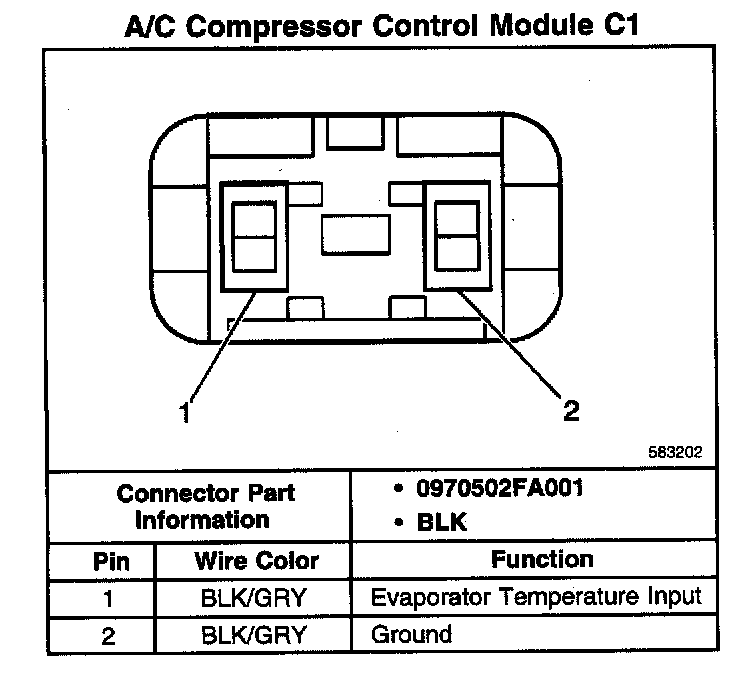

A/C Compressor Control Module C1 - HVAC Systems - Manual:
