Electrical Diagrams

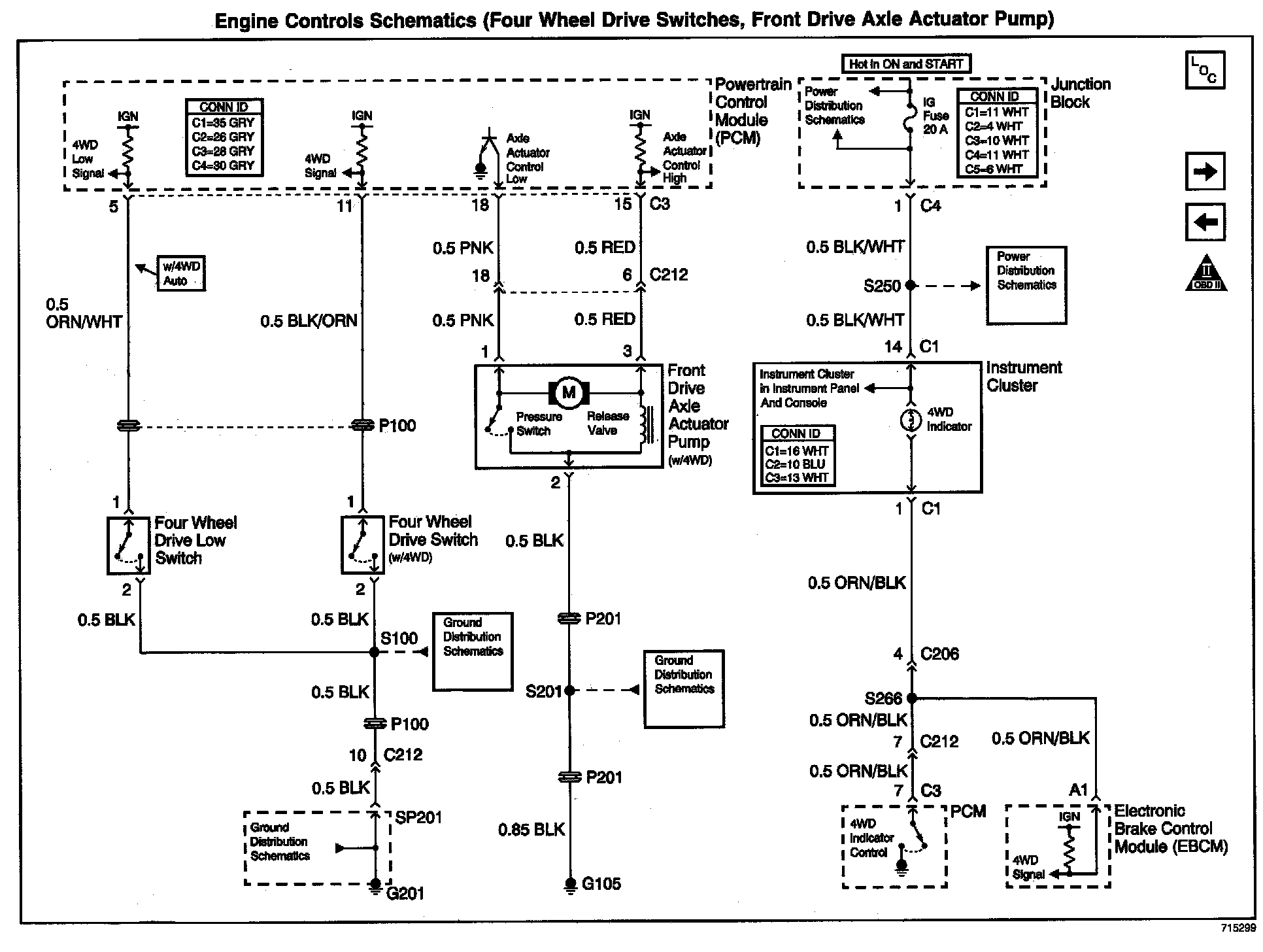

Engine Controls Schematics: Four Wheel Drive Switches, Front Drive Axle Actuator Pump:
