Suspension Controls Component Views

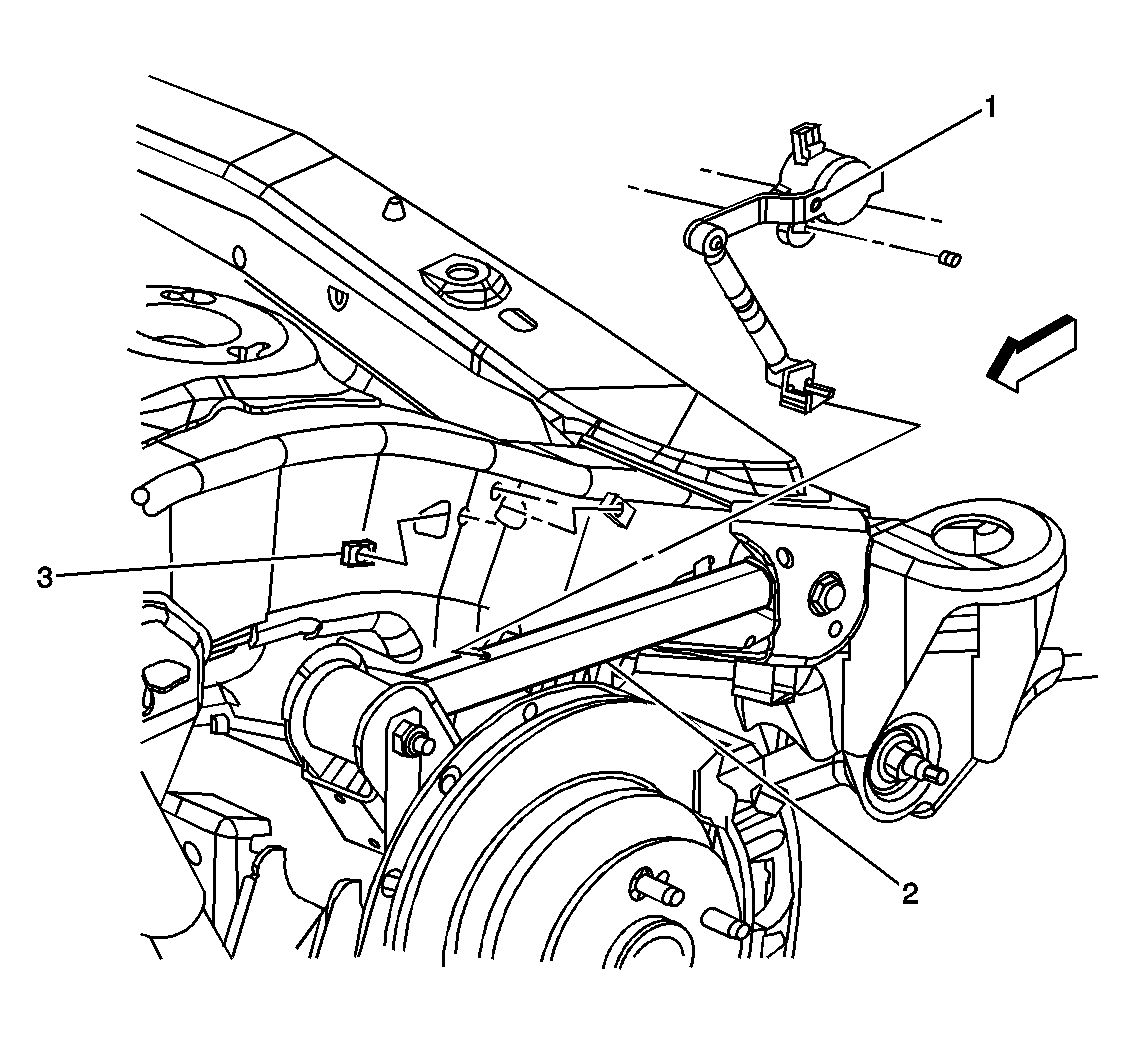

Fig 1: Chassis Component View, Right Side
GM749838Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Sensor, RR
2 Upper Control Arm, RR
3 Frame

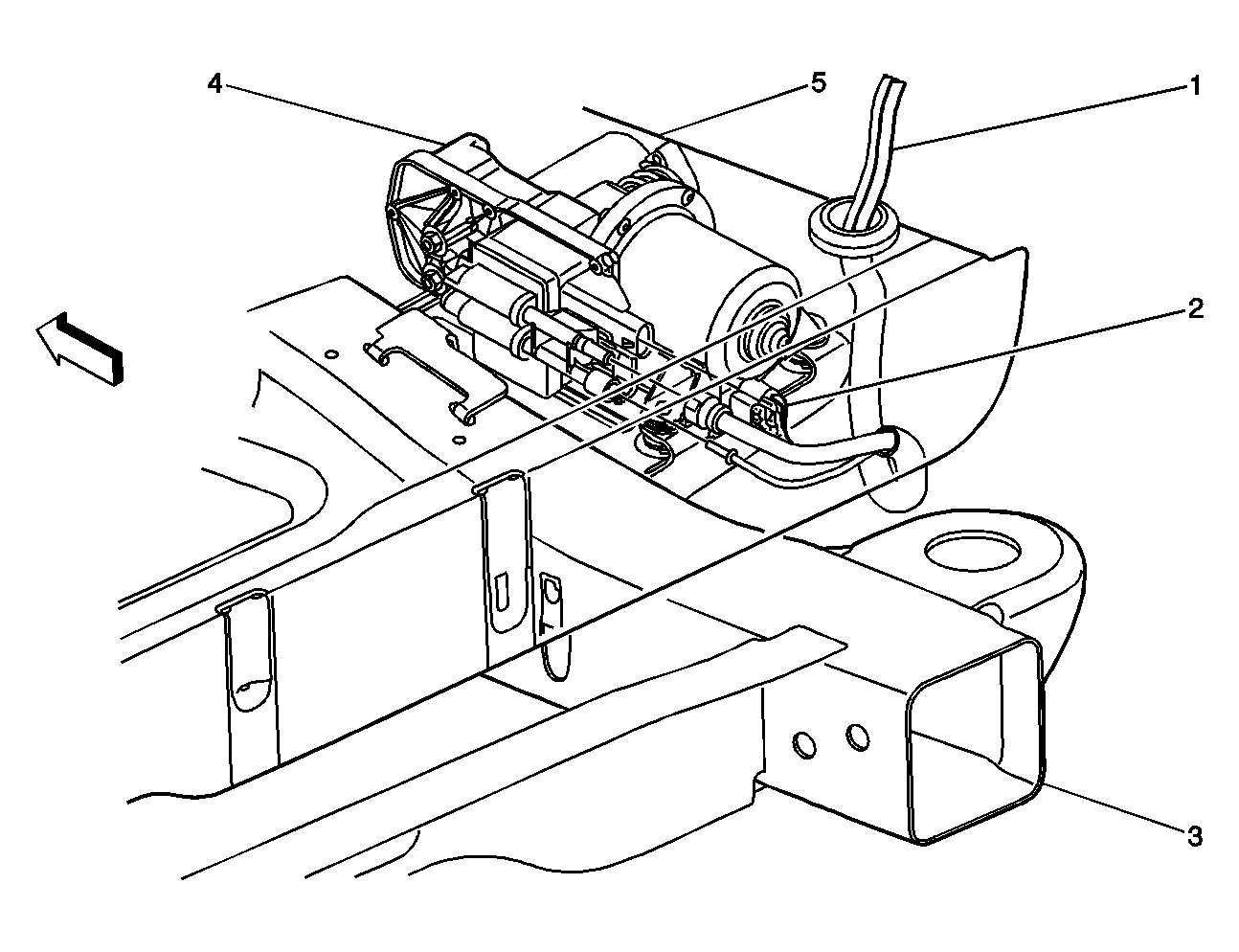

Fig 2: Chassis Component View, Right Rear (Body Type VIN 3)
GM799439Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wiring, Switch-to-Compressor
2 Wire Harness Connector
3 Frame
4 Air Suspension Compressor
5 Rear Floor Panel

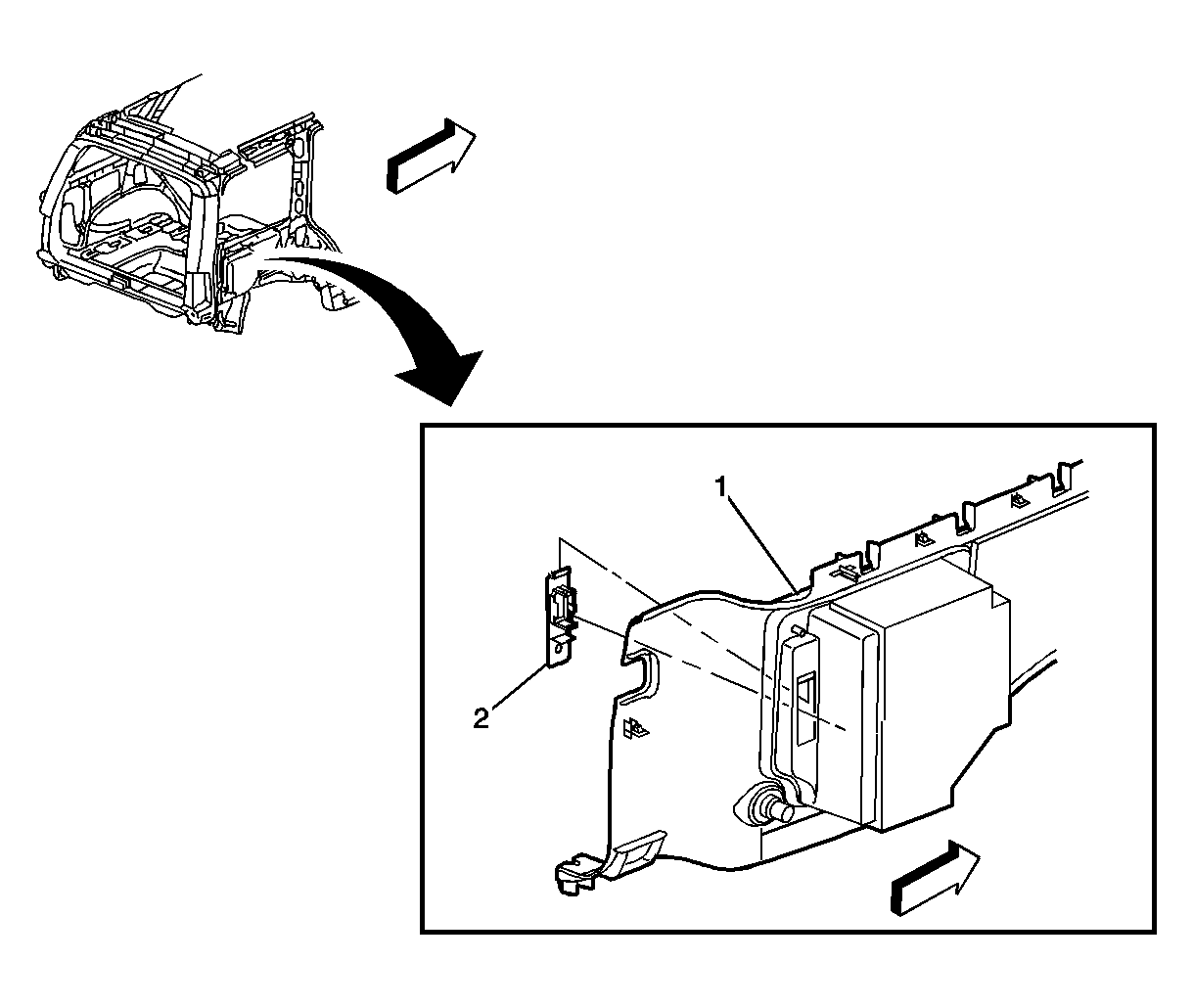

Fig 3: Rear Trim Panel Component View (Body Type VIN 3)
GM799438Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower Trim Panel
2 Air Suspension Inflator Switch

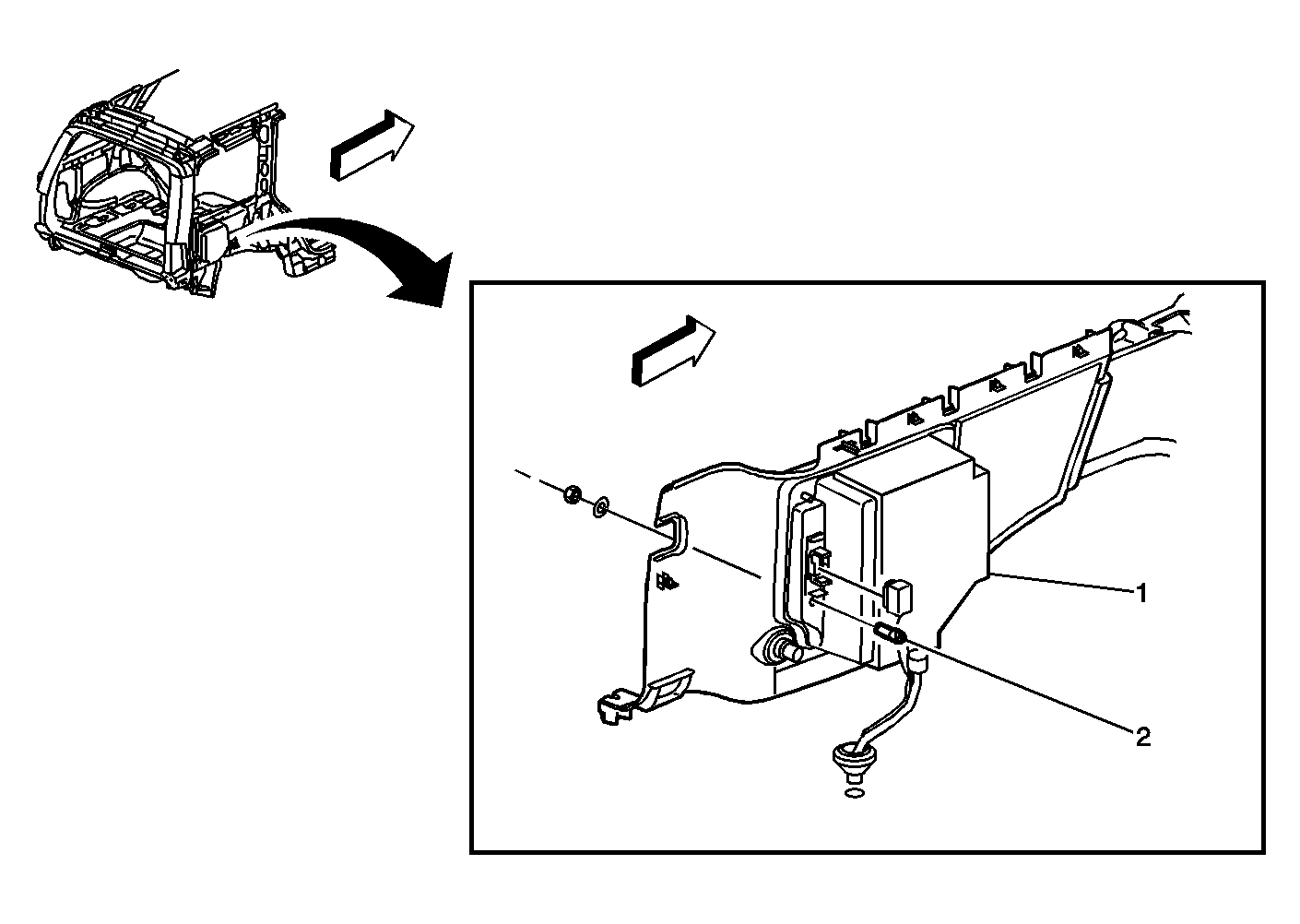

Fig 4: Right Rear Component View (Body Type VIN 3)
GM799435Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower Side Trim Panel
2 Indicator

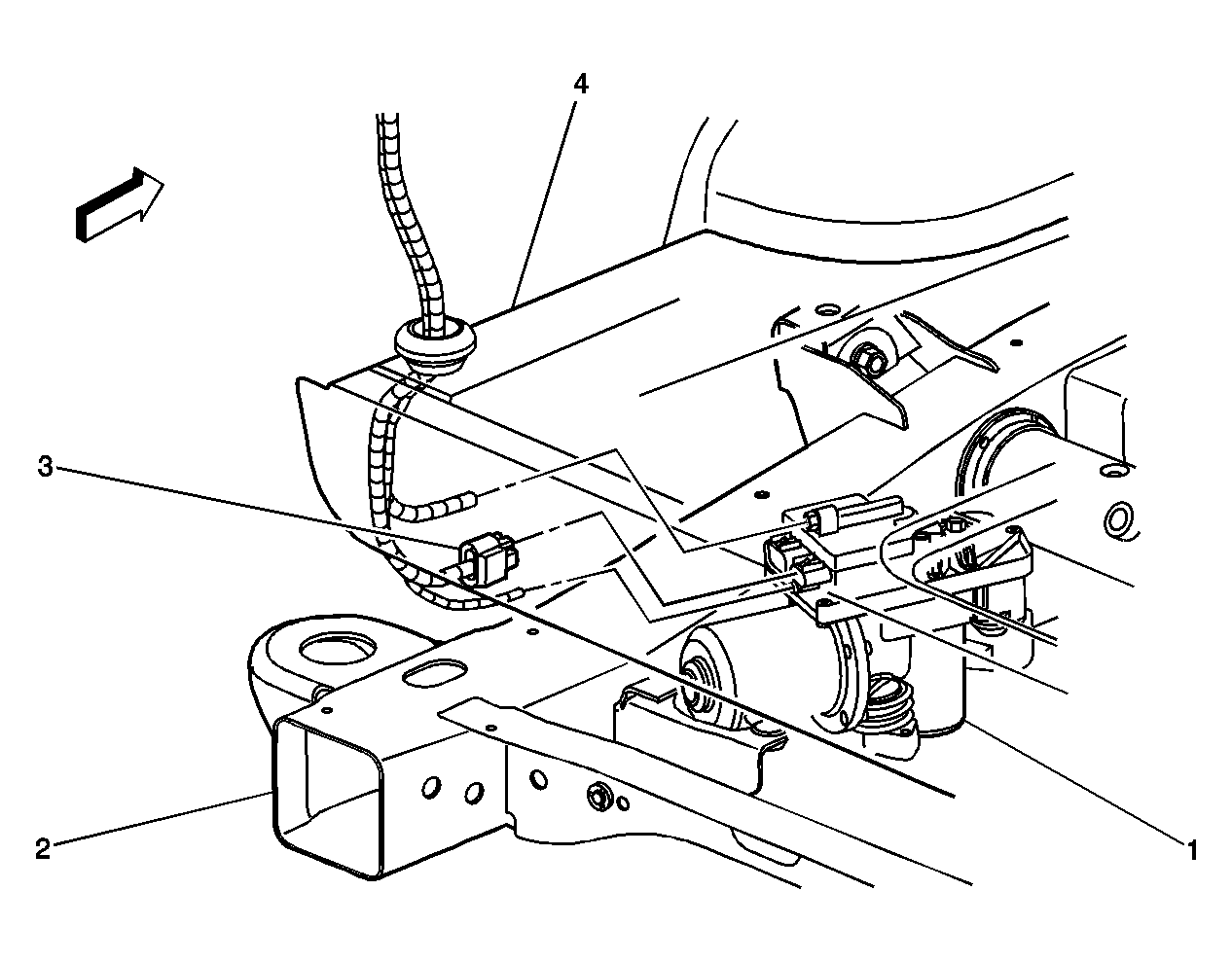

Fig 5: Chassis Component View, LR (Body Type VIN 6)
GM799442Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Compressor
2 Frame
3 Wiring, Compressor-to-Switch
4 Rear Floor Panel
