HVAC Control Module Connector End View C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
HVAC Control Module Connector End View C1

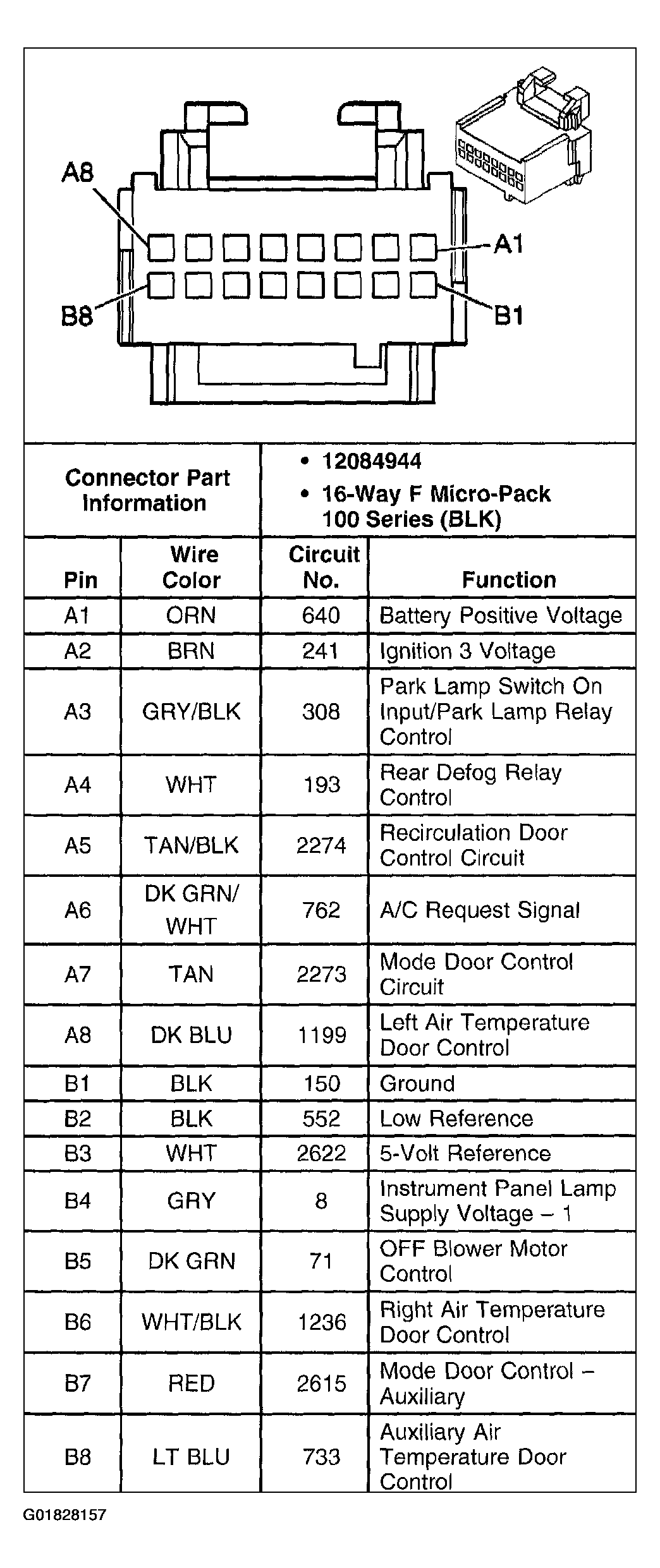

Fig 1: HVAC Control Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
