Cellular Communication Connector End Views

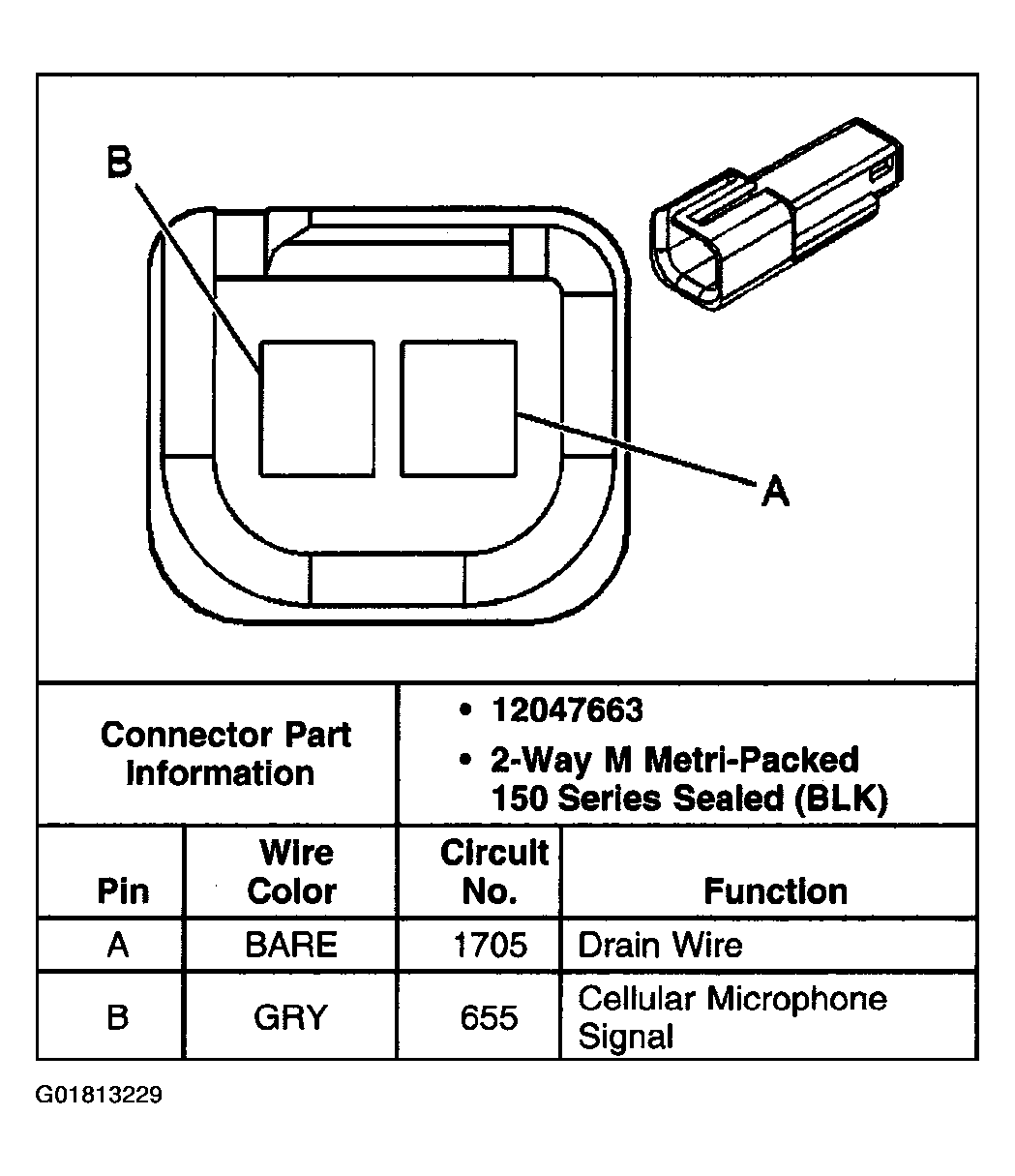

Fig 1: Cellular Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Fig 2: OnStar® Button Assembly

Courtesy of GENERAL MOTORS CORP.

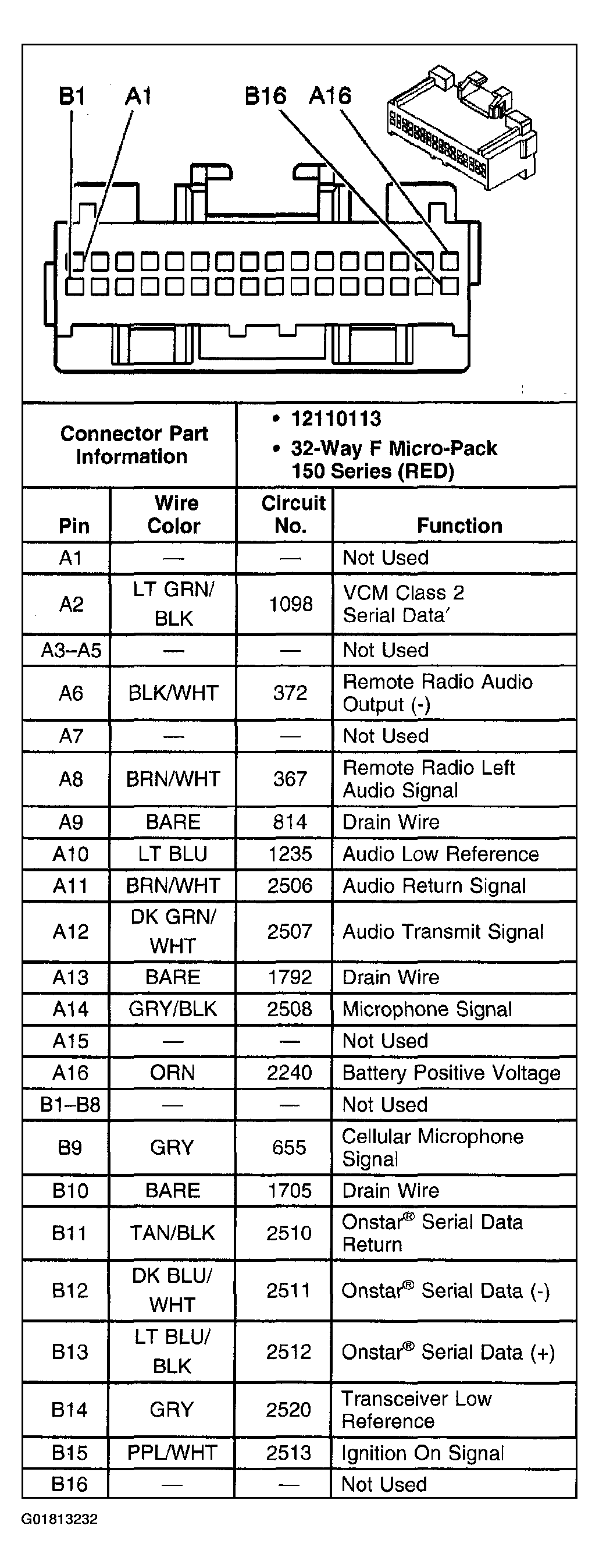

Fig 3: Vehicle Communication Unit (VCU)

Courtesy of GENERAL MOTORS CORP.

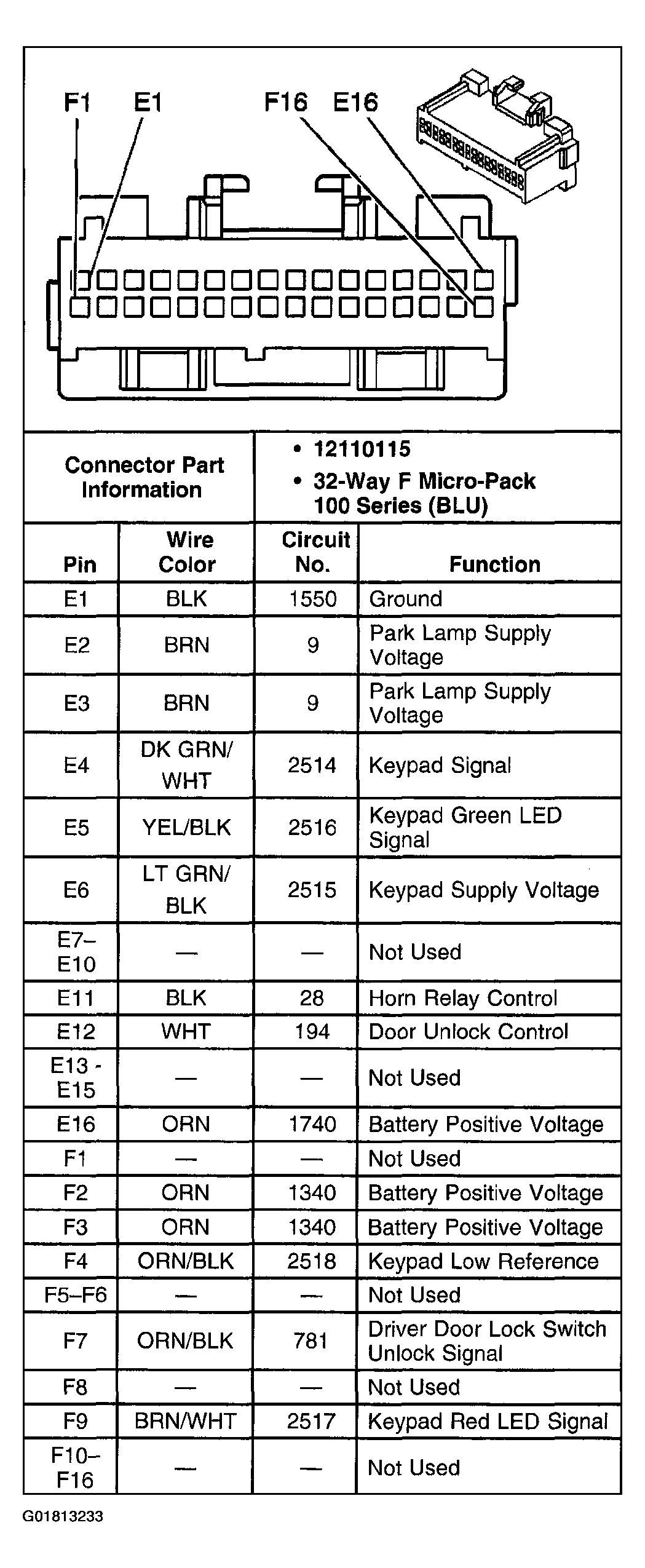

Fig 4: Vehicle Interface Unit (VIU) C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Vehicle Interface Unit (VIU) C2

Courtesy of GENERAL MOTORS CORP.
