Power Door Systems Component Views

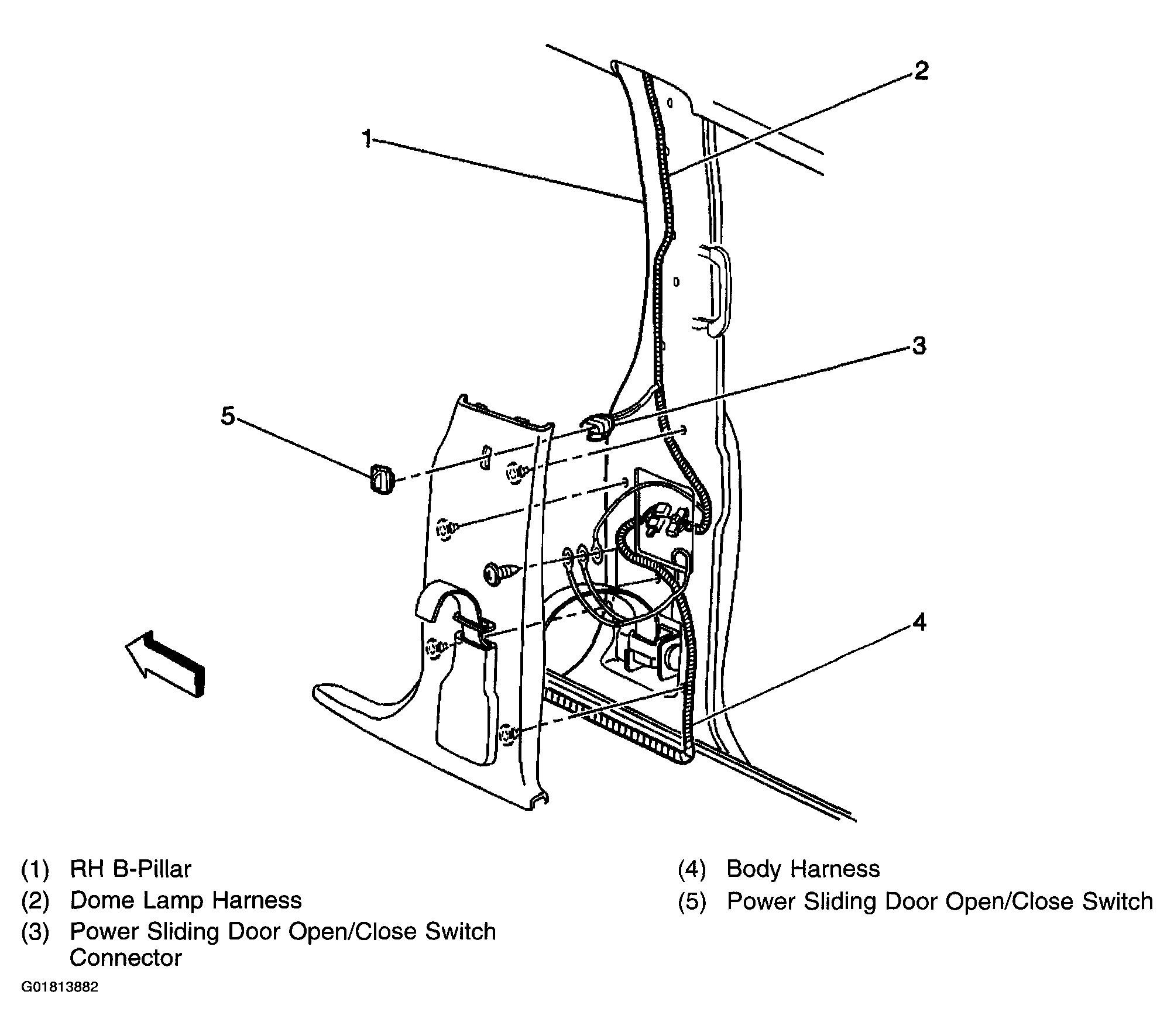

Fig 1: RH B-Pillar

G01813882

Courtesy of GENERAL MOTORS CORP.

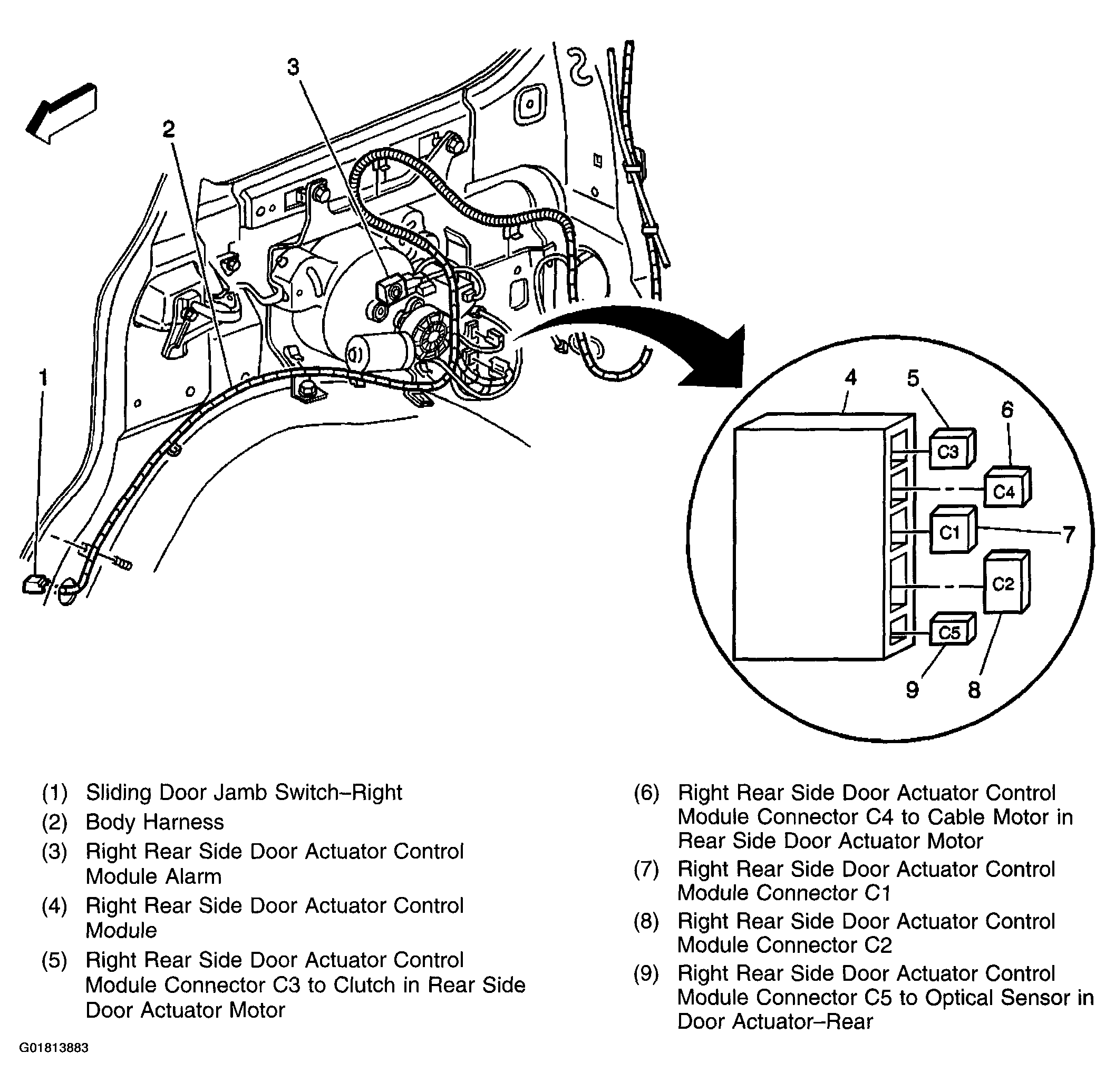

Fig 2: Right Quarter Panel (LH Side Similar)

G01813883

Courtesy of GENERAL MOTORS CORP.

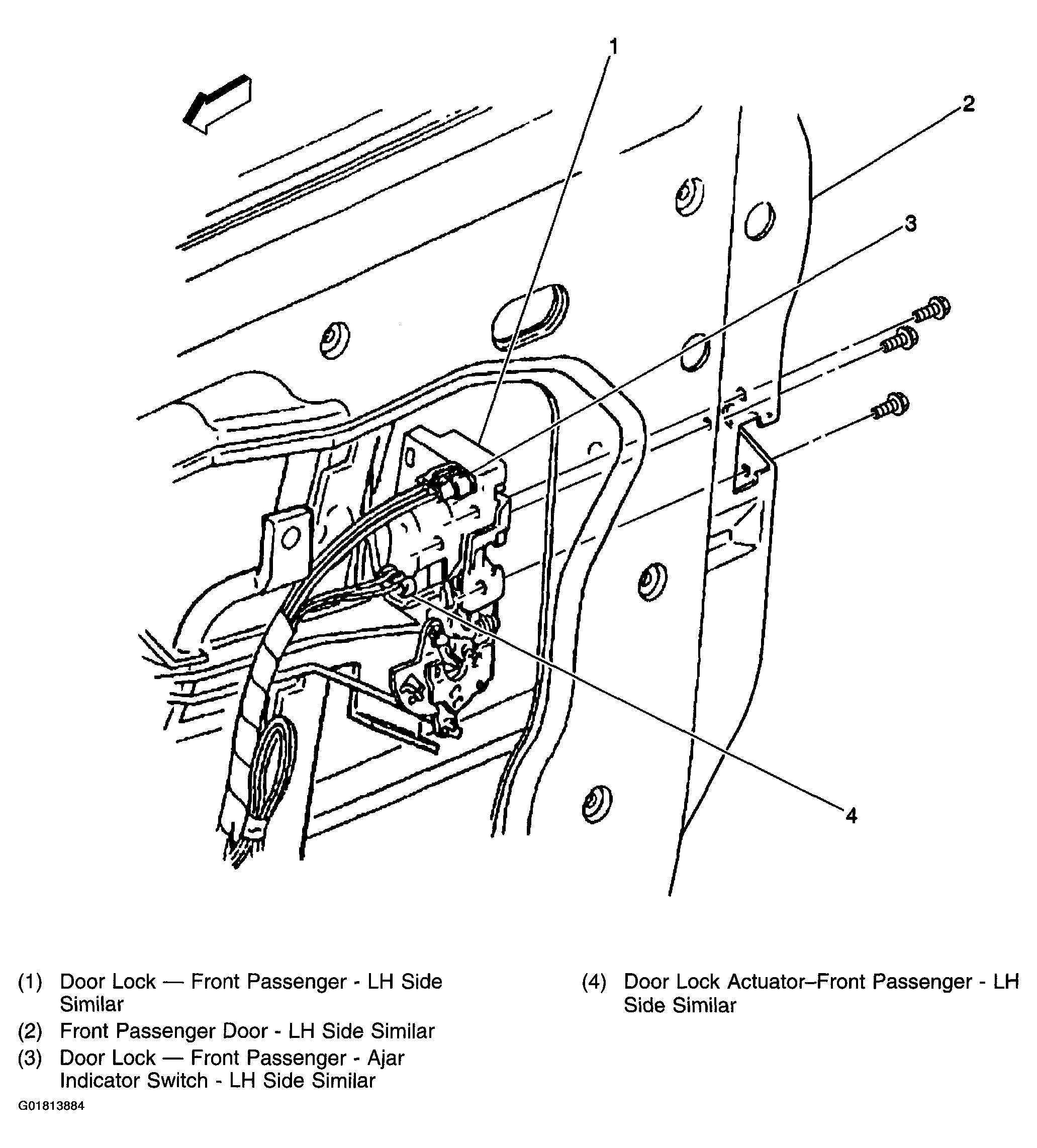

Fig 3: RF Door - LH Side Similar

G01813884

Courtesy of GENERAL MOTORS CORP.

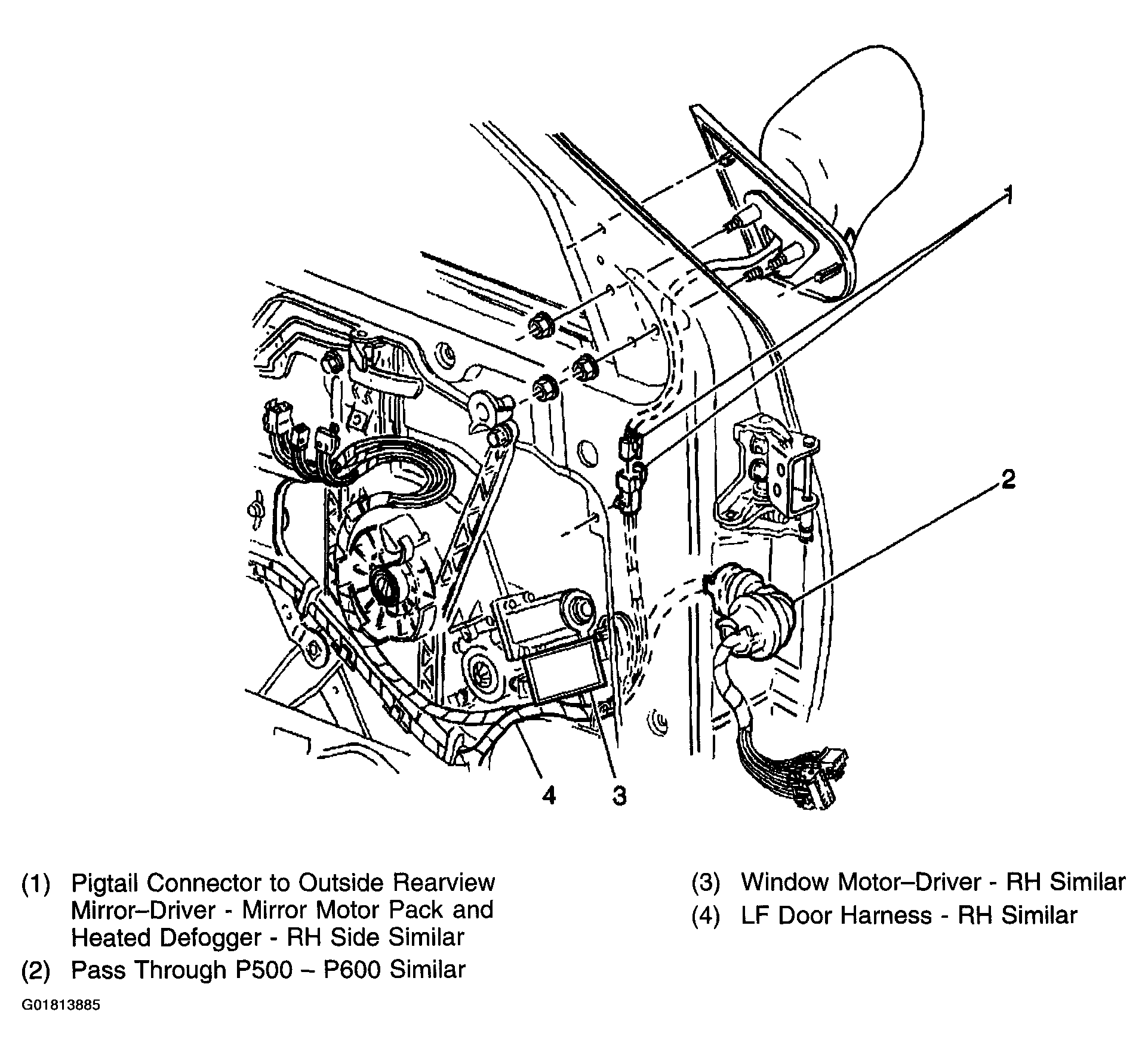

Fig 4: LF Door - RH Side Similar

G01813885

Courtesy of GENERAL MOTORS CORP.

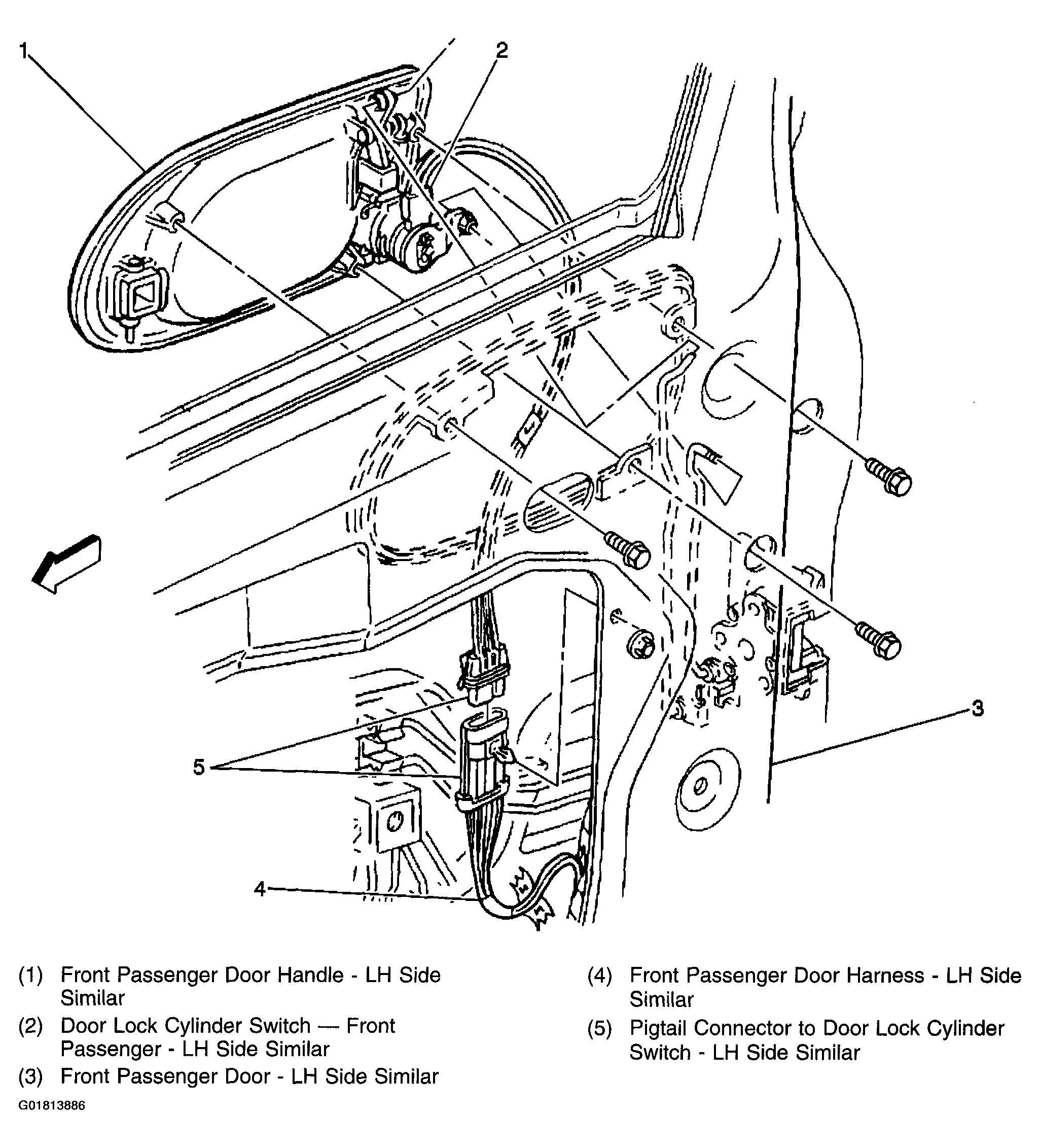

Fig 5: RF Door - LF Door Similar

G01813886

Courtesy of GENERAL MOTORS CORP.

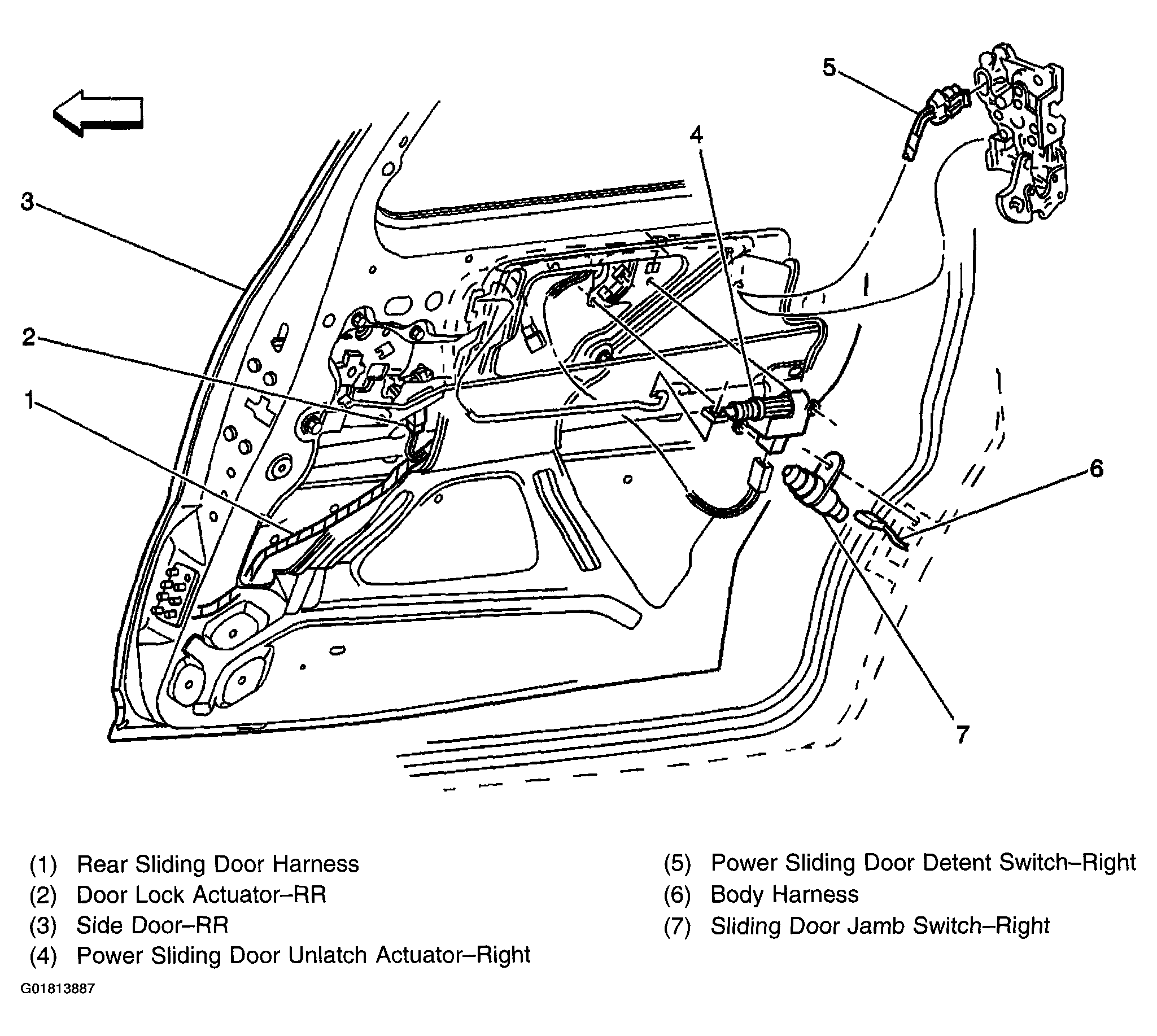

Fig 6: RH Sliding Door (LH Similar)

G01813887

Courtesy of GENERAL MOTORS CORP.

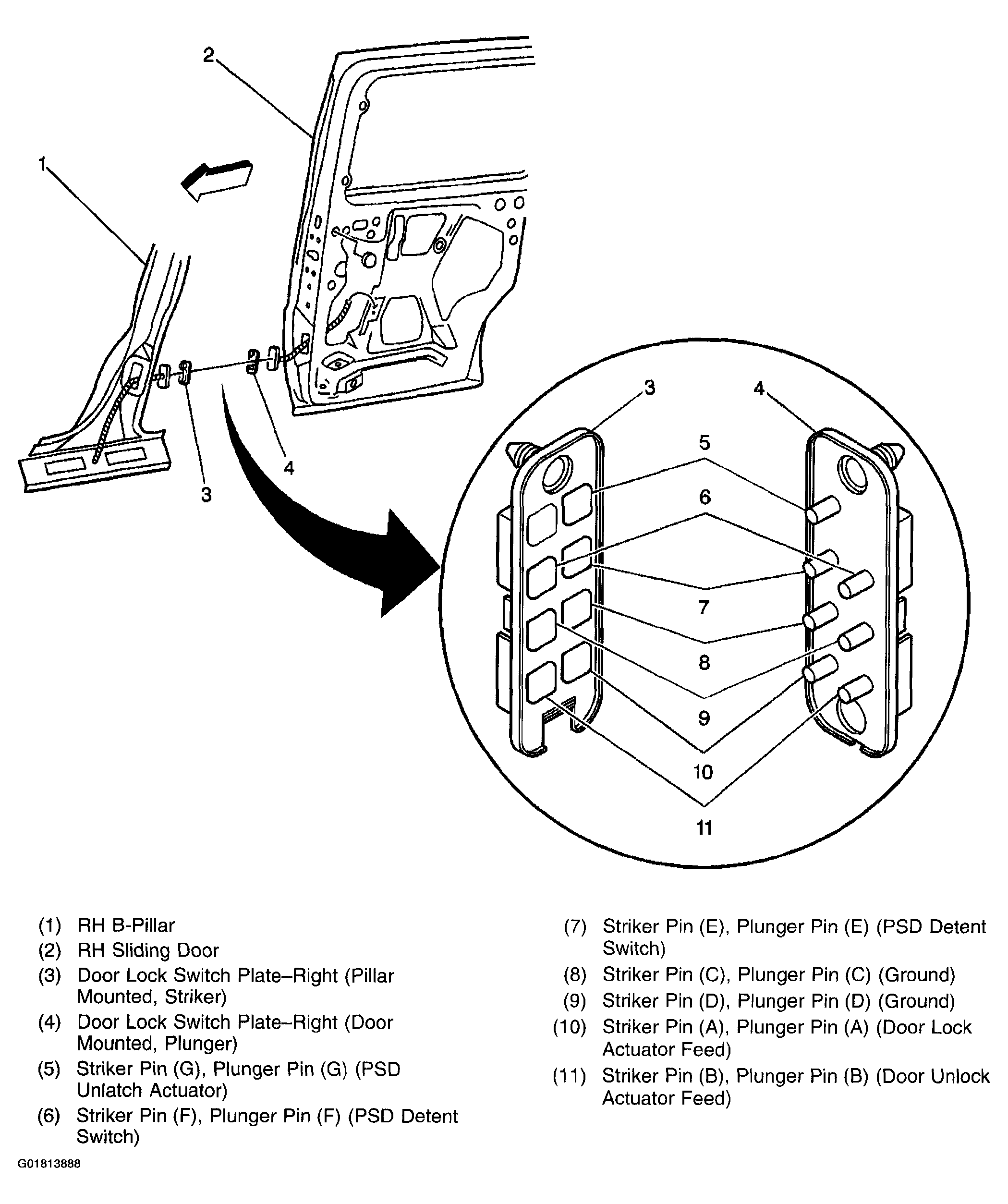

Fig 7: RH Sliding Door

G01813888

Courtesy of GENERAL MOTORS CORP.

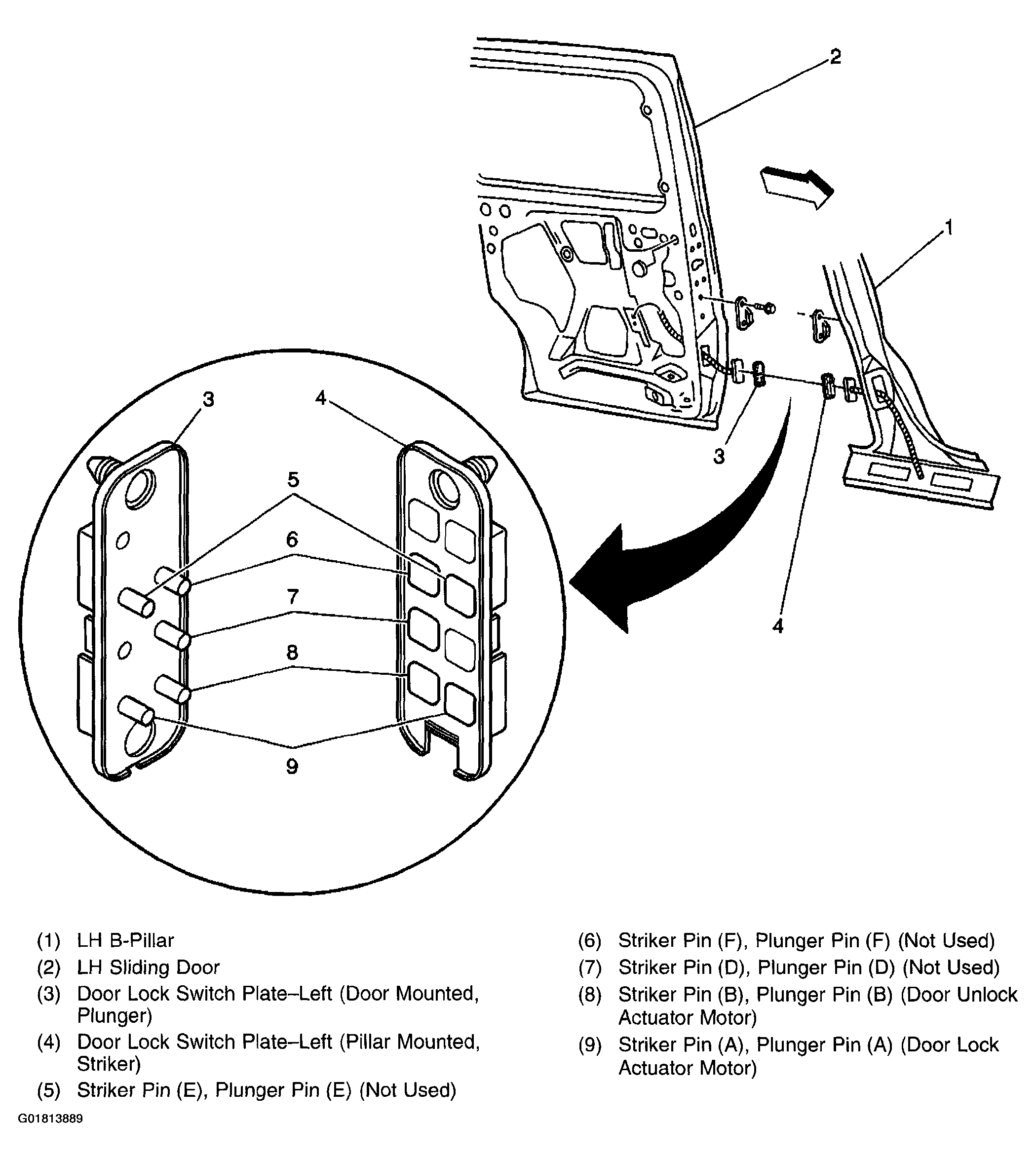

Fig 8: LH Sliding Door

G01813889

Courtesy of GENERAL MOTORS CORP.

Fig 9: LF Door Trim Panel

G01813890

Courtesy of GENERAL MOTORS CORP.

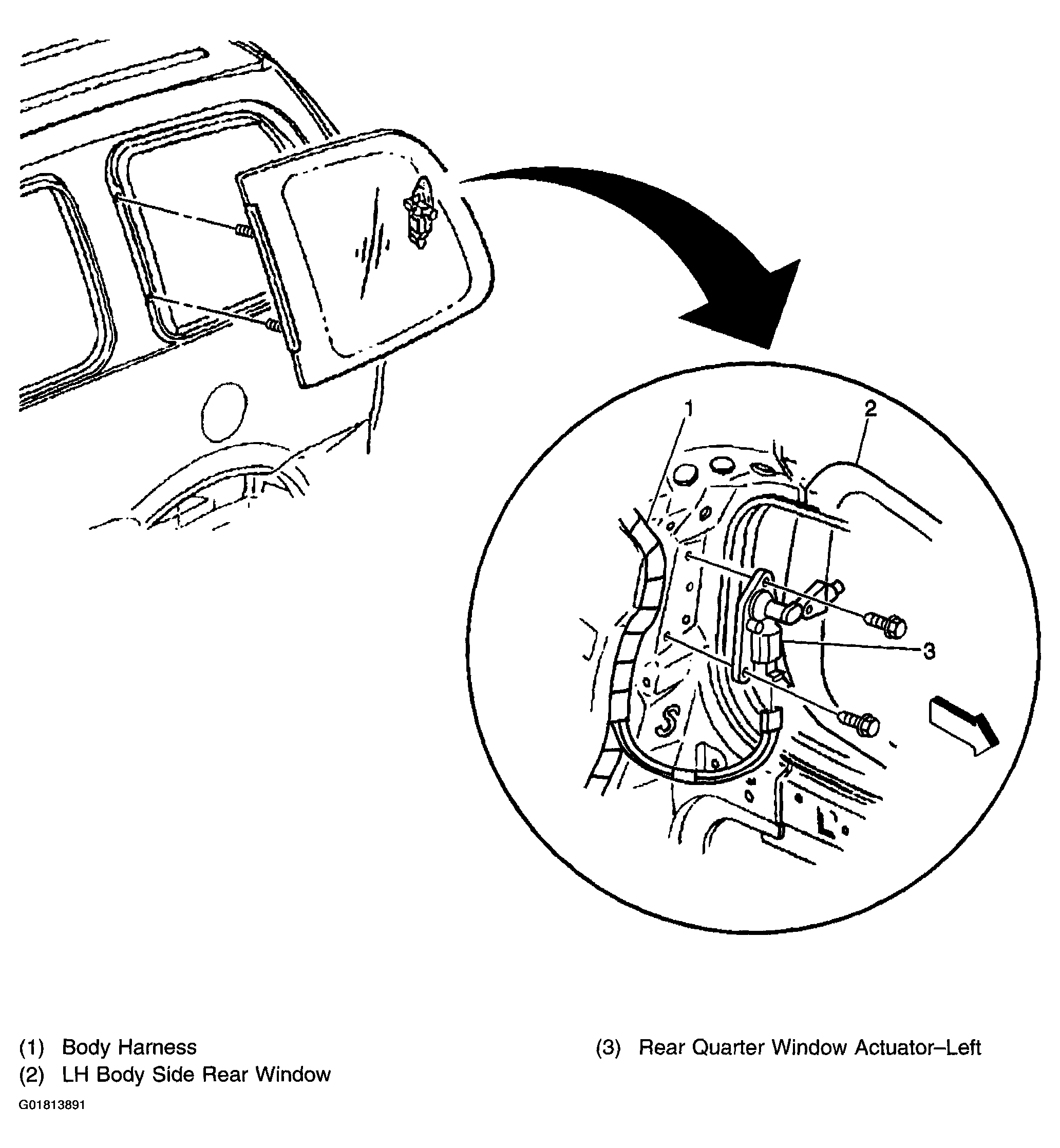

Fig 10: LH Body Side Rear Window - RH Similar

G01813891

Courtesy of GENERAL MOTORS CORP.
