Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door rubber conduit. Refer to Rubber Conduit Replacement - Front Door .
  3. Remove the front door window. Refer to Window Replacement - Front Door .
  4. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  5. Remove the front door lock module screws.
  6. Remove the front door lock module from the front door.

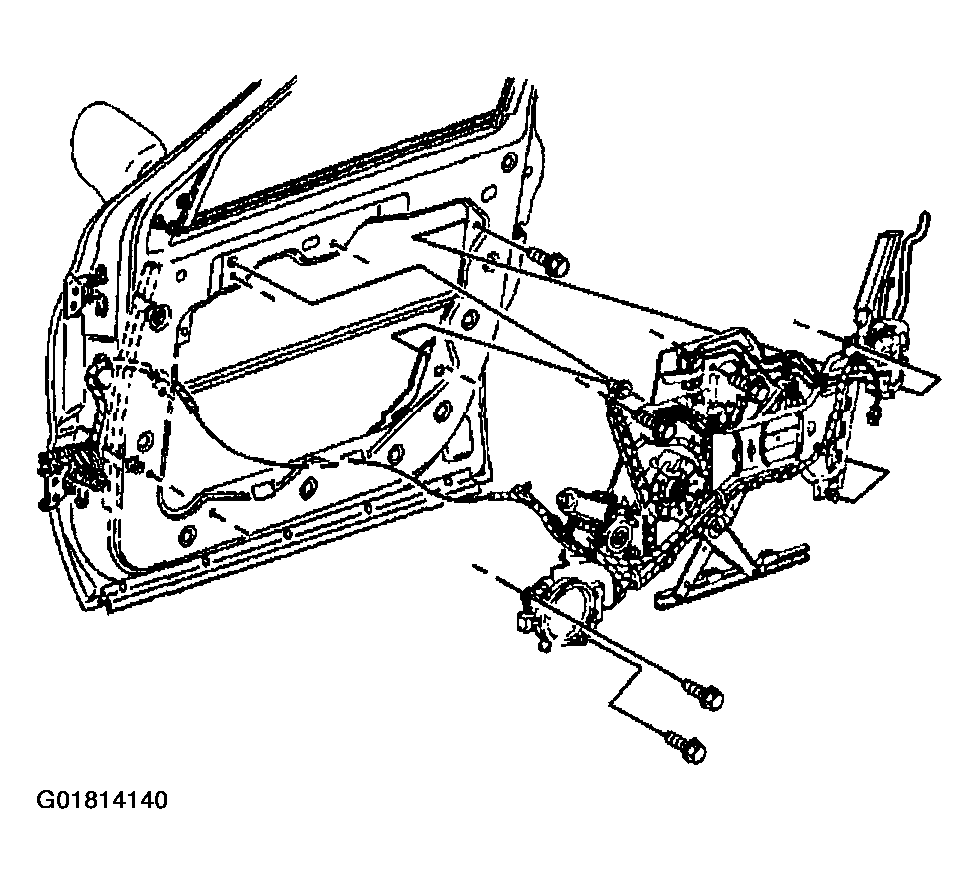

    Fig 1: Removing Front Door Lock Module & Screws
    G01814140Courtesy of GENERAL MOTORS CORP.
