Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

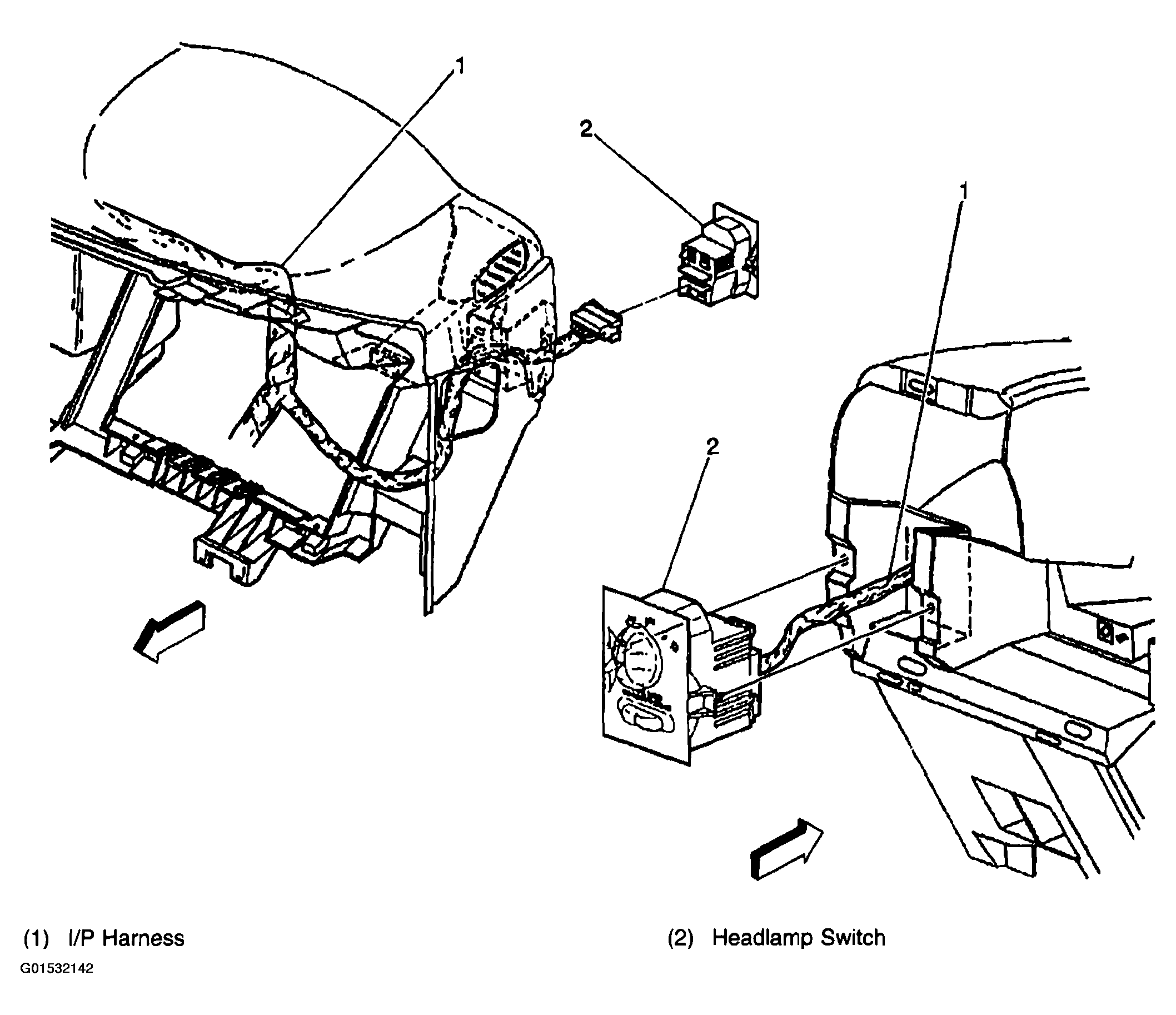

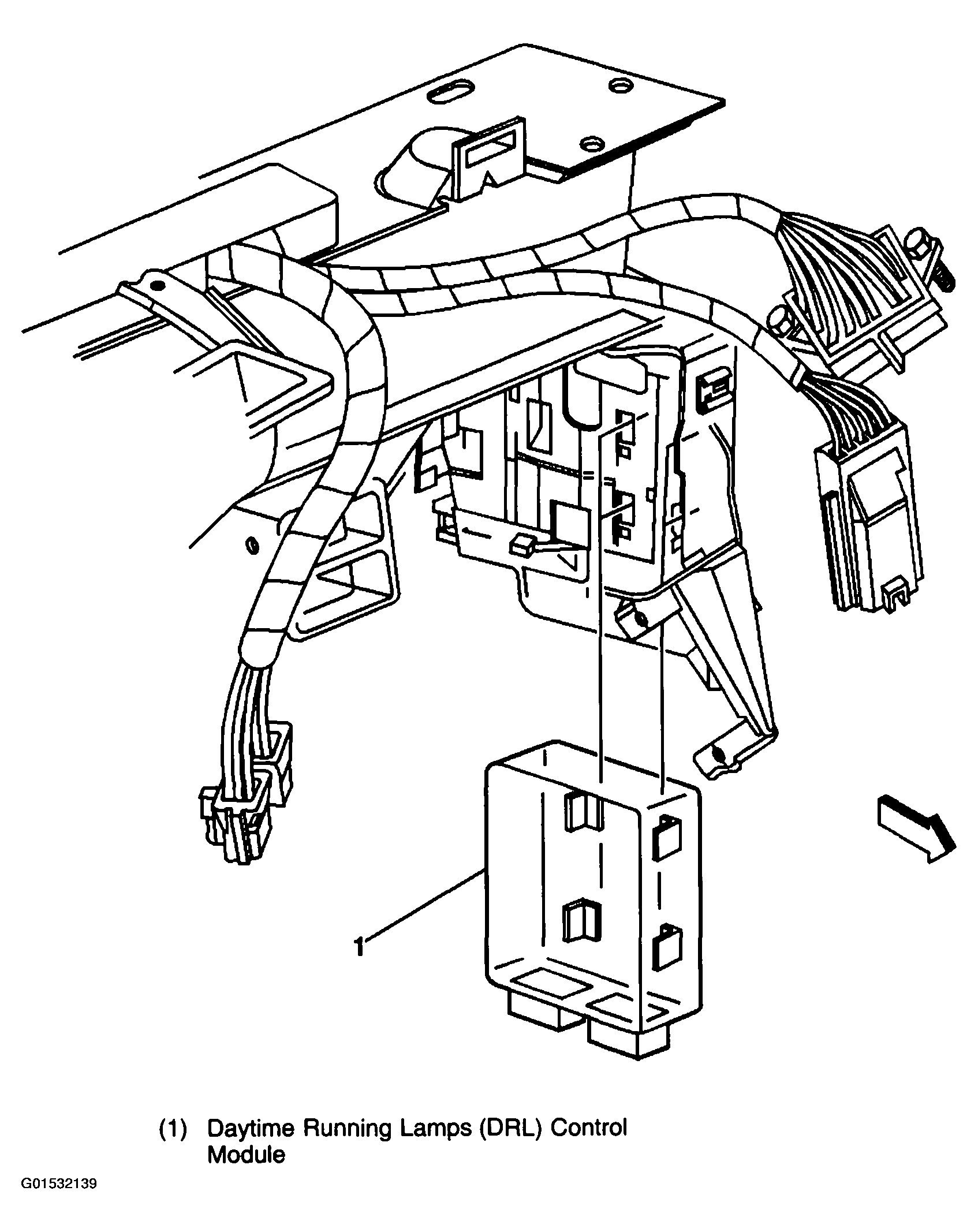

Fig 1: LH Side of I/P, Under I/P, & Left of HVAC Component View

Courtesy of GENERAL MOTORS CORP.

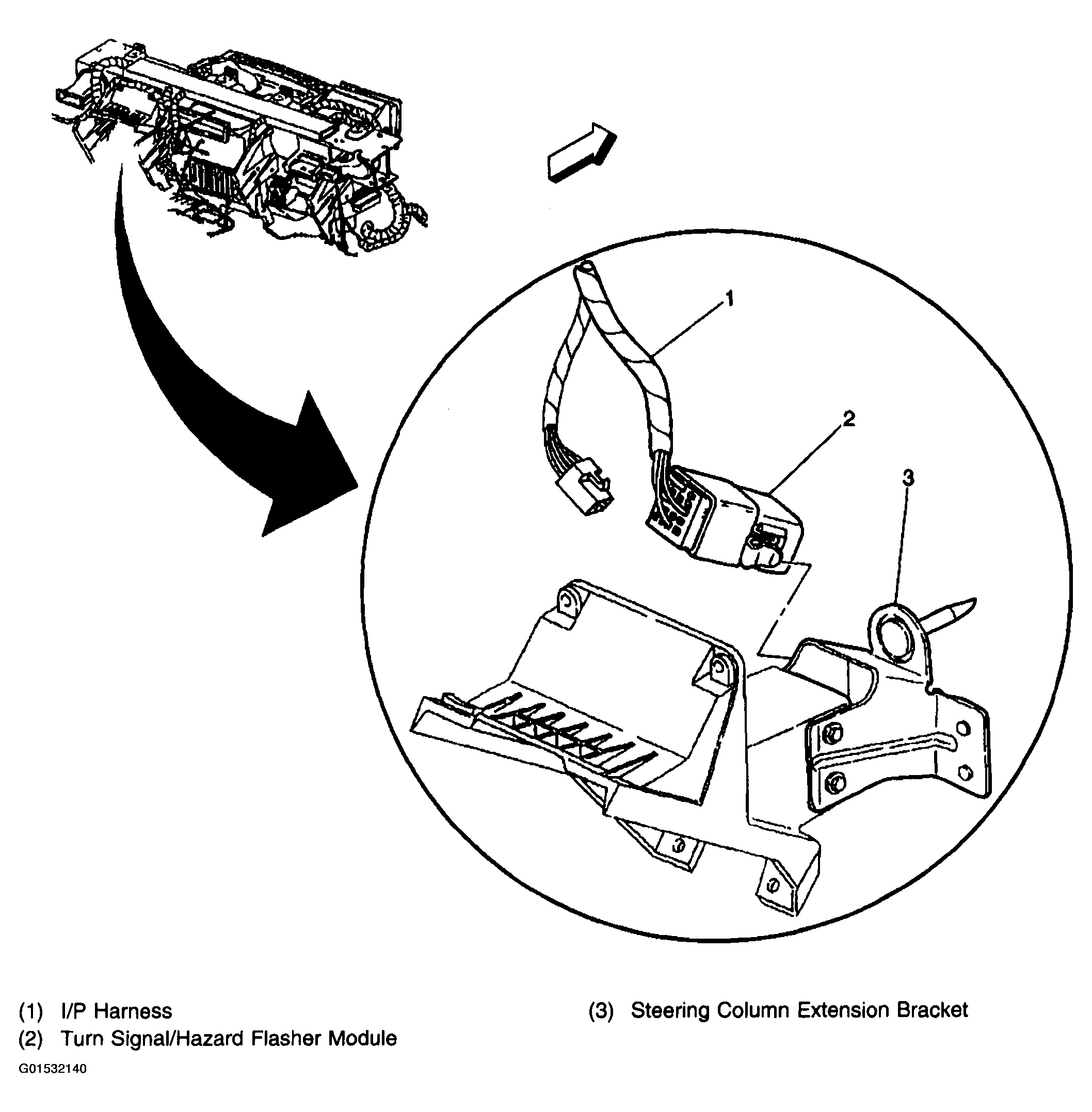

Fig 2: RH Side of I/P, Above Base of Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

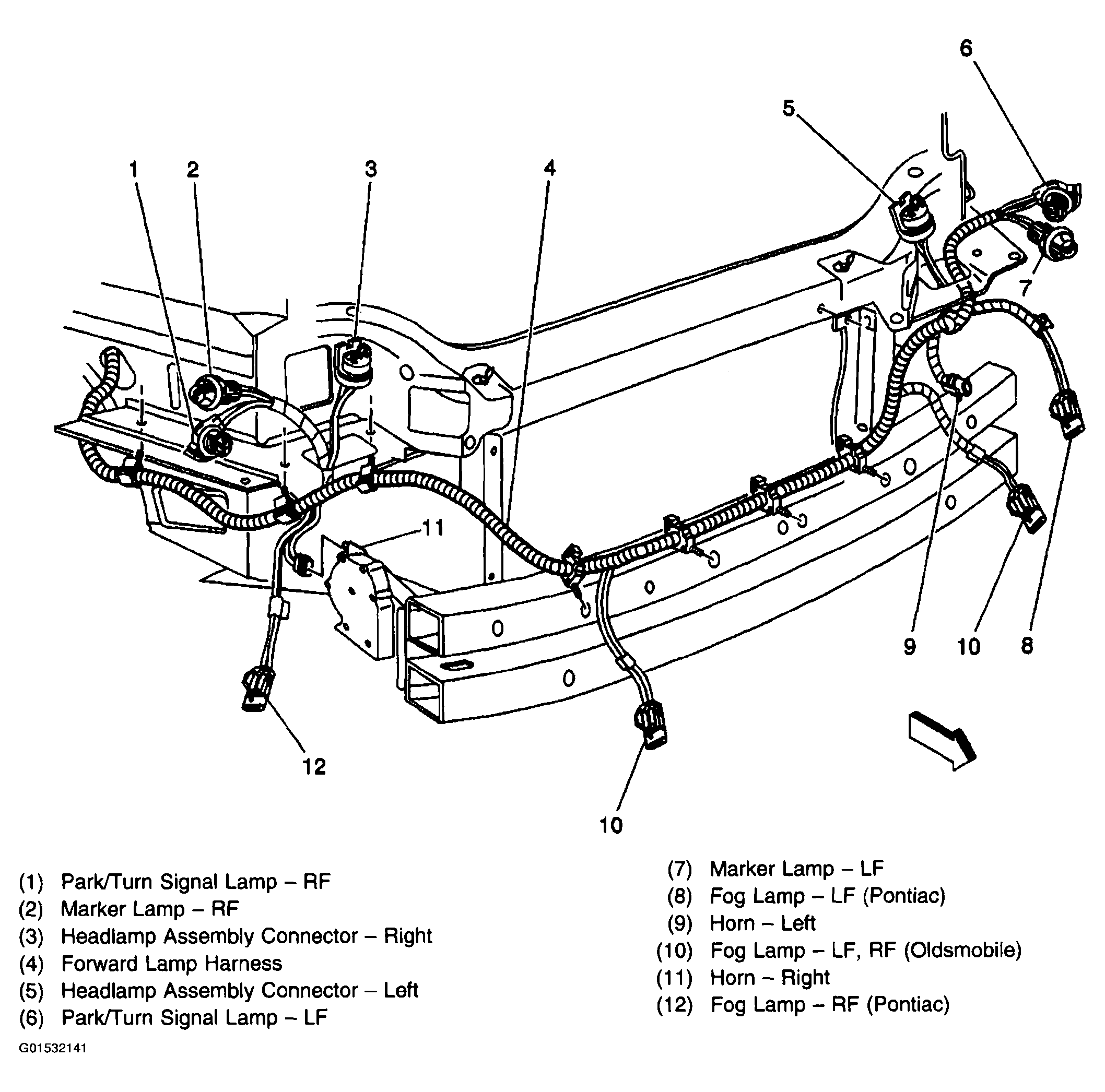

Fig 3: Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Fig 4: LH Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

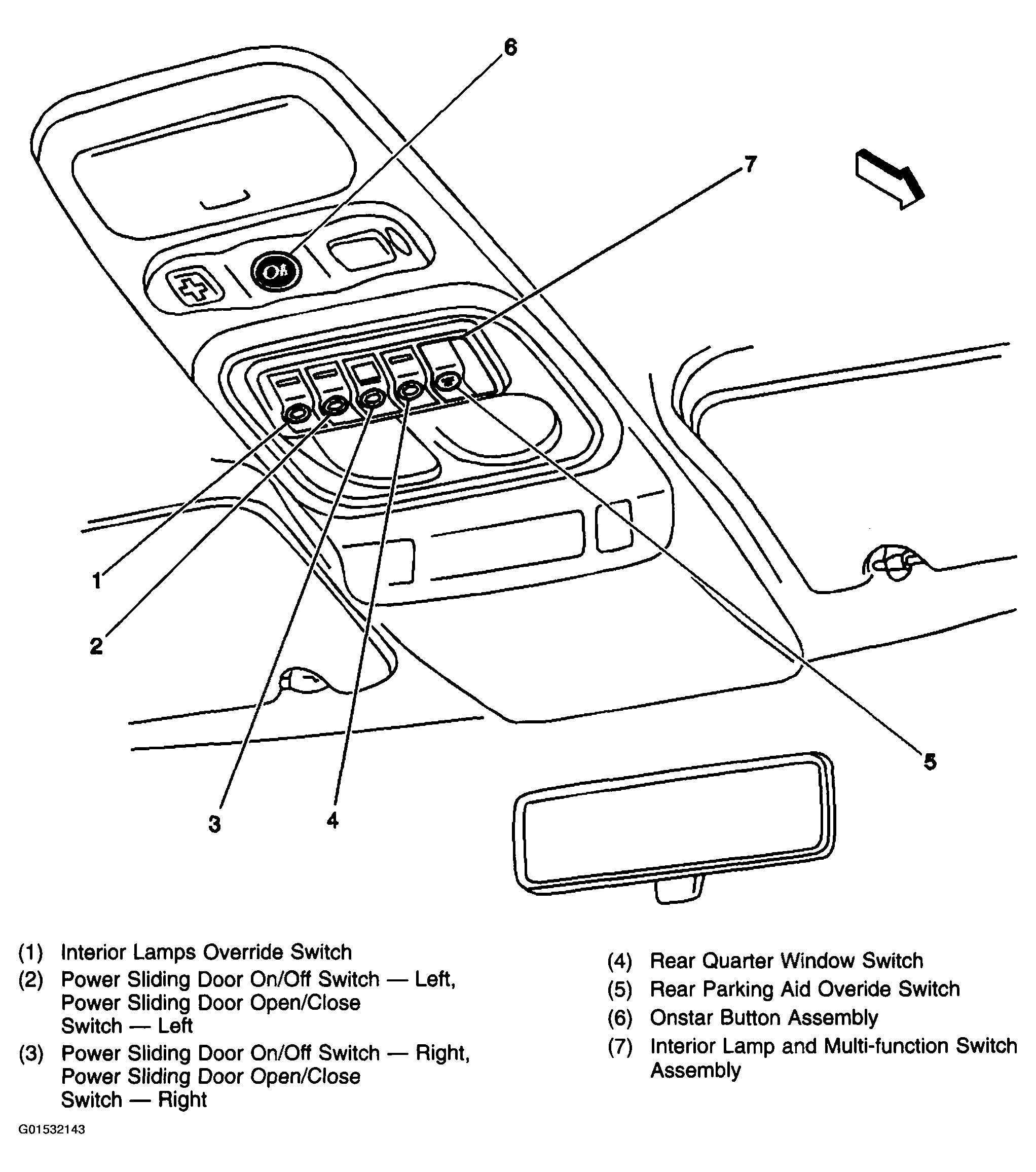

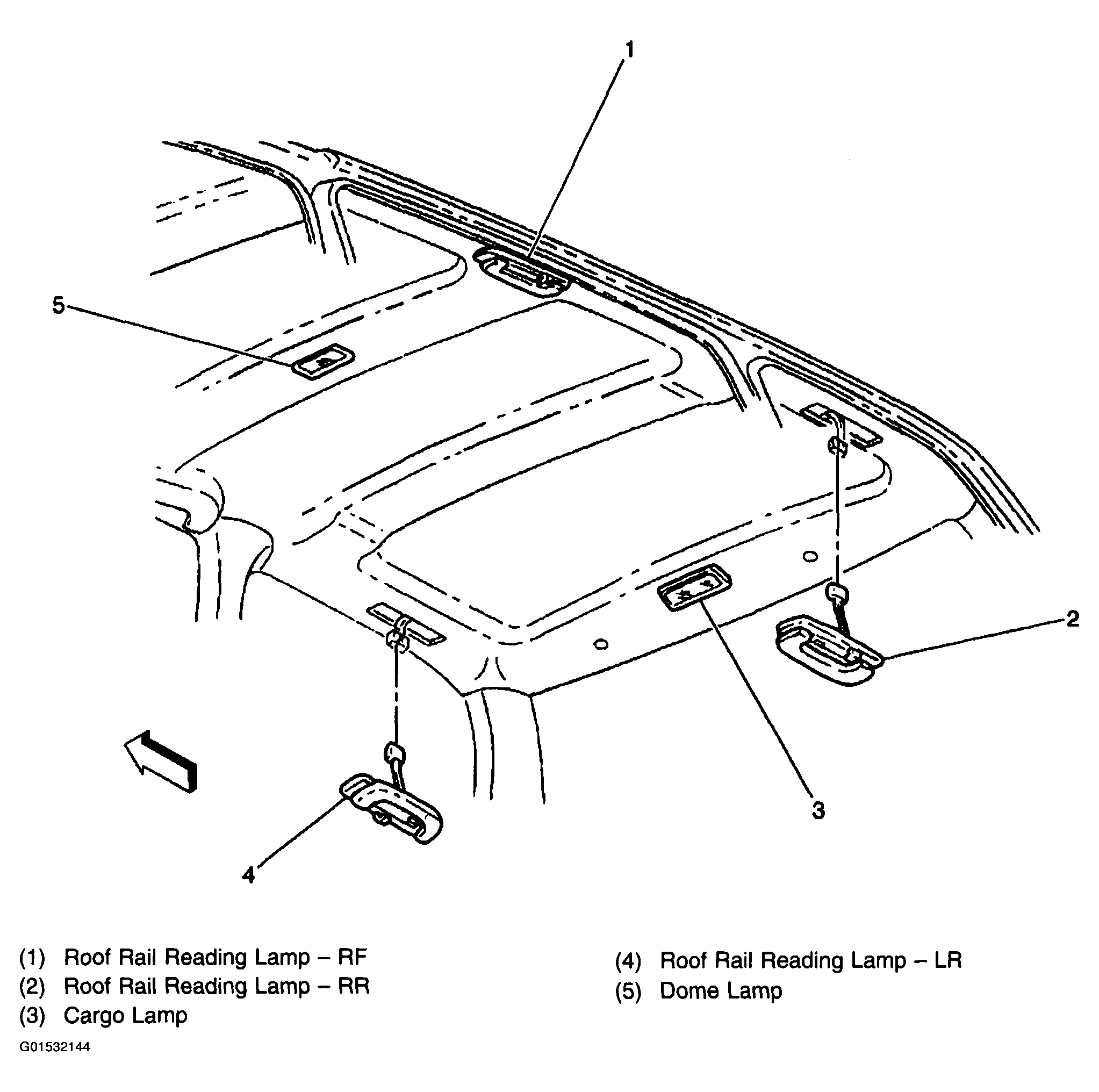

Fig 5: Front of Roof Headliner (Interior Lamp and Multi-function Switch

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Roof Headliner Component View

Courtesy of GENERAL MOTORS CORP.

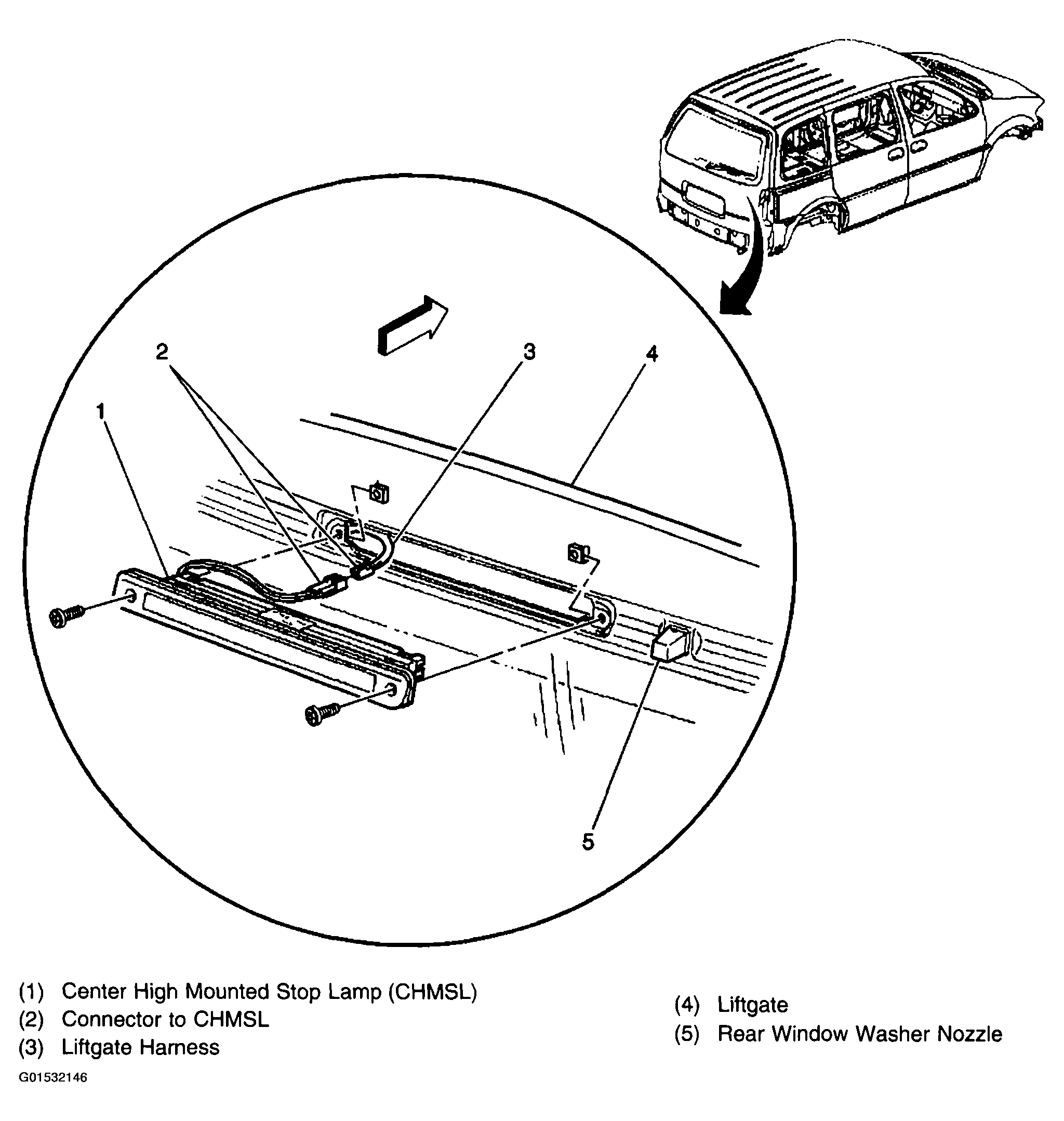

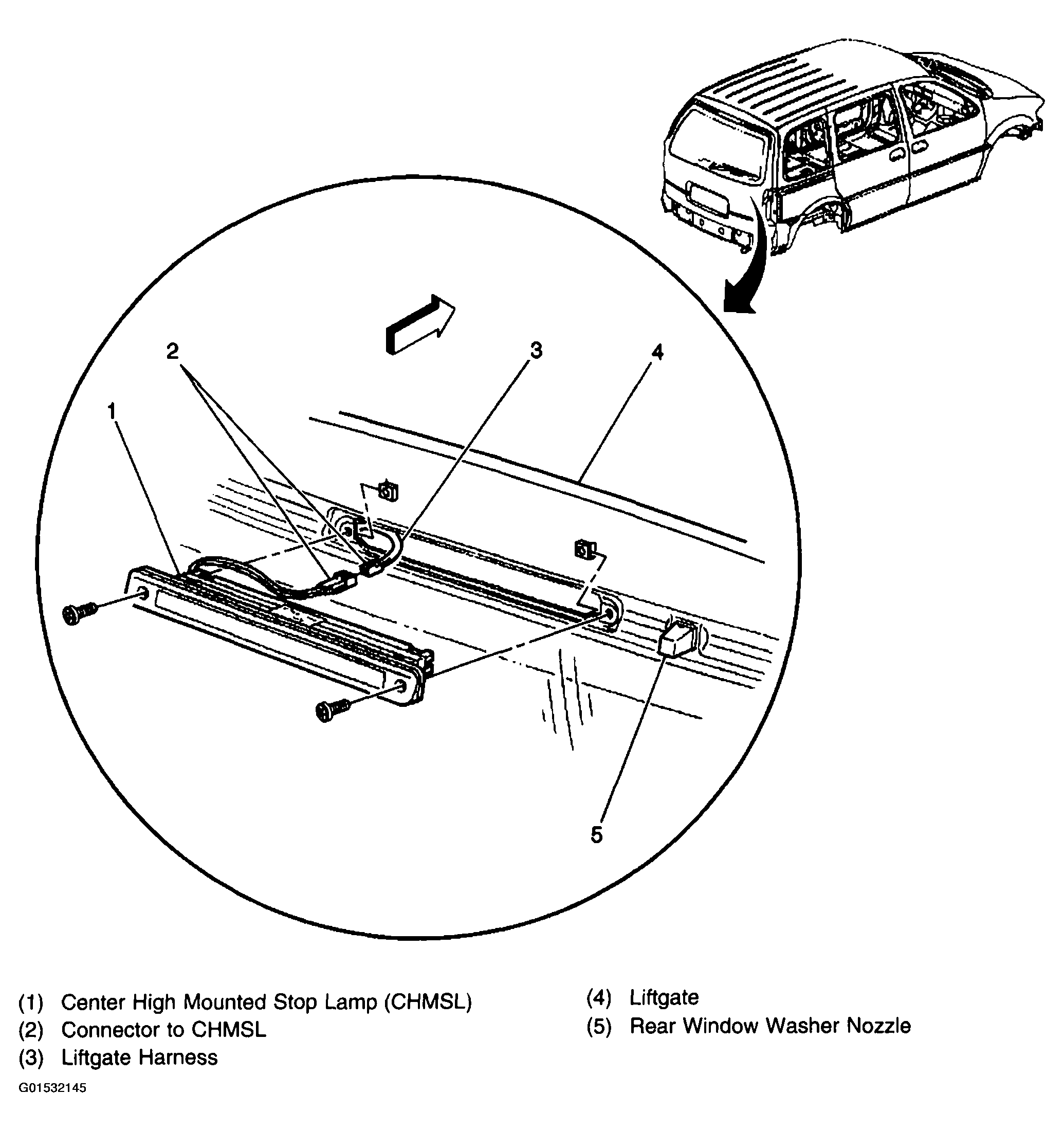

Fig 7: Top Of Liftgate Component View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Top Of Liftgate Component View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

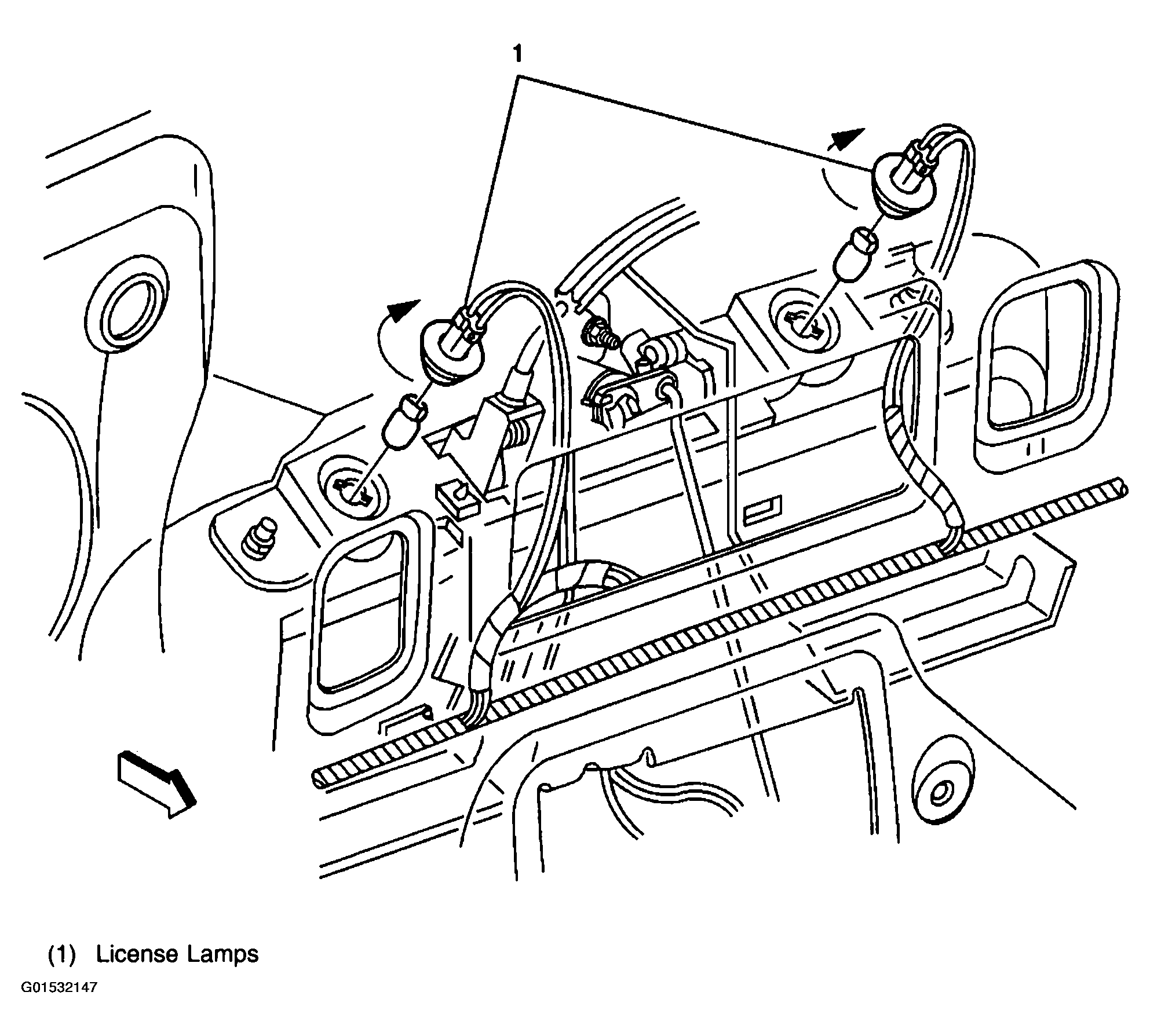

Fig 9: License Lamps Component View

Courtesy of GENERAL MOTORS CORP.

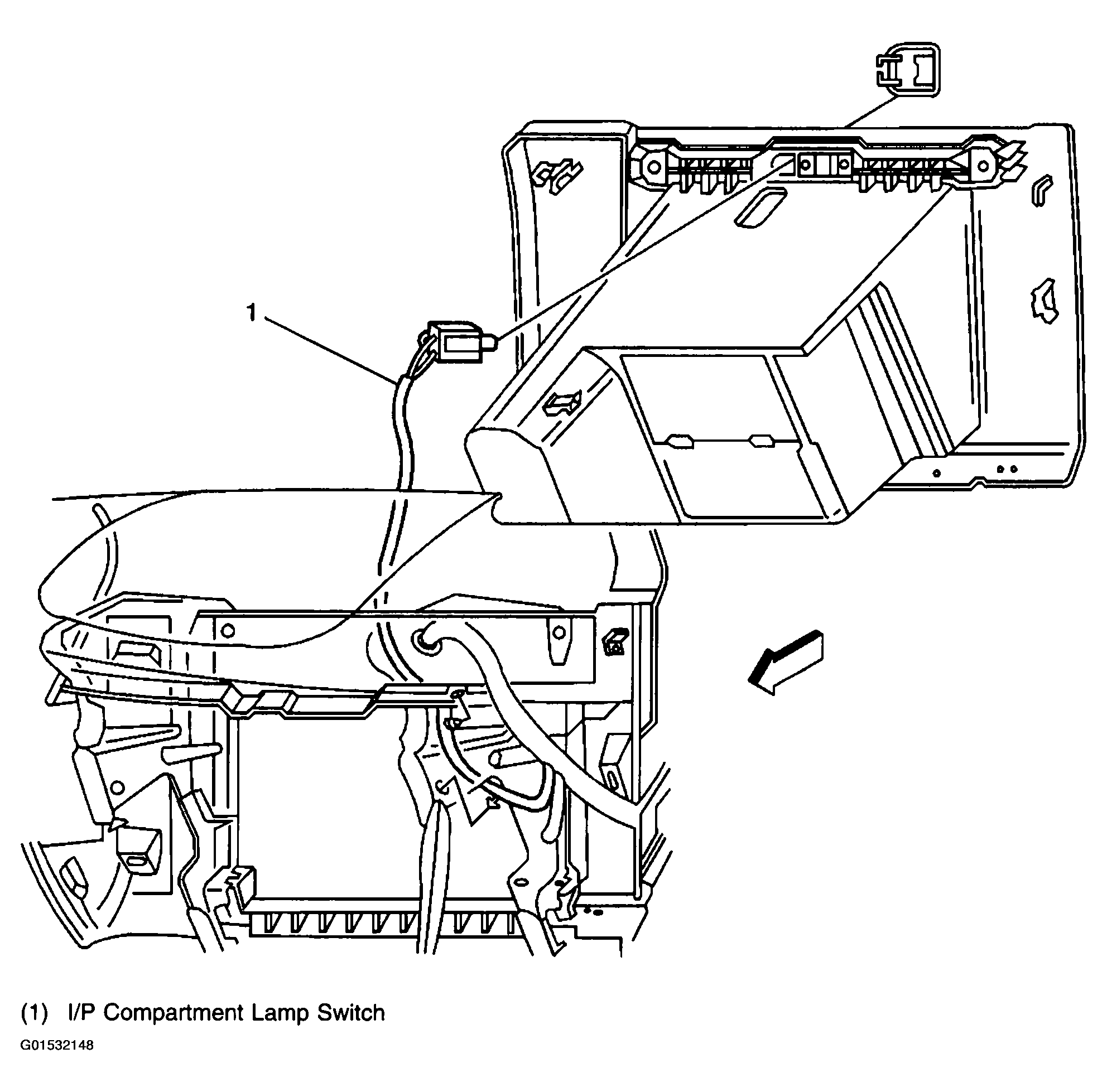

Fig 10: I/P Compartment Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

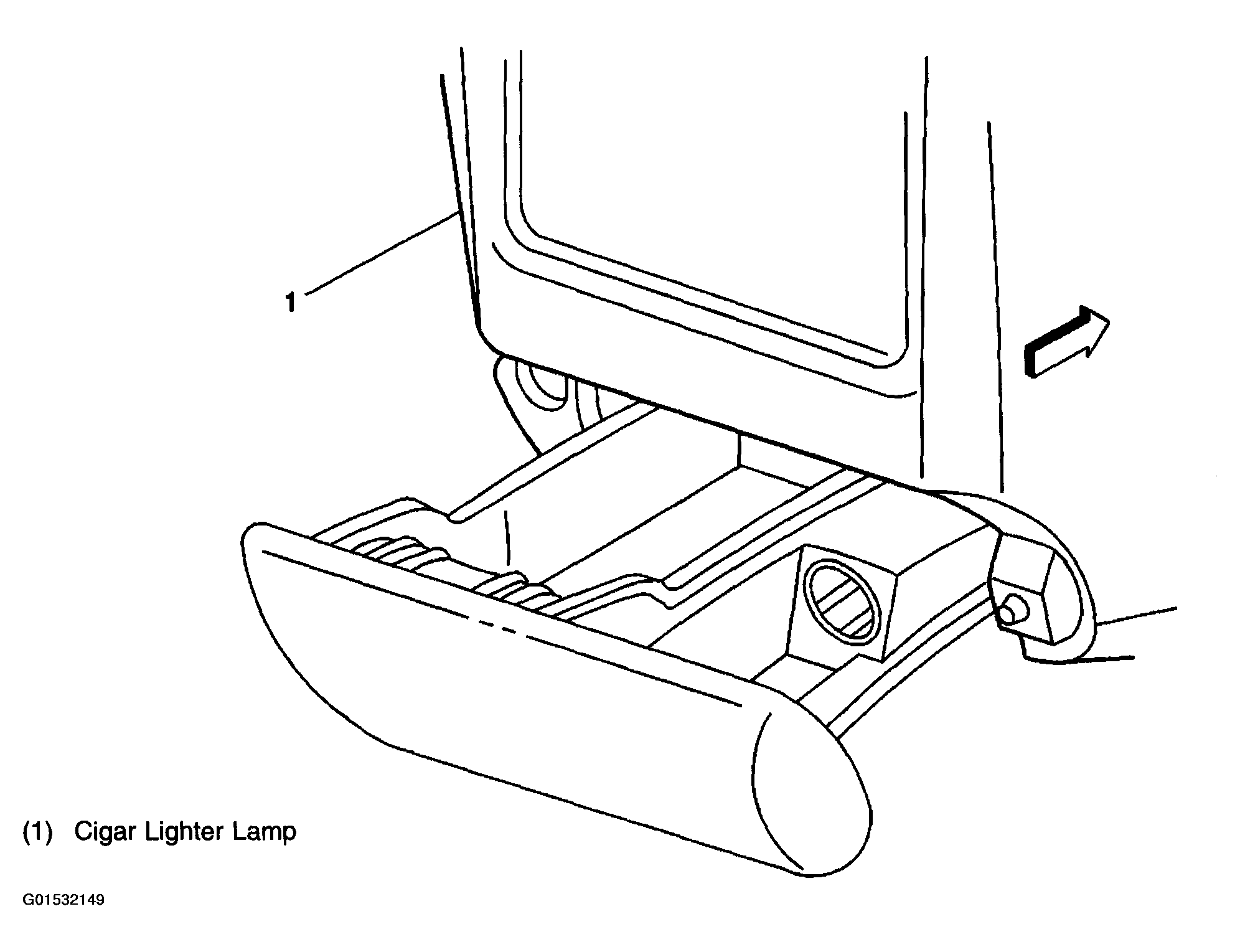

Fig 11: Cigar Lighter Lamp Component View

Courtesy of GENERAL MOTORS CORP.

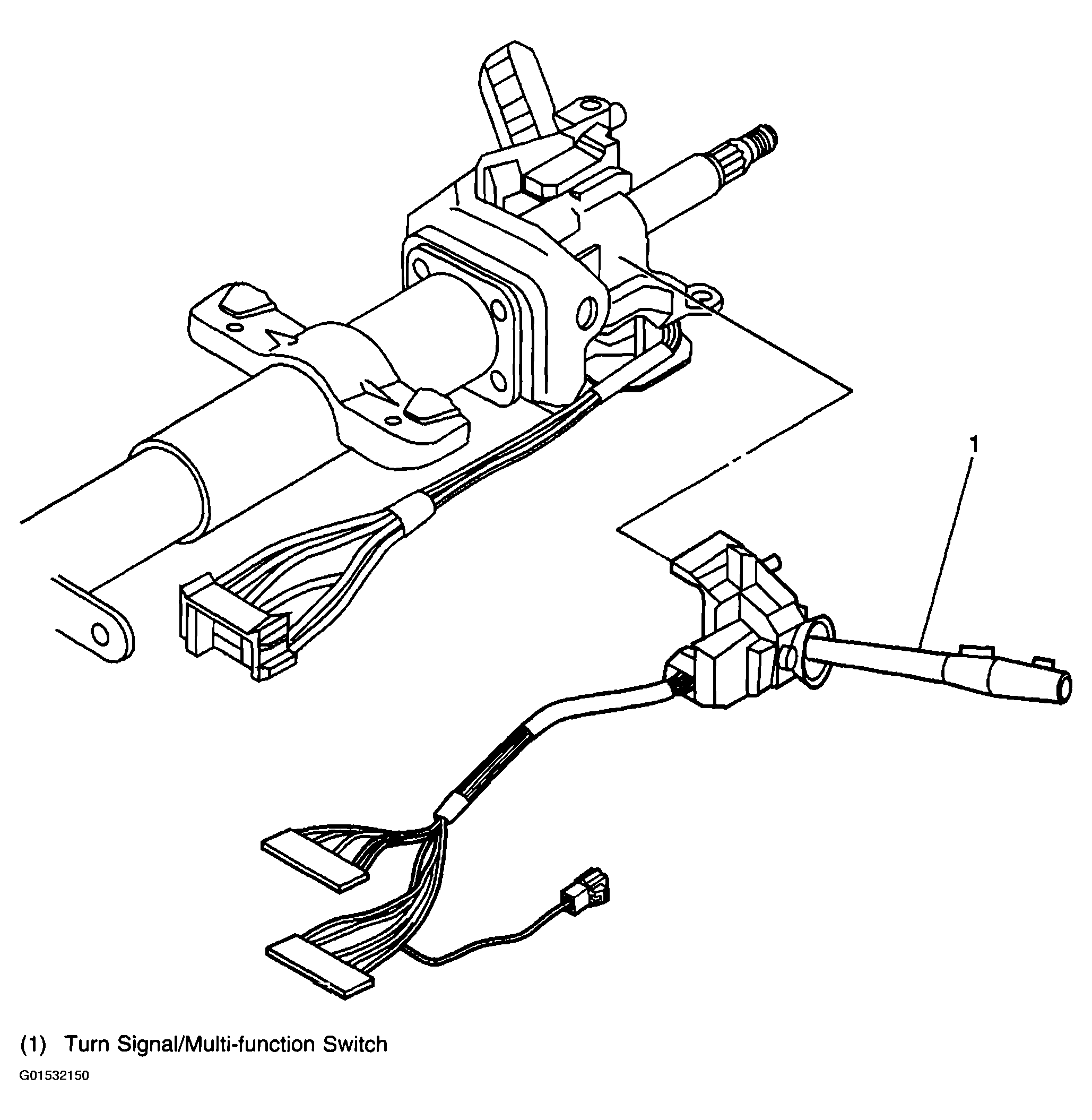

Fig 12: Turn Signal/Multi-Function Switch Component View

Courtesy of GENERAL MOTORS CORP.

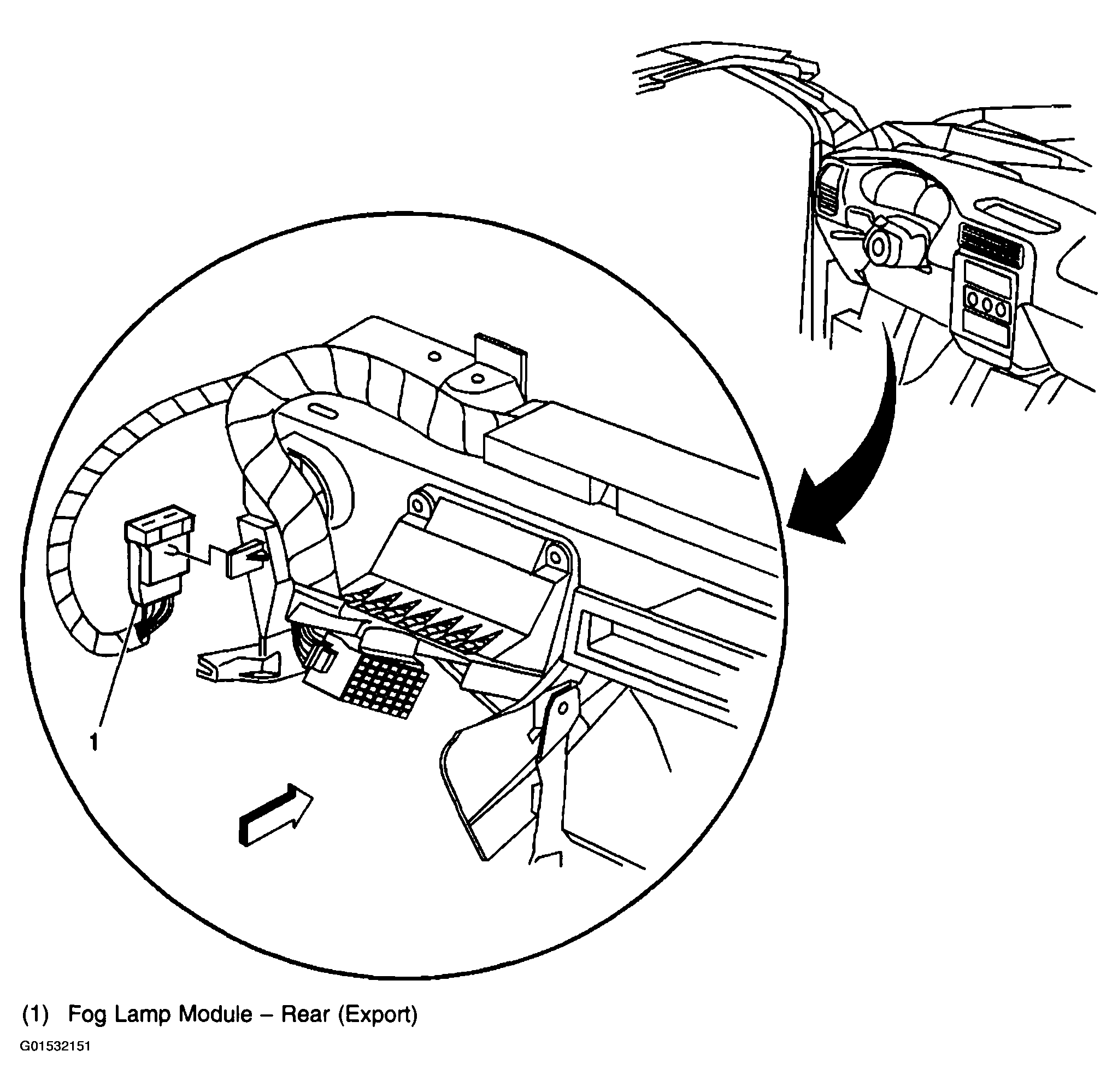

Fig 13: Fog Lamp Module-Rear Component View (Export)

Courtesy of GENERAL MOTORS CORP.

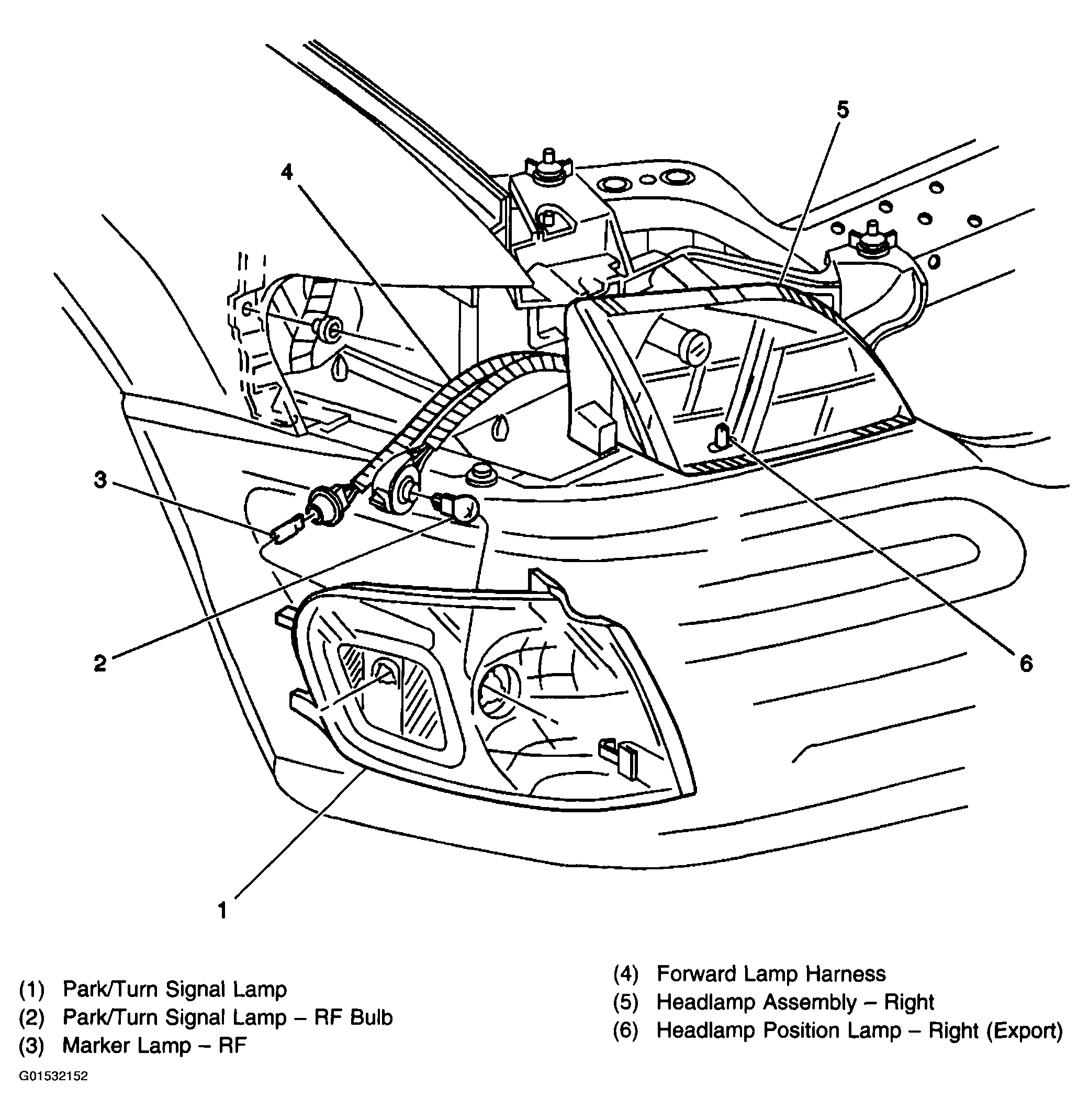

Fig 14: Forward Lamp Assembly Component View

Courtesy of GENERAL MOTORS CORP.
