Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

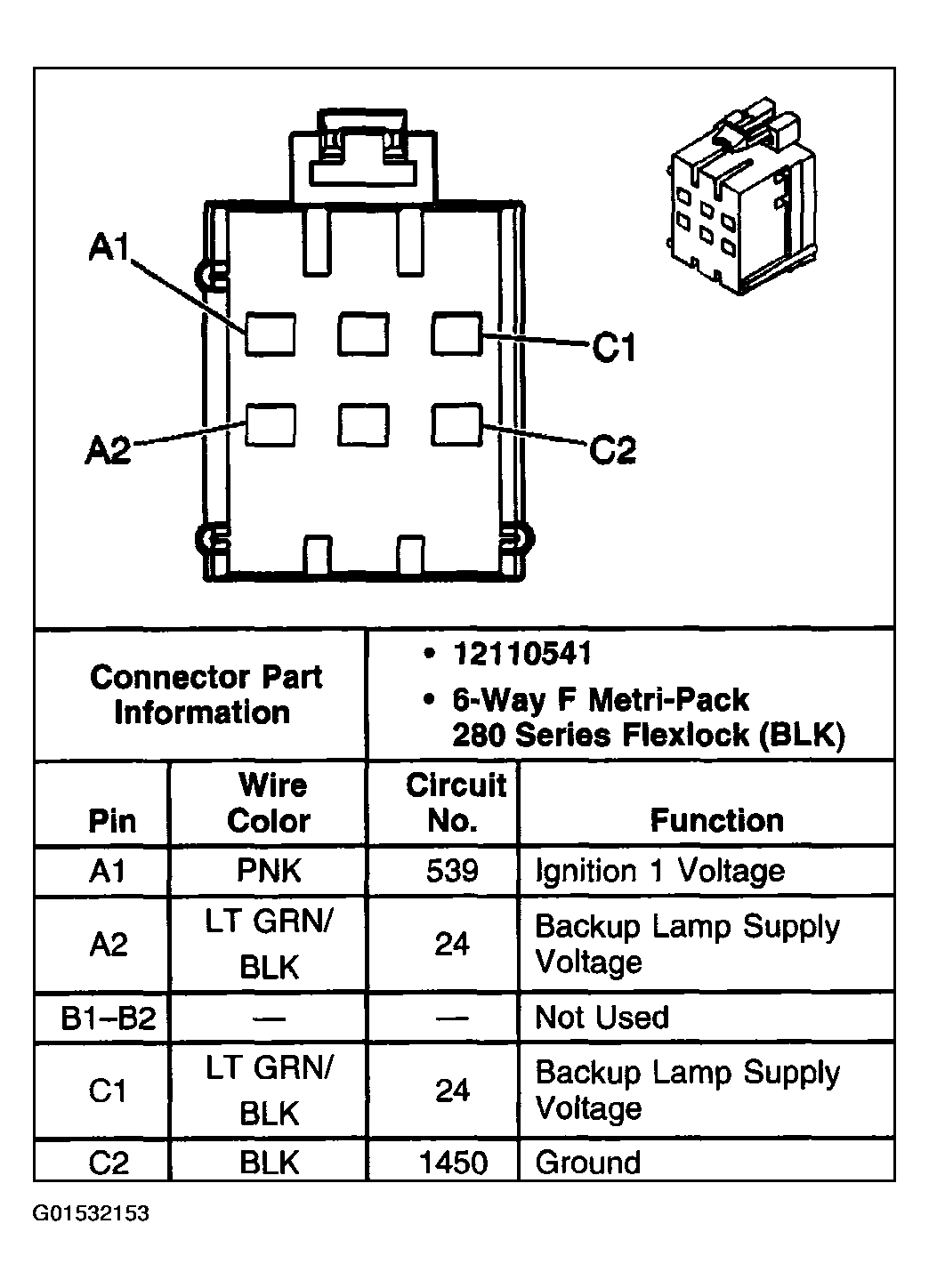

Fig 1: Backup Lamp Relay Connector End View (Export)
G01532153Courtesy of GENERAL MOTORS CORP.

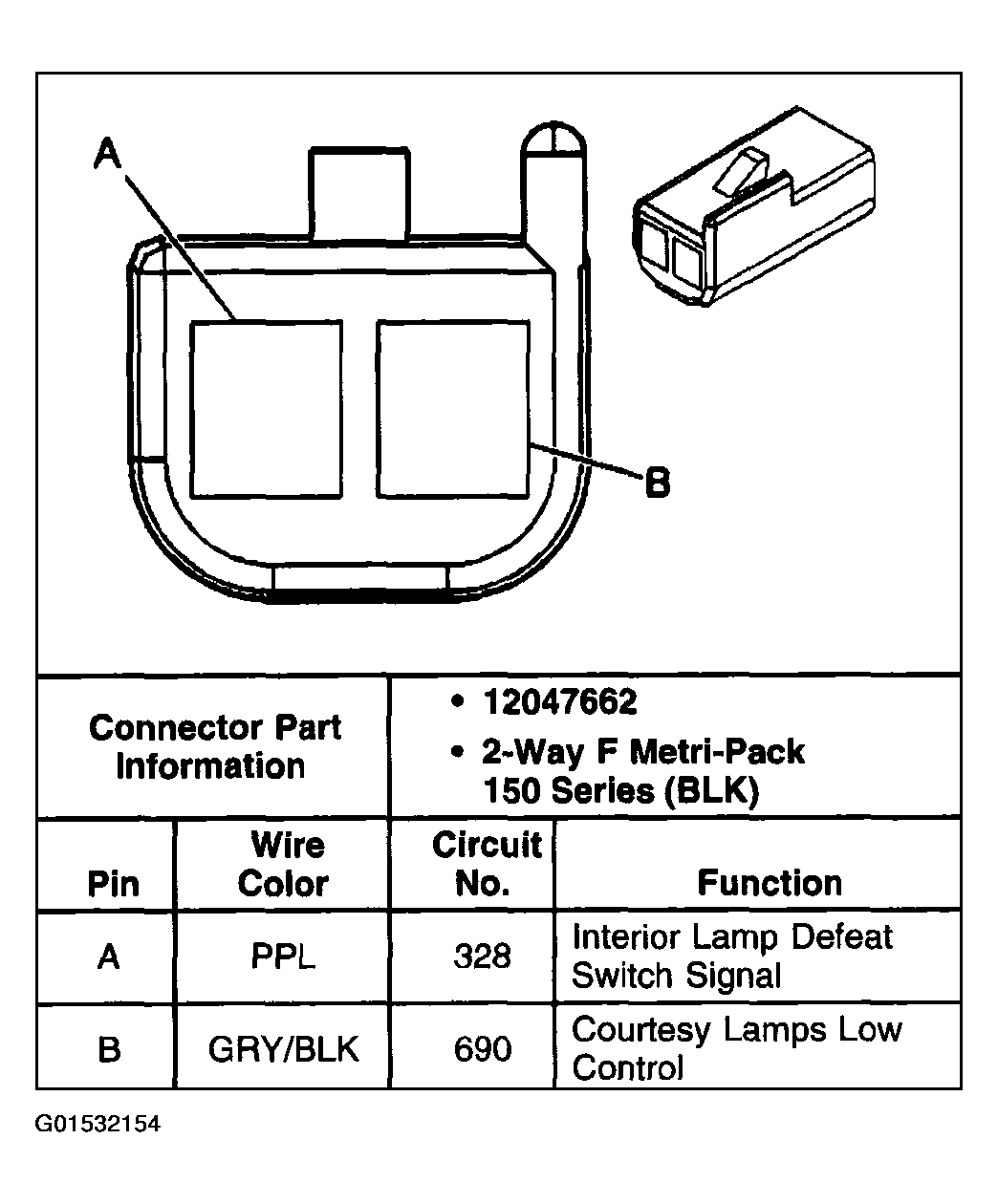

Fig 2: Cargo Lamp Connector End View
G01532154Courtesy of GENERAL MOTORS CORP.

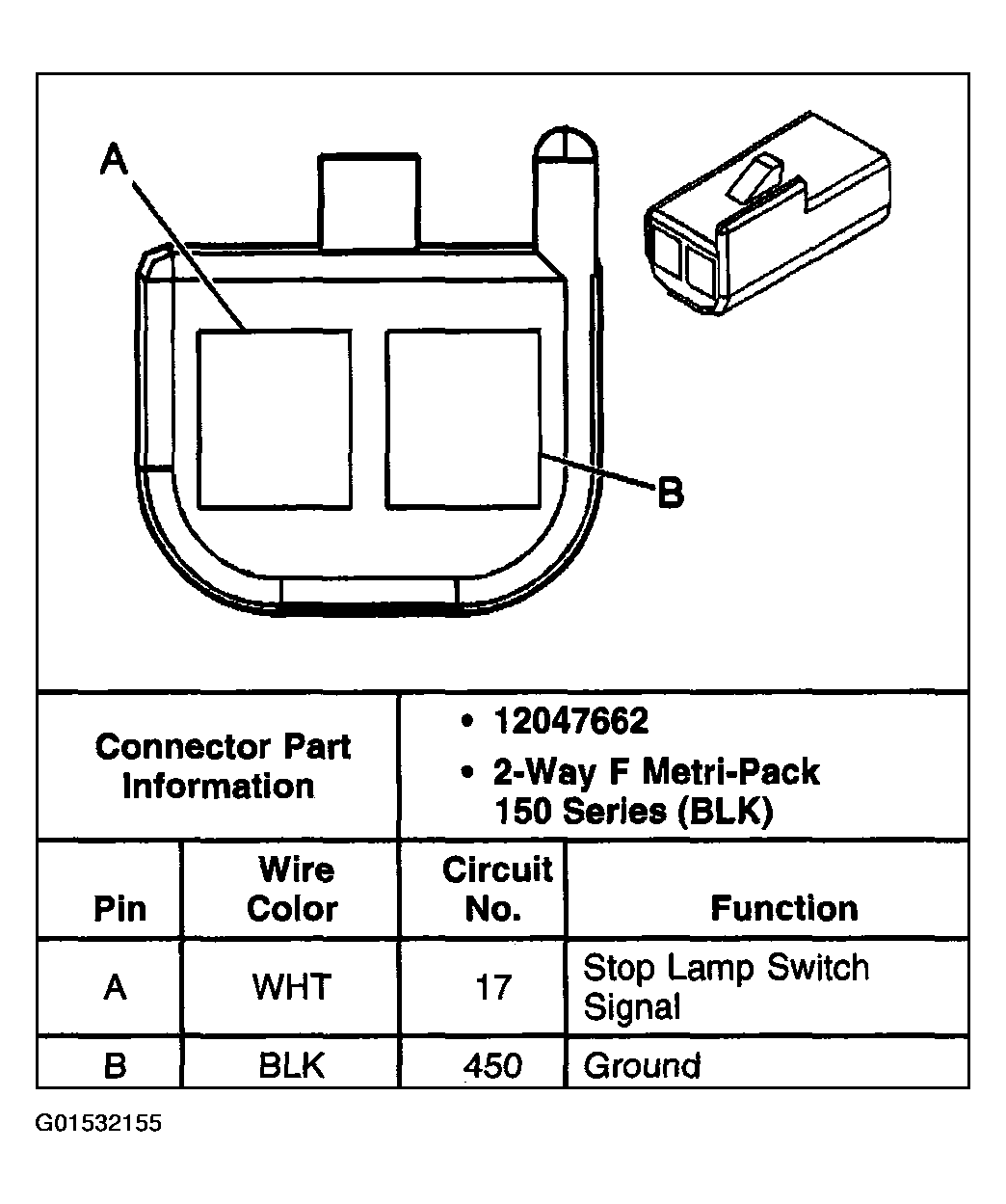

Fig 3: Center High Mounted Stop Lamp Connector End View
G01532155Courtesy of GENERAL MOTORS CORP.

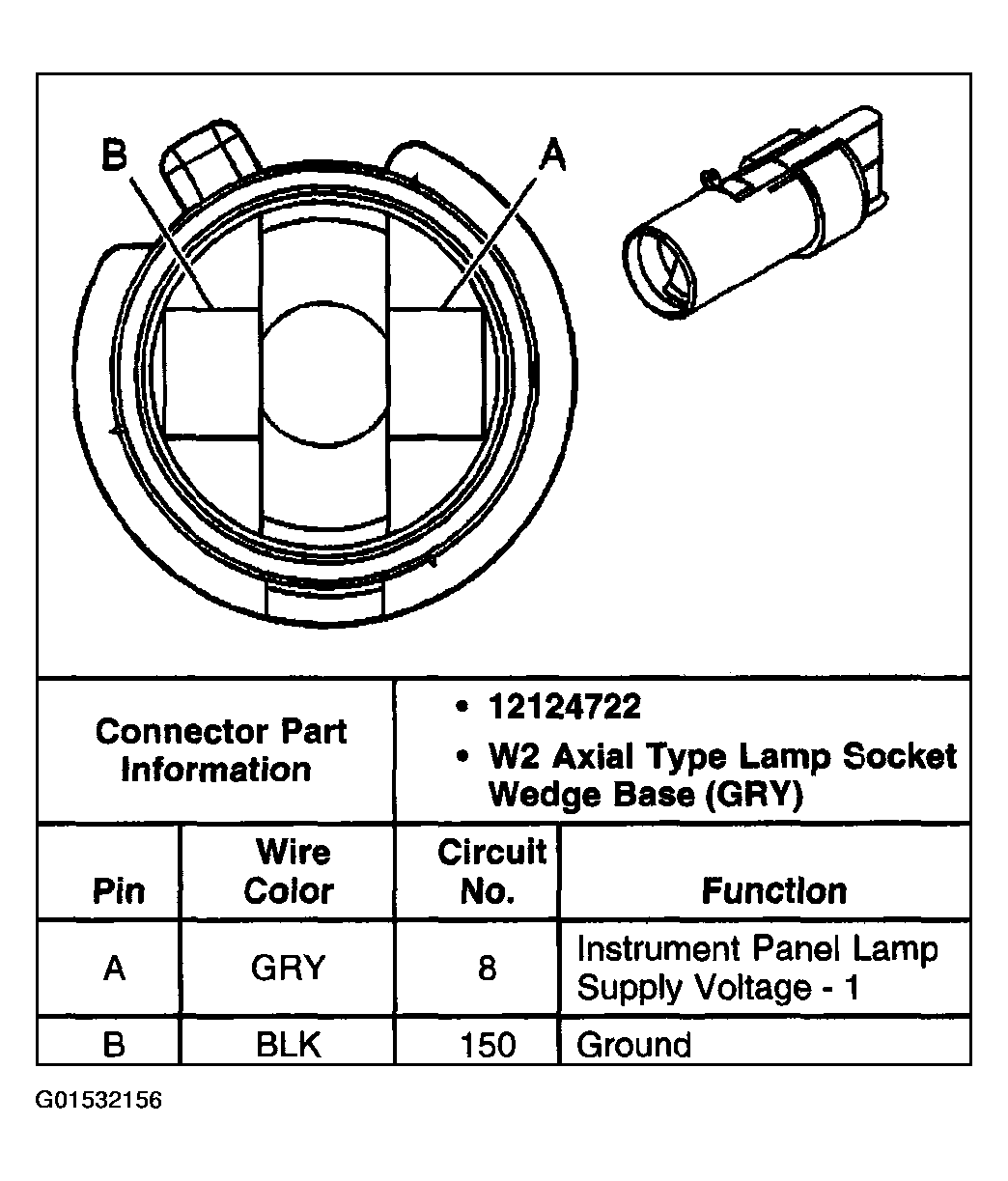

Fig 4: Cigar Lighter Lamp Connector End View
G01532156Courtesy of GENERAL MOTORS CORP.

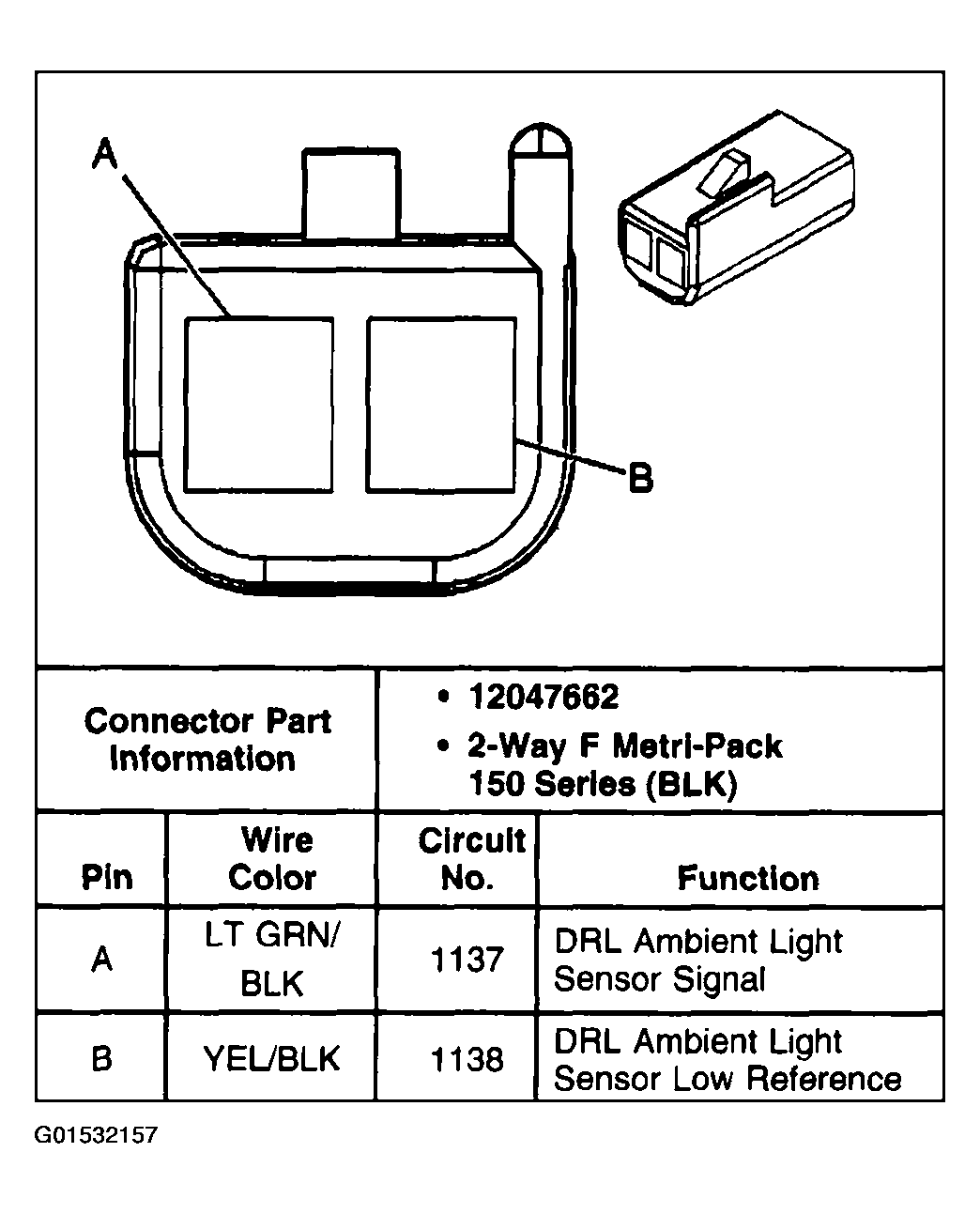

Fig 5: Daytime Running Lamps Ambient Light Sensor Connector End View
G01532157Courtesy of GENERAL MOTORS CORP.
Fig 6: Daytime Running Lamps Control Module C1 Connector End View (1 Of 2)
G01532158Courtesy of GENERAL MOTORS CORP.
Fig 7: Daytime Running Lamps Control Module C1 Connector End View (2 Of 2)
G01532159Courtesy of GENERAL MOTORS CORP.
Fig 8: Daytime Running Lamps Control Module C2 Connector End View (1 Of 2)
G01532160Courtesy of GENERAL MOTORS CORP.
Fig 9: Daytime Running Lamps Control Module C2 Connector End View (2 Of 2)
G01532161Courtesy of GENERAL MOTORS CORP.

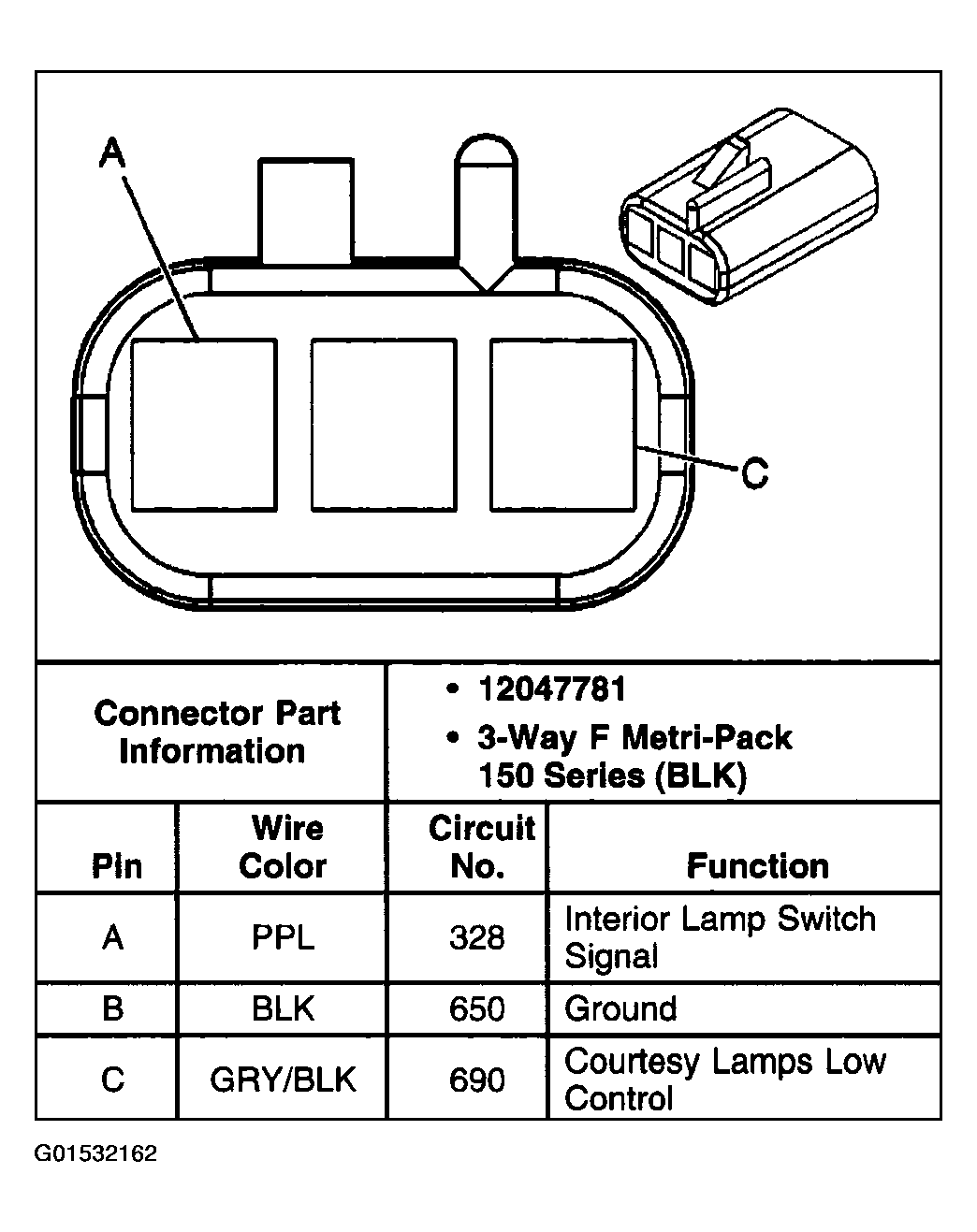

Fig 10: Dome Lamp Connector End View
G01532162Courtesy of GENERAL MOTORS CORP.

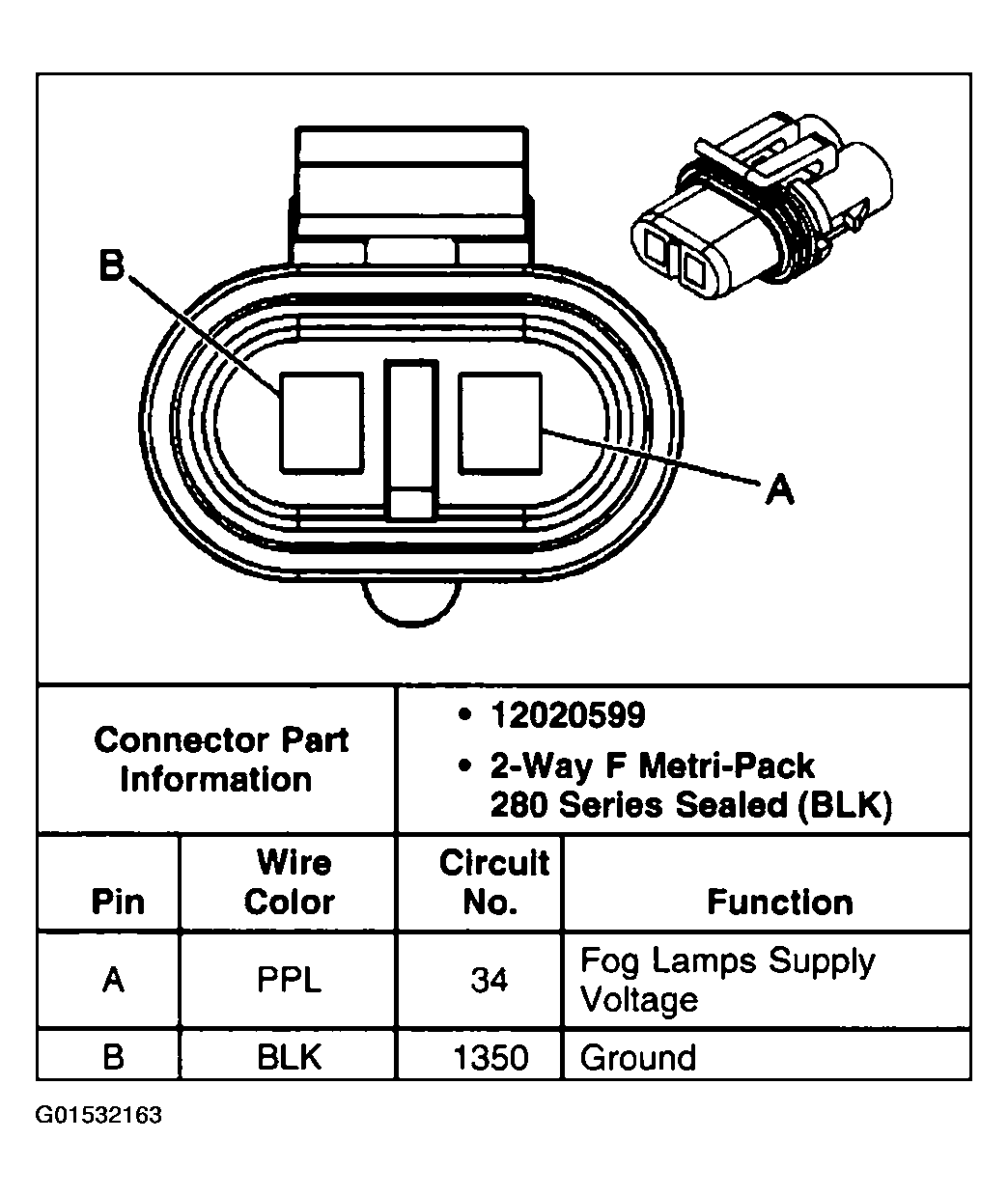

Fig 11: Fog Lamp-LF Connector End View
G01532163Courtesy of GENERAL MOTORS CORP.

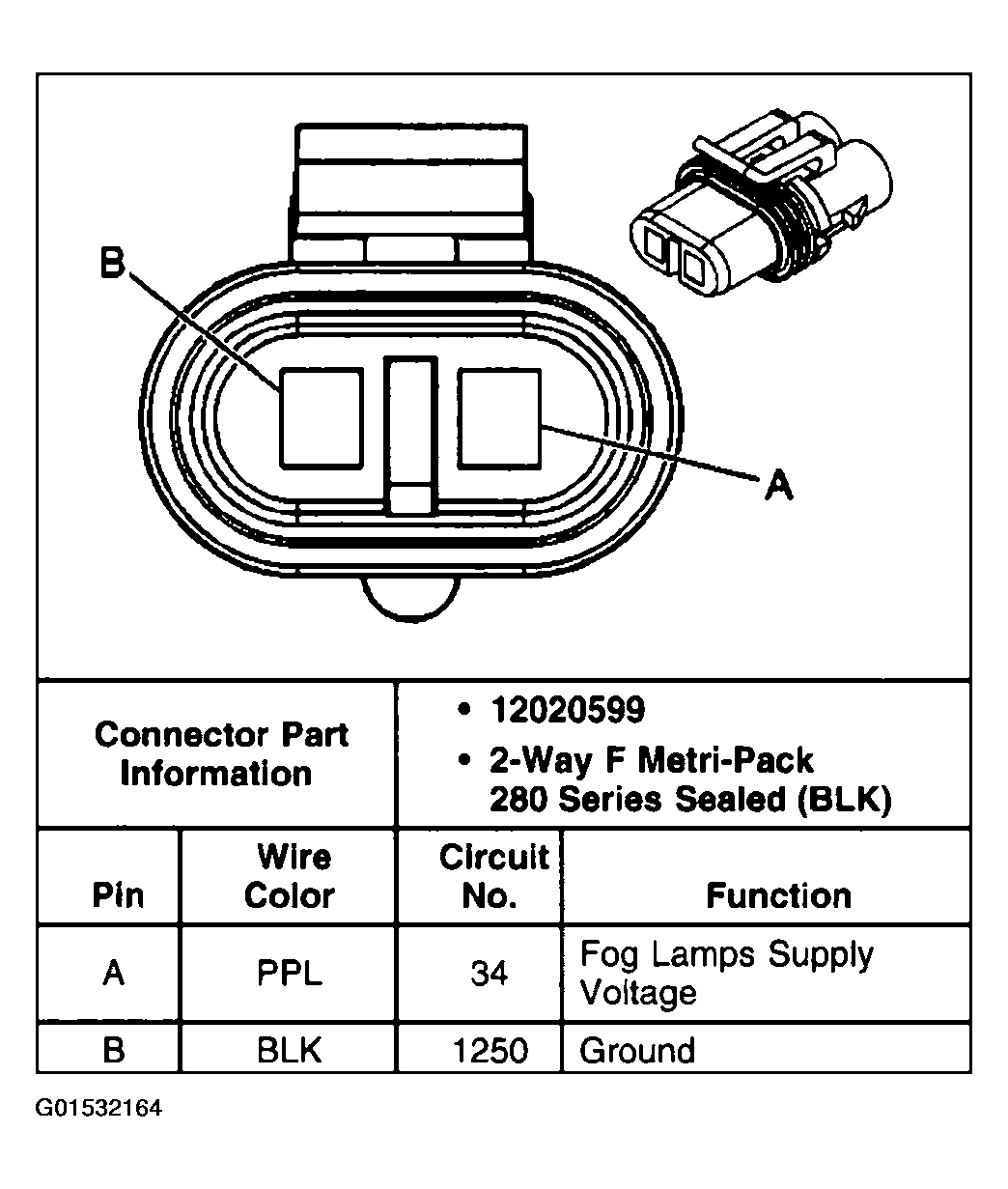

Fig 12: Fog Lamp-RF Connector End View
G01532164Courtesy of GENERAL MOTORS CORP.

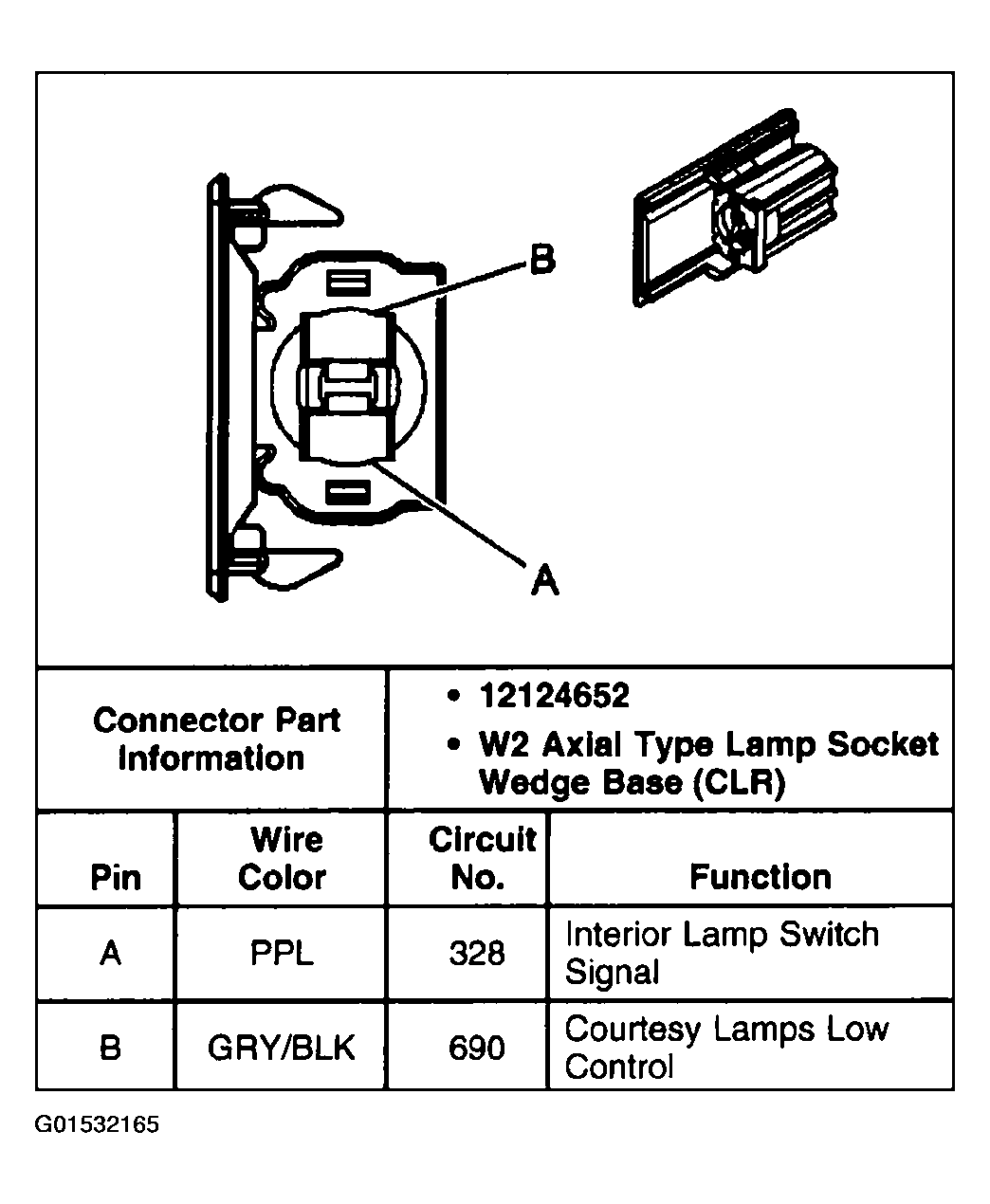

Fig 13: Footwell Courtesy Lamp-Left Connector End View
G01532165Courtesy of GENERAL MOTORS CORP.

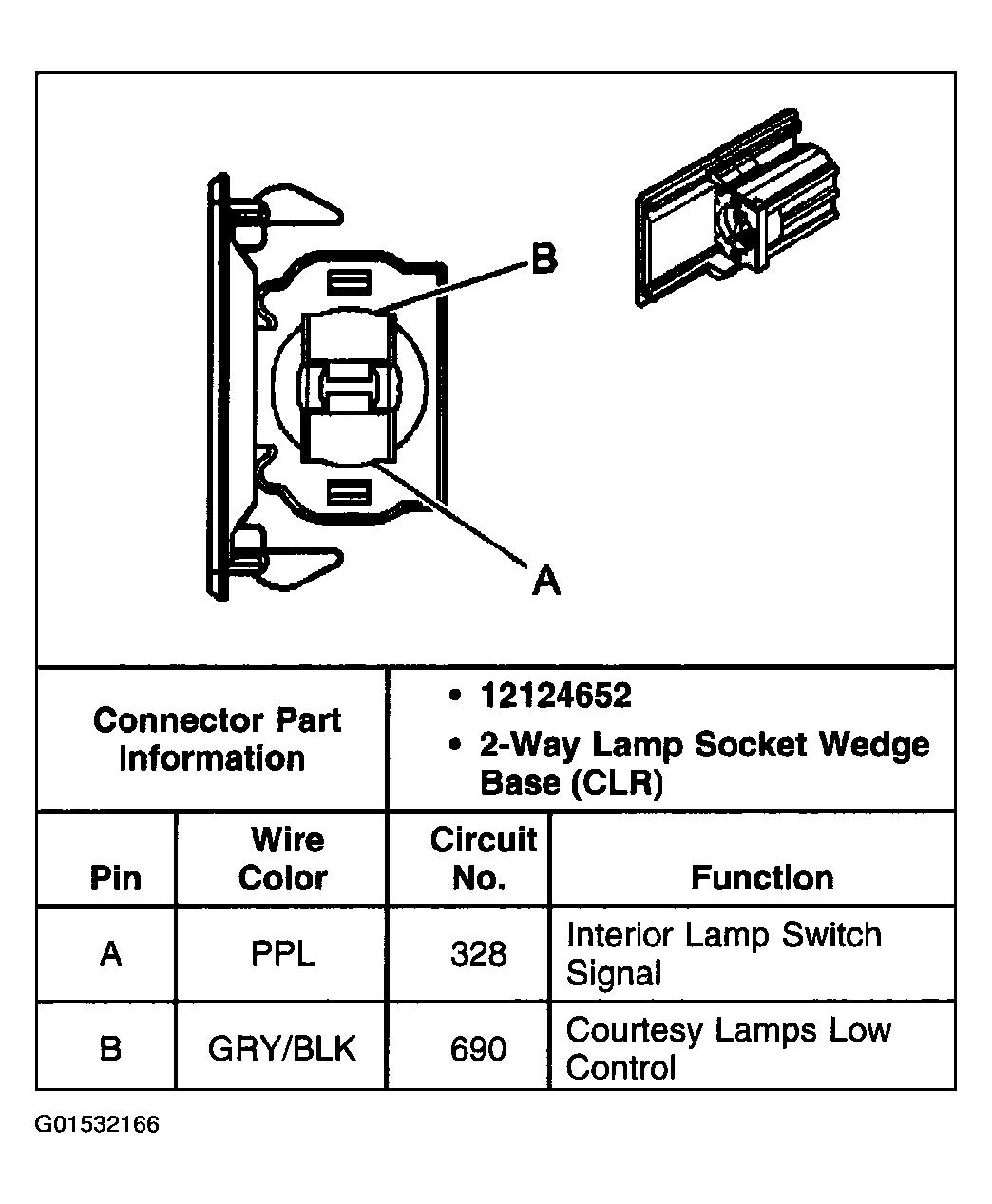

Fig 14: Footwell Courtesy Lamp-Right Connector End View
G01532166Courtesy of GENERAL MOTORS CORP.
Fig 15: Headlamp Assembly-Left Connector End View
G01532167Courtesy of GENERAL MOTORS CORP.

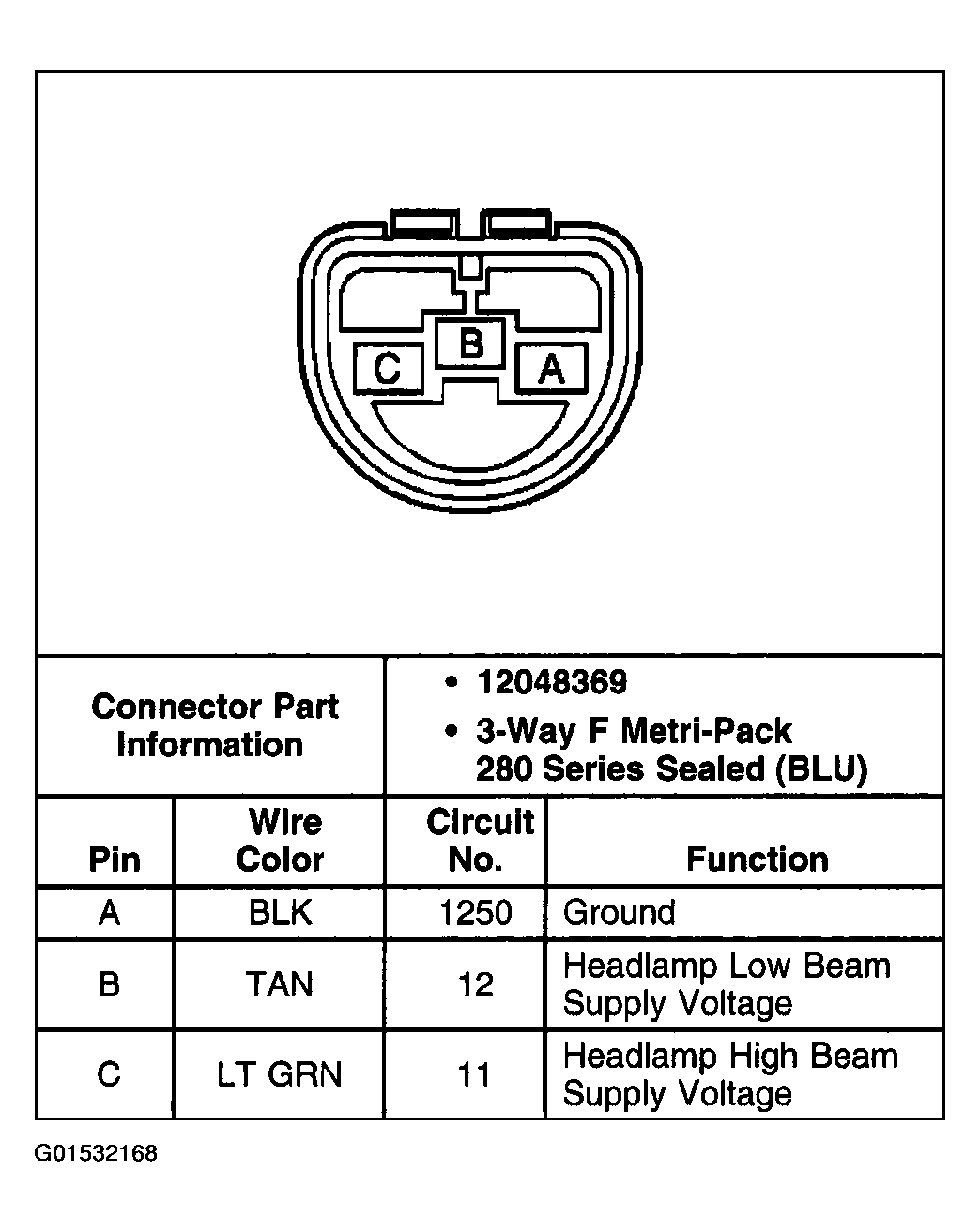

Fig 16: Headlamp Assembly-Right Connector End View
G01532168Courtesy of GENERAL MOTORS CORP.

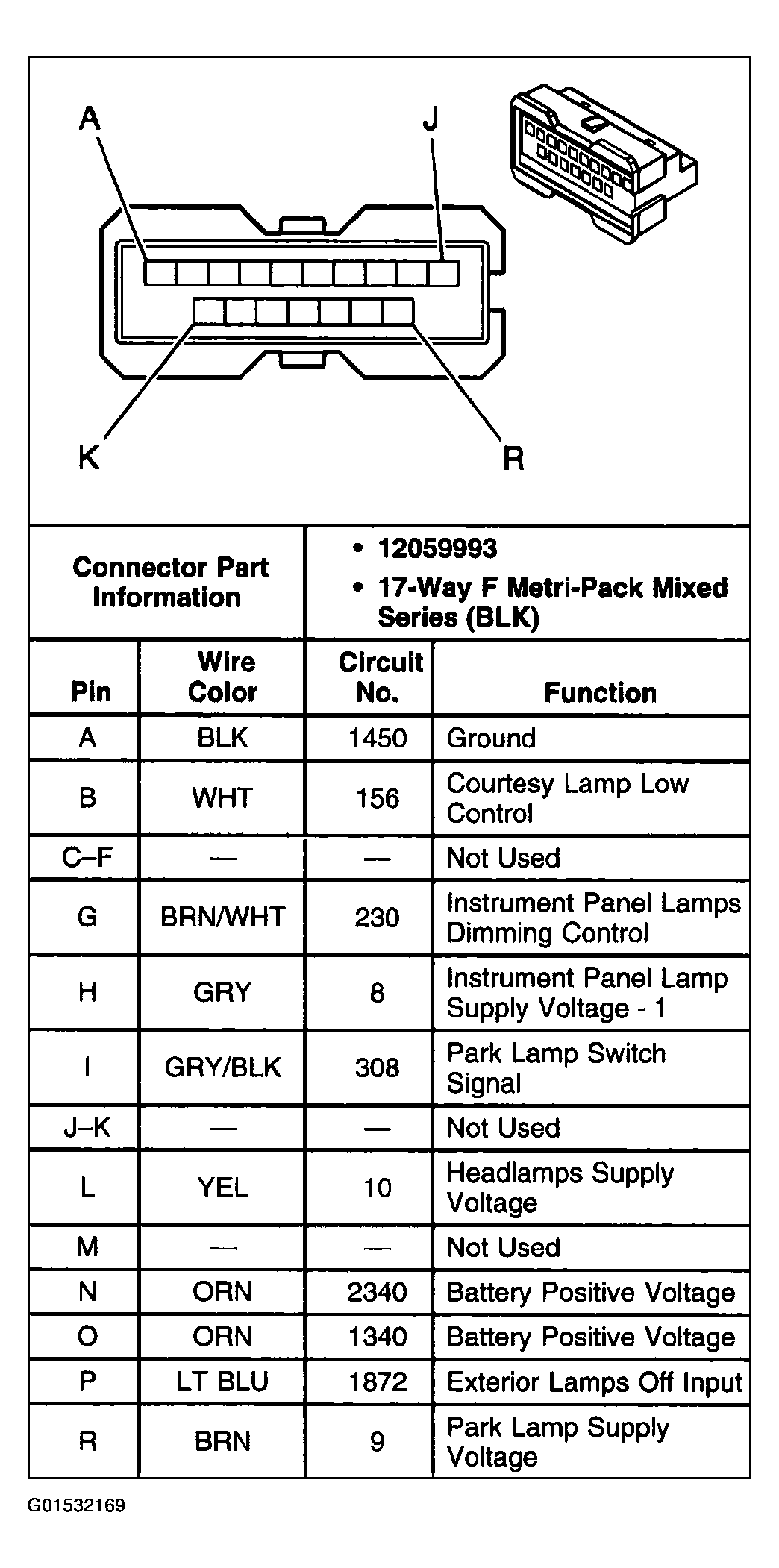

Fig 17: Headlamp Switch Connector End View
G01532169Courtesy of GENERAL MOTORS CORP.

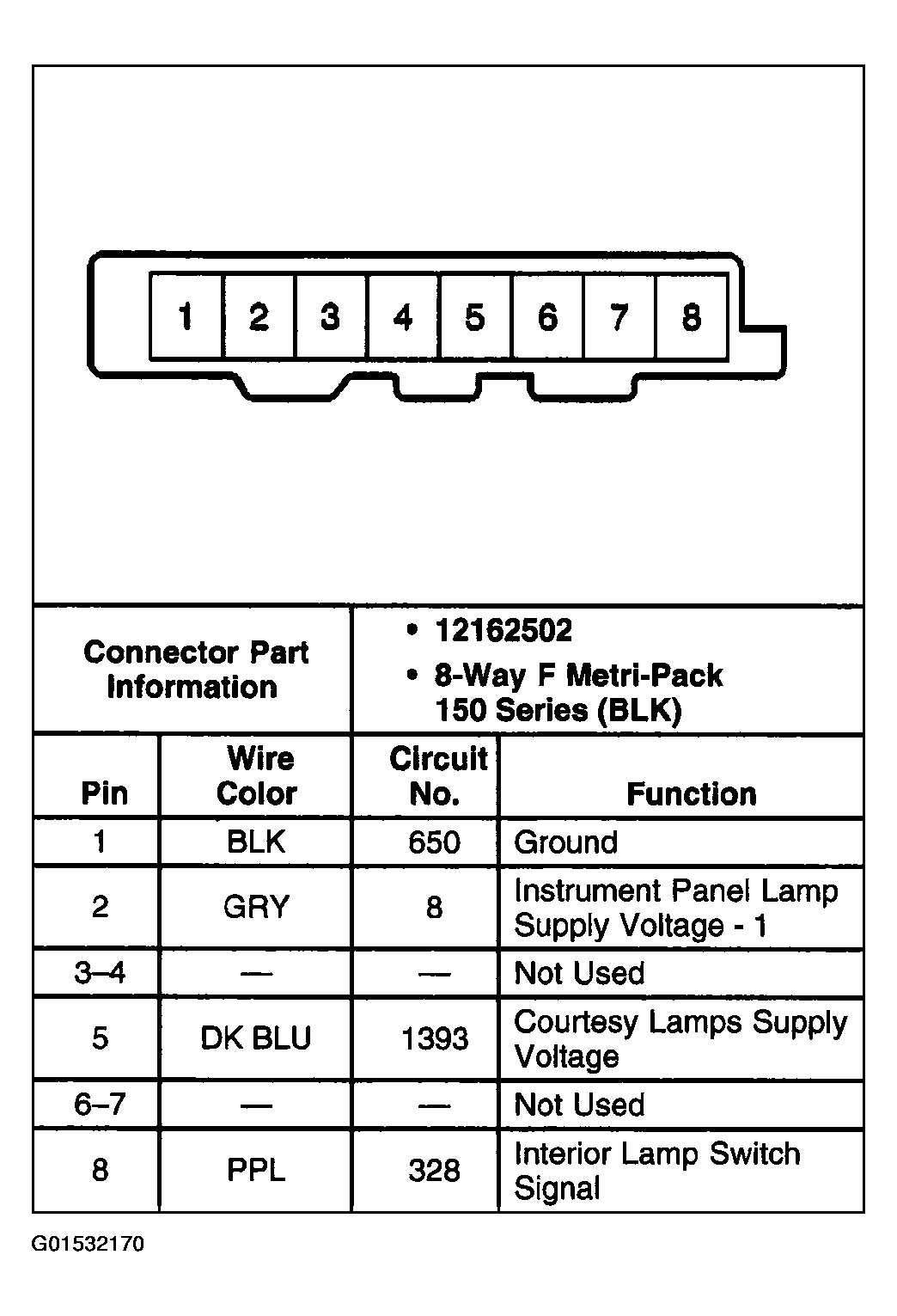

Fig 18: Interior Lights Override Switch Connector End View
G01532170Courtesy of GENERAL MOTORS CORP.

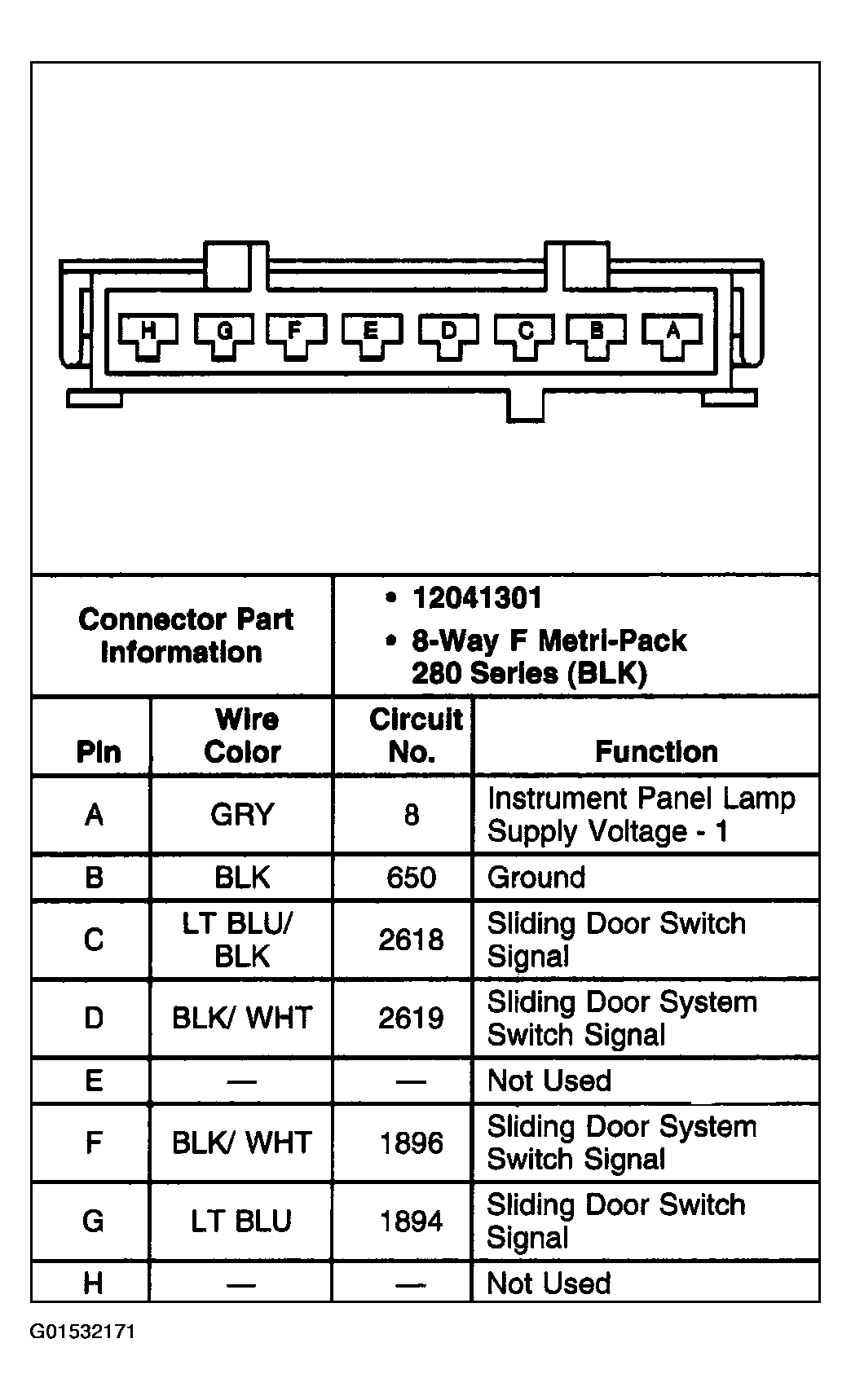

Fig 19: Power Sliding Door Open/Close Switch Connector End View
G01532171Courtesy of GENERAL MOTORS CORP.

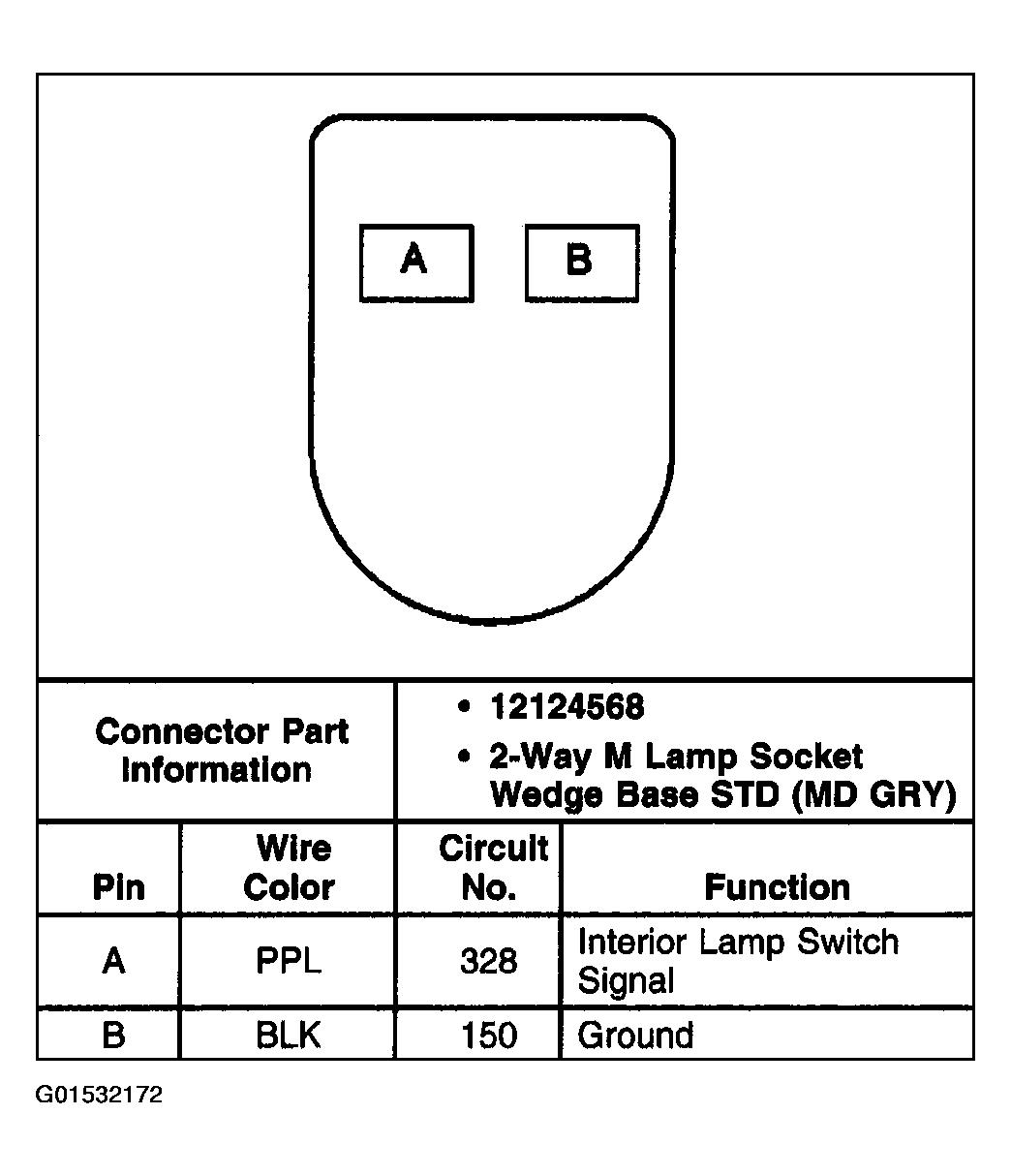

Fig 20: I/P Compartment Lamp Switch Connector End View
G01532172Courtesy of GENERAL MOTORS CORP.

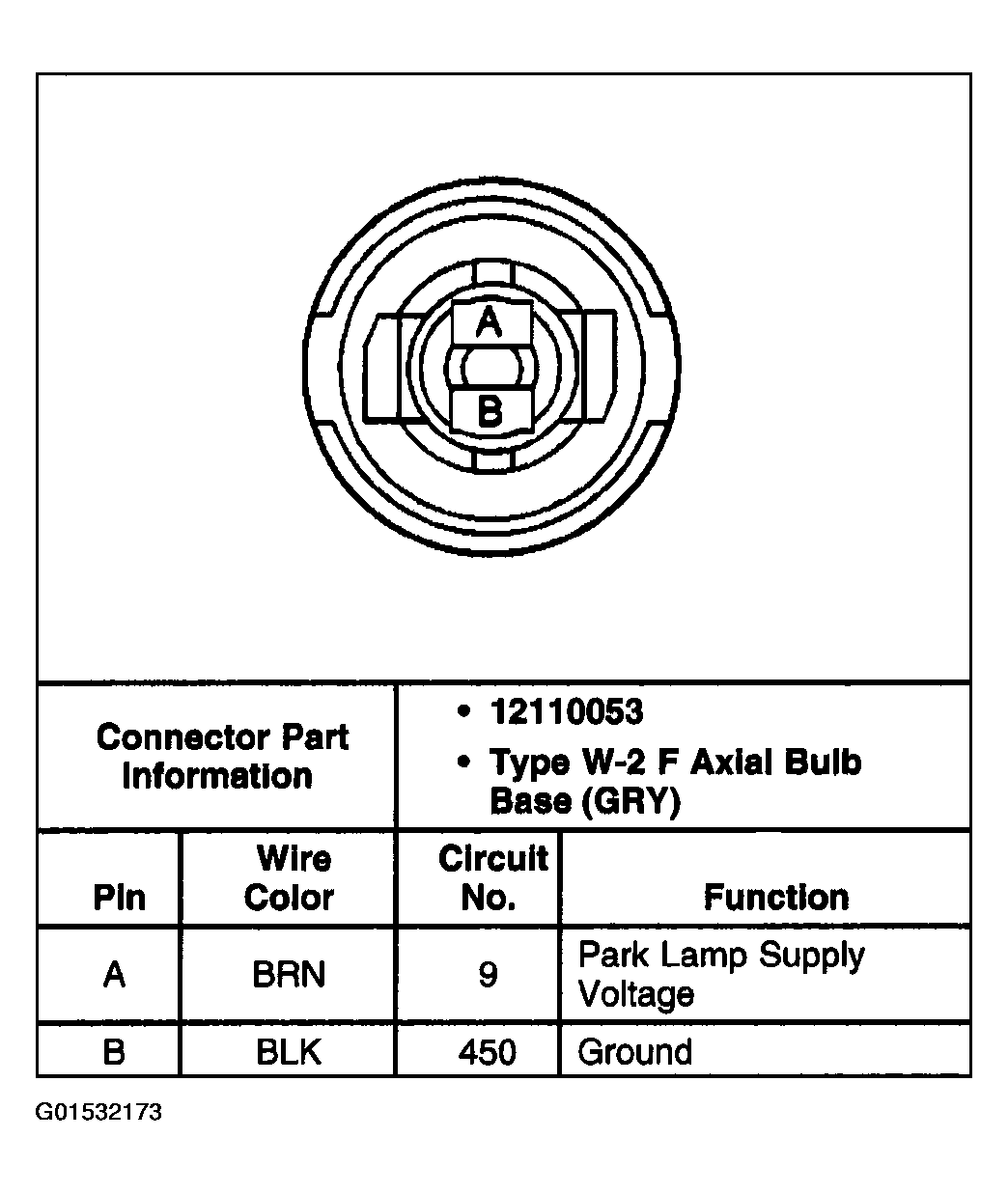

Fig 21: License Lamp-Left Connector End View
G01532173Courtesy of GENERAL MOTORS CORP.
Fig 22: License Lamp-Right Connector End View
G01532174Courtesy of GENERAL MOTORS CORP.

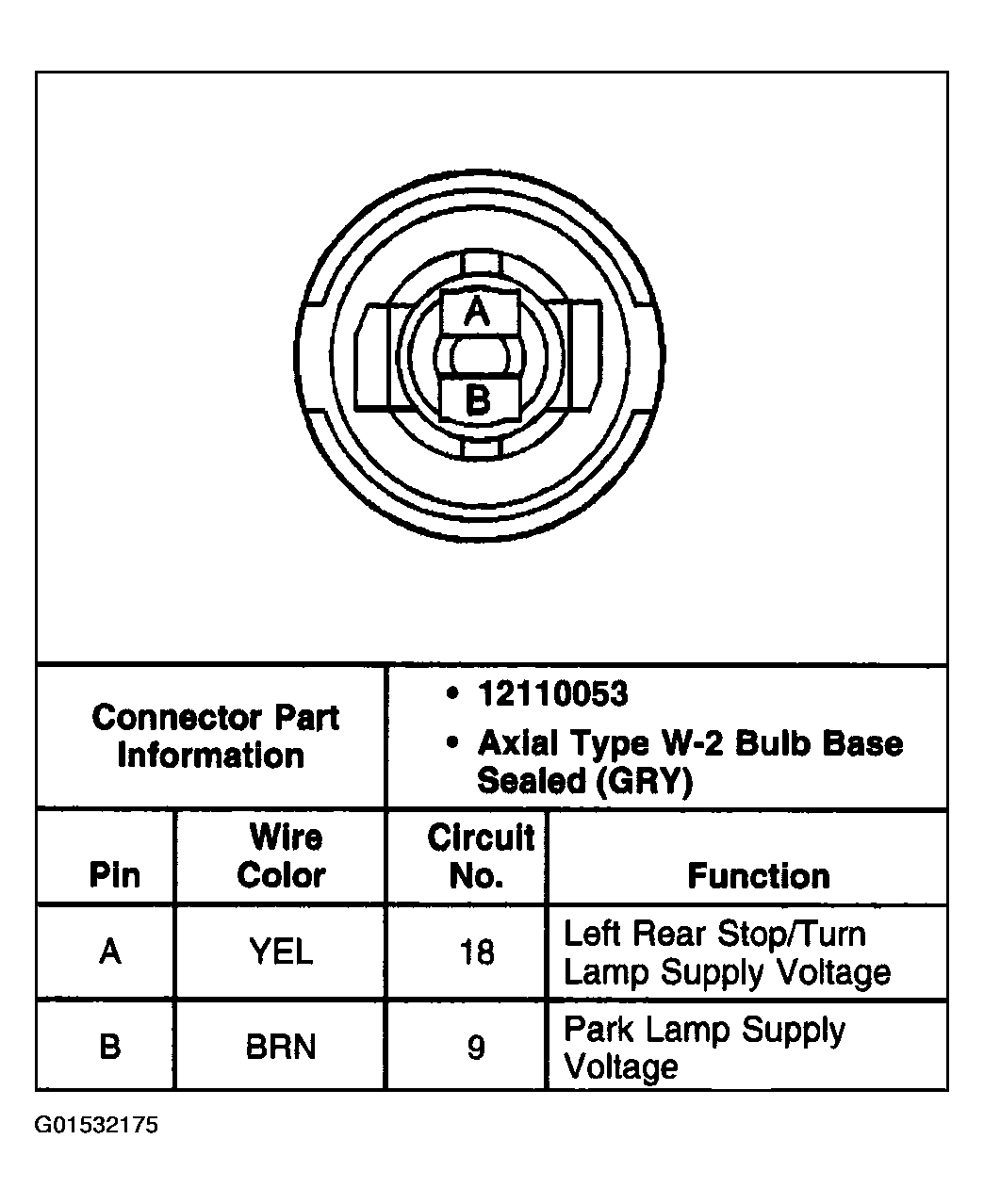

Fig 23: Marker Lamp-LF Connector End View
G01532175Courtesy of GENERAL MOTORS CORP.

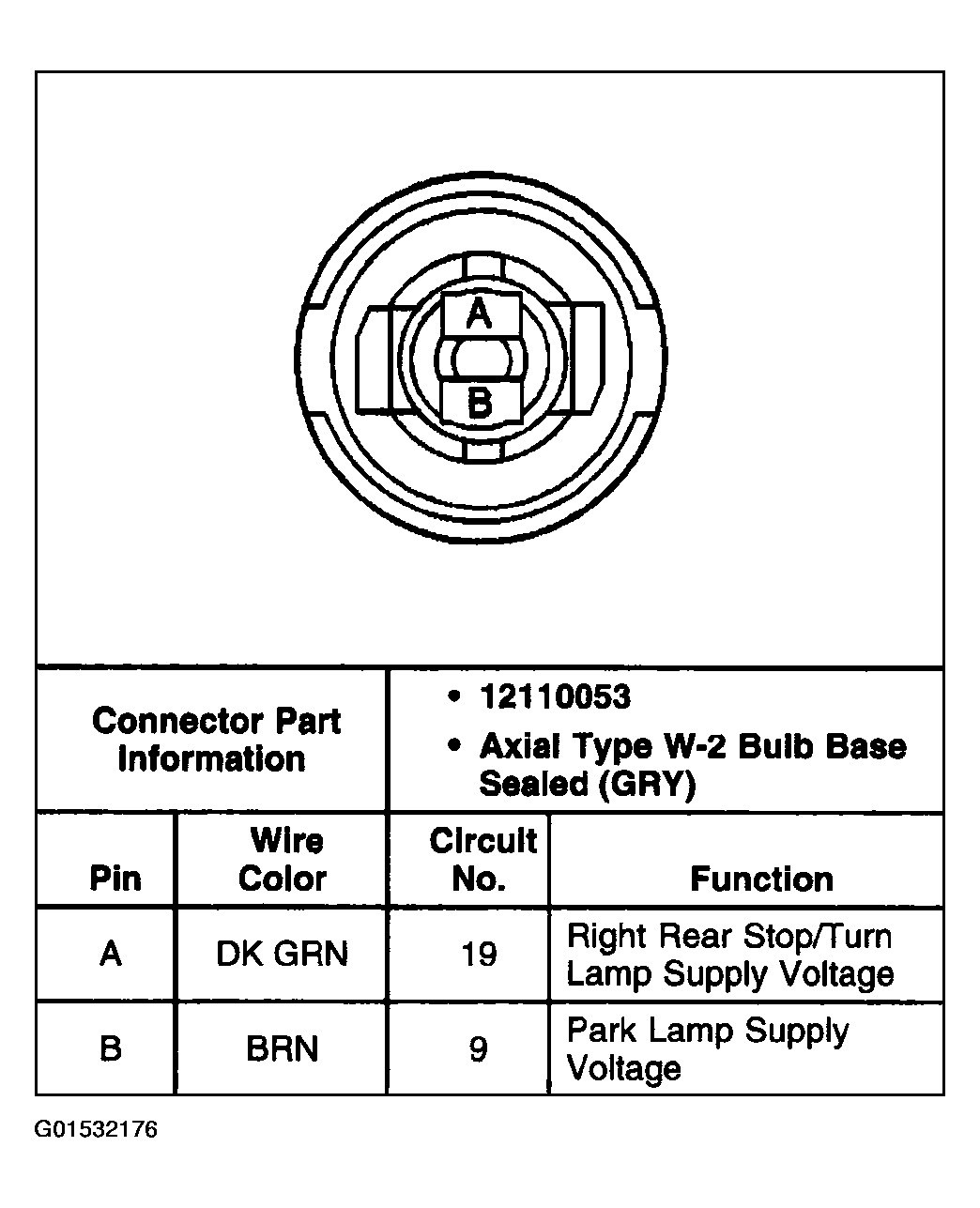

Fig 24: Marker Lamp-RF Connector End View
G01532176Courtesy of GENERAL MOTORS CORP.

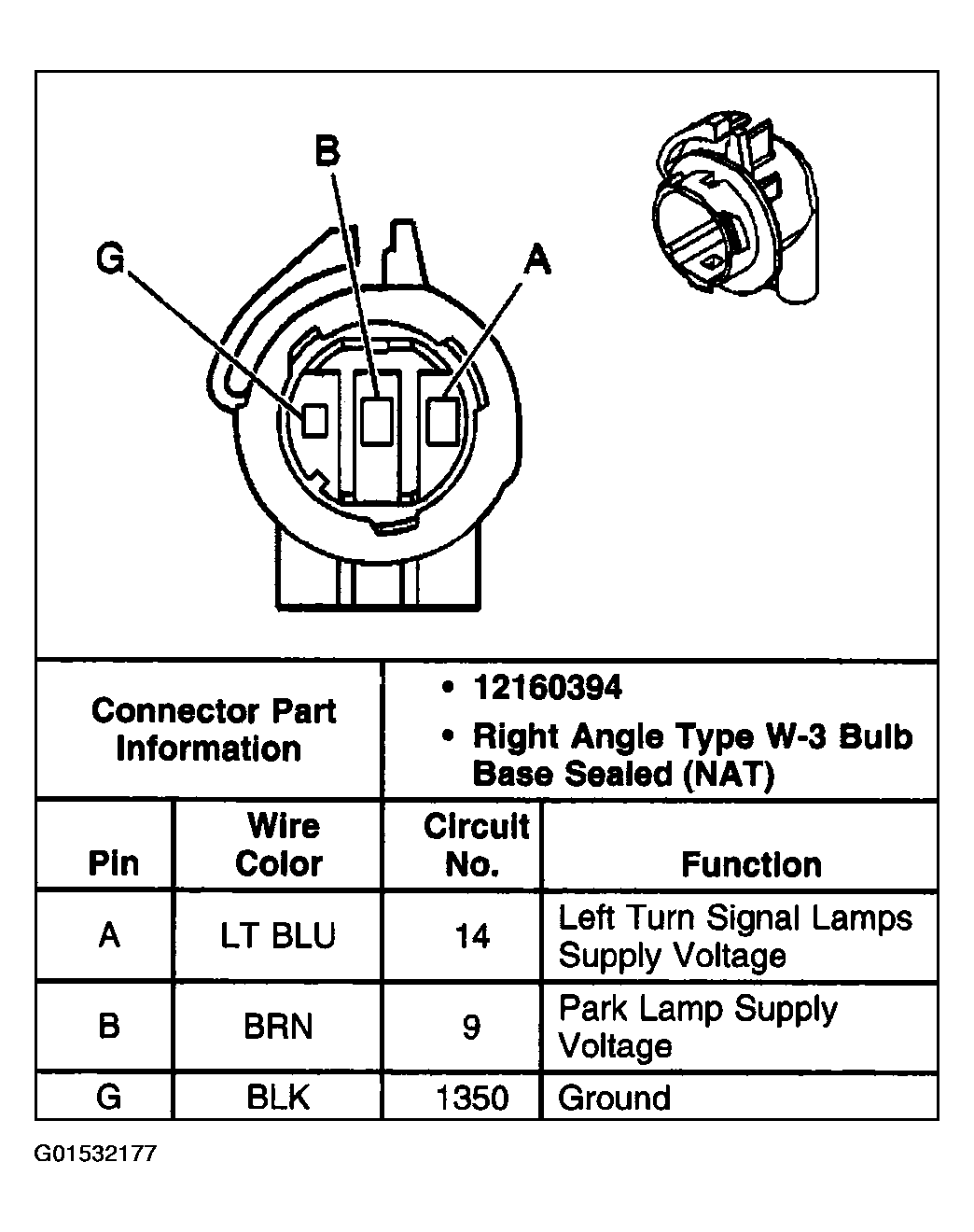

Fig 25: Park/Turn Signal Lamp-LF Connector End View
G01532177Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Park/Turn Signal Lamp-RF Connector End View
G01532178Courtesy of GENERAL MOTORS CORP.

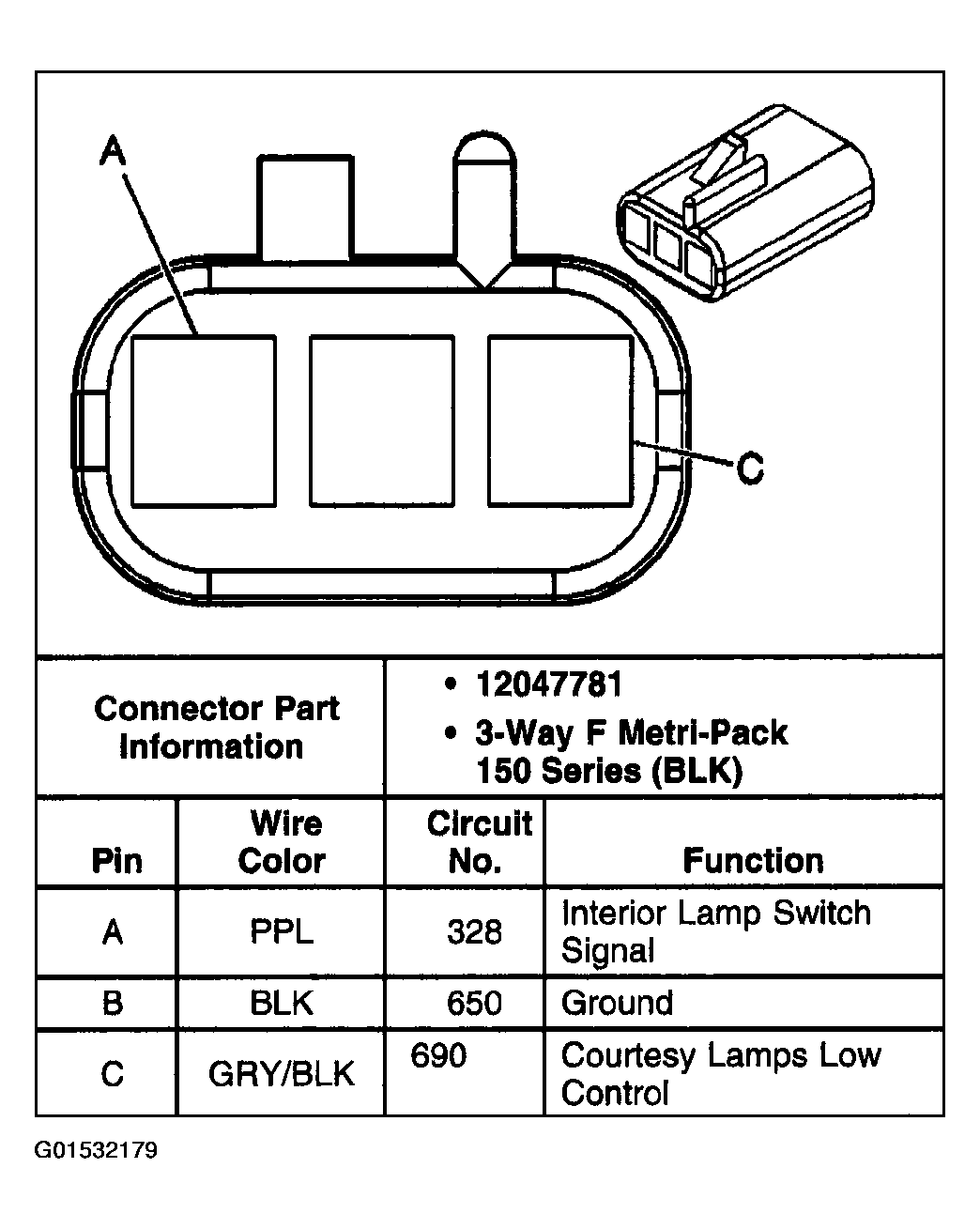

Fig 27: Roof Rail Reading Lamp-Front Connector End View
G01532179Courtesy of GENERAL MOTORS CORP.

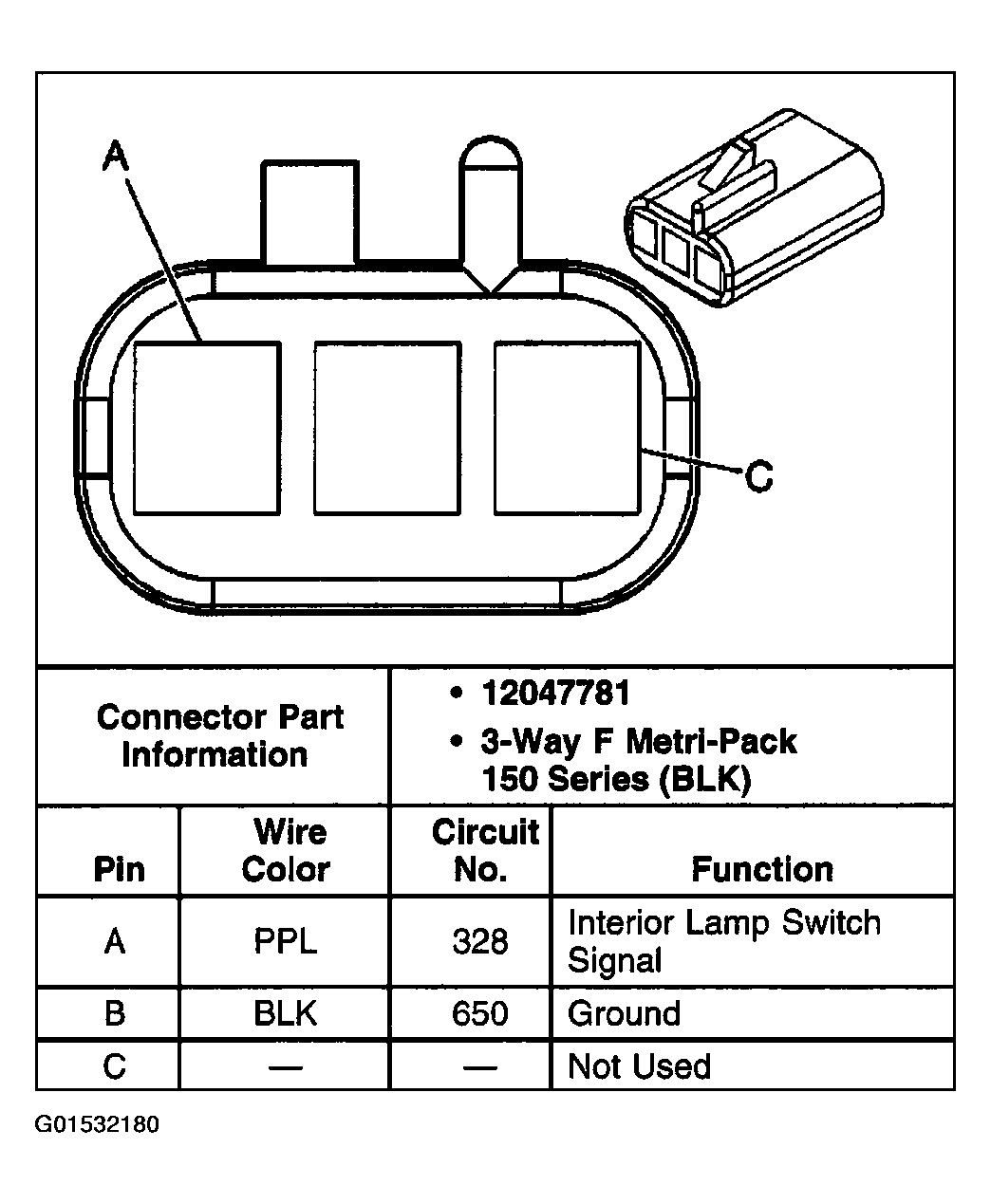

Fig 28: Stop Lamp Switch C1 Connector End View
G01532180Courtesy of GENERAL MOTORS CORP.

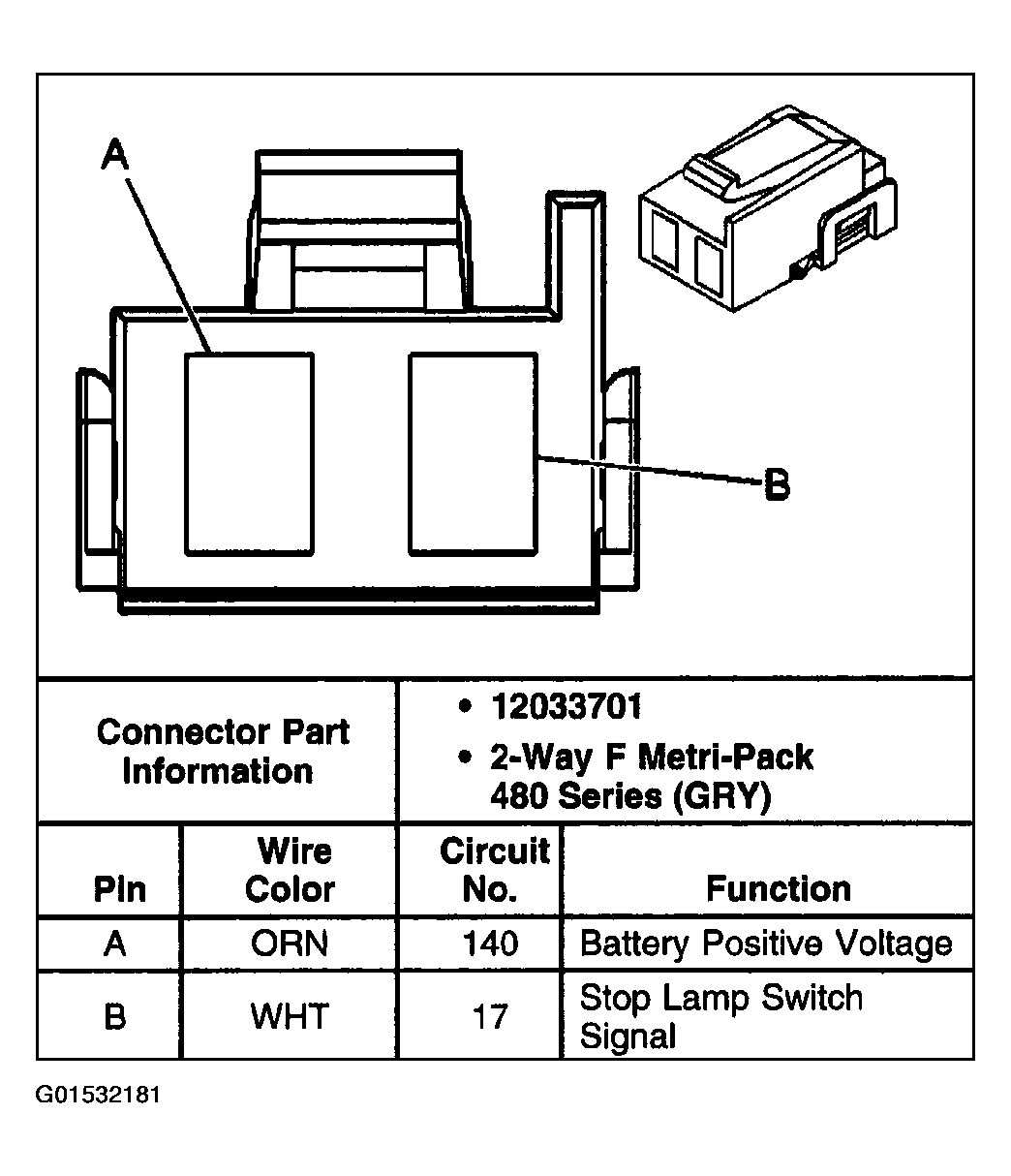

Fig 29: Tail Lamp-Left Connector End View
G01532181Courtesy of GENERAL MOTORS CORP.

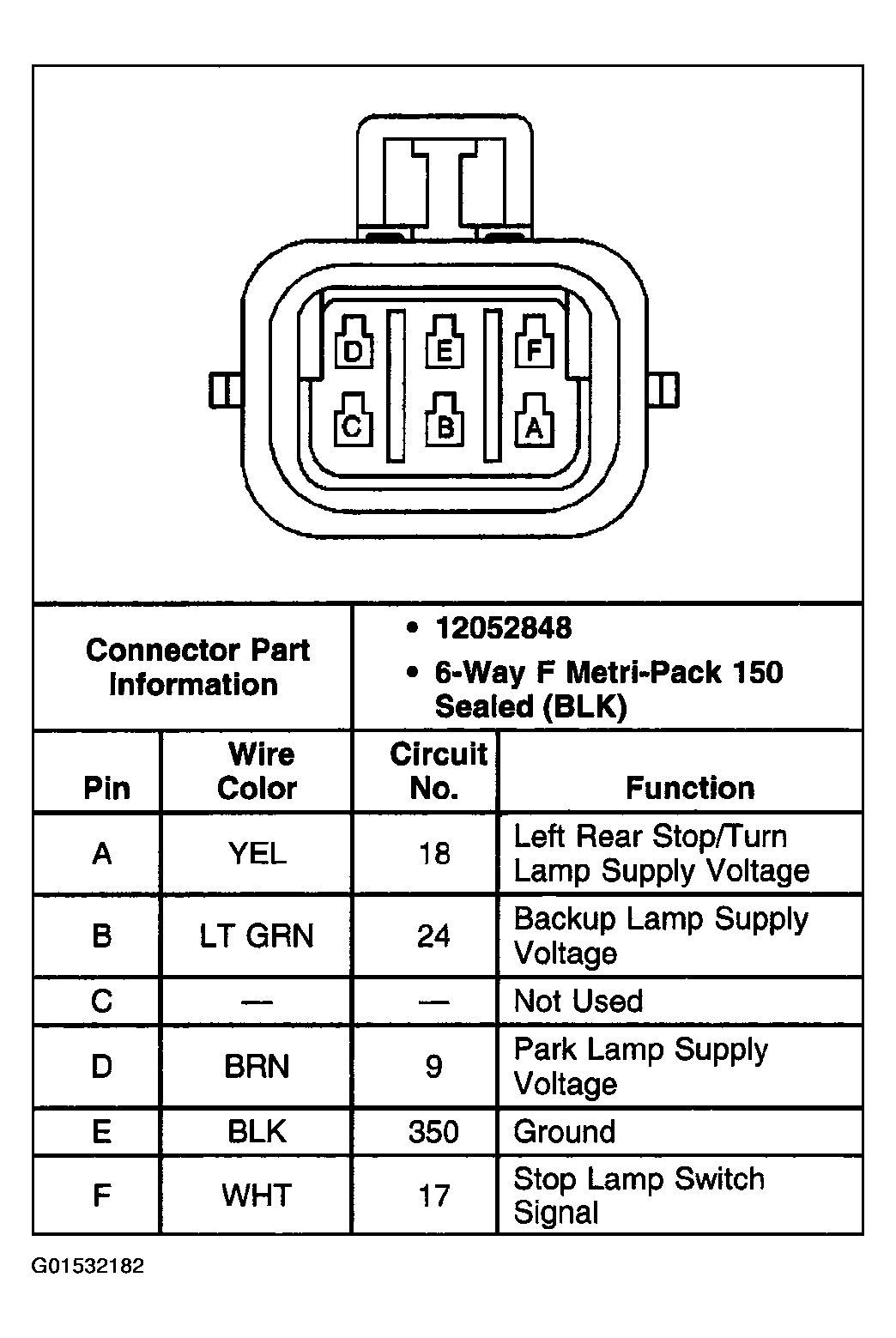

Fig 30: Tail Lamp-Left Connector End View
G01532182Courtesy of GENERAL MOTORS CORP.

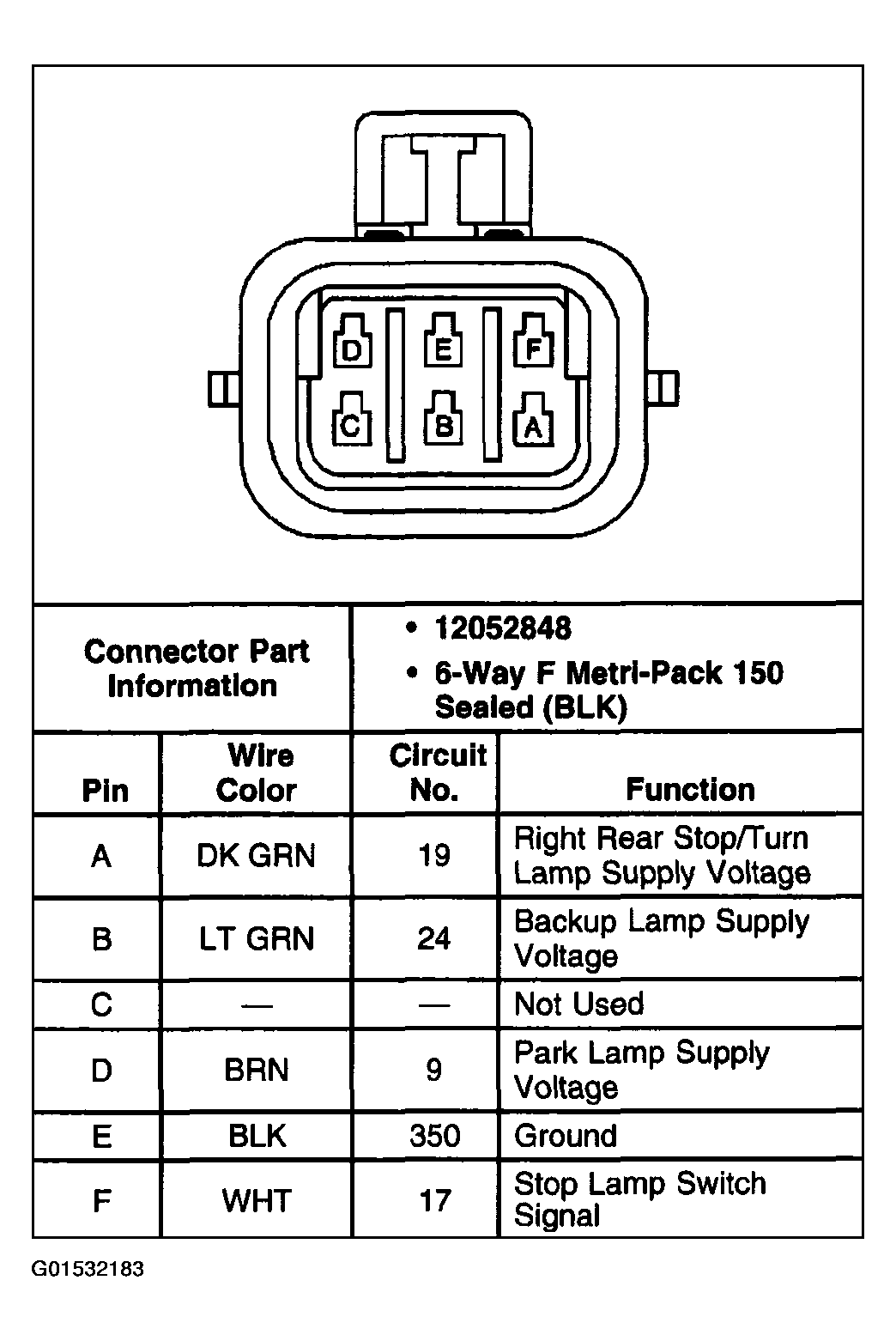

Fig 31: Tail Lamp-Right Connector End View
G01532183Courtesy of GENERAL MOTORS CORP.

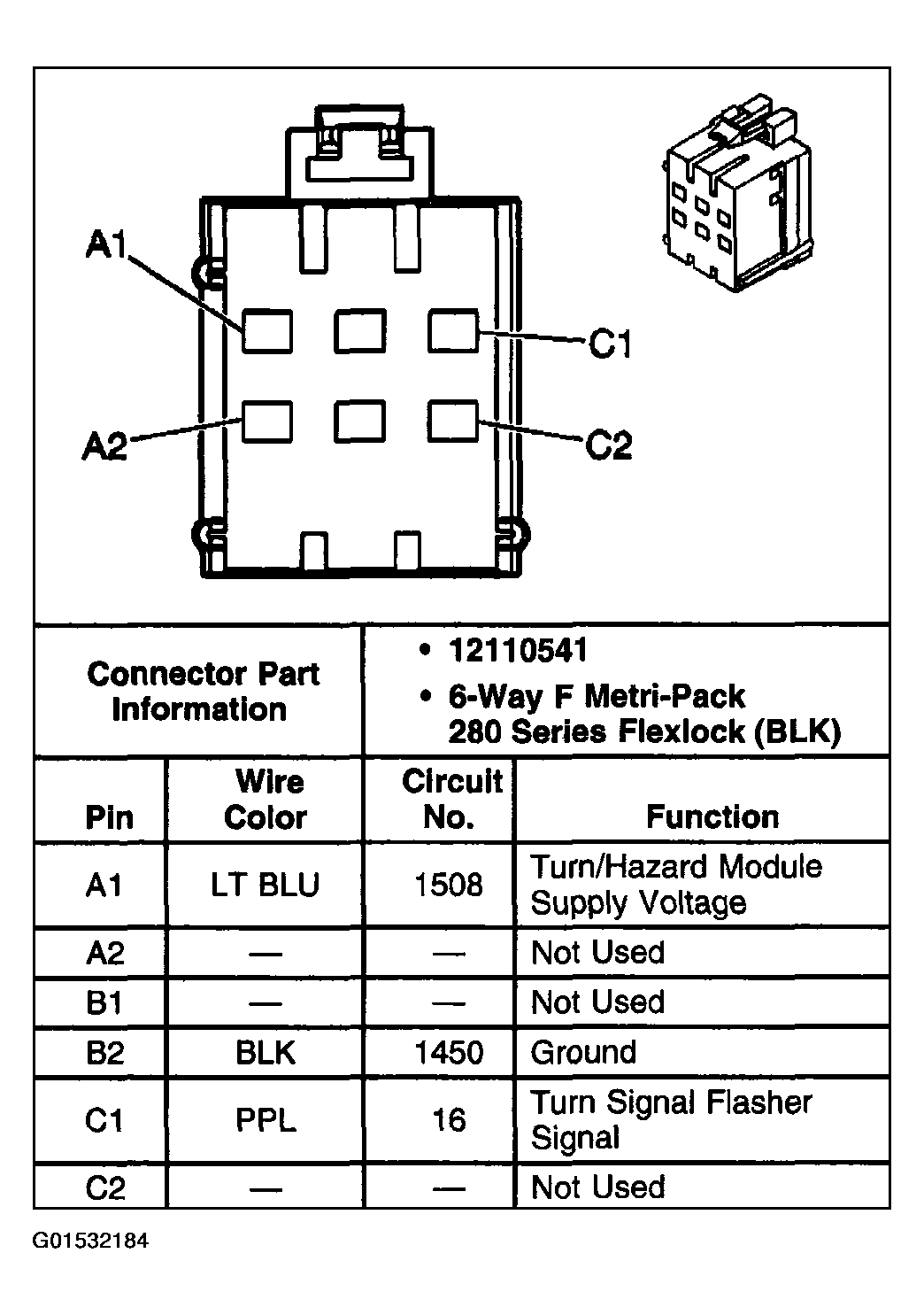

Fig 32: Turn Signal/Hazard Flasher Connector End View
G01532184Courtesy of GENERAL MOTORS CORP.

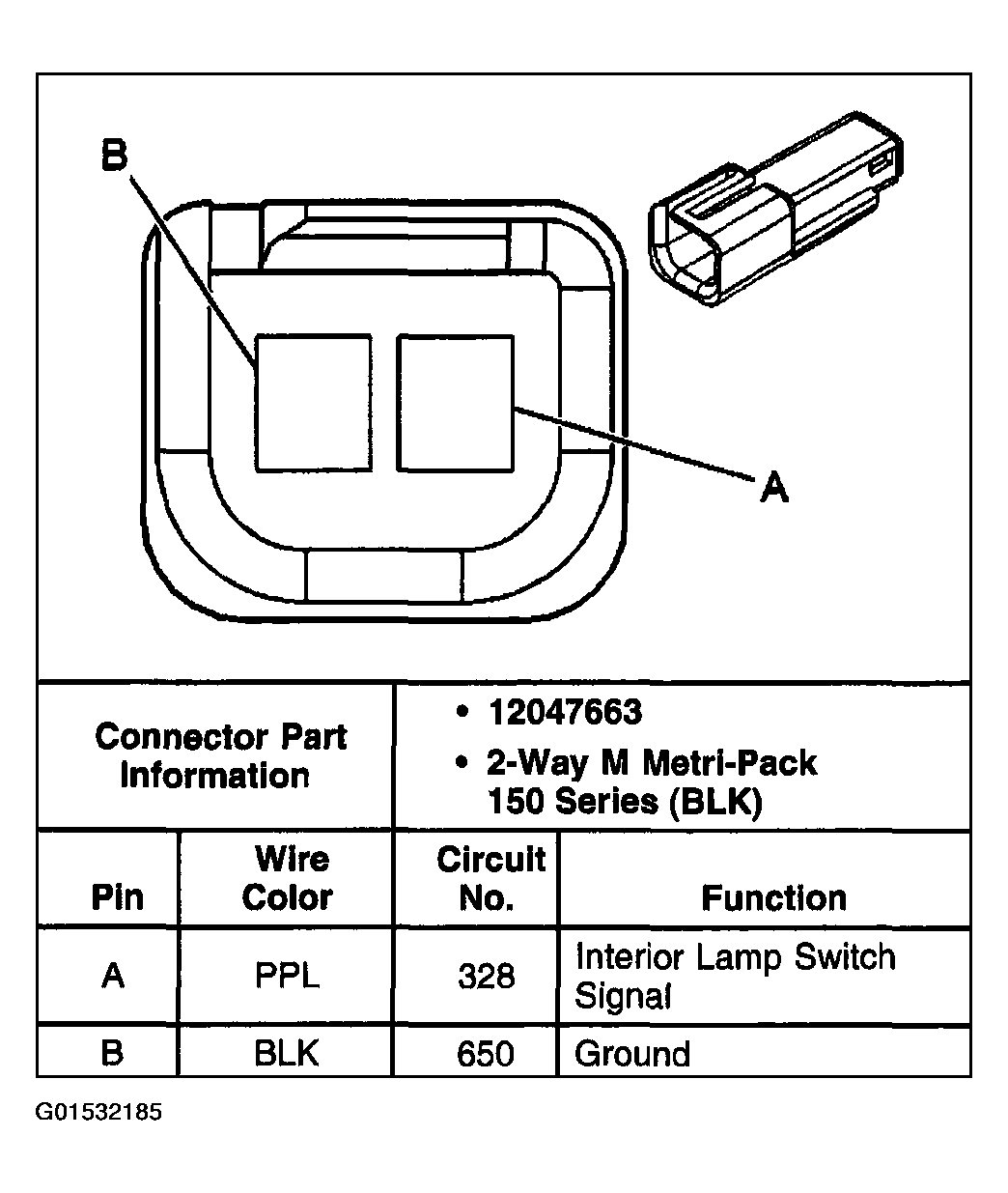

Fig 33: Vanity Mirror Lamp-Left Connector End View
G01532185Courtesy of GENERAL MOTORS CORP.

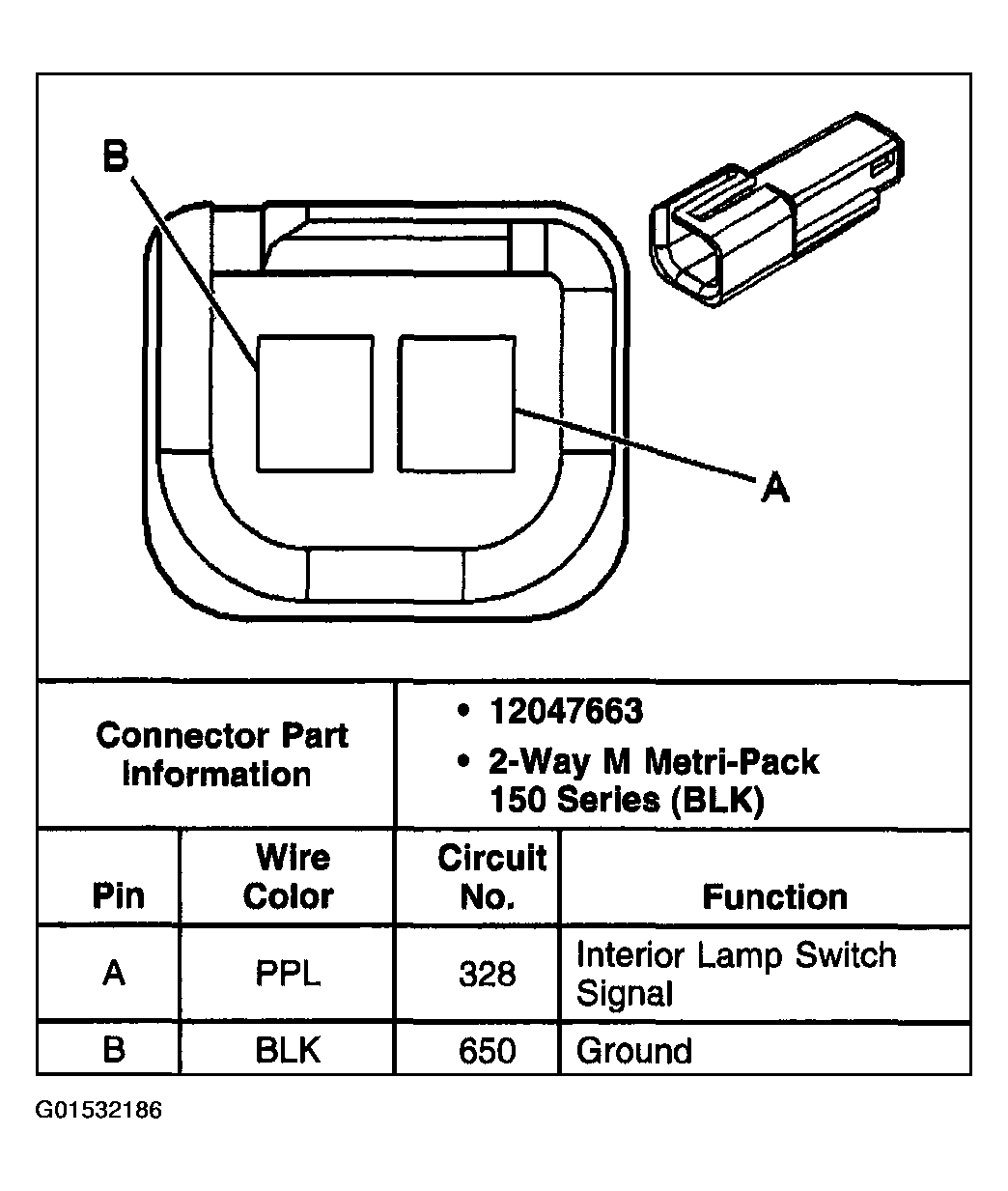

Fig 34: Vanity Mirror Lamp-Right Connector End View
G01532186Courtesy of GENERAL MOTORS CORP.

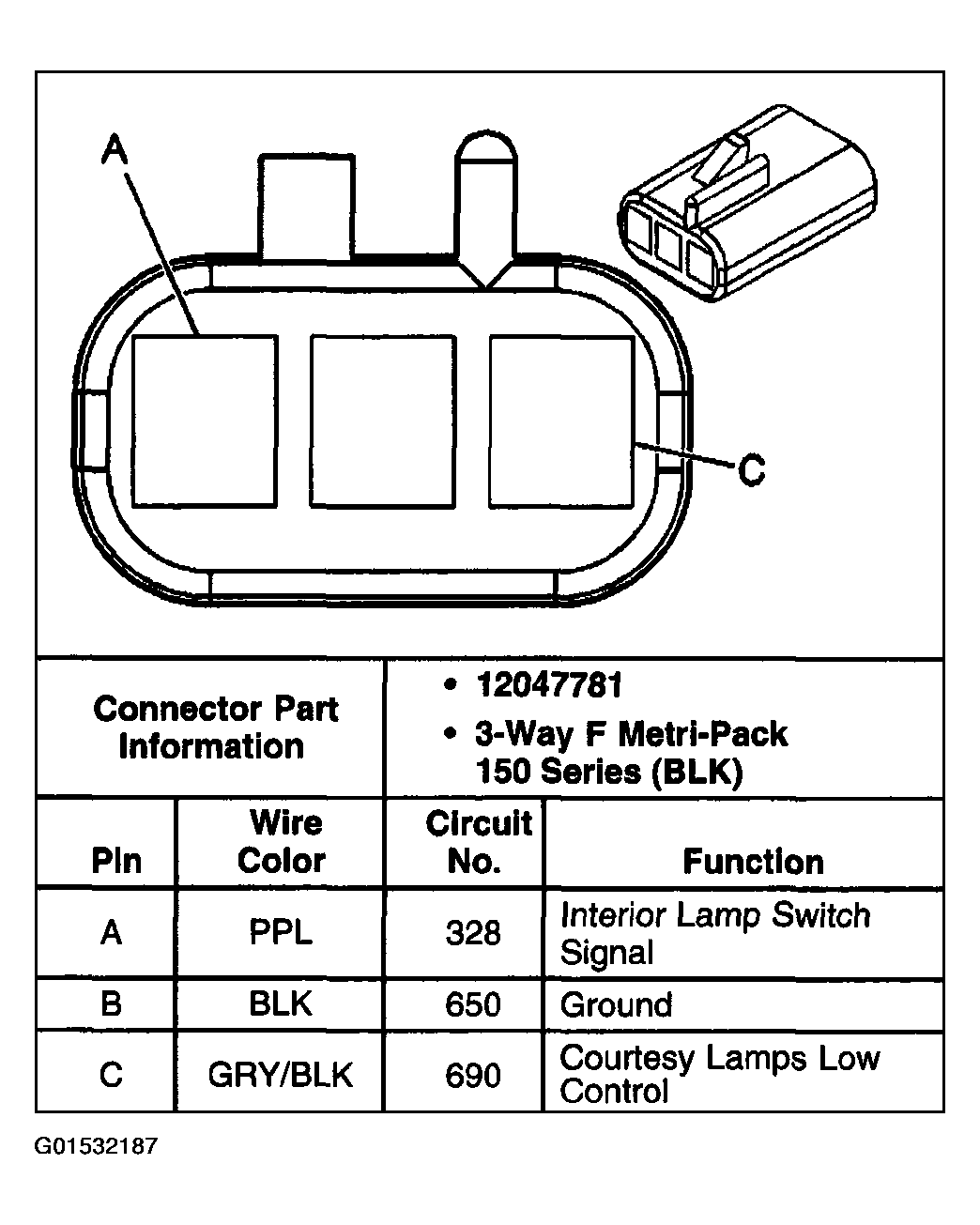

Fig 35: Windshield Header Courtesy/Reading Lamps Connector End View
G01532187Courtesy of GENERAL MOTORS CORP.
