Cellular Communication Component Views

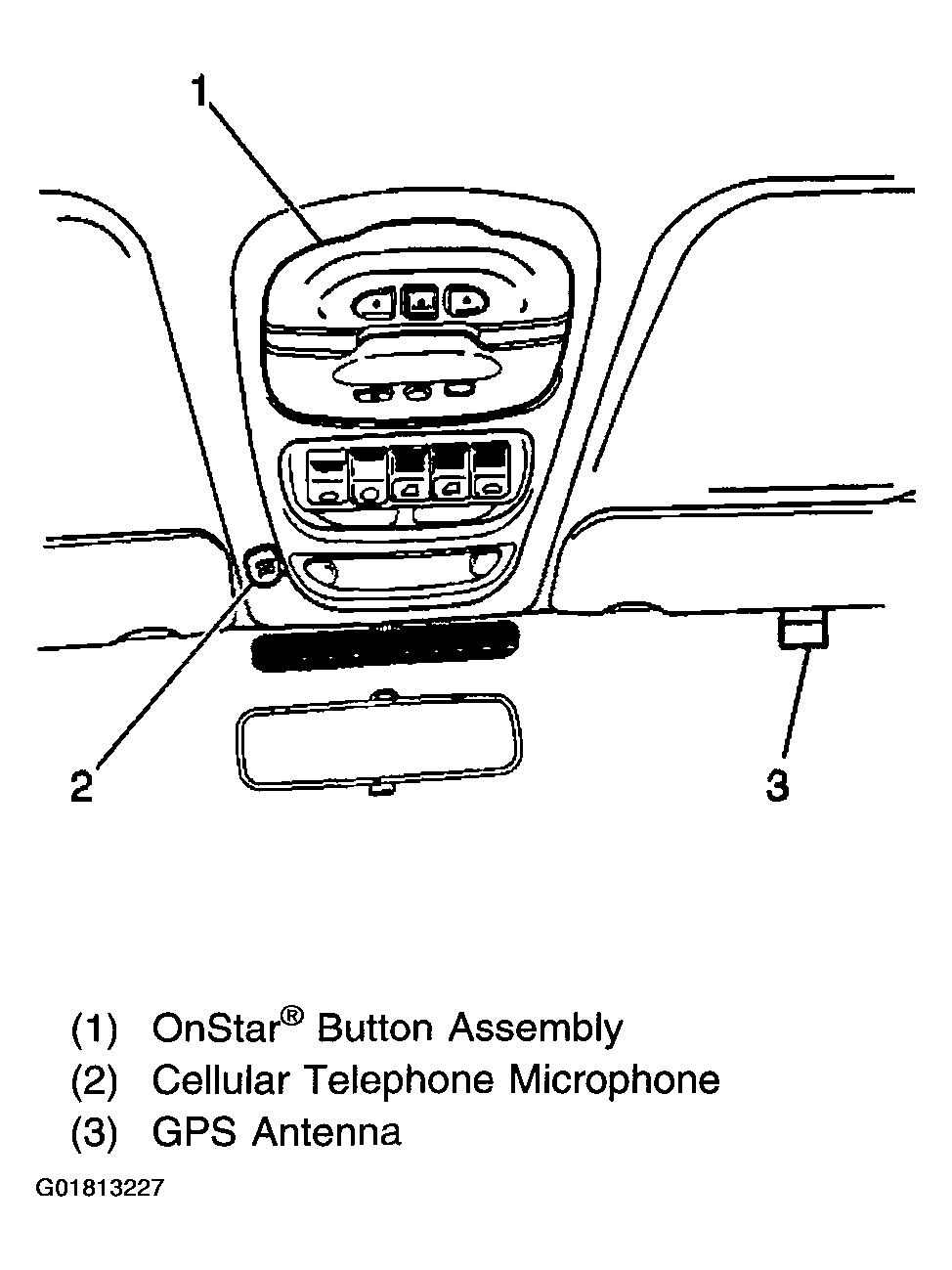

Fig 1: Front Center Of Roof In Overhead Console
G01813227Courtesy of GENERAL MOTORS CORP.

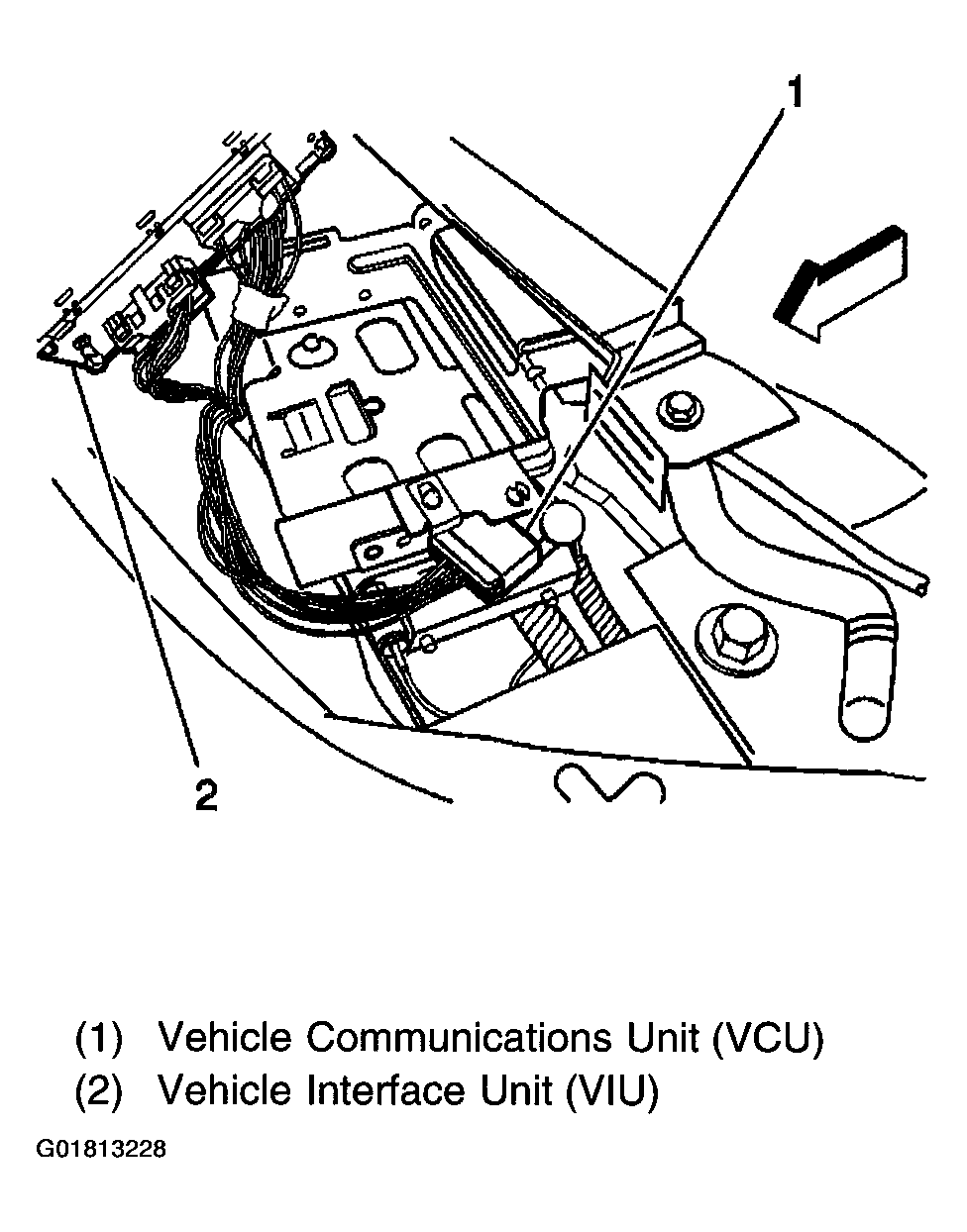

Fig 2: Under Driver Side Of The IP
G01813228Courtesy of GENERAL MOTORS CORP.
