Installation Procedure

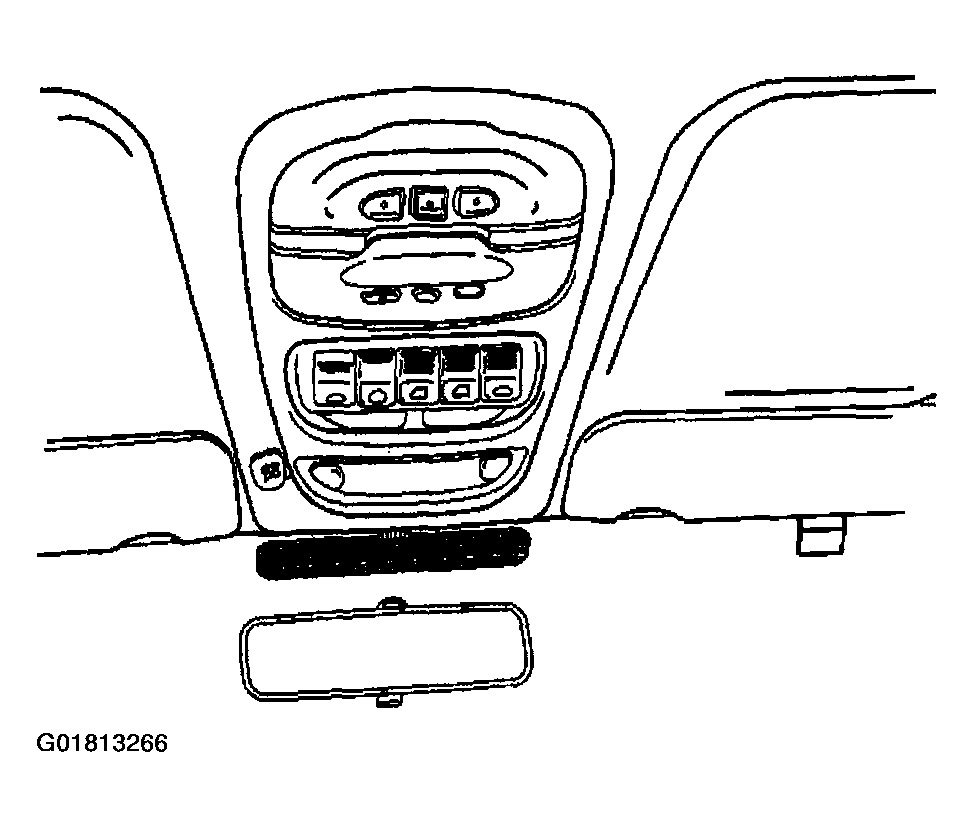

Fig 1: Installing Overhead Console
G01813266Courtesy of GENERAL MOTORS CORP.
  1. Install the OnStar® button assembly to the overhead console.
  2. Install the 2 screws that retain the OnStar® bezel to the overhead console.
  3. Reconnect the OnStar® electrical connectors.
  4. Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .
  5. Snap the OnStar® button assembly back into place in the overhead console.
