Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

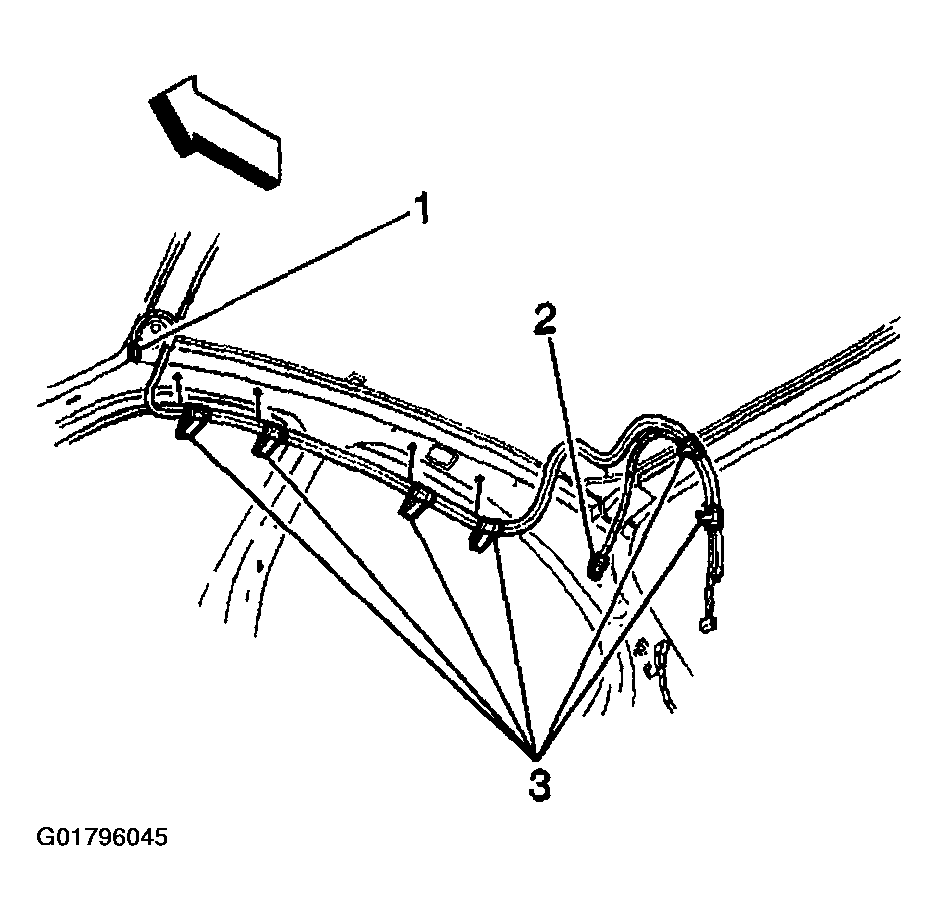

    Fig 1: Locating Cable Clips
    G01796045Courtesy of GENERAL MOTORS CORP.
  1. If the antenna cable is to being replaced, install the antenna cable clips (3) from the antenna cable being removed from the vehicle to the new antenna cable.
  2. Install the antenna cable to the roof beams with the clips (3).

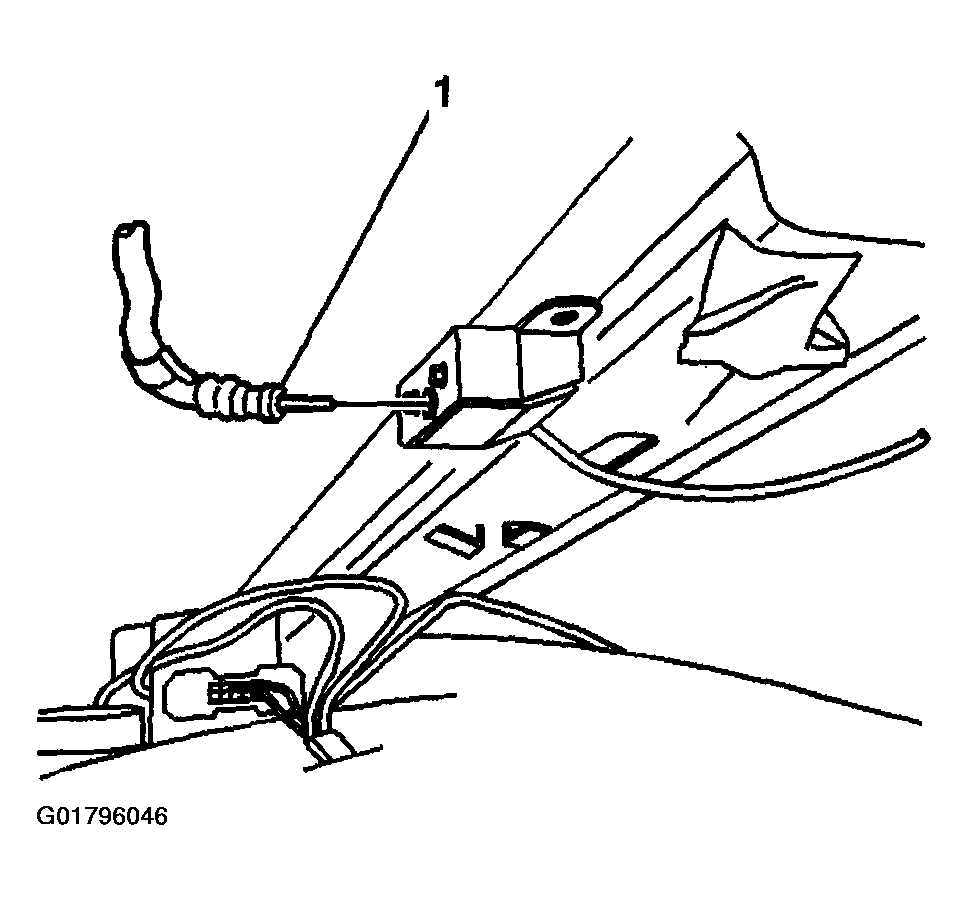

    3. Fig 2: Installing Antenna Connection At Front Of Vehicle
    G01796046Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna connection (1) at the front of the vehicle.
    4. Fig 3: Locating Antenna Cable Components
    G01796047Courtesy of GENERAL MOTORS CORP.
  4. Connect the antenna cable (2) to the antenna module, at the rear of the vehicle.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (W/O CF5) or HEADLINER REPLACEMENT (W/ CF5) .
  6. Install the sail panel. Refer to SAIL PANEL REPLACEMENT .
  7. Install the center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR .
  8. Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
