Removal Procedure

  1. Using a small flat bladed tool, pry the OnStar® bezel tab down away from the overhead console.

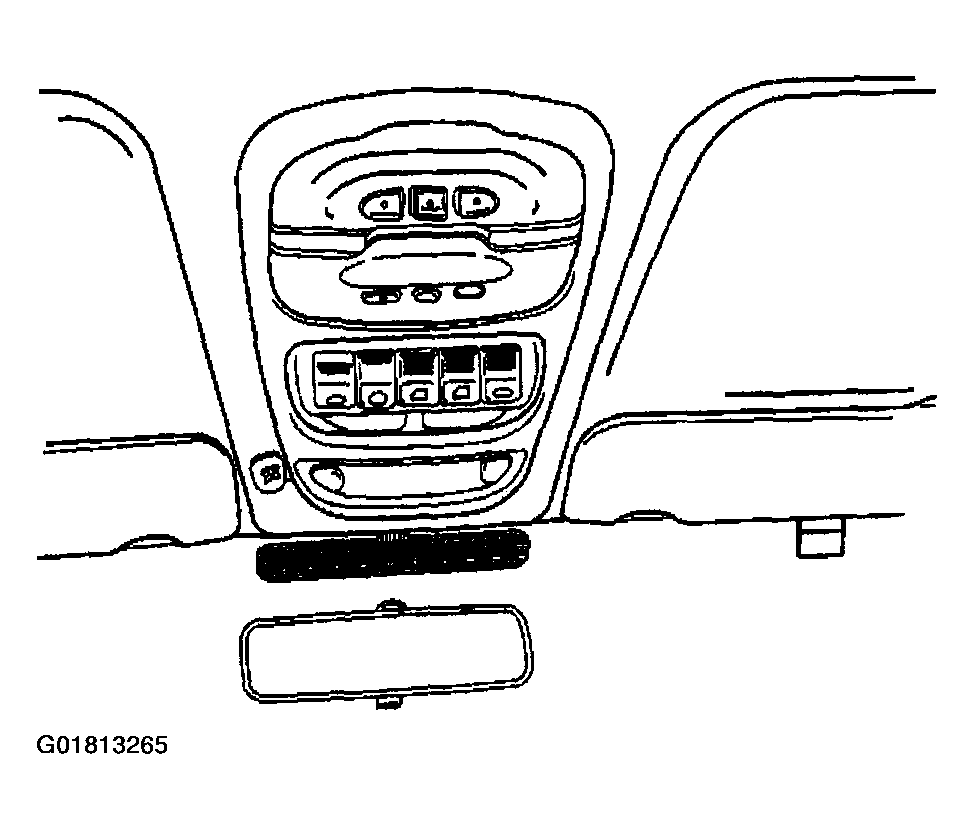

    2. Fig 1: Removing Overhead Console
    G01813265Courtesy of GENERAL MOTORS CORP.
  2. Remove the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .
  3. Disconnect the OnStar® electrical connectors.
  4. Remove the 2 screws that retain the OnStar® bezel to the overhead console.
  5. Remove the OnStar® button assembly from the overhead console.
