Theft Deterrent System Component Views

Fig 1: RH Side Of Steering Column Component View
G01813524Courtesy of GENERAL MOTORS CORP.

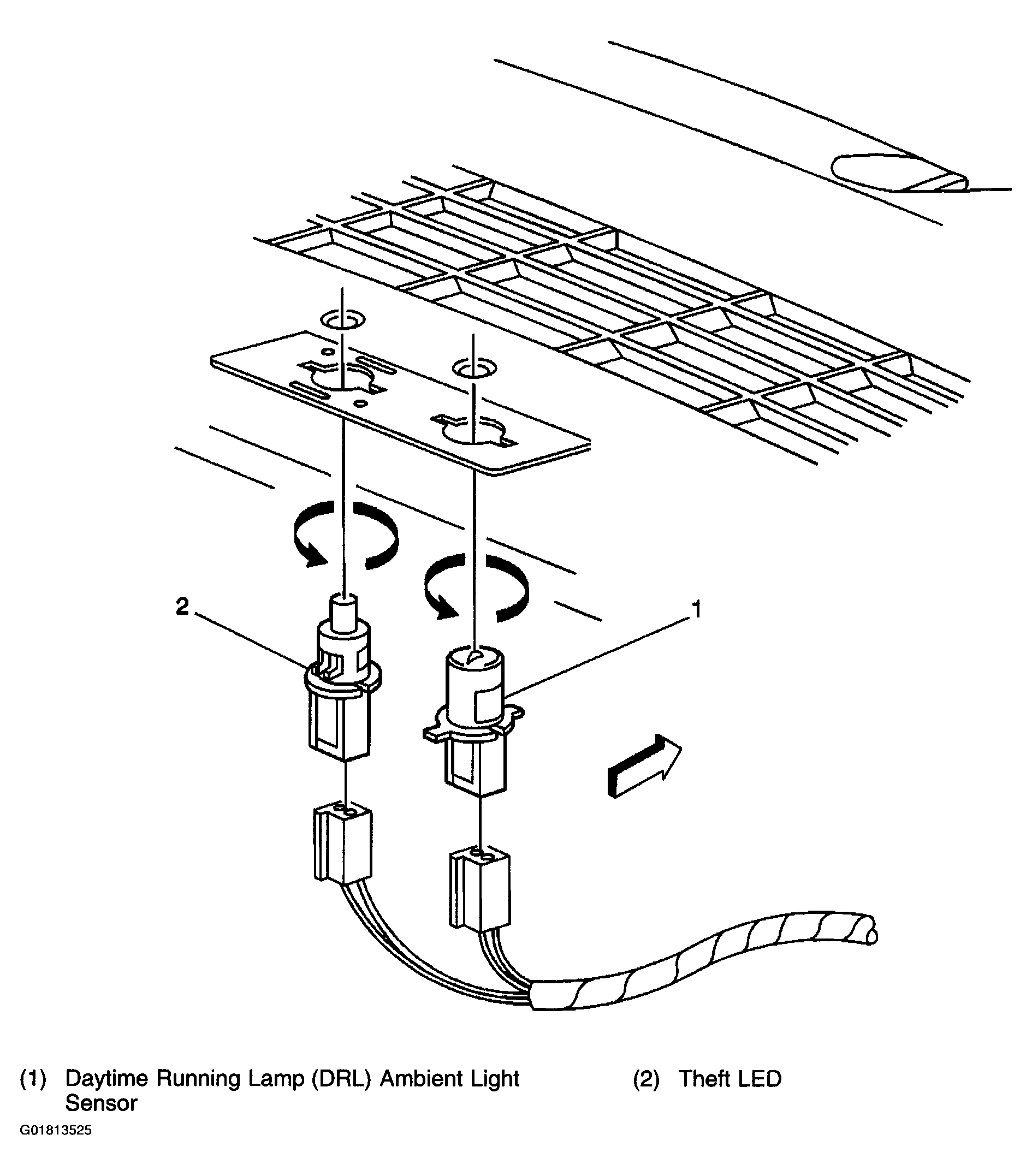

Fig 2: Security Indicator Lamp
G01813525Courtesy of GENERAL MOTORS CORP.
