Installation Procedure

  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp to the instrument panel upper trim:
    1. 2.1. Insert the lamp.
    2. 2.2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - IP UPPER .

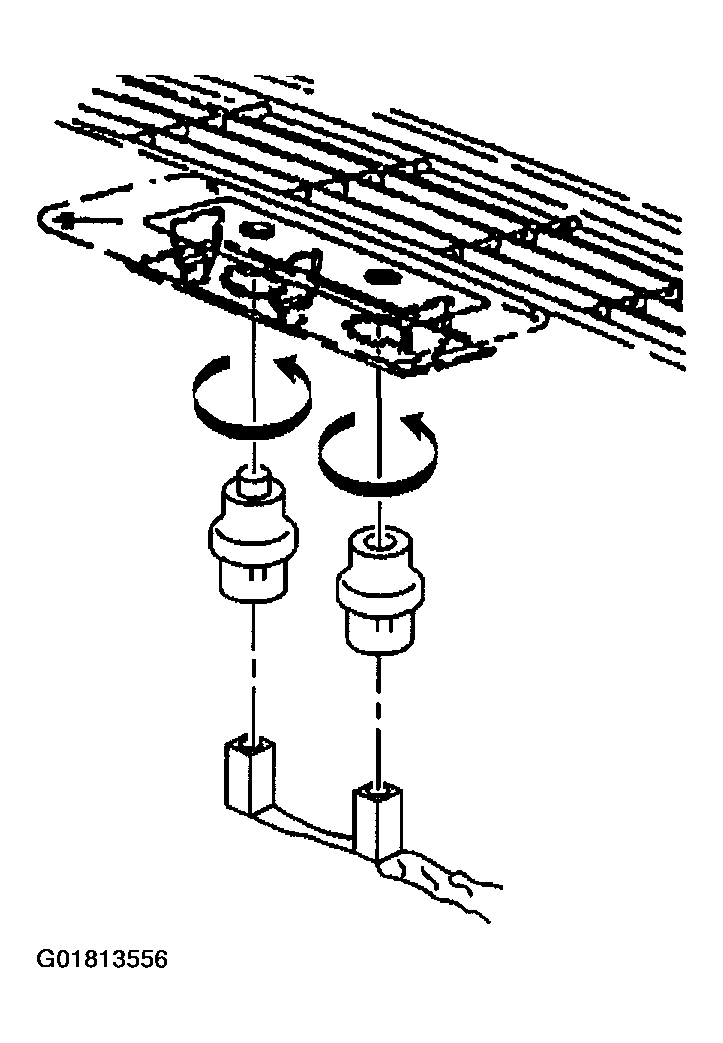

Fig 1: Connecting Security Indicator Lamp Electrical Connector To Security Indicator Lamp
G01813556Courtesy of GENERAL MOTORS CORP.
