Installation Procedure

IMPORTANT: Ensure that the shock sensor mounting surface is clean and free of all oils.
  1. Install the shock sensor to the instrument panel knee bolster bracket.
  2. Connect the shock sensor electrical connector.
    IMPORTANT: Verify proper shock sensor operation.
  3. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

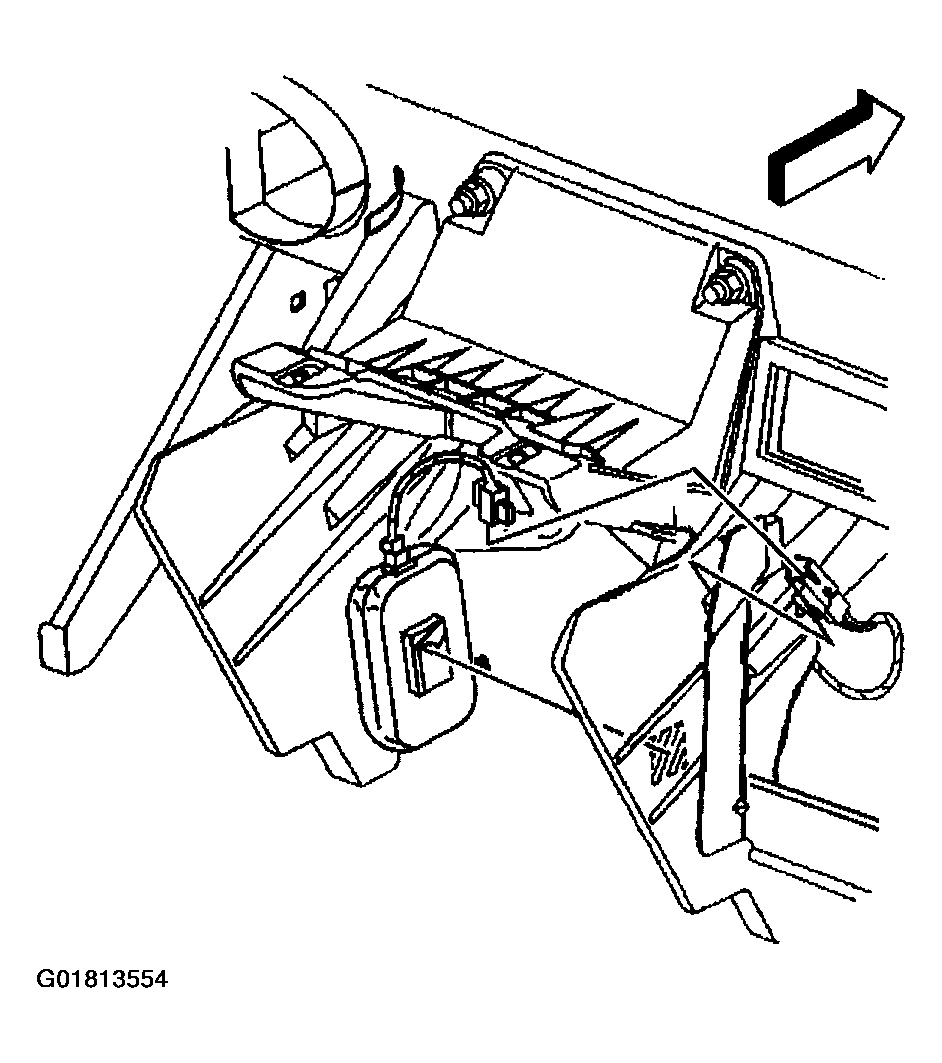

Fig 1: Installing Shock Sensor To Instrument Panel Knee Bolster Bracket
G01813554Courtesy of GENERAL MOTORS CORP.
