Engine Electrical Connector End Views

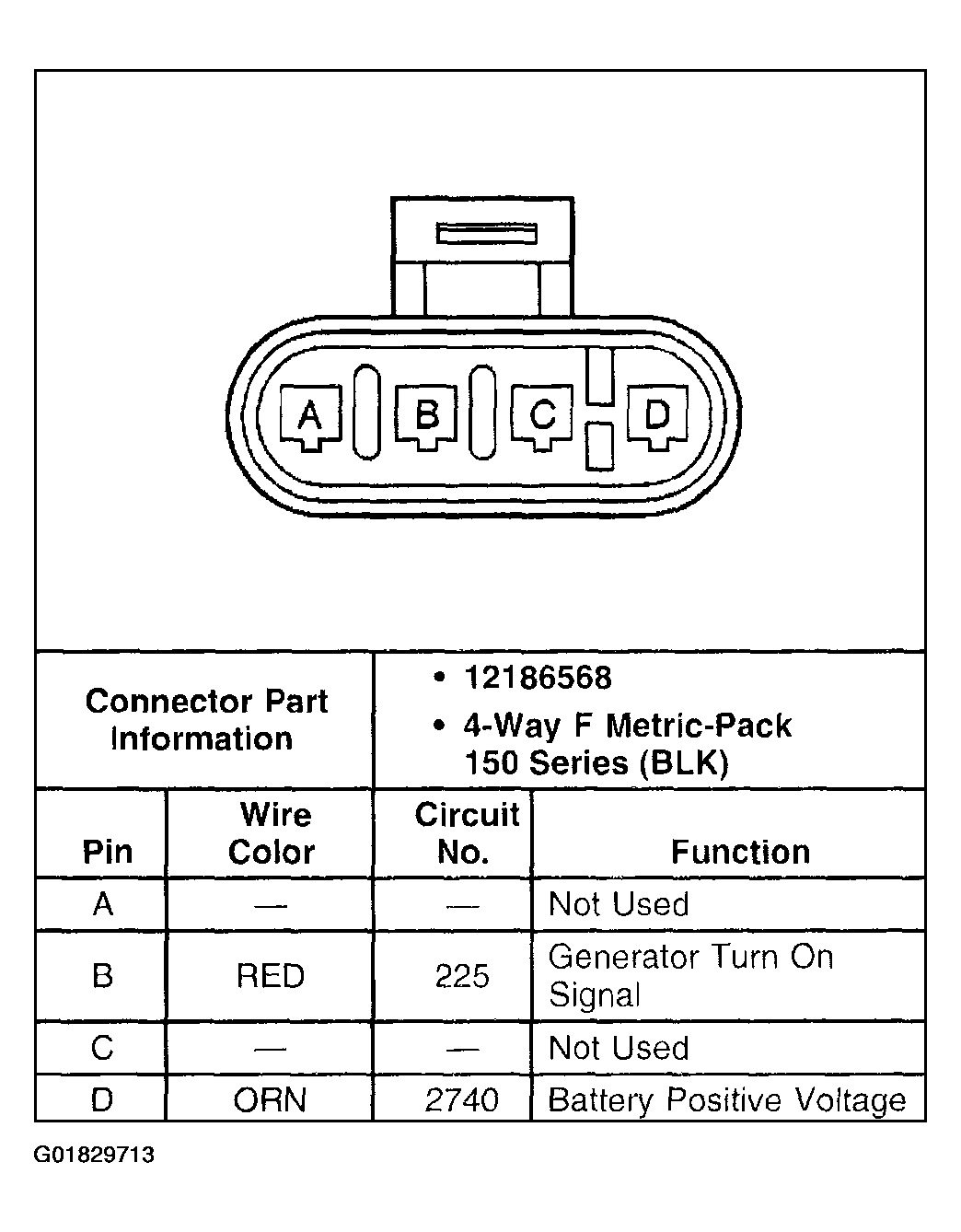

Fig 1: Generator
G01829713Courtesy of GENERAL MOTORS CORP.

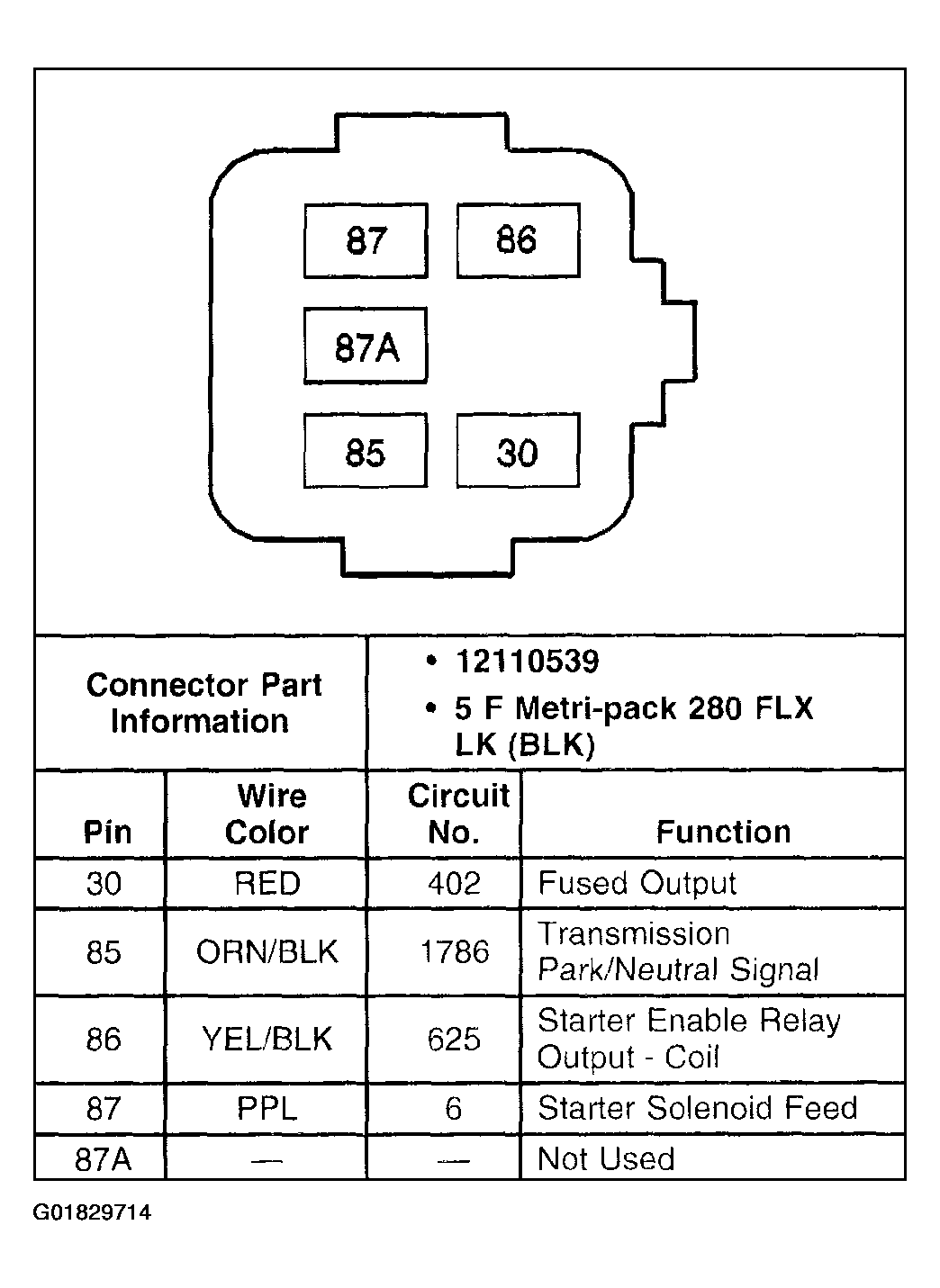

Fig 2: Starter Relay
G01829714Courtesy of GENERAL MOTORS CORP.
