Removal Procedure
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
.
CAUTION:
Batteries generate hydrogen gas, which is extremely flammable and may explode violently if ignited by a spark or a flame. Battery acid is extremely corrosive and causes severe personal injury if the acid comes into contact with the skin, and blindness if the acid comes into contact with the eyes. In order to avoid severe personal injury, use extreme caution when servicing the battery or battery-related components.
- Remove and reposition the underhood electrical center in order to provide access for removal of the battery.
- Remove the front end sheet metal diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - LEFT and BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT .
- Remove the battery ground (negative) cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
- Remove the battery positive cable from the battery.
- Remove the battery hold down retainer.
Important: Do not tip the battery more than 40 degrees during removal.
- Remove the battery.

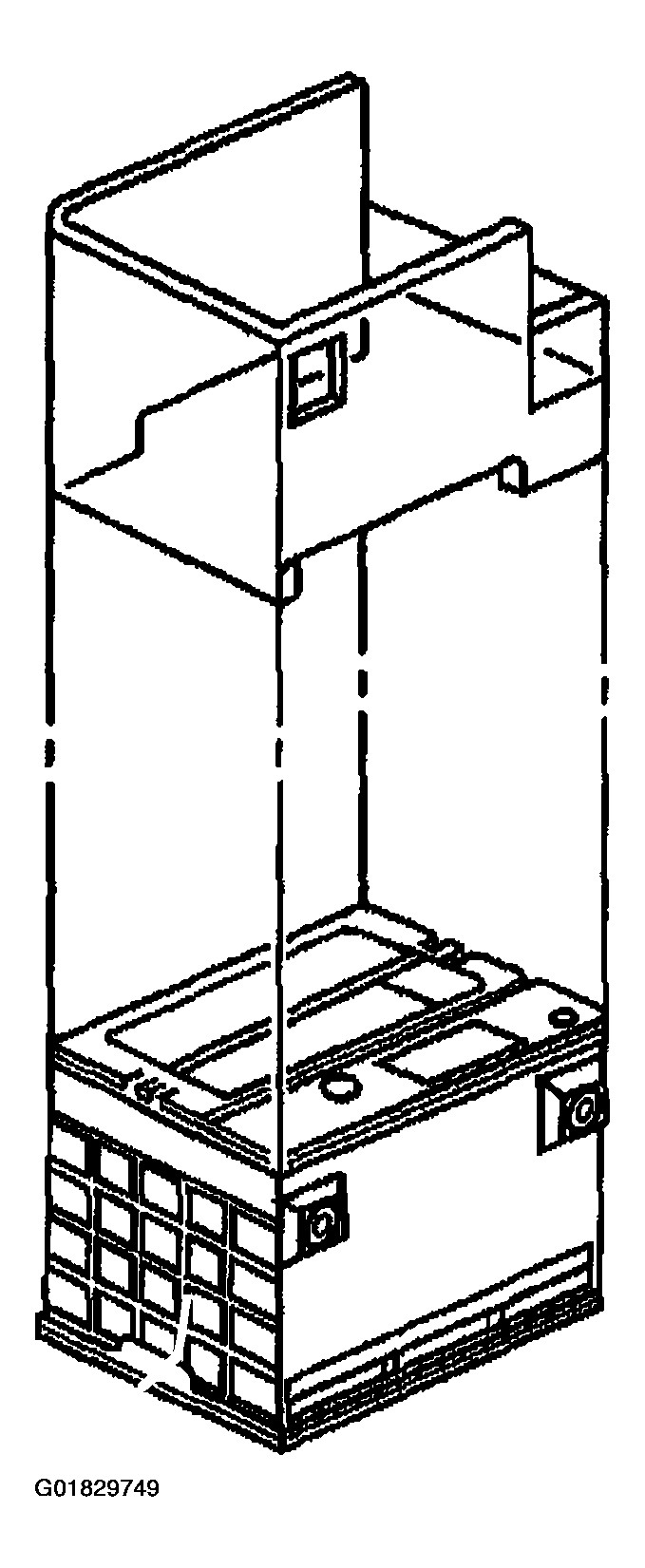

- Remove the battery insulator from the battery.
