Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 10 N.m (89 lb in).

  3. Install the battery. Refer to Battery Replacement .

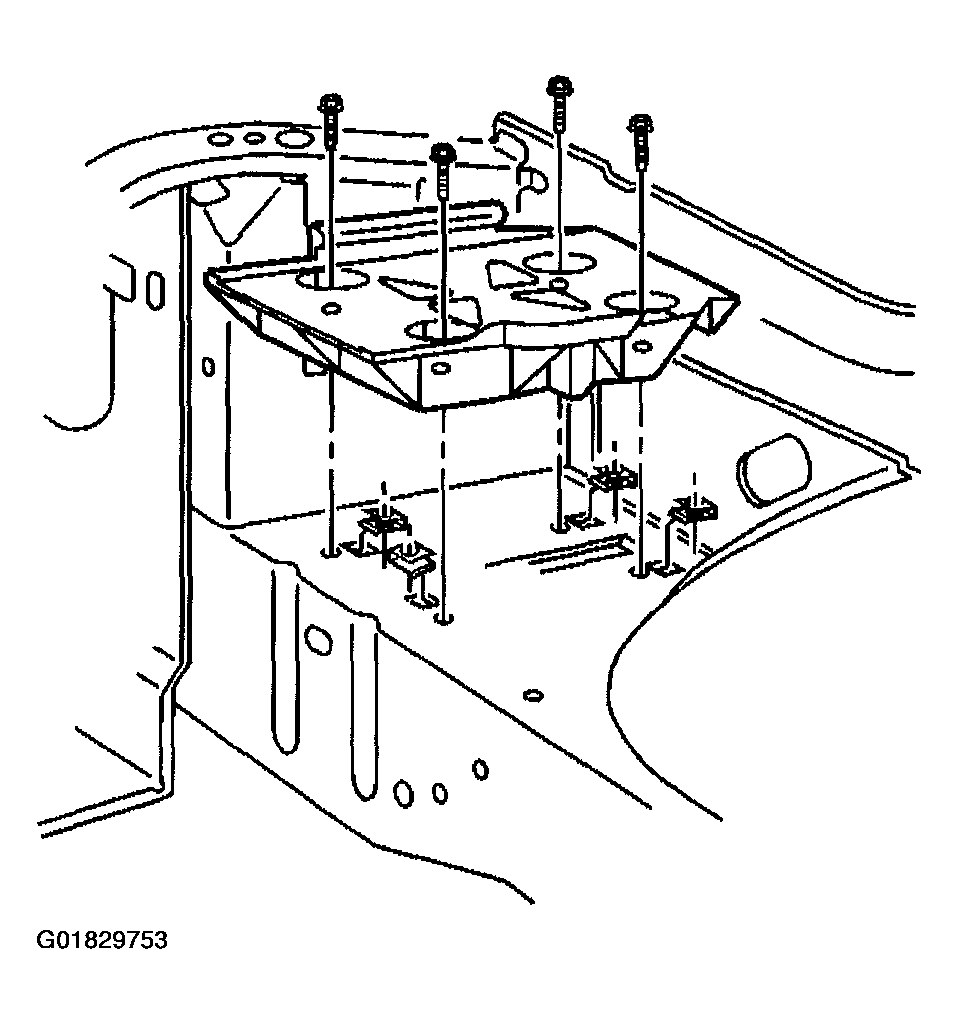

    Fig 1: Installing Battery Tray & Bolts
    G01829753Courtesy of GENERAL MOTORS CORP.
