Removal Procedure

  1. Remove the generator. Refer to Generator Replacement .
  2. Remove the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT .
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.

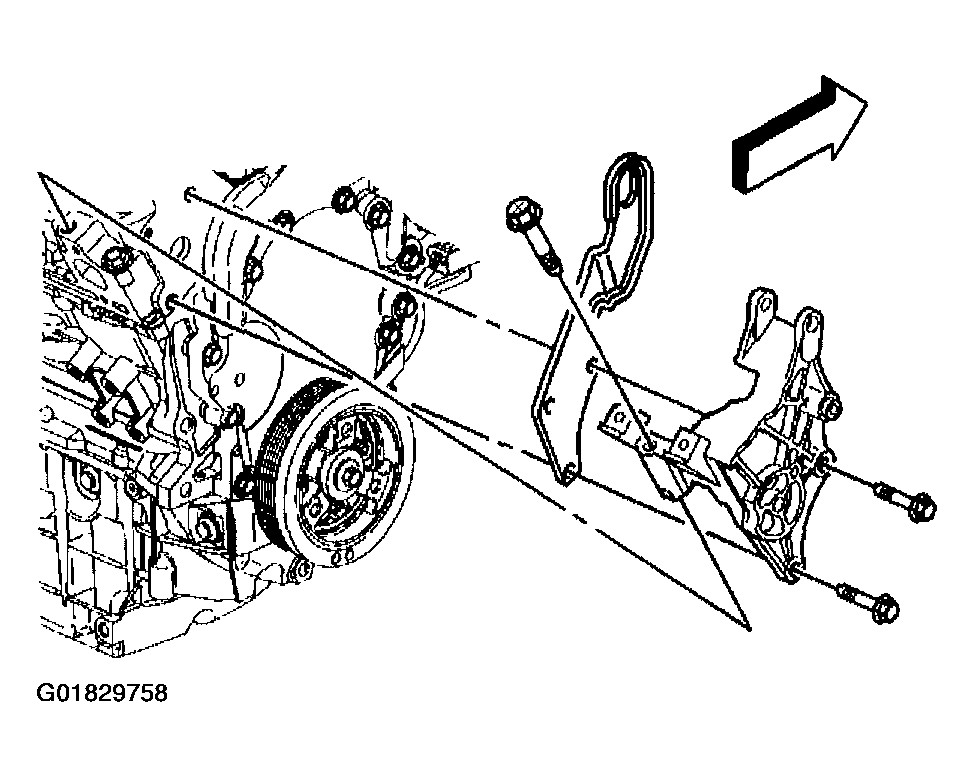

    Fig 1: Removing Generator Bracket & Bolts
    G01829758Courtesy of GENERAL MOTORS CORP.
