Installation Procedure

  1. Connect the electrical connectors.
  2. Install the switch bank into the IP by pushing in on the switch bank.

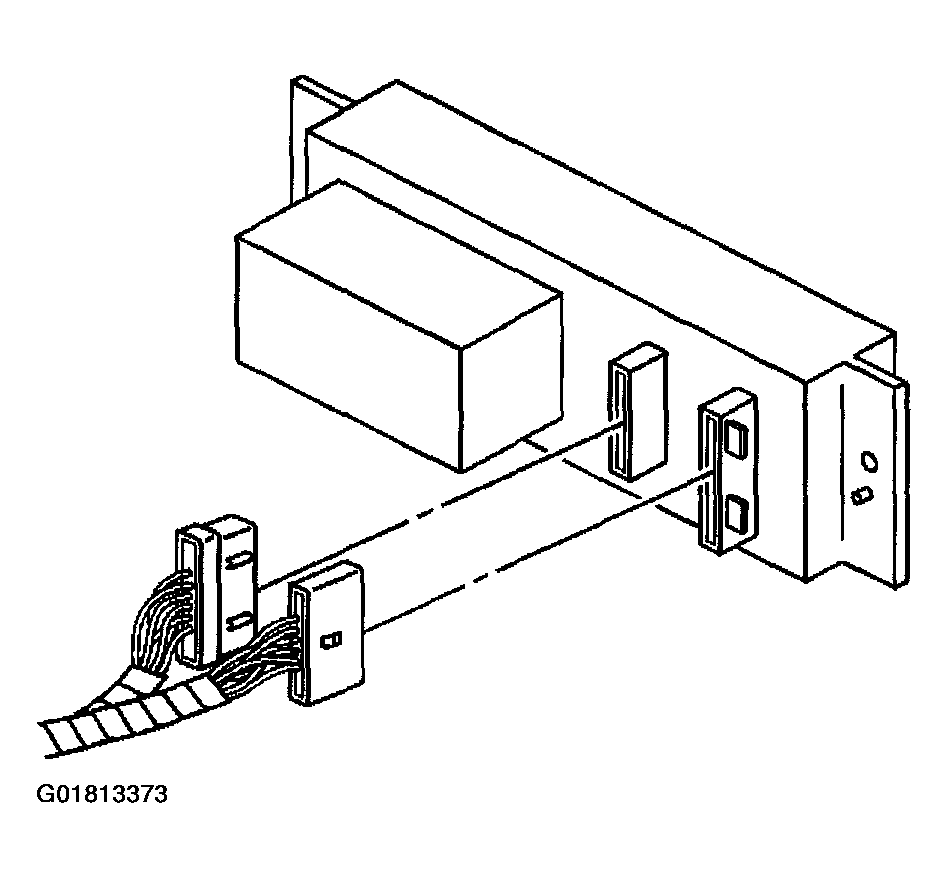

    Fig 1: Connecting Electrical Connectors
    G01813373Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts/screws to secure the switch bank to the instrument panel.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

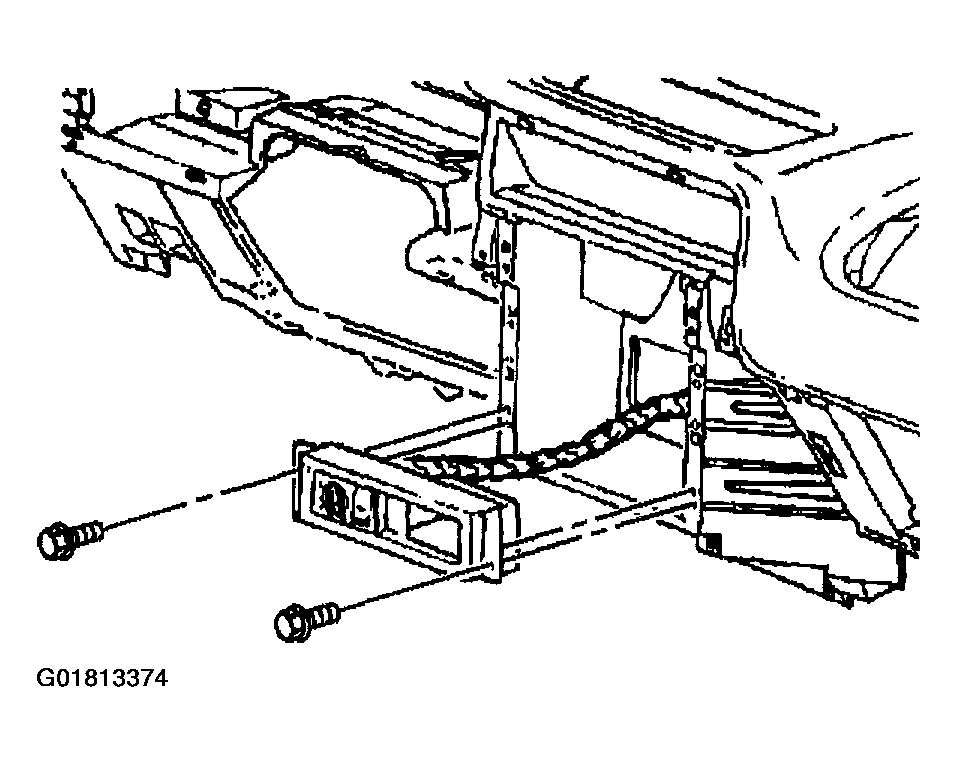

    Fig 2: Installing Bolts/Screws To Switch Bank
    G01813374Courtesy of GENERAL MOTORS CORP.
  4. Install the IP accessory trim plate. Refer to Trim Pad Replacement - IP Upper .
    Fig 3: Installing IP Accessory Trim Plate
    G01813375Courtesy of GENERAL MOTORS CORP.
