Removal Procedure

  1. Remove the instrument panel (IP) accessory trim plate. Refer to Trim Pad Replacement - IP Upper .
    Fig 1: Removing IP Accessory Trim Plate
    G01813370Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the IP switch bank.
  3. Remove the switch bank by pulling straight out from the IP.

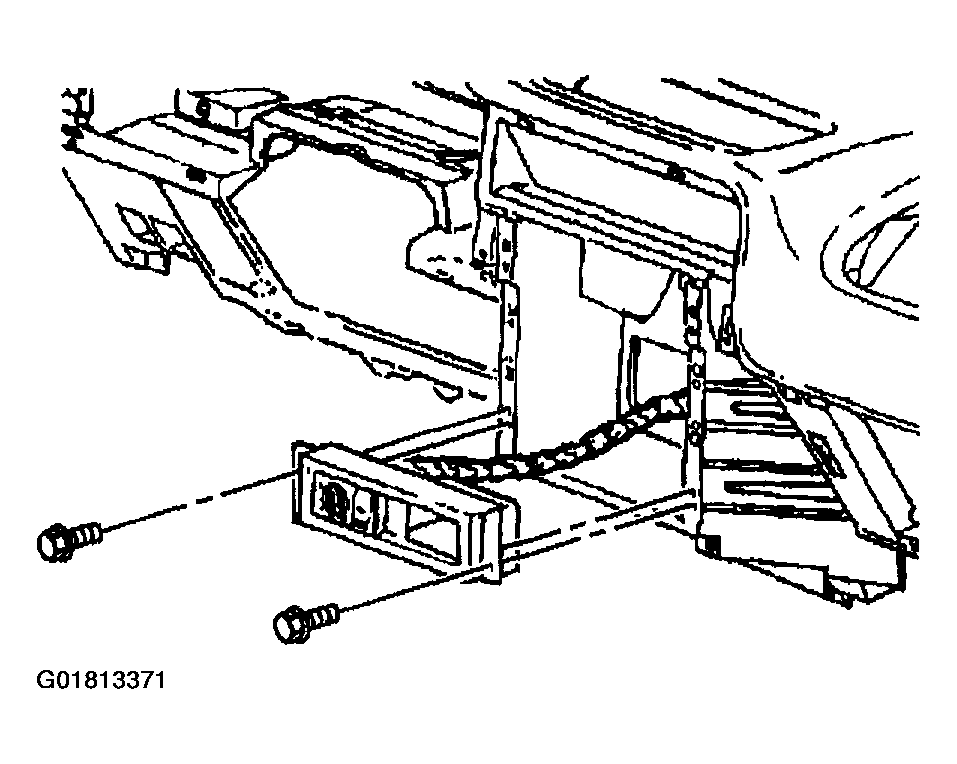

    Fig 2: Removing Bolts/Screws From Switch Bank
    G01813371Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

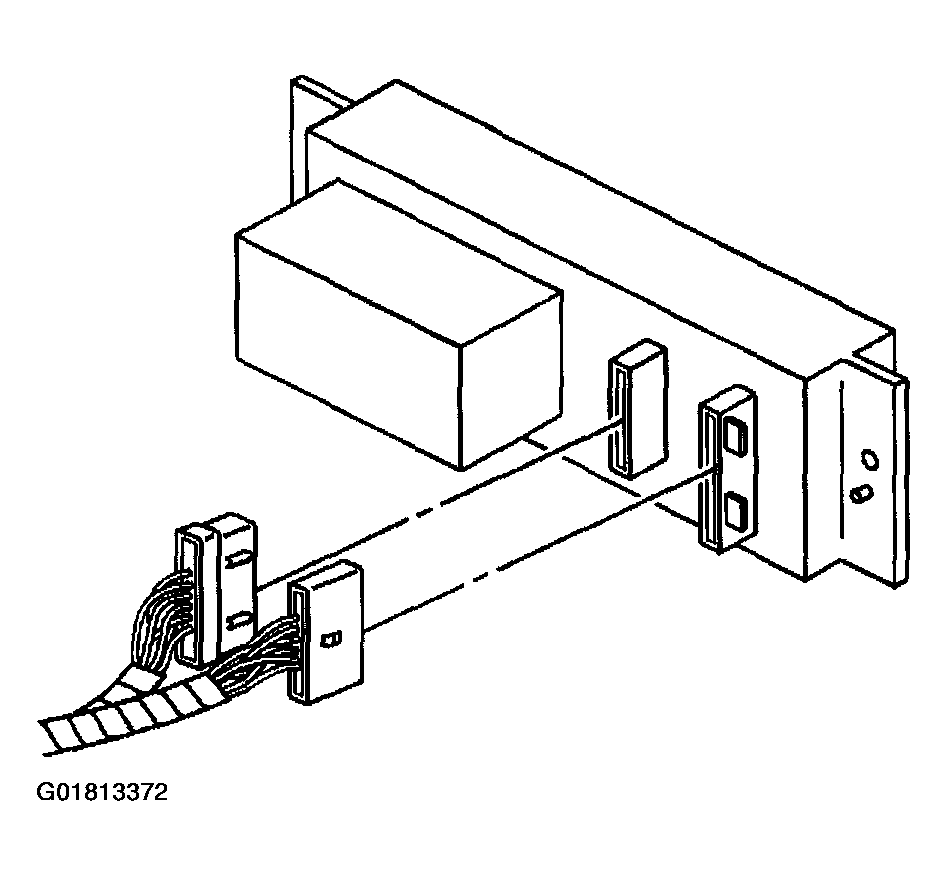

    Fig 3: Disconnecting Electrical Connectors
    G01813372Courtesy of GENERAL MOTORS CORP.
