Cooling System Component Views

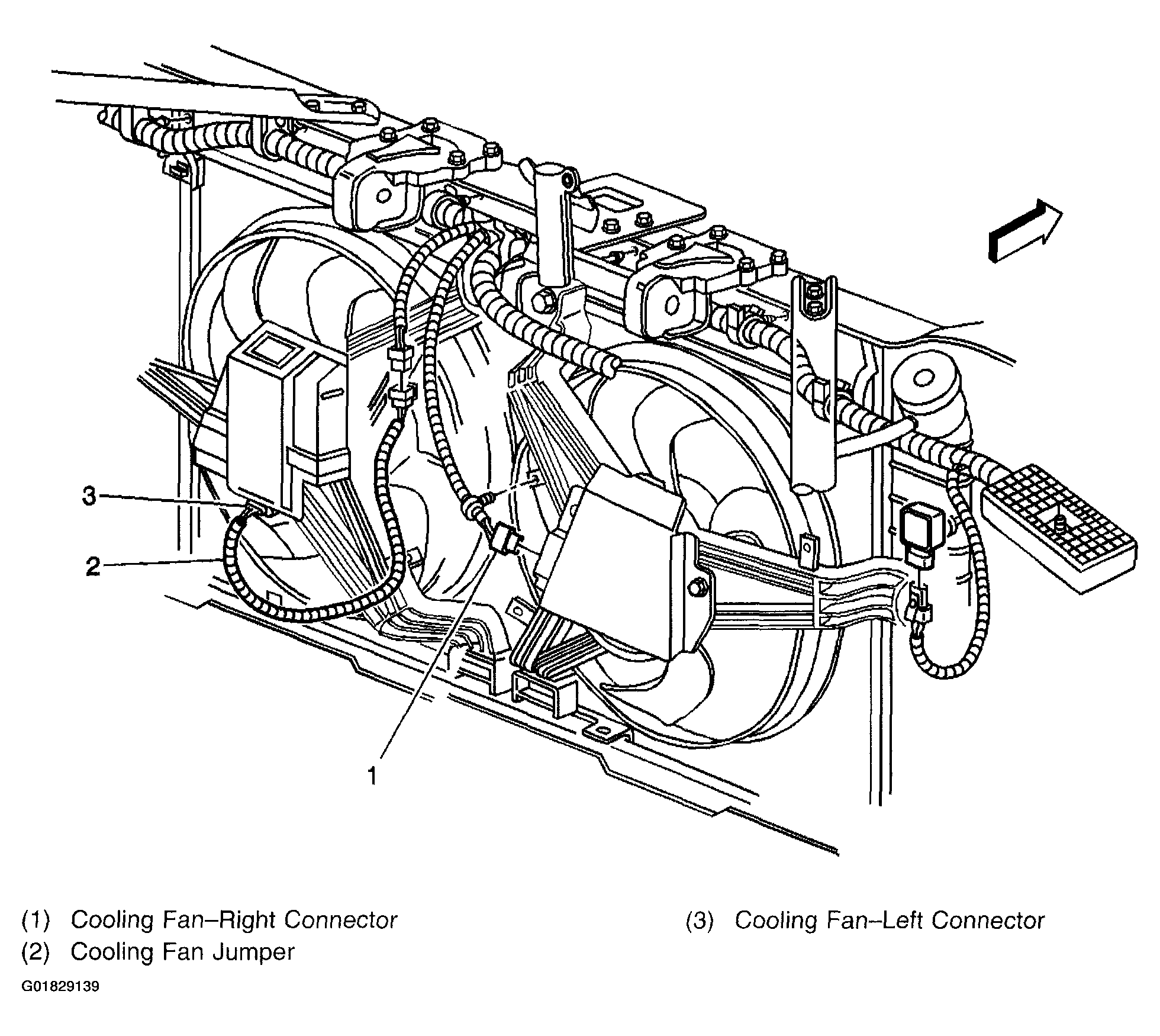

Fig 1: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
