Installation Procedure

  1. Install the exhaust muffler heat shield to the vehicle with new rivets.
  2. Install the exhaust system muffler. Refer to Muffler Replacement .
  3. Lower the vehicle.

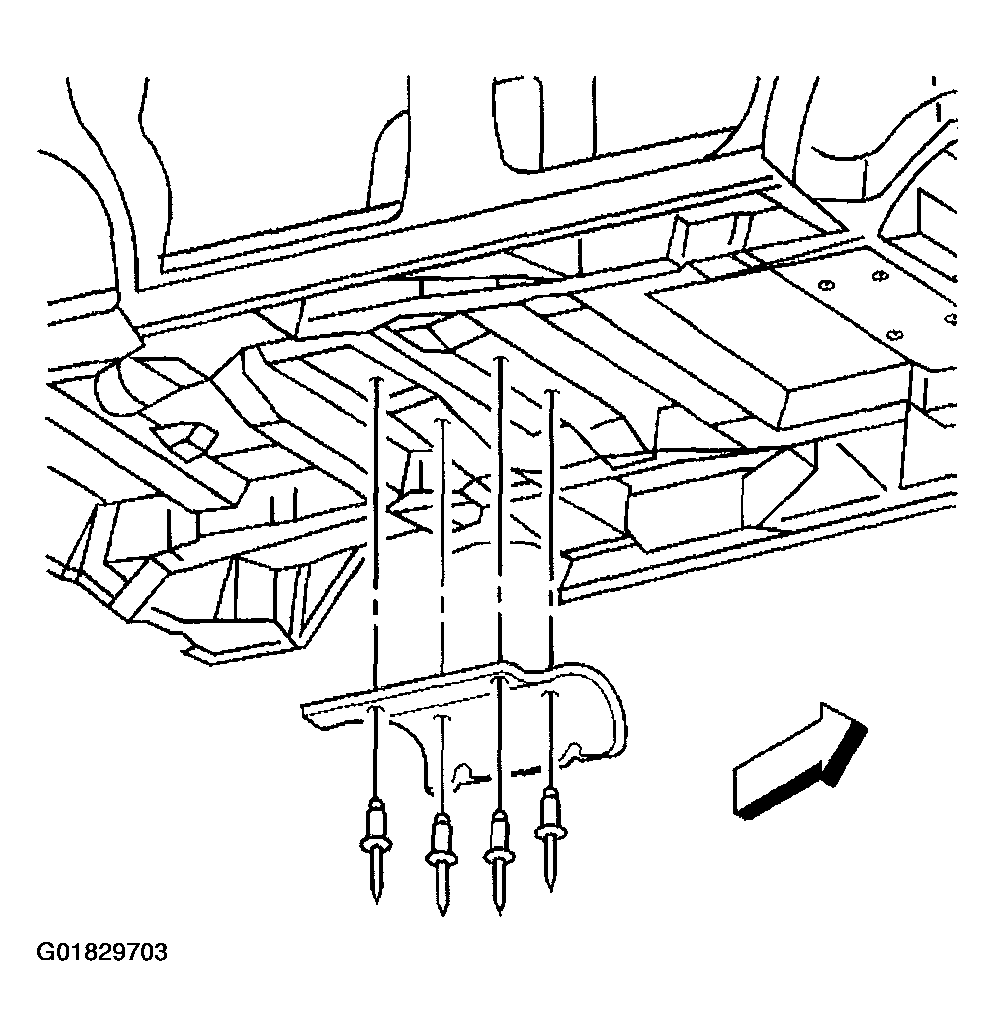

    Fig 1: Installing Catalytic Converter Heat Shield & Rivets
    G01829703Courtesy of GENERAL MOTORS CORP.
