Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- Position the radiator behind the condenser.
Important: Care should be taken when installing the condenser not to damage the lower attachment points of both the radiator and condenser.

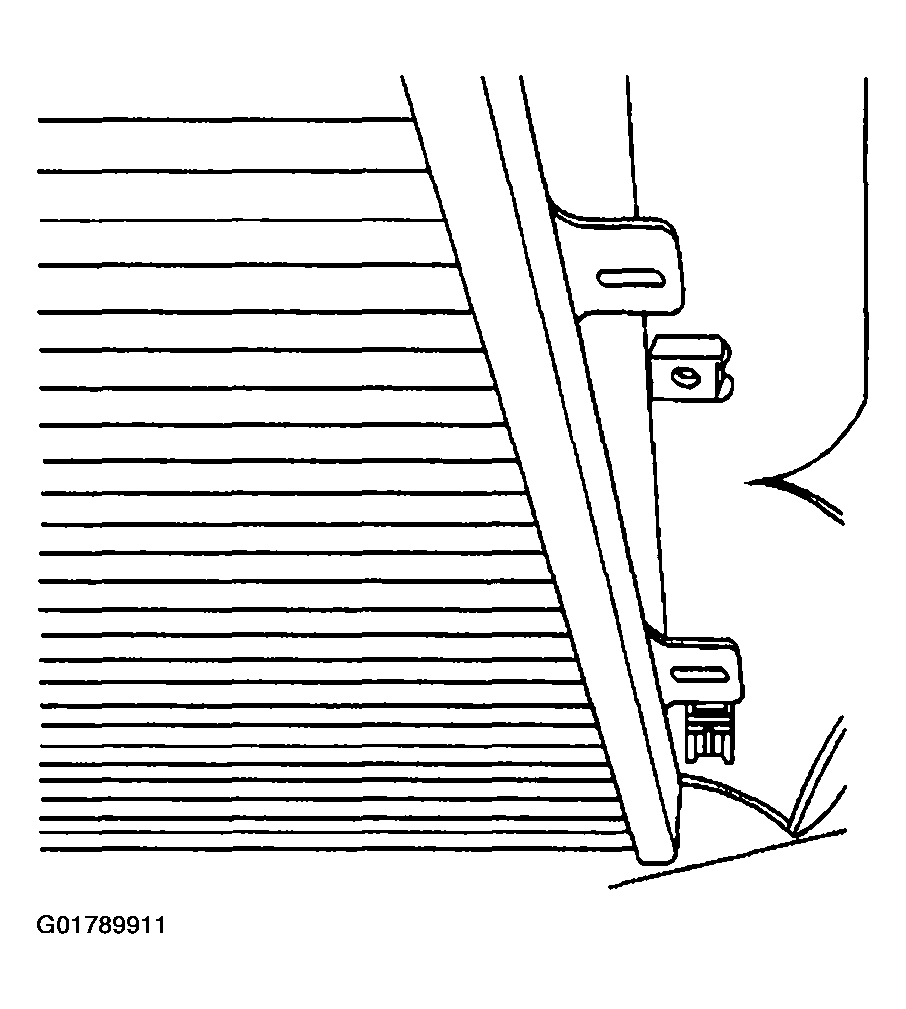

- Position the condenser, aligning the lower feet to the lower mounting features located at the front of the radiator.
NOTE: Refer to FASTENER NOTICE .
Important: The bolts retaining the condenser to the radiator end tanks are a special length and should be the ONLY bolts used upon reinstallation. The use of longer bolts will damage the radiator end tanks.

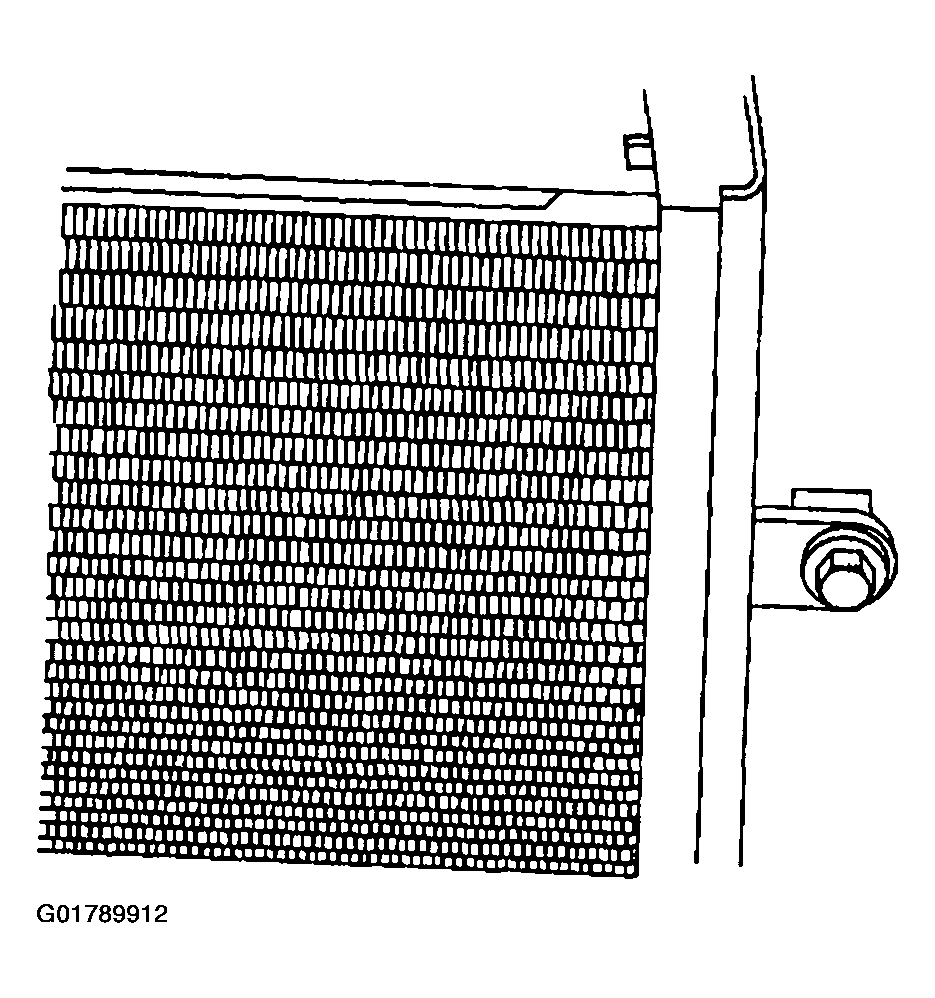

- Install the condenser mounting bolts.
Tighten
Tighten the bolts to 13 N.m (115 lb in).
- Install the cooling fans. Refer to Cooling Fan Replacement - Electric .
