Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the TV antenna module, ensuring the locating tab is positioned properly.
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.
  2. Install the retaining fastener.

    Tighten

    Tighten the TV antenna module fastener to 10N.m(89lbin).

  3. Connect the electrical connectors to the TV antenna module.
  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

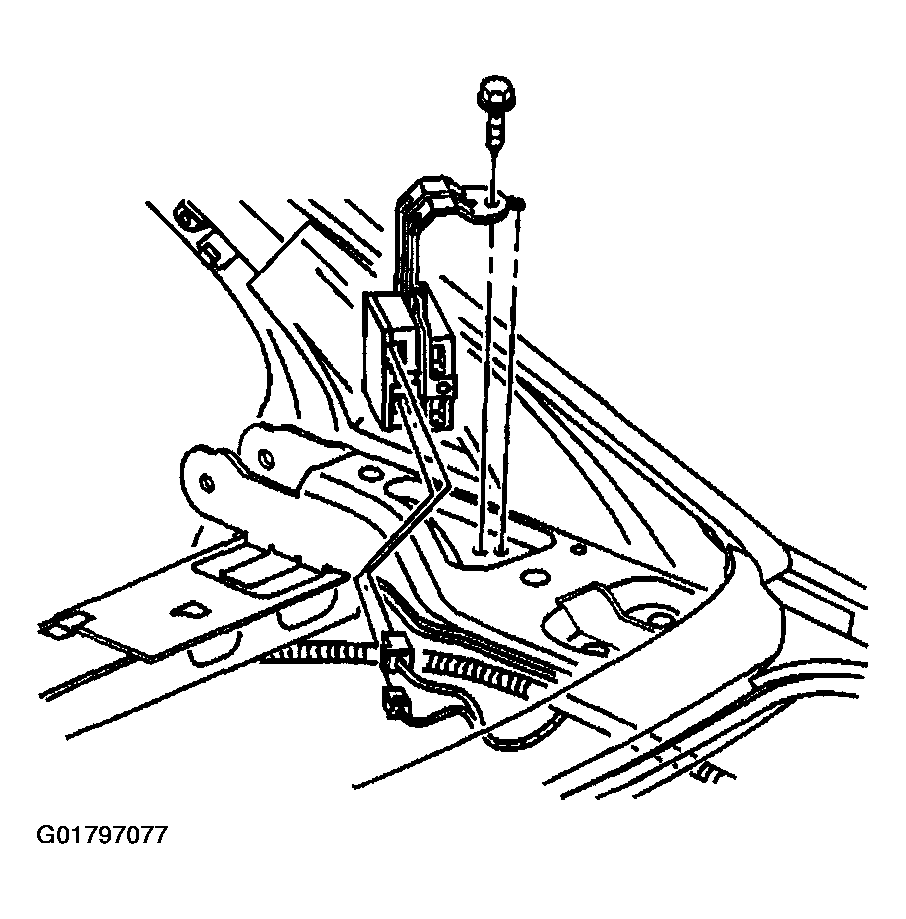

    Fig 1: Installing Fastener, TV Antenna Module & Fastener
    G01797077Courtesy of GENERAL MOTORS CORP.
