Cellular Communication Component Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Under the Rear Compartment Shelf

Courtesy of GENERAL MOTORS CORP.

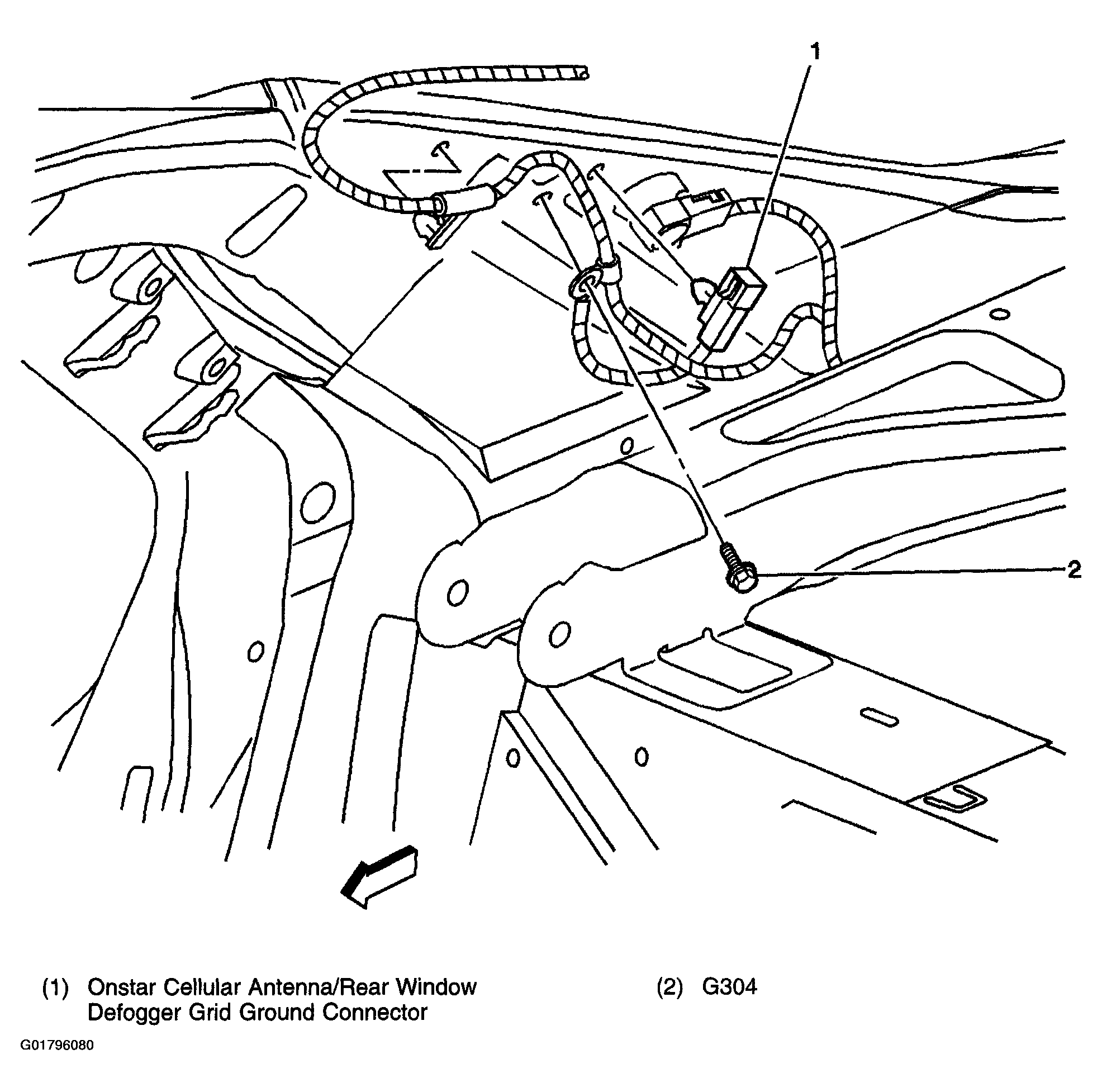

Fig 2: Rear Compartment, Below the Package Shelf

Courtesy of GENERAL MOTORS CORP.

Fig 3: Behind Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

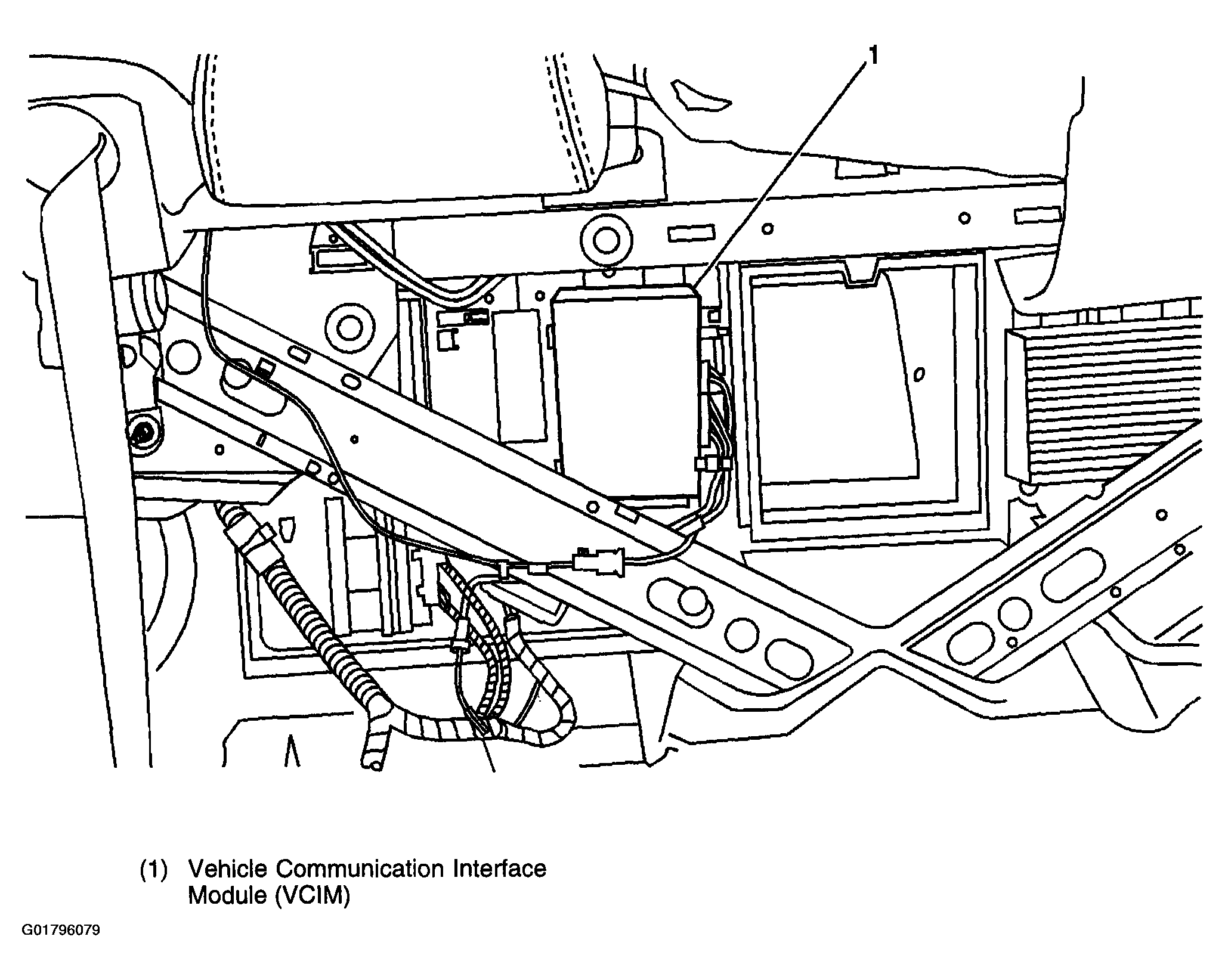

Fig 4: Passenger Compartment, Upper Right Corner

Courtesy of GENERAL MOTORS CORP.
