Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  2. Disconnect the electrical connector from the cellular telephone module.
  3. Remove the four fasteners (3) retaining the cellular telephone module and bracket assembly (2) to the rear shelf trim panel (1).
  4. Remove the cellular telephone module and mounting bracket assembly (2) from the rear shelf trim panel.

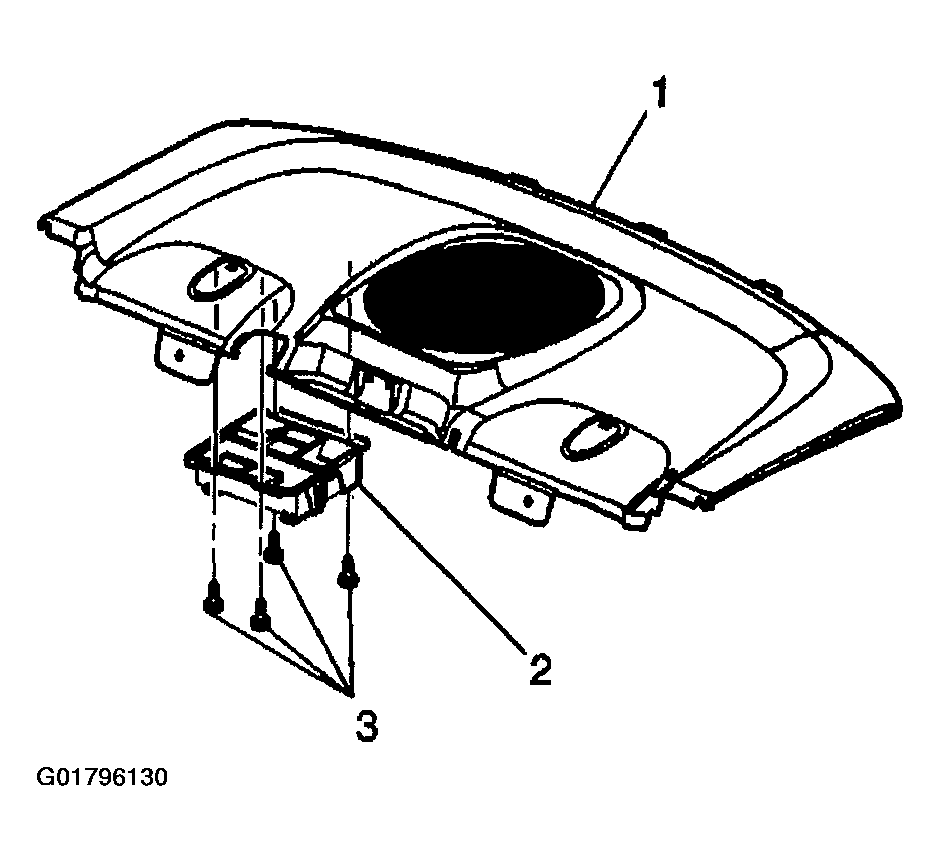

    Fig 1: Removing Fasteners, Cellular Telephone Module, Bracket Assembly & Rear Shelf Trim Panel
    G01796130Courtesy of GENERAL MOTORS CORP.
  5. Release the cellular telephone module mounting bracket retaining tabs (2) and slide the cellular telephone module (3) out of the mounting bracket (1).

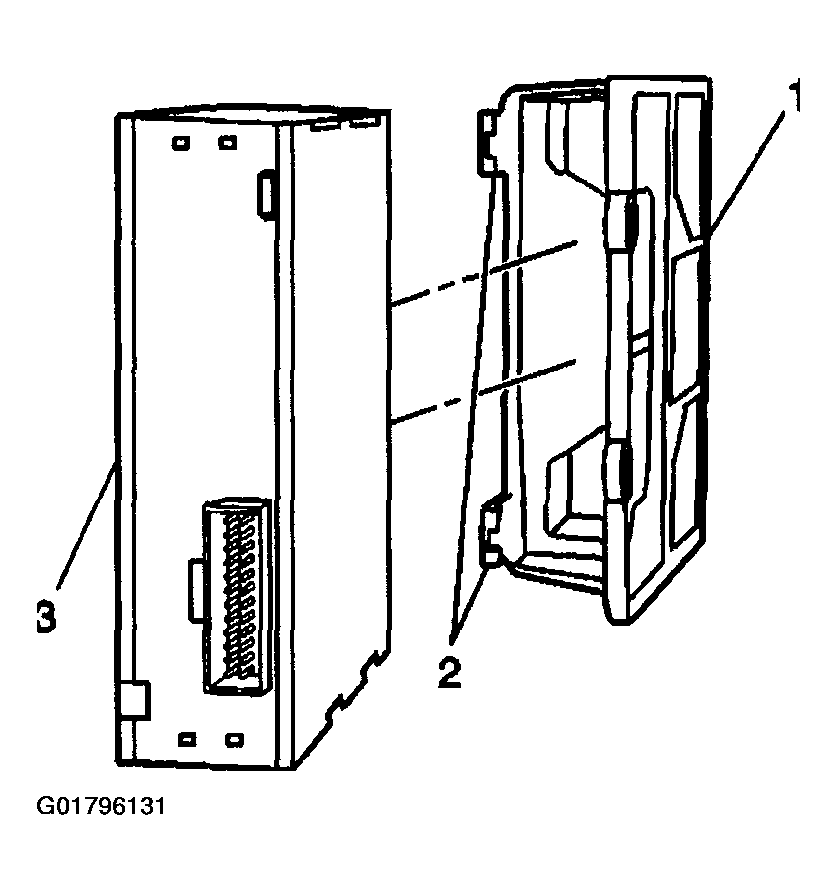

    Fig 2: Cellular Telephone Module, Mounting Bracket & Retaining Tabs
    G01796131Courtesy of GENERAL MOTORS CORP.
