Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- When replacing the VCIM, record the 11-digit electronic serial number (ESN) and the 10-digit station identification (STID) number from the label on the new VCIM (1).
- Connect the antenna cable and electrical connections to the VCIM (1).

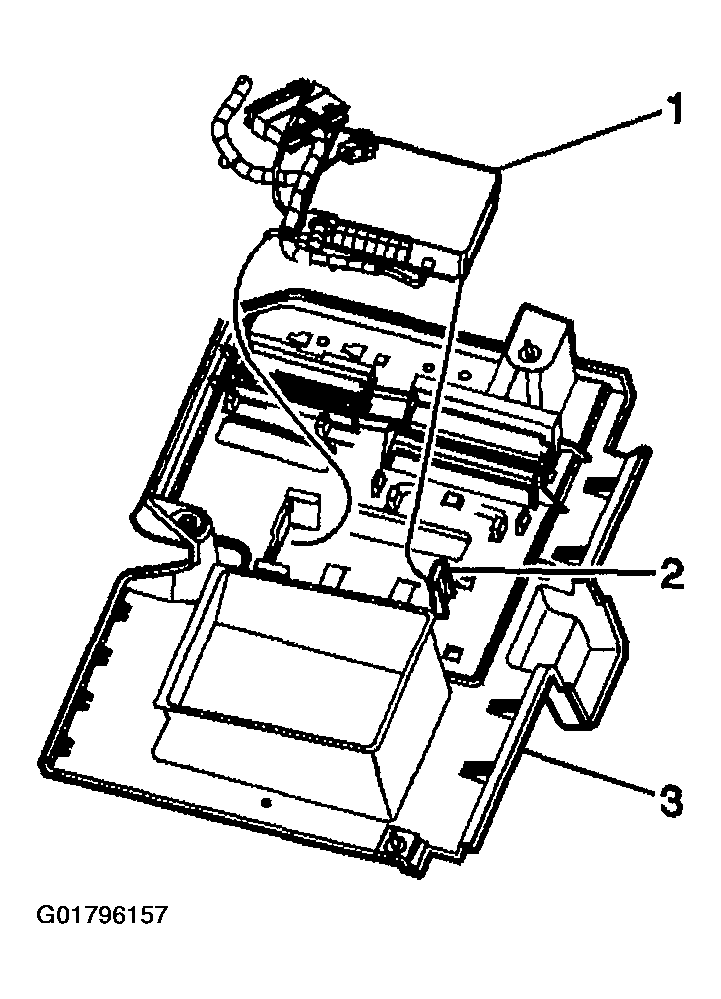

- Slide the VCIM (1) into the electrical component mounting bracket (3).
- Push in on the top of the VCIM (1) until an audible click is heard, indicating the retaining tab (2) has securely fastened the VCIM (1) to the electrical component mounting bracket (3).
- Partially install the electrical component mounting bracket (1) to the vehicle body.

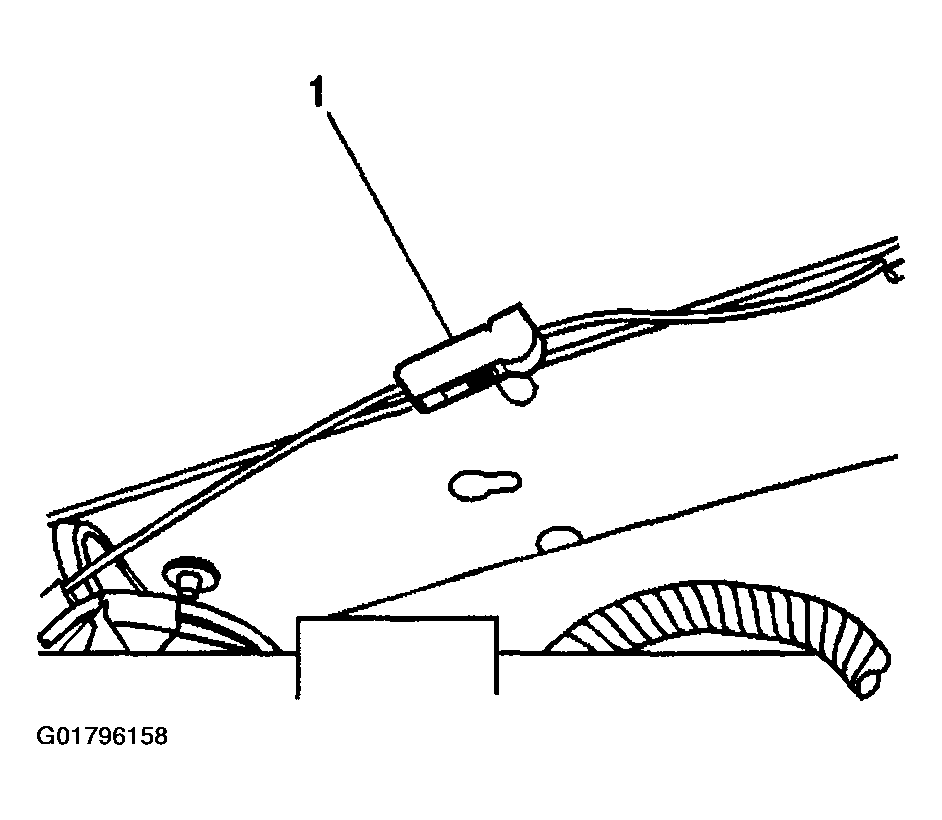

- Attach the GPS antenna cable (1) to the cross car brace.

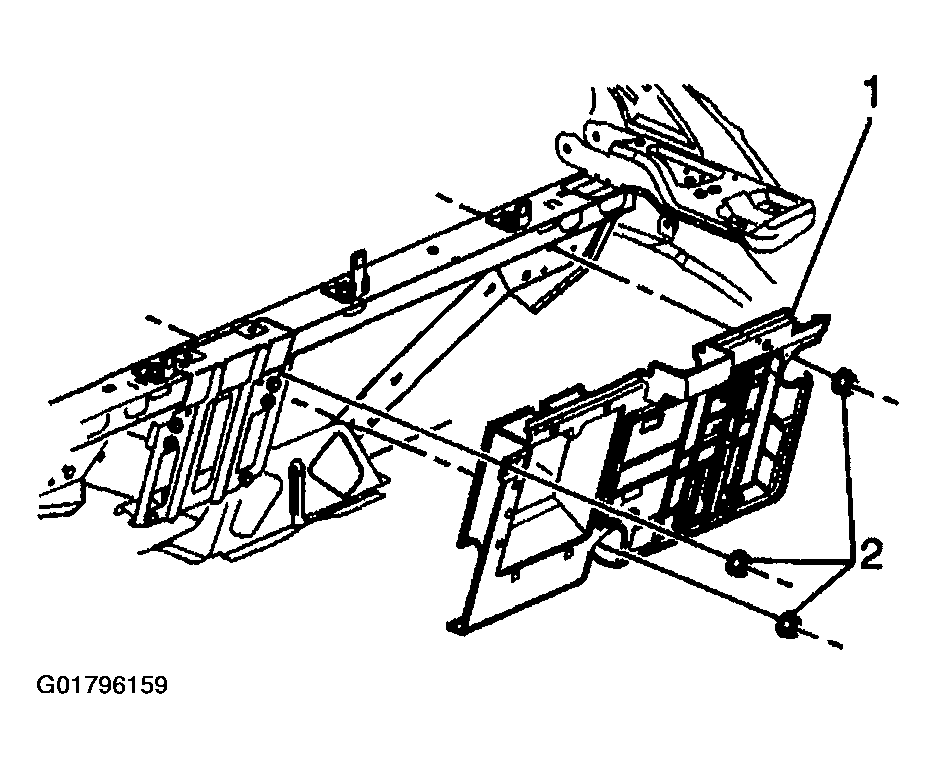

- Install the electrical component mounting bracket (1) to the studs.NOTE: Refer to FASTENER NOTICE .
- Install the electrical component mounting bracket nuts.
Tighten
Tighten the nuts (2) to 9 N.m (80 lb in).
- Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR
.
Important: Pressing and holding the white dot button on the keypad will not reset this version of the OnStar system. This action will cause a DTC to set.
- If replacing the VCIM, perform the following:
- 10.1 Install the scan tool. Use the special functions menu in order to perform the OnStar setup procedure for this vehicle.
- 10.2 Move the vehicle to an open area that is away from tall buildings, and with a clear view of unobstructed sky. Allow the vehicle to run for 10 minutes.
- 10.3 Use the ID Information, Module 2 screen of the scan tool in order to access the new station ID and electronic serial number from the new VCIM.
- 10.4 Press the blue OnStar button twice to connect to OnStar. Tell the advisor that this vehicle has received a new VCIM. Ask the advisor to add the new STID and ESN to the customer's account.
- 10.5 Follow any additional instructions from the OnStar advisor.
