Automatic Level Control Suspension Connector End Views
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

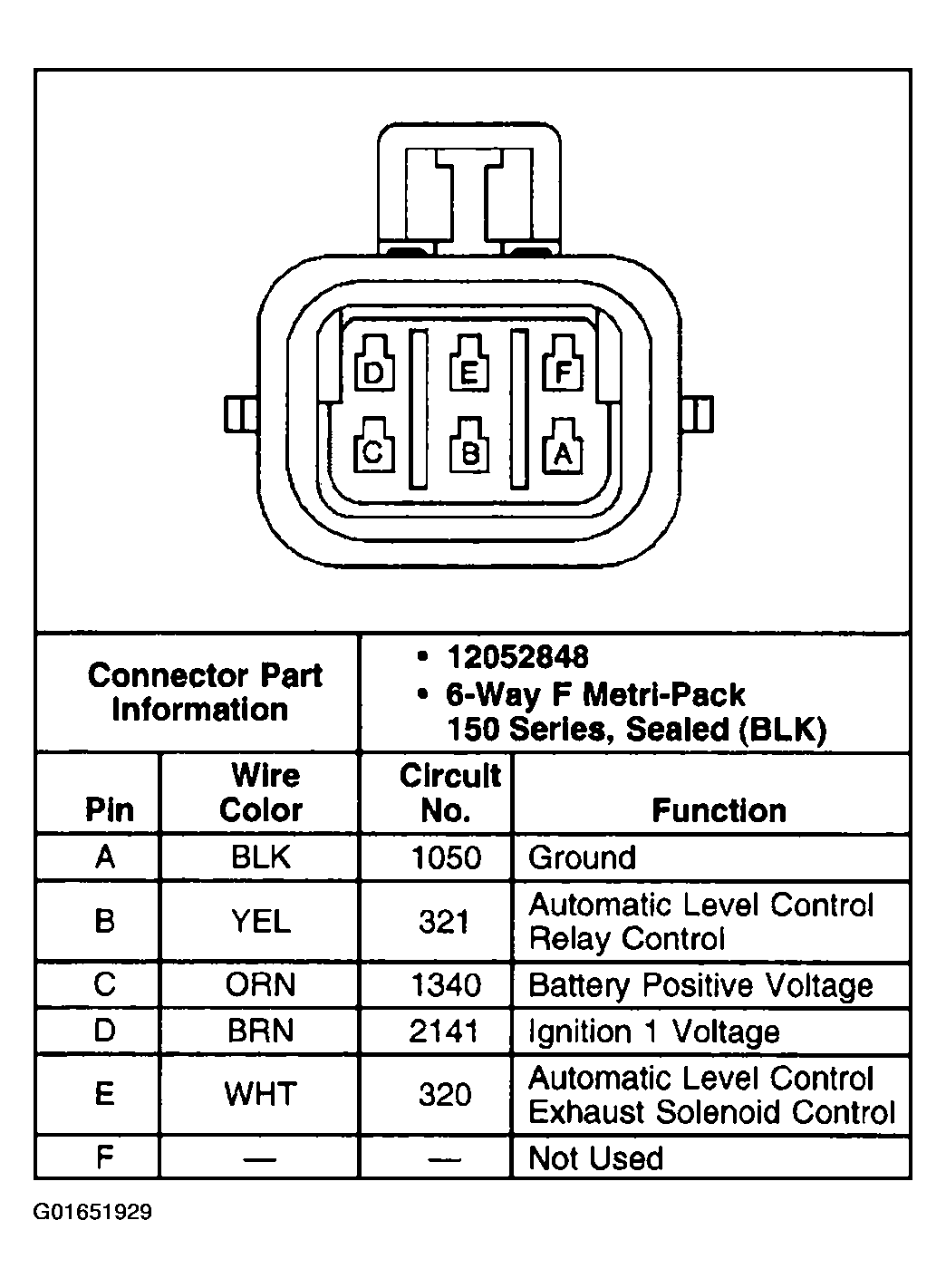

Fig 1: Automatic Level Control (ALC) Compressor
Courtesy of GENERAL MOTORS CORP.

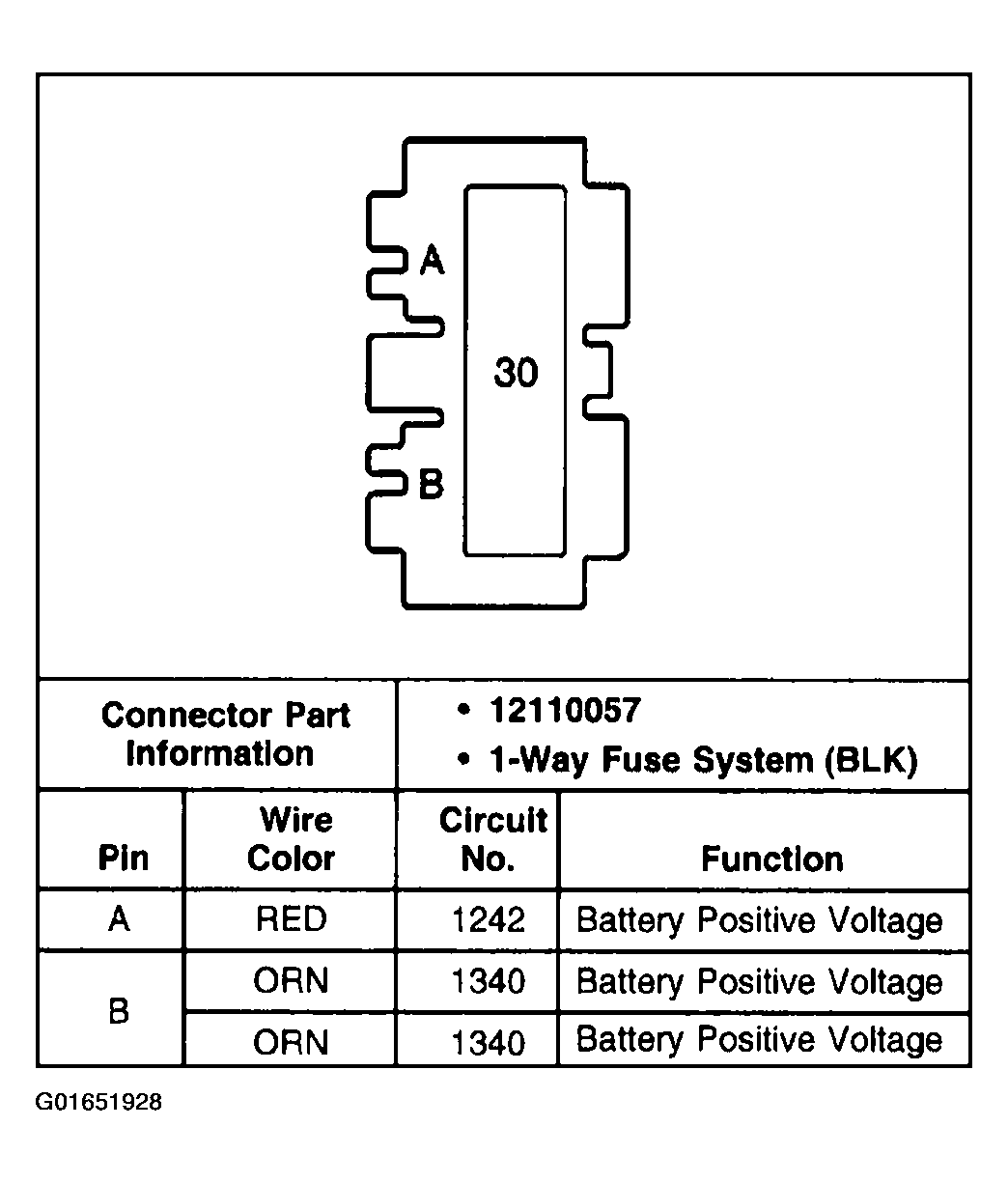

Fig 2: Automatic Level Control (ALC) Fuse Block
Courtesy of GENERAL MOTORS CORP.

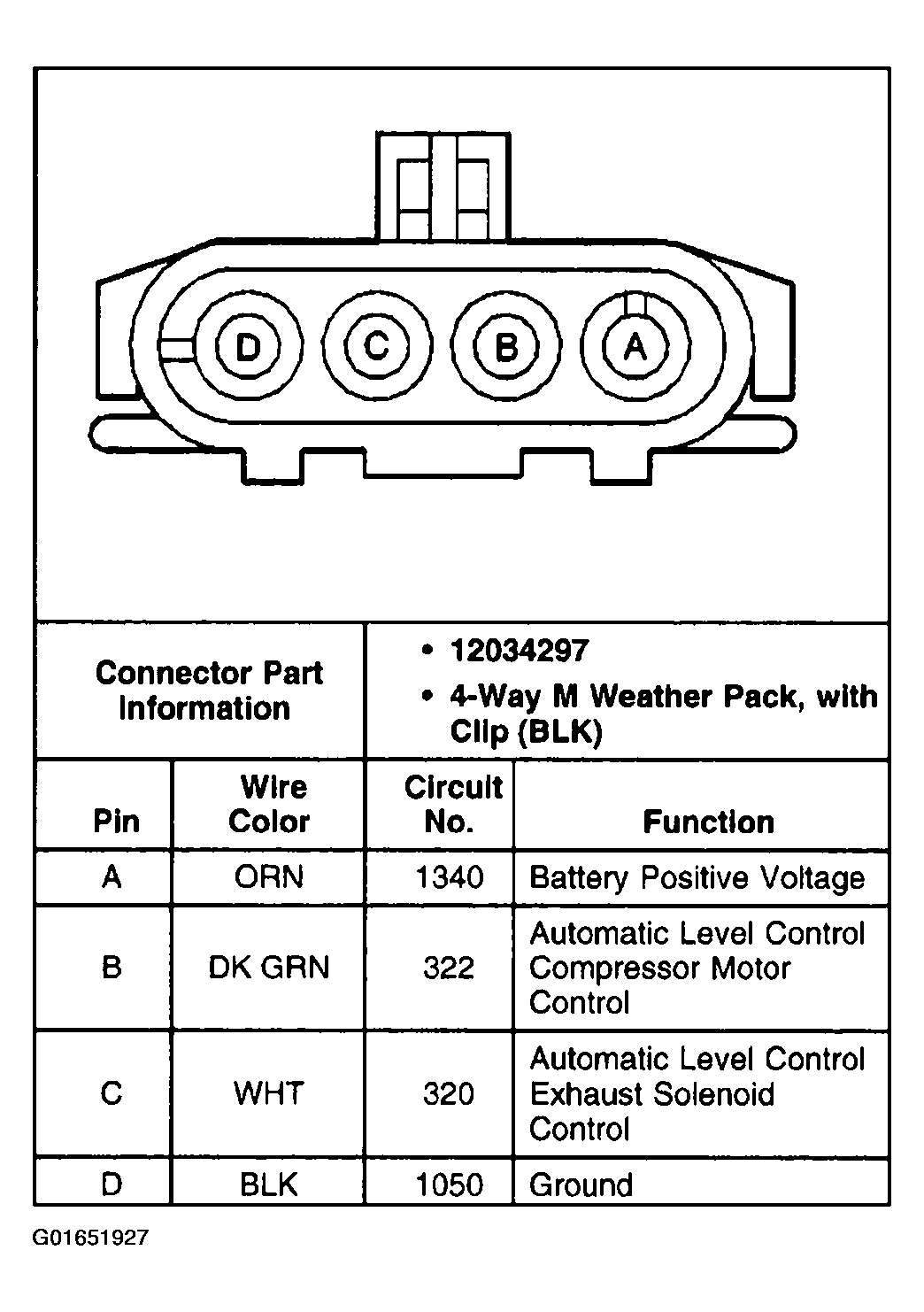

Fig 3: Automatic Level Control (ALC) Sensor (w/o F45)
