Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new gasket on the air compressor assembly.

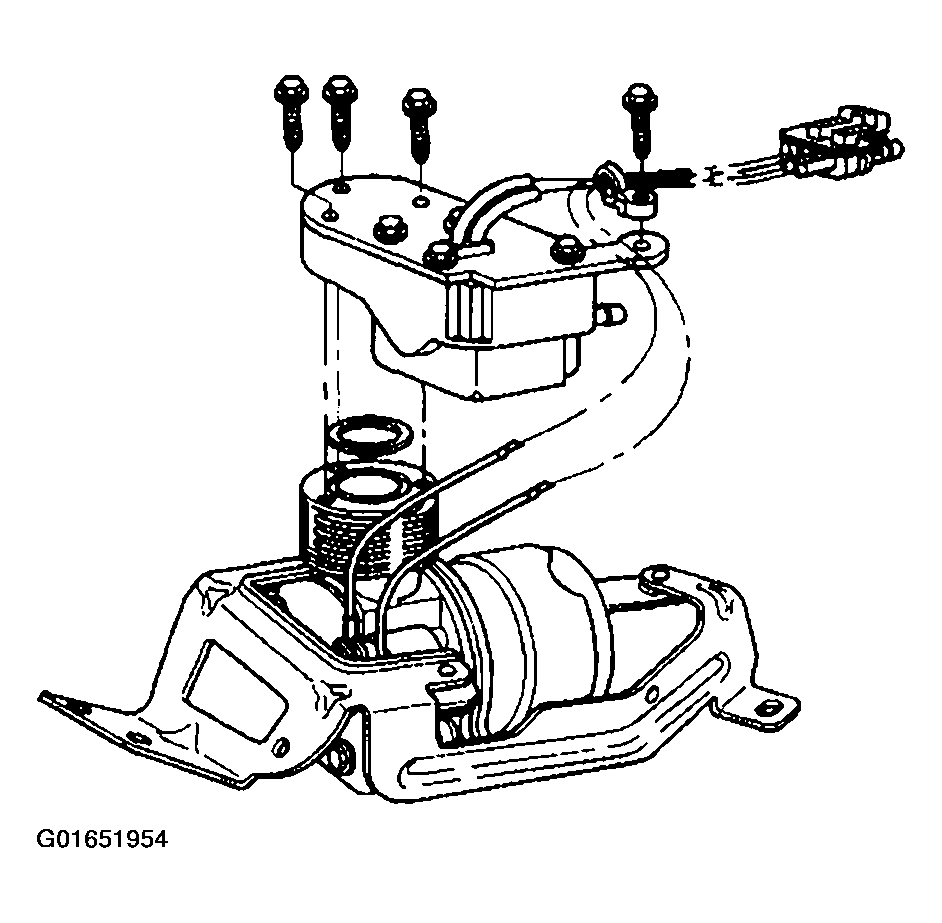

    Fig 1: Installing Air Compressor Head On Air Compressor Assembly With 3 Bolts
    G01651954Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air compressor head on the air compressor assembly with 3 bolts.

    Tighten

    Tighten 3 bolts to 6 N.m (53 lb in).

  3. Install the 2 wire terminals in the air compressor connector.
  4. Install the wrap around 4 wires and secure with 2 harness ties.
  5. Install 4 wires in the harness tie and install the harness tie on the air compressor head with the bolt.

    Tighten

    Tighten the bolt to 3 N.m (26 lb in).

  6. Install the air dryer. Refer to Automatic Level Control Air Dryer Replacement .
  7. Install the air compressor on the vehicle. Refer to Air Compressor Replacement .
